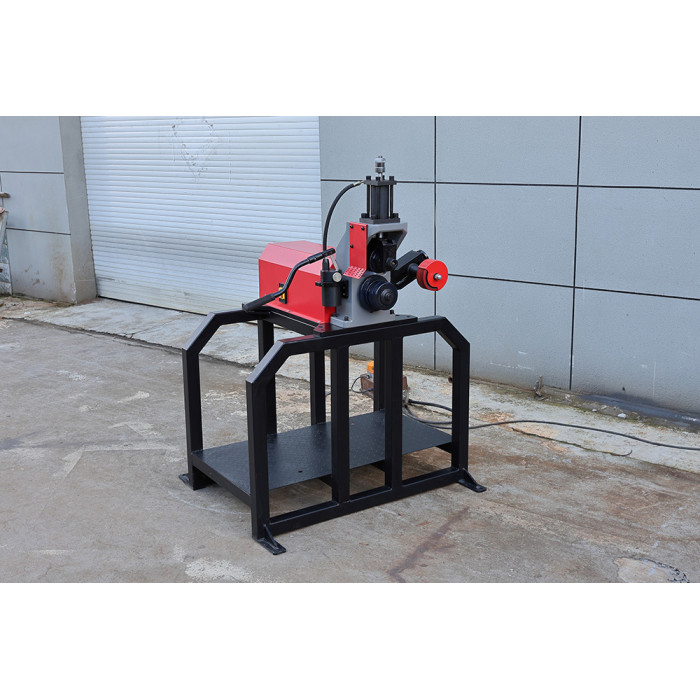

Heavy-duty Roll Grooving Machine for Large-size pipes 8"-32" (RG-K32)
roll groovers are designed to improve speed and efficiency for fire sprinkler and other industrial installations
Detail Information
8"-32" heavy-duty hydraulic roll grooving machine
RG-K32 Design Features
● Model RG-K32 Roll Grooving Machine is designed to roll groove on steel pipes and Stainless Steel.from 8"-32" (DN200~DN800) SCH10 to SCH40. Ideal for use in both workshops and job sitesfor streamlined mass fabrication. Its exceptional strength and durability make it a reliable choice for heavy-duty applications.
● Uitable for a wide range of everyday tasks related to fire-fighting pipes, this roll groover is a versatile tool equipped with a motor, hydraulic feeding pump, foot switch, and pipe stand.
●The interlocking structure of groove roller and drive roller ensures precise control of the pipe sealing surface length.
● The built-in high-performance gear reduction system of the motor allows for a more compact design and lower levels of noise.
● The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
● The roll grooving machine is equipped with a frame and swivel wheels for easy movement and transport.
Pipe Roll Grooving Machine Parameter
Model: |
RG-K32 |
Suitable materials: |
Carbon Steel,SS Pipe |
Fabrication Capacity: |
8"-16" Pipe SCH10/SCH40 18"-32" Pipe SCH10/SCH20 |
Power supply: |
380/440 V |
Frequency: | 50/60 Hz |
Max wall thickness: | 13 mm |
Motor power: | 2200 W |
Output speed: | 20 RPM |
Packing gross weight: | 430 KG |
Packing size: | 125*115*165 CM |
Standard OGS Roll Sets
|
Item Number
|
Description
|
Net weight
|
|
|
911087
|
Drive roller 8"~12" (φ219~φ325)
|
3.5 KG
|
|
|
911088
|
Drive roller 14"~16" (φ355~φ426)
|
3.5 KG
|
|
911089 | Drive roller 18"~24" (φ457~φ630) | 3.5 KG | |
911166 | Drive roller 26"~32" (φ660~φ810) | 3.5 KG | |
912029 | Groove roller 8"~12" (φ219~φ325) | 2.0 KG | |
912030 | Groove roller 14"~16" (φ355~φ426) | 2.0 KG | |
912031 | Groove roller 18"~24" (φ457~φ630) | 2.0 KG | |
912065 | Groove roller 26"~32" (φ660~φ810) | 2.0 KG | |
998038 | Pipe rack for 8"~32" | 35.0 KG | |
998193 | Pipe stabilize | 7.0 KG | |
Optional AGS Roll Set
|
Item Number
|
Description
|
Net weight
|
|
|
911099
|
AGS Groove roller 14"~24" (Φ355~Φ630)
|
3.5 KG
|
|
|
912034
|
AGS Drive roller 14"~24" (Φ355~Φ630)
|
2 KG
|
|
Roll Grooving Machine Configuration
Hydraulic Feeding System
· Smooth and controlled hydraulic feeding
· Stable pressure for consistent groove forming
· Heavy-duty design for large pipe grooving
Groove Depth Adjustment
· Easy groove depth setting for different pipe sizes
· Clear scale for quick adjustment
· Helps maintain consistent groove dimensions
Fully Enclosed Split Hydraulic System
· Fully enclosed design without a breather vent
· Helps reduce oil contamination and replacement frequency
· Extends pump life and reduces maintenance
Heavy-Duty Machine Structure
· Reinforced frame for large-diameter pipe grooving
· Stable support during heavy-duty operation
· Designed for workshop and fabrication use
Pipe Stablizer
· Helps keep large pipes stable during grooving
· Reduces pipe movement and improves groove consistency
· Adjustable for different pipe diameters
Roll Sets
· Available in OGS and AGS configurations
· Covers pipe sizes from 8" to 32"
· High-strength hardened steel for long service life
Adjustable Pipe Stand
· Provides stable support for large and heavy pipes
· Height adjustable for proper pipe alignment
· Makes large-pipe grooving easier and more stable
Foot Switch Control
· Hands-free machine operation
· Easy start and stop during the grooving process
· Allows the operator to focus on pipe positioning
