2inch to 12inch Steel Pipes for 6-35mm electric Hydraulic Groove Cutting Machine

KeyWords

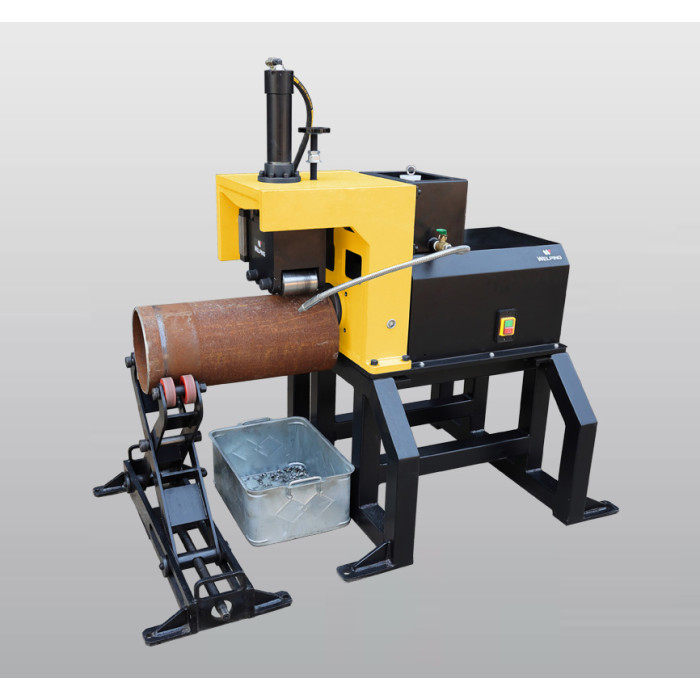

2inch to 12inch Steel Pipes for 6-35mm electric Hydraulic Groove Cutting Machine

The semi-automatic steel hydraulic electric pipe grooving machine is designed for efficiently creating grooves on steel pipes, primarily used in piping systems such as fire protection, plumbing, and HVAC.

Grooving Capacity: 8"-32"

Max Wall Thickness: 6-35mm

Power Supply: 2200W / 3PH

Output Speed: 19RPM

Voltage: 380V

Contact Now

Favorites

Detail Information

8"-32" Electric hydraulic pipe groove machine

Welding 1600mm hydraulic butt welding machine

Below are its main functions and features:

Key Functions:

1. Groove Formation: Accurately processes grooves on steel pipes to ensure secure connections with coupling systems.

2. Compatibility: Handles various pipe diameters and wall thicknesses, making it suitable for diverse project requirements.

3. Semi-Automatic Operation: Combines manual control with automated processes to achieve precision and consistency while offering operational flexibility.

Features:

1. Robust Construction: Built with durable materials to withstand high-intensity operations and ensure a long service life.

2. High Efficiency: Semi-automatic operation speeds up the grooving process while maintaining accuracy.

3. User-Friendly Design: Simple controls and an ergonomic structure make the machine easy to operate, even for users with minimal training.

4. Adjustable Settings: Equipped with adjustable rollers and blades to accommodate different pipe specifications.

5. Compact and Portable: The machine's compact design ensures easy transport and storage, ideal for on-site applications.

This machine is a cost-effective solution for professionals seeking reliable and efficient grooving for steel pipe installations.

Standard Parts of CG-4X Roll Groover

model	CG-4X
Applicable materials	Carbon steel, stainless steel
capacity	8"~32"(DN200~DN800,Φ219~Φ813)
capacity	8"~32"(DN200~DN800,Φ219~Φ813)
power supply	380V
frequency	50Hz/60Hz
Maximum wall thickness	6-35mm
Motor Power	2200W
Output speed	19rpm
Packaging gross weight	485kg
Package Size	120110160cm

Drive Unit

catalog number	stage	Power	Voltage	Frequency
998042	3PH	2200W	380V	50/60HZ

Standard Parts

Item Number	Describe	net weight
922203	Drive roller 2"~3" (Φ60~Φ89)	5kg
911204	Drive roller 3½ "~6" (Φ101~Φ168)	6.7kg
912008	Groove roller 8"-12" (Φ219~Φ325)	13.2kg
998149	Cutting tool 2"~3½” (Φ60~Φ101)	0.2kg
998150	Cutting tool 4"~6" (Φ114~Φ168)	0.2kg
998154	Groove roller 8"-12" (Φ219~Φ325)	0.2kg
998151	Cutting tool 10"~20" (Φ273~Φ508)	0.2kg
998152	Cutting tool 22"-32" (Φ558~Φ813)	0.2kg

Product details

Pipe Roll Grooving Machine Comparasion

download

_{Roll grooving pipe cutting machine welding electronic catalog}
