Hydraulic Inward and Outward Roll Grooving Machine for Steel Pipe SCH10/SCH40 3/4"-8"(RG-2T)
Hydraulic Inward and Outward Roll Grooving Machine for Steel Pipe SCH10/SCH40 3/4"-8"(RG-2T)
Suitable to form inward and outward groove on 3/4"-8" aluminum pipes and stainless steel pipes, by changing the corresponding roller sets.
- Grooving Capacity
- 3/4"-8"
- Max Wall Thickness
- 4mm
- Power Supply
- 700W
- Power
- 220V/380V
Detail Information

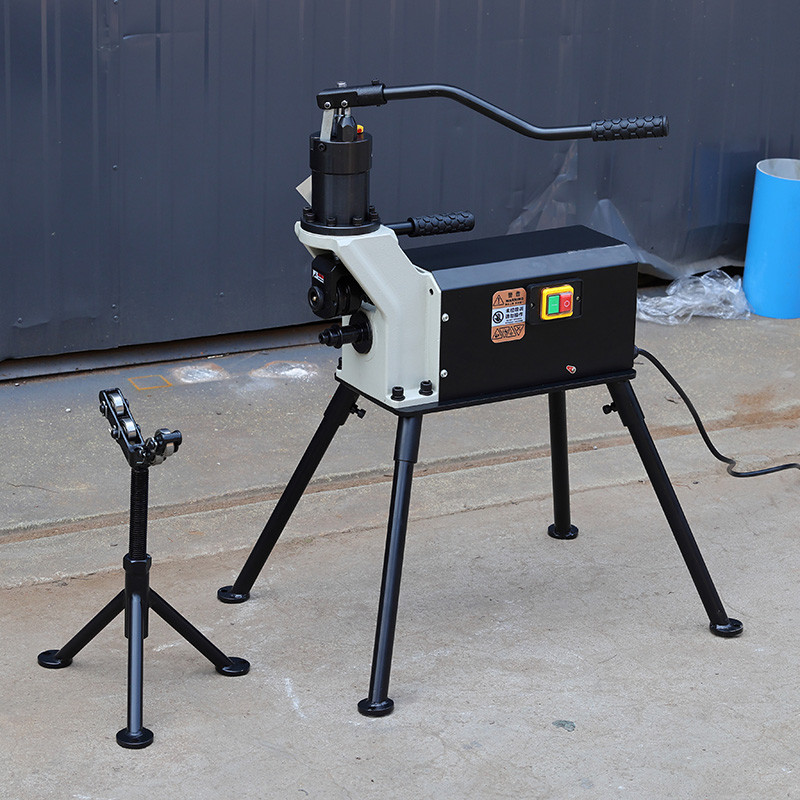

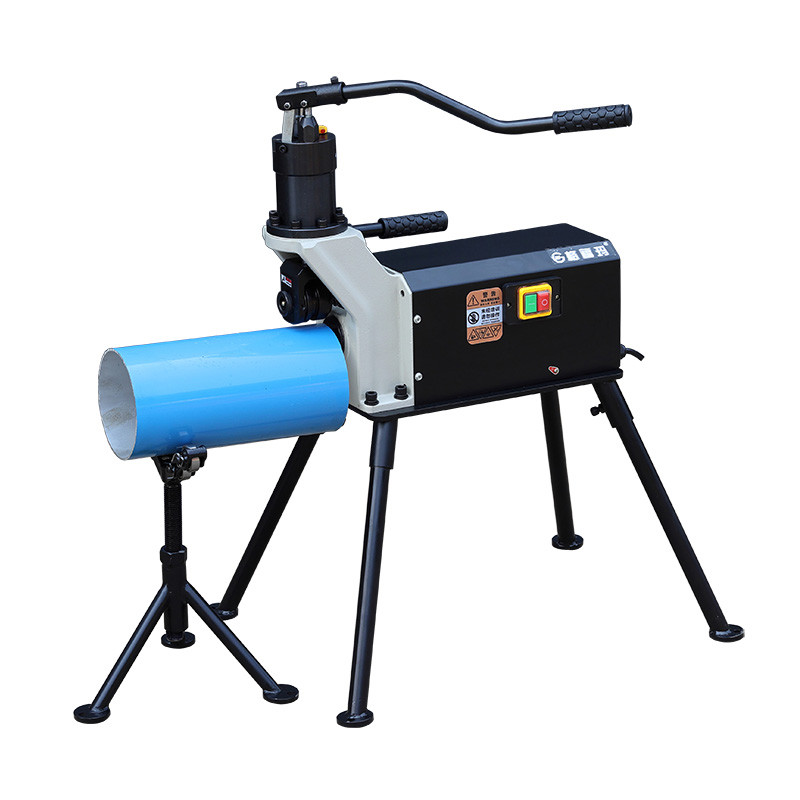

3/4"-8" inward and outward groove rolling machine
The RG-2T Inward and Outward roll grooving machine is suitable to form inward and outward groove on 3/4"-8" aluminum pipes and stainless steel pipes, by changing the corresponding roller sets.

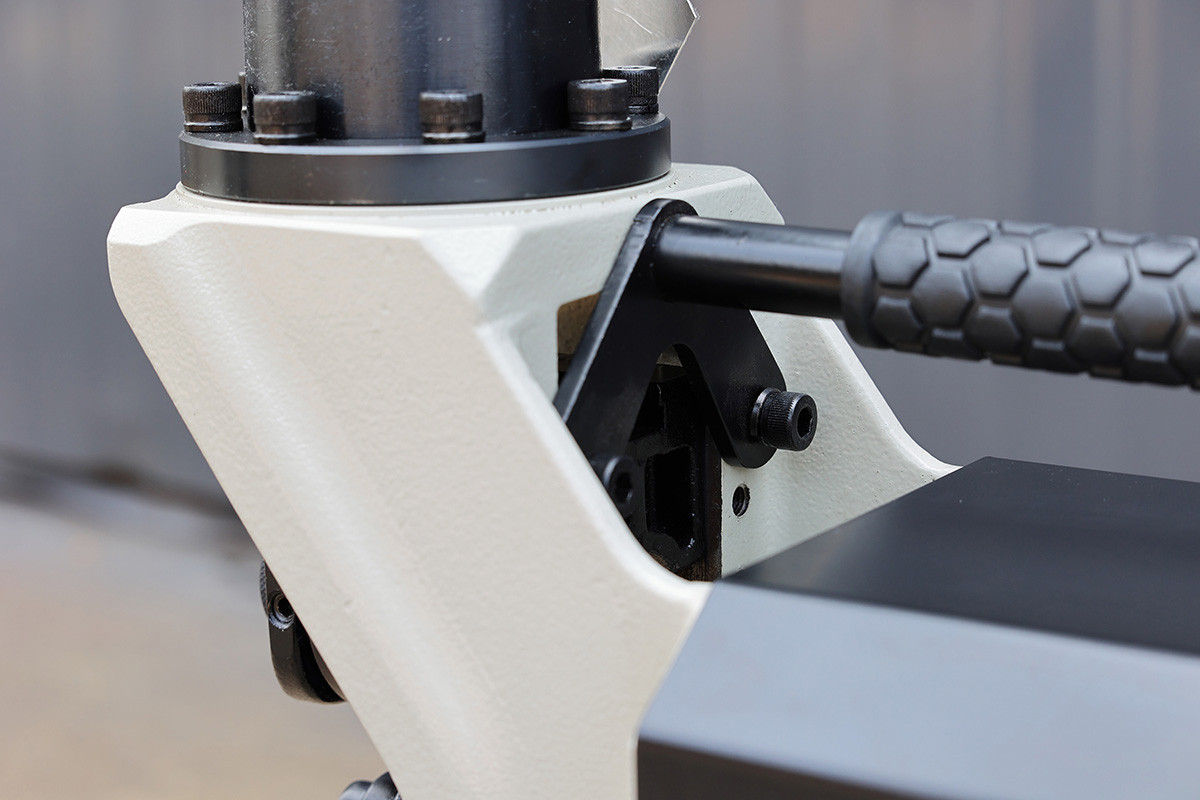

Lightweight design with detachable handles, allowing easy one-person transport.
Inbuilt high-performace gear reducing motor contributes compact size and low noise.

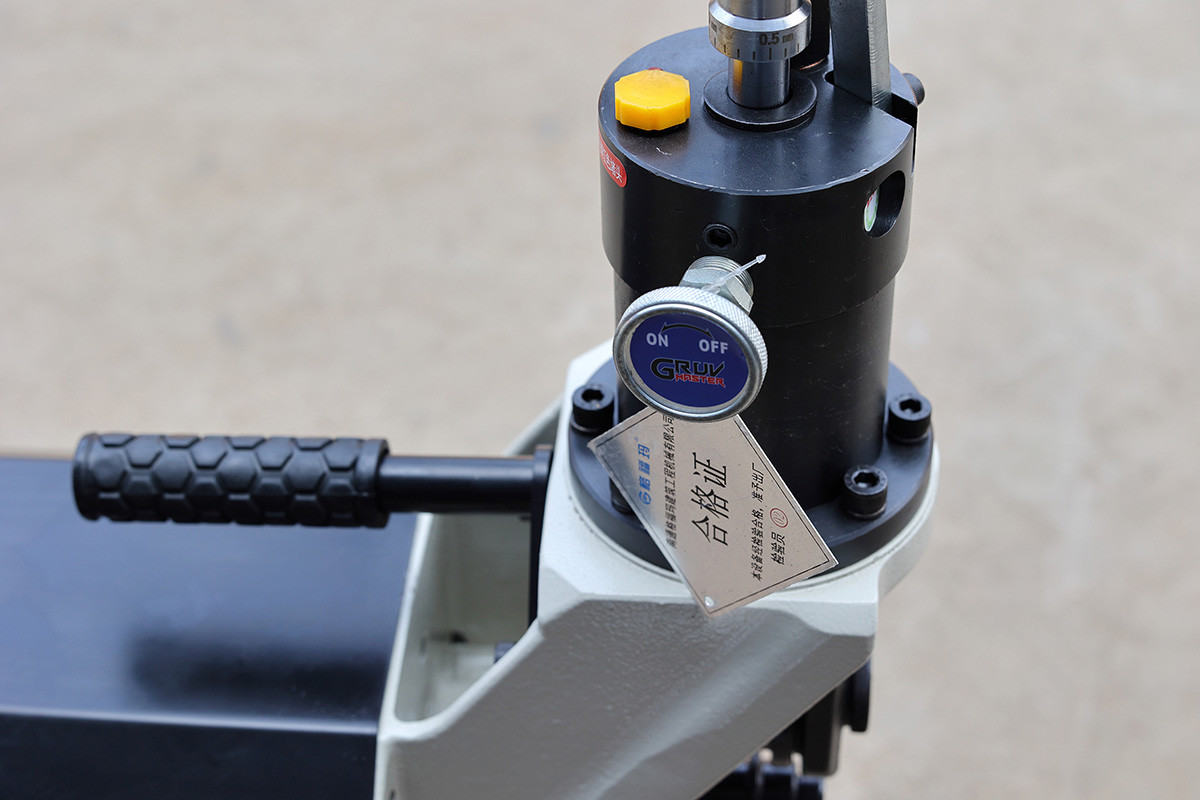

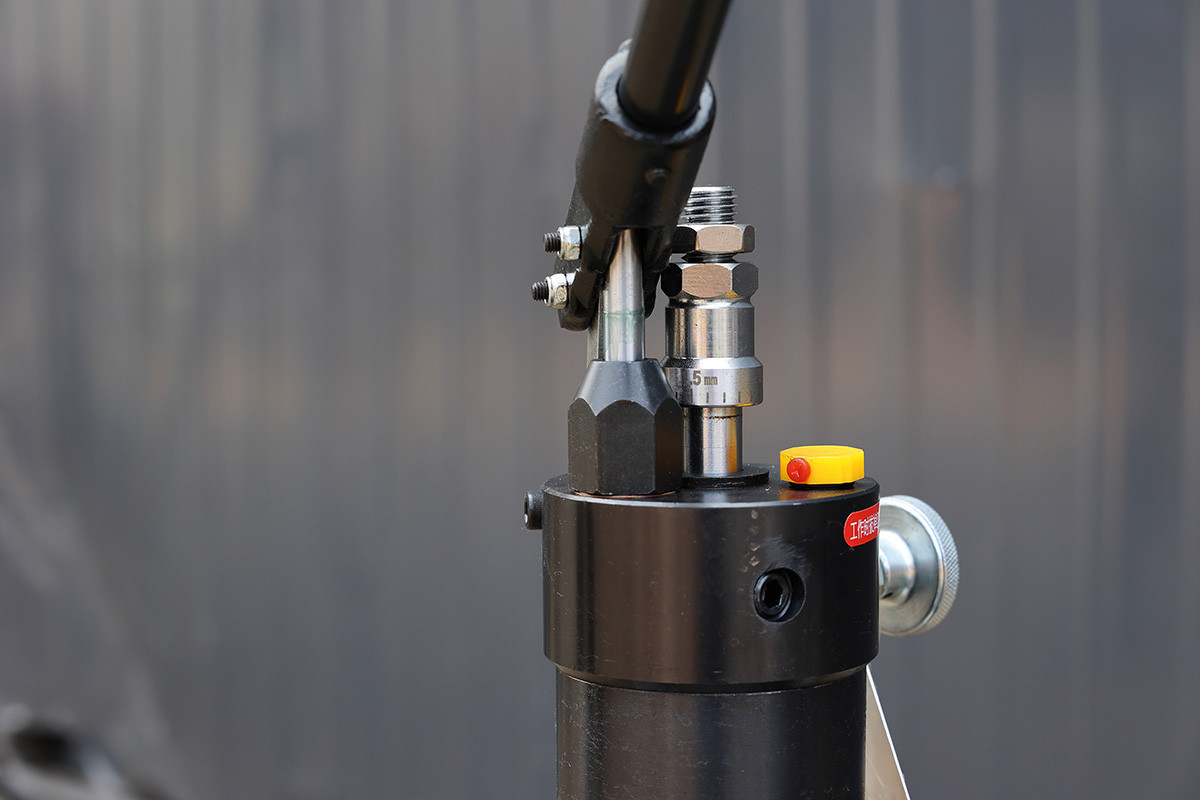

The integrated hydraulic feeding pump with built-in depth adjustment screw and lock nut ensure high quality grooves and high efficiency.
scope
|
model
|
RG-2T
|
|
Applicable materials
|
aluminum, stainless steel
|
|
capacity
|
Suitable for 3/4"-8" steel pipe
|
|
power supply
|
220V/380V
|
frequency | 50Hz/60Hz |
Maximum wall thickness | Aluminum pipe(4mm)Stainless steel pipe(3mm) |
Motor Power | 700W |
Packaging gross weight | 33kg |
Package Size | 75*40*77cm |
Ordering Information
|
catalog number
|
stage
|
strength
|
Voltage frequency
|
|
940920
|
single
|
700W
|
220V, 50/60HZ
|
|
940921
|
three phase
|
700W
|
380V, 50/60HZ
|
Standard Parts
|
Item Number
|
describe
|
net weight
|
|
|
24001
|
Convex roller (φ20~φ32)
|
0.40kg
|
|
|
24002
|
Convex roller (φ40~φ50)
|
0.40kg
|
|
|
24003
|
Convex roller (φ60~φ200)
|
0.40kg
|
|
24004 | Driving roller (φ50~φ150) | 0.60kg | |
24005 | Concave roller (φ20~φ32) | 0.50kg | |
24006 | Concave roller (φ40-φ50) | 0.40kg | |
24007 | Concave roller (φ60~φ200) | 0.30kg | |
12018 | 2''-6'' Groove roller | 0.40kg | |
98169 | 3/4''-8'' pipe rack | 2.20kg | |
Product details picture

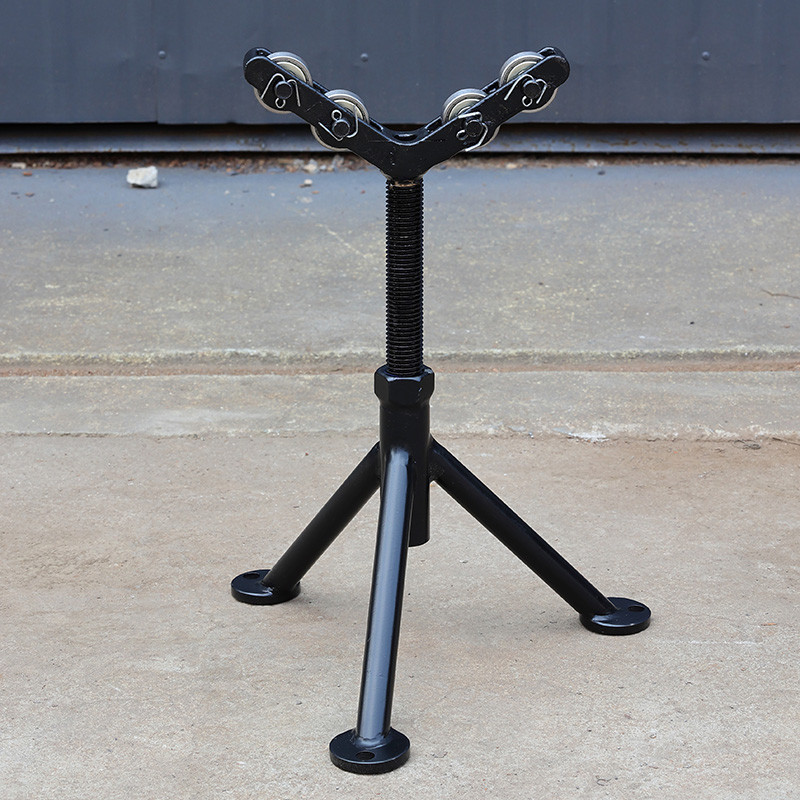

Pipe rack
Suitable for 3/4"-8" steel pipe

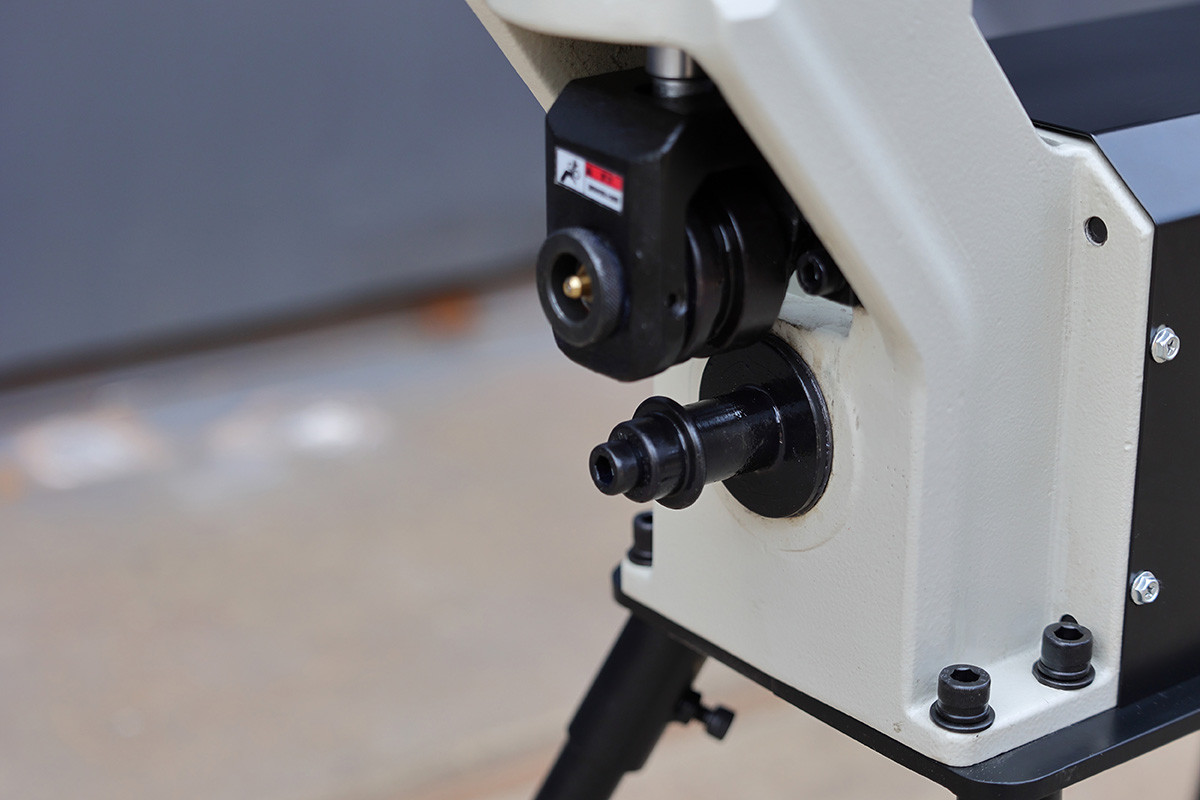

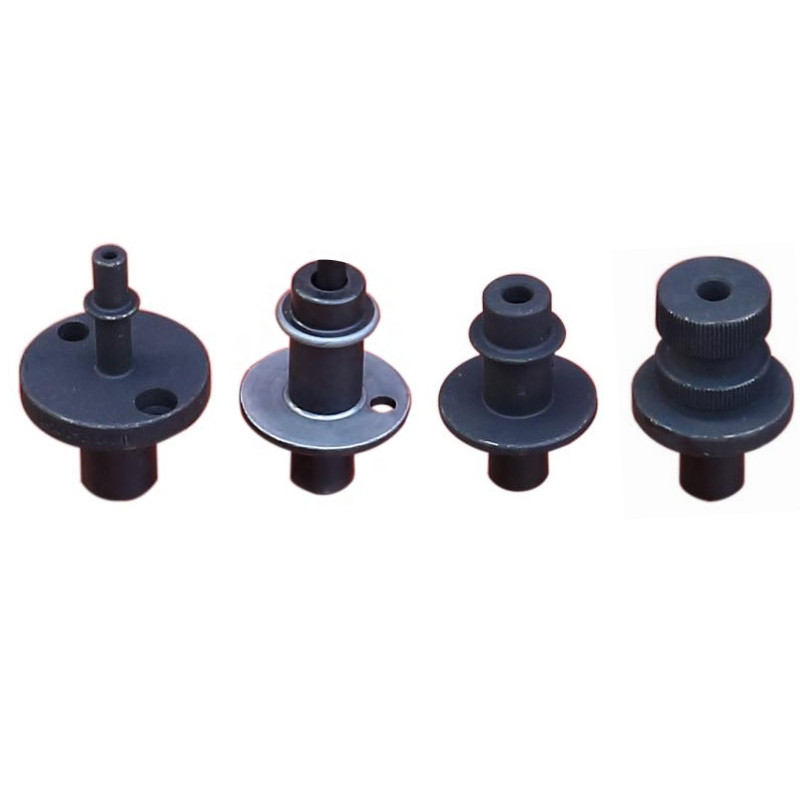

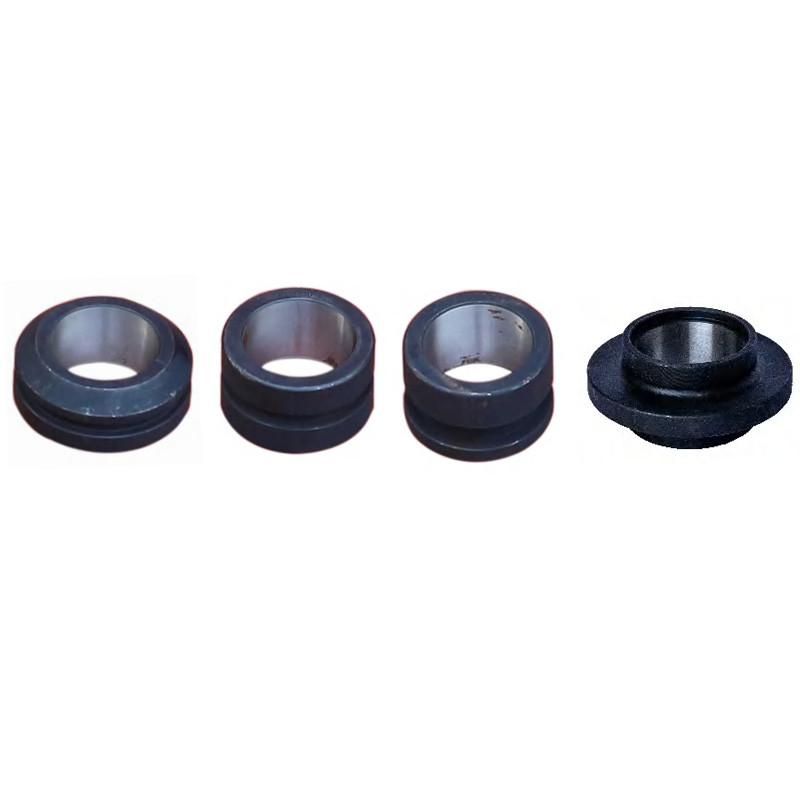

Convex roller & Drive roller
A set of convex roller (φ20~φ32)
A set of convex roller (φ40~φ50)
A set of convex roller (φ60~φ200)
A set of drive roller 8"-12" (φ50~φ150)
Convex roller & Groove roller
A set of concave roller (φ20~φ32)
A set of concave roller (φ40~φ50)
A set of concave roller (φ60~φ200)
A set of groove roller (2''-6'')
