WELPING Hand-Push Butt Fusion Machine: A Portable Solution for HDPE Pipe Welding
The WELPING hand-push butt fusion machine is designed for the on-site welding of thermoplastic pipes.
For many plastic pipeline projects, contractors need welding equipment that is easy to transport, simple to operate and reliable under field conditions.
Large hydraulic butt fusion machines are suitable for intensive and large-diameter pipeline construction. However, for small and medium-diameter pipes, irrigation projects, repair work and locations with limited working space, a compact manual machine can provide a more practical solution.
The WELPING hand-push butt fusion machine is designed for the on-site welding of thermoplastic pipes. With its double-handle manual operating system, stable welded frame, electric facing tool and temperature-controlled heating plate, the machine provides an efficient solution for joining PE, PP and PVDF pipes.
Compact Double-Handle Design

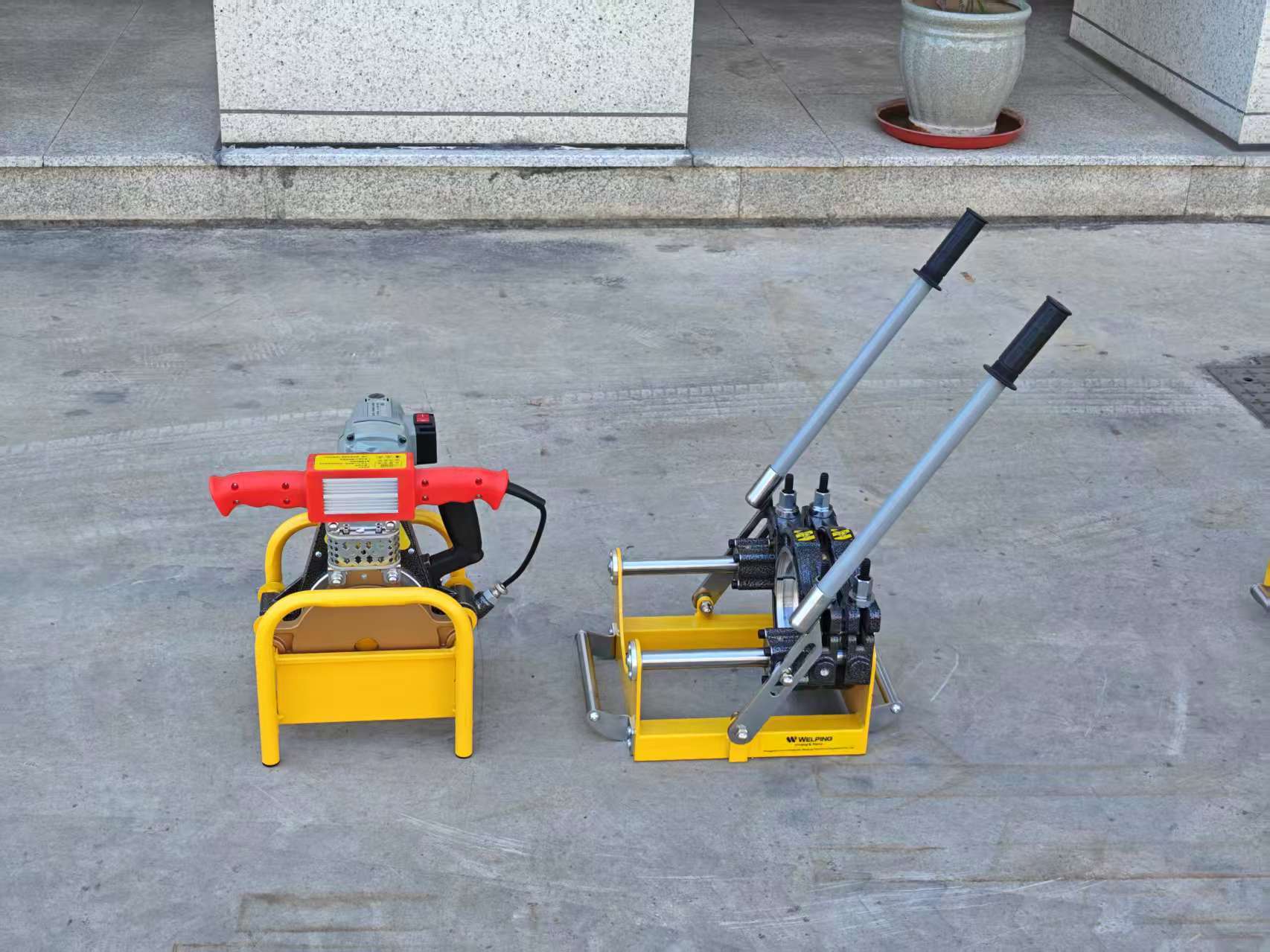

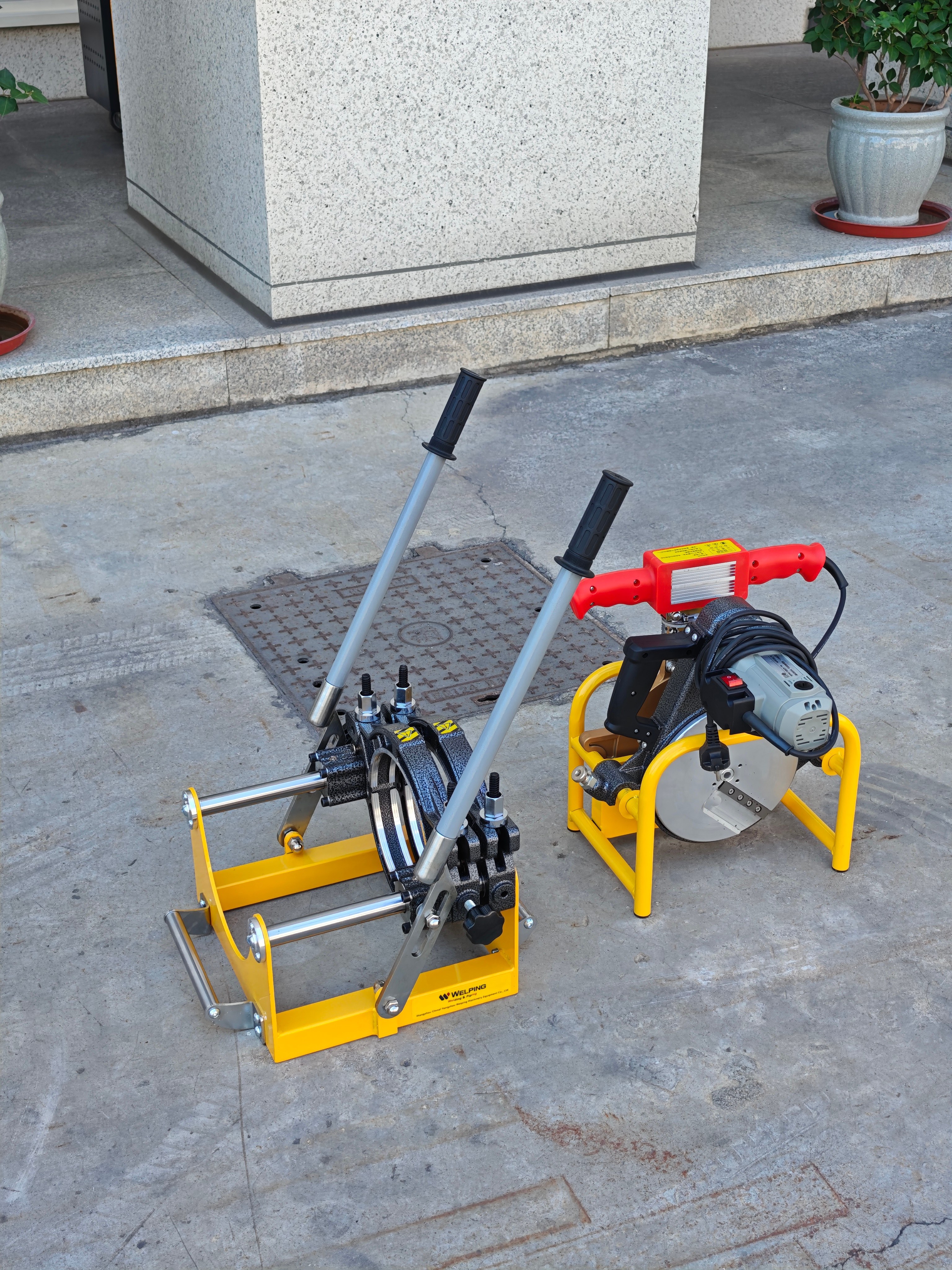

One of the most recognizable features of the WELPING manual butt fusion machine is its double-handle operating structure.
The extended handles provide mechanical leverage, allowing the operator to move the pipe carriage and apply fusion force manually. Compared with short operating levers, the longer handles help improve control during pipe facing, heating and jointing.
The two-handle arrangement also allows the operator to control the machine while maintaining a reasonable distance from the heated pipe surfaces.
This design is especially useful for:
On-site pipeline installation
Agricultural irrigation systems
Municipal repair projects
Small construction sites
Workshop pipe prefabrication
Projects where hydraulic equipment is inconvenient
Two-Clamp Pipe Fixing System

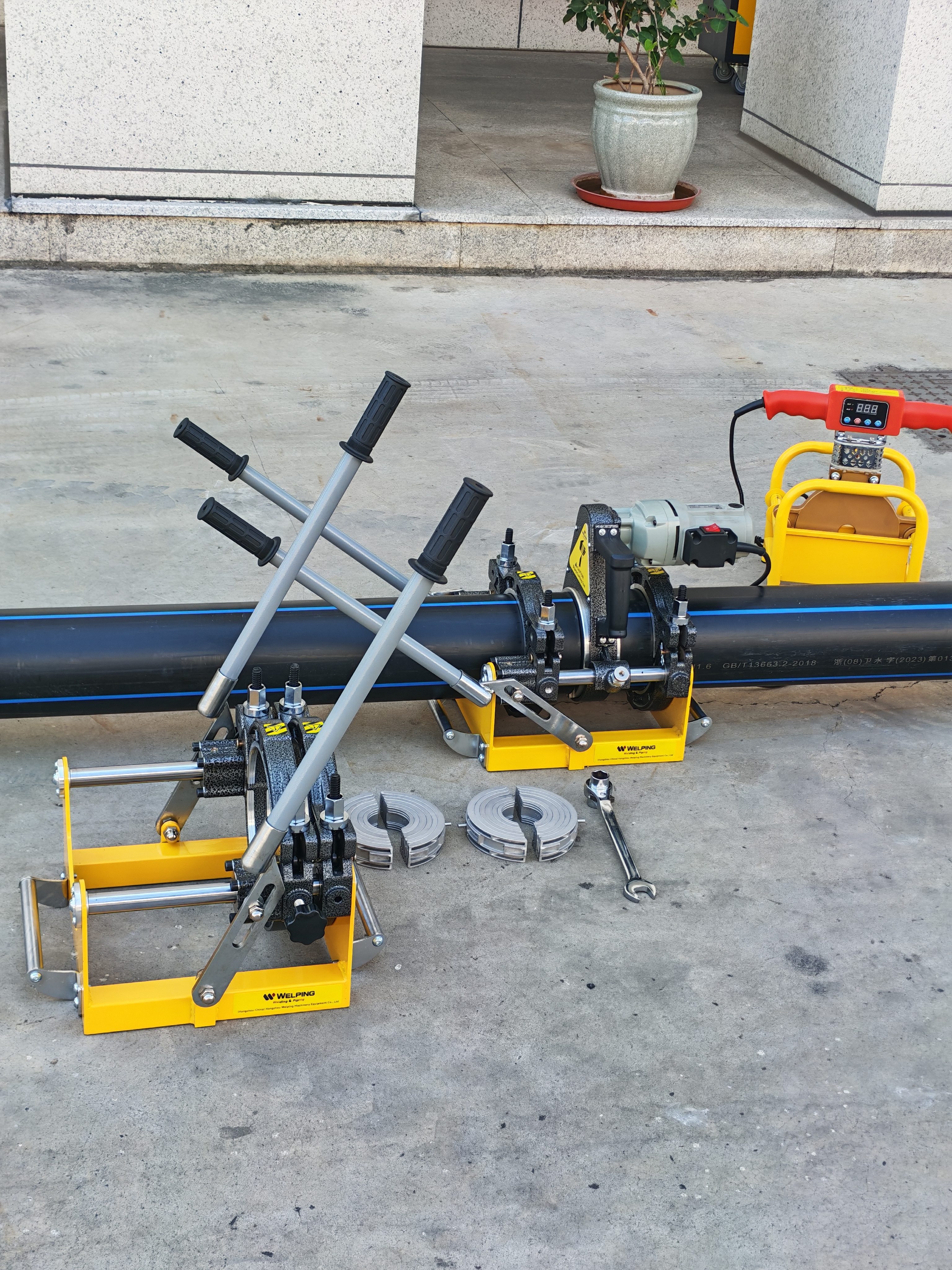

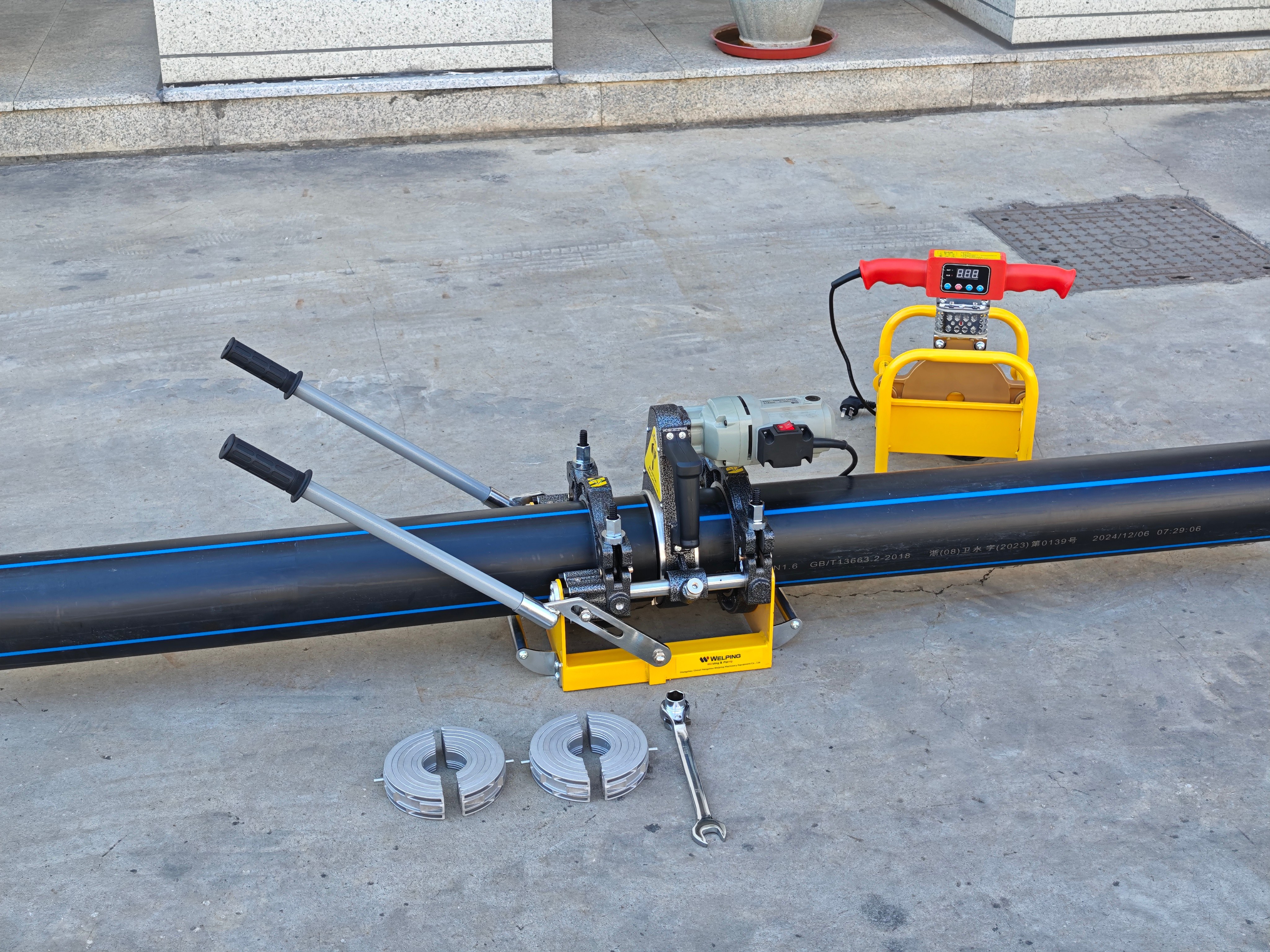

The machine uses a compact two-clamp arrangement to hold the pipes in position.
Each clamp can be tightened according to the pipe diameter. Interchangeable aluminium reducer inserts allow the main frame to accommodate different pipe sizes.
Correct clamping helps:
Prevent pipe movement
Improve axial alignment
Reduce high-low misalignment
Maintain stable pressure during cooling
Produce a more uniform fusion bead
Before welding, operators should always check that the two pipe ends are positioned on the same centreline.
Manual or Hydraulic Butt Fusion Machine: Which One Should You Choose?
A manual hand-push machine is suitable when:
Pipe diameters are relatively small
The machine must be moved frequently
The project volume is moderate
Working space is limited
Simple maintenance is preferred
Operators require a cost-effective solution
A hydraulic machine may be more appropriate when:
Pipe diameters are larger
Welding is performed continuously
More precise pressure monitoring is required
The project has strict recorded welding parameters
The pipe wall thickness requires higher fusion force
Choosing the correct machine depends on the pipe diameter, SDR, project volume, working environment and applicable welding standard.
The WELPING WP160D2 and WP200D2 hand-push butt fusion machines provide a practical combination of portability, mechanical simplicity and complete welding functions.
The stable welded frame supports pipe alignment, the geared facing tool prepares clean welding surfaces, and the PTFE-coated heating plate provides controlled heating. The double-handle operating structure allows the operator to control carriage movement directly without a hydraulic station.
For irrigation contractors, municipal installation teams, maintenance companies, pipeline distributors and equipment rental businesses, the WELPING hand-push series offers a convenient solution for welding small and medium-diameter thermoplastic pipes.
