RG-4X Pro: Heavy-Duty Structural Upgrades for Large-Diameter Pipe Grooving
Large-diameter steel pipes are widely used in fire protection mains, industrial piping systems, workshop prefabrication, and major construction projects. As pipe sizes and workloads increase, users require greater machine rigidity, more reliable pipe support, and a more practical operating setup.

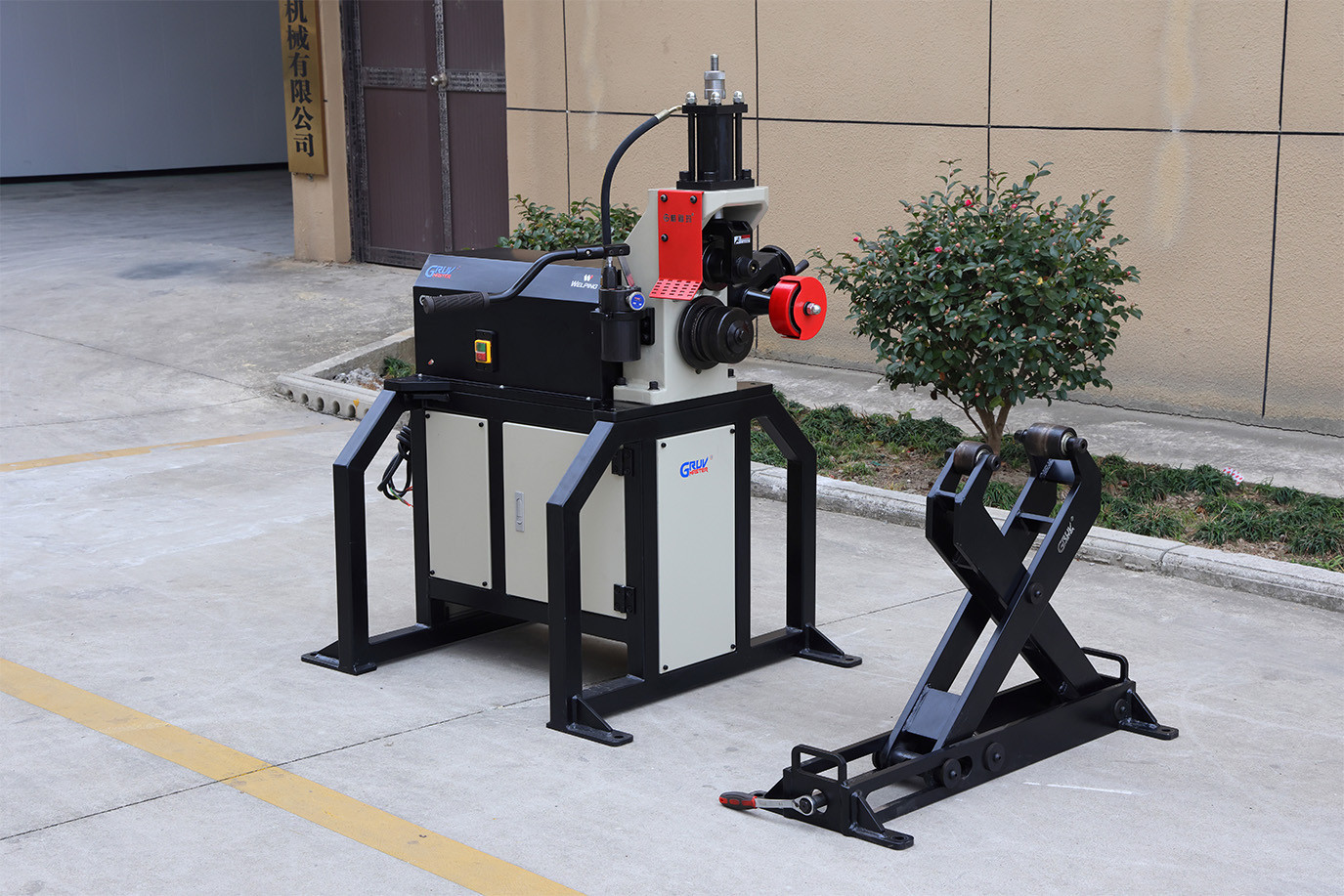

Developed for these demanding applications, the Gruvmaster RG-4X Pro is a heavy-duty roll grooving machine designed for 8"–24" steel pipes. Its advantages extend beyond its large working range. The Pro version introduces several structural and functional upgrades, including a new frame-style base, an integrated storage cabinet, a reinforced pipe stand, a Pro pipe stabilizer, and an interlocking roll set.
Built for 8"–24" Large-Diameter Steel Pipes
The RG-4X Pro is designed to groove steel pipes from 8" to 24", making it suitable for large fire protection mains, industrial piping systems, workshop fabrication, and on-site pipe installation.
Large-diameter pipes are heavier and generate greater loads during the grooving process. A machine must do more than simply rotate the pipe. It must maintain stable forming pressure and produce a consistent groove profile throughout the operation.
For this reason, machine rigidity, pipe support, roller design, and overall operating stability are especially important when grooving large-diameter pipes.
New Frame-Style Base for Greater Stability
The RG-4X Pro features a newly designed frame-style base that provides a stronger and more stable foundation for heavy-duty grooving.
When working with 8"–24" pipes, both the pipe weight and the forming pressure are considerably higher than those encountered in smaller-pipe applications. An insufficiently rigid base may allow vibration or machine movement, potentially affecting groove depth and consistency.
The upgraded base helps keep the machine steady throughout the grooving process, making it better suited for heavy pipes, larger diameters, and extended operating periods.
Integrated Storage Cabinet for More Efficient Operation

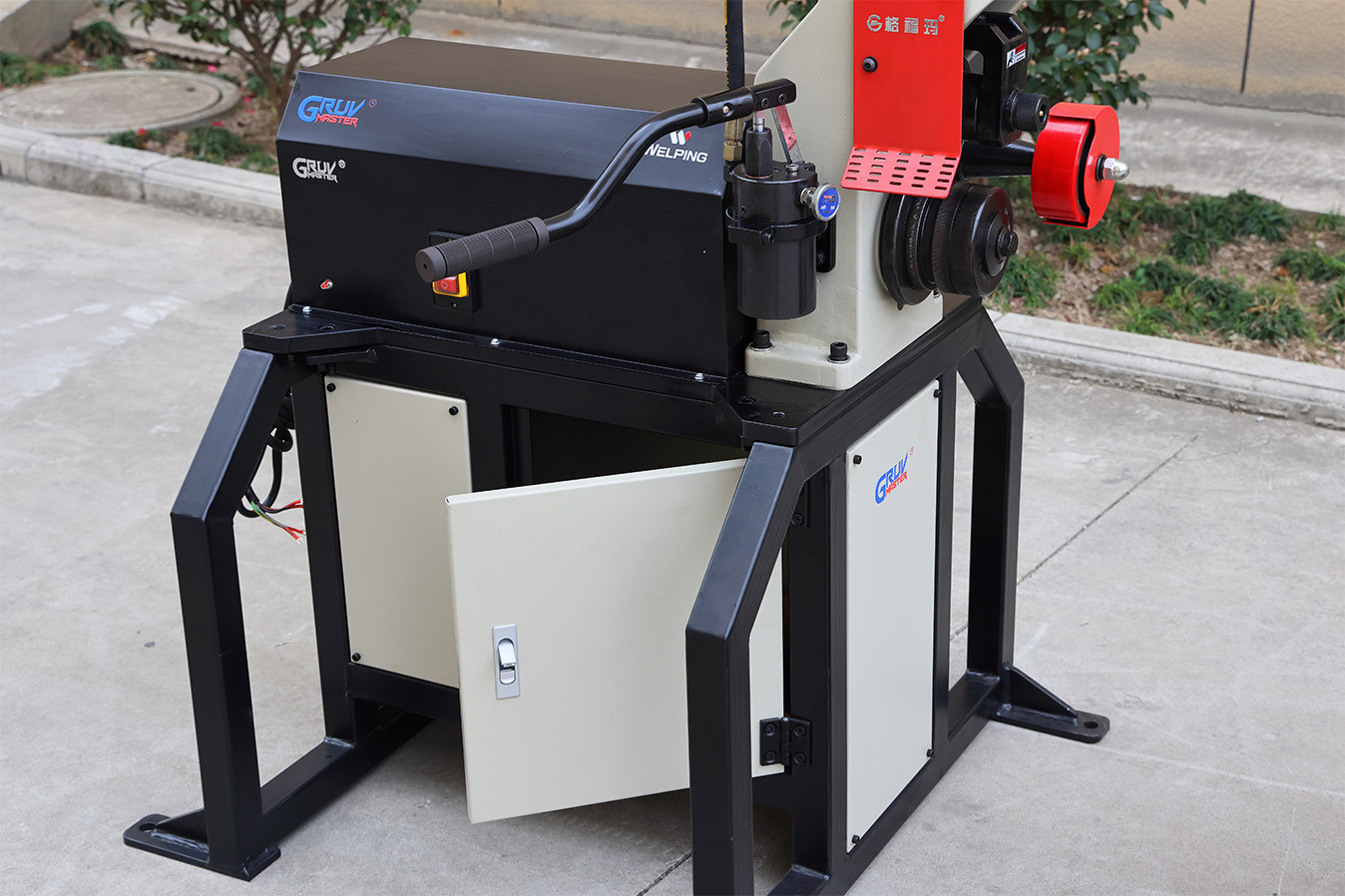

A built-in storage cabinet is incorporated into the new base, providing convenient space for roll sets, tools, and frequently used accessories.
This is a practical advantage in both workshops and job-site environments. Rollers and tools need to be stored and managed properly during daily operation. Keeping them close to the machine helps reduce time spent searching for accessories and makes changeovers and routine work more efficient.
This upgrade reflects the practical design approach of the RG-4X Pro: improving not only machine strength, but also the overall user experience.
Reinforced Pipe Stand for Reliable Pipe Support
Stable large-diameter grooving depends not only on the machine itself, but also on proper pipe support.

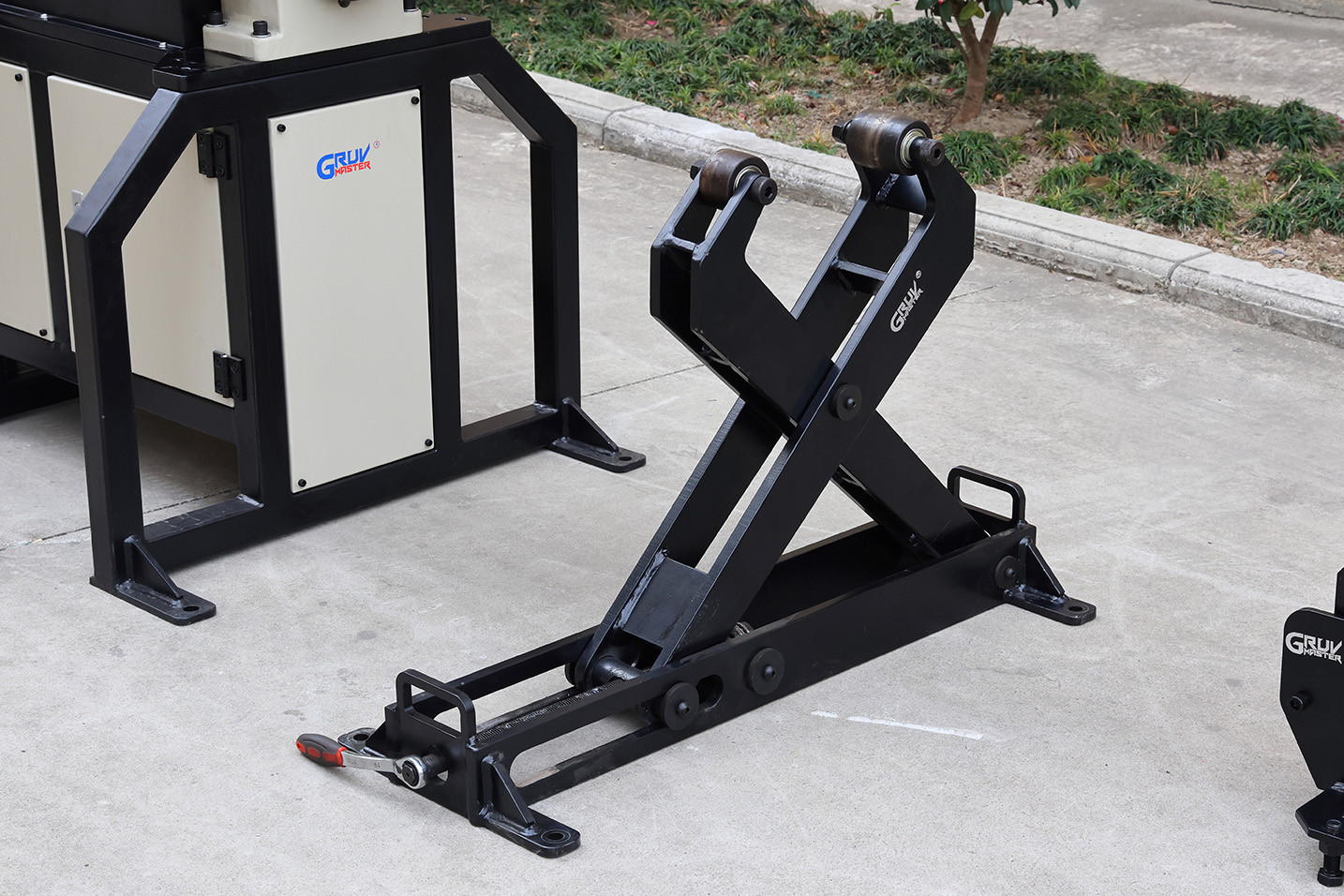

The RG-4X Pro is supplied with a reinforced pipe stand constructed from fully thickened steel plates. It is designed to support 8"–24" steel pipes more securely as they rotate during grooving.
Improved support helps reduce unwanted pipe movement and allows the pipe to rotate more smoothly. It also helps maintain more consistent contact between the grooving rollers and the pipe wall, contributing to a more uniform groove.
Pro Pipe Stabilizer for Improved Pipe Control
Long and heavy pipes may shift, swing, or move sideways while rotating. This can make the grooving process more difficult to control and may affect the final groove quality.
The RG-4X Pro is equipped with a Pro pipe stabilizer that helps keep the pipe in a more controlled position throughout the operation. It is particularly useful when working with long pipes, heavy pipes, or demanding job-site conditions.
By reducing unwanted movement, the stabilizer supports smoother rotation and more consistent grooving results.
Interlocking Roll Set for Better Sealing Surface Control

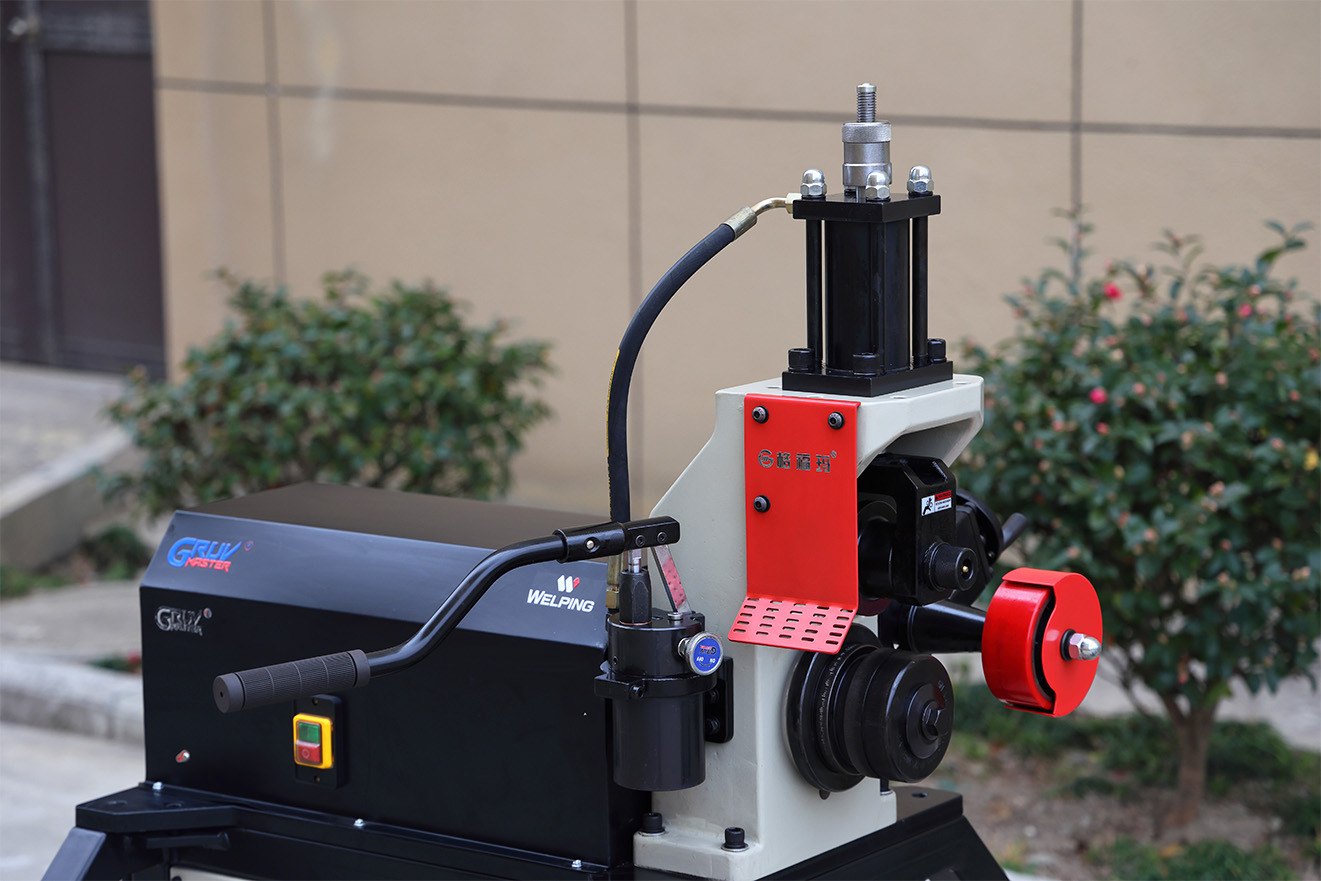

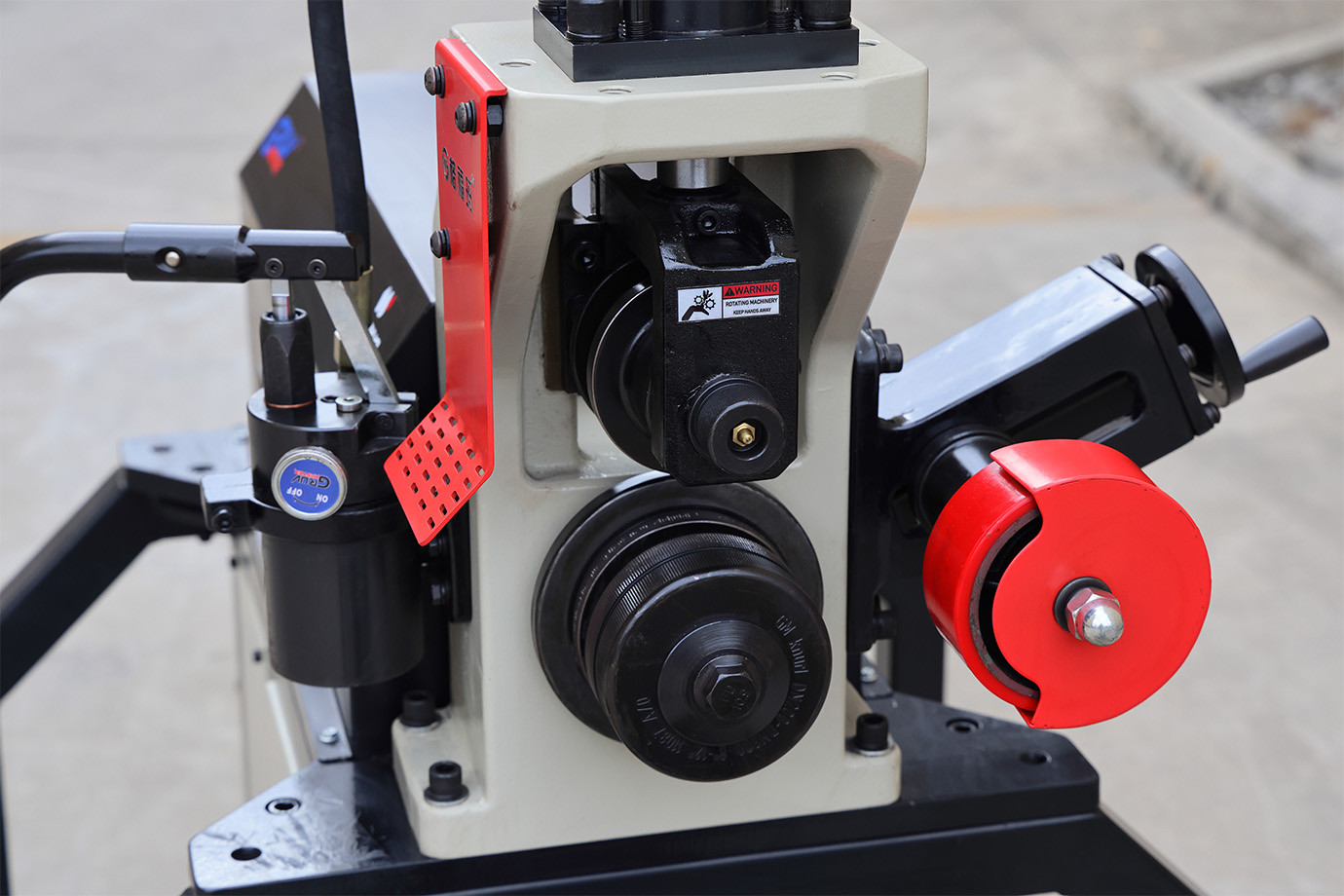

The groove roller and drive roller of the RG-4X Pro feature an interlocking structure designed to improve control of the sealing surface length during groove forming.
In grooved piping systems, both the groove profile and the sealing surface are important for proper coupling installation and reliable sealing. A stable and well-aligned roller structure keeps the pipe under better control as it rotates and is progressively formed.
This becomes even more important with large-diameter pipes, where greater weight, forming pressure, and rotational force place higher demands on roller alignment and machine stability.
Suitable Applications
| Application | Why the RG-4X Pro Is Suitable |
| Large fire protection pipelines | Designed for grooving 8"–24" main pipes |
| Industrial pipe processing | Heavy-duty structure for demanding operating conditions |
| Workshop prefabrication | Stable pipe support for repeated processing |
Job-site applications | Integrated storage and reinforced support improve practicality |
Long or heavy pipes | Pro pipe stabilizer helps reduce unwanted movement |
Projects requiring consistent grooves | Interlocking roll set supports sealing surface and groove control |
A Practical Heavy-Duty Upgrade for Large-Diameter Grooving
The value of the RG-4X Pro goes beyond its 8"–24" working capacity. Its main strength lies in the structural improvements developed specifically for large-diameter steel pipe grooving.
The new frame-style base provides greater machine stability, while the integrated storage cabinet makes tools and accessories easier to manage. The reinforced pipe stand offers stronger support for large pipes, and the Pro pipe stabilizer helps reduce movement during rotation. At the same time, the interlocking roll set improves control of the sealing surface and supports more consistent groove formation.
For customers processing large-diameter steel pipes, the RG-4X Pro provides a heavy-duty grooving solution focused on stability, practicality, and reliable long-term performance.
For an appropriate 8"–24" large-diameter pipe grooving solution, provide Gruvmaster with your required pipe sizes, wall thicknesses, pipe materials, and working conditions. Our team will recommend a suitable machine configuration for your application.
