Compact Hydraulic Roll Groover for Steel Pipe SCH10/SCH40 2"-8 "(RG-3)

KeyWords

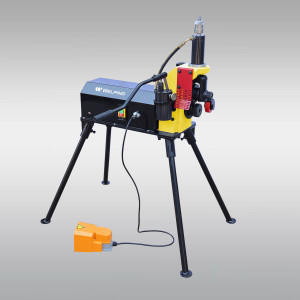

Compact Hydraulic Roll Groover for Steel Pipe SCH10/SCH40 2"-8 "(RG-3)

roll groovers are designed to improve speed and efficiency for fire sprinkler and other industrial installations

Grooving Capacity: 2"-8"

Max Wall Thickness: 6mm

Power Supply: 800W

Output Speed: 30RPM

Contact Now

Favorites

Detail Information

2"-8" light electric hydraulic groove rolling machine

Welding 1600mm hydraulic butt welding machine

The RG-3 electric hydraulic grooving machine is suitable for rolling grooves on 2"-8" (DN50~DN200) SCH10/SCH40 steel pipes and stainless steel .

Suitable for a variety of daily tasks involving fire protection pipes, this rolling groover is an integrated tool that includes a motor, hydraulic feed pump, foot switch and pipe rack.

The motor's built-in high-performance gear reduction system allows for a compact design and reduced noise levels.

The unique combination of hydraulic feed pump and trough depth locking knob guarantees a quality trough and optimal efficiency.

scope

model	RG-3
Applicable materials	Carbon steel, stainless steel
capacity	Suitable for 2"-4" steel pipe SCH10/SCH40
capacity	Suitable for 5"-8" steel pipe SCH10/SCH20
power supply	220V/110V
frequency	50Hz/60Hz
Maximum wall thickness	6mm
Motor Power	800W
Output speed	30 rpm
Packaging gross weight	47kg
Package Size	562665cm

Ordering Information

catalog number	stage	strength	Voltage frequency
900030	single	800W	220V, 50/60HZ
900031	single	800W	110V, 50/60HZ

Standard Parts

Item Number	describe	net weight
911074	Driving roller 2"-6" (φ60~φ168)	1.30kg
911075	Drive roller 8" (219)	1.40 kg
912018	Grooved roller 2"-6"(φ60-φ168)	0.45kg
912032	Grooved roller 8"(φ219)	0.45kg
998028	2"-8" pipe rack	2.20kg

Optional accessories

Item Number	describe		net weight
998026	Foot switch		1.50kg

Product details picture

Pipe rack

Suitable for 1"-12" steel pipe

drive roller

A set of 2"-6" (φ60~φ168) ;

Set of 8 " (φ219) ;

_{Troughed roller}

A set of 2"-6" (φ60~φ168) ;

Set of 8 " (φ219) ;

Foot switch

download

_{Roll grooving machine welding electronic sample}
