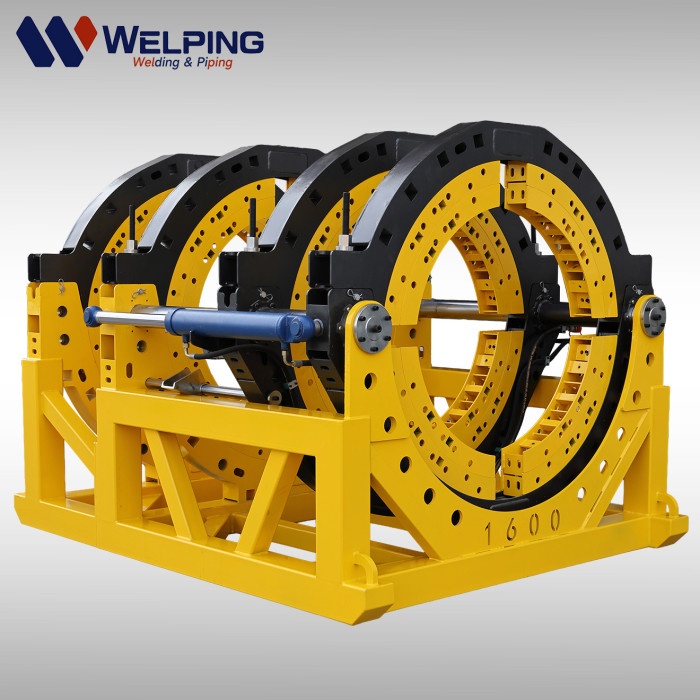

Hydraulic HDPE Pipe Fusion Welding Machine1200/1600mm
Hydraulic HDPE Pipe Fusion Welding Machine1200/1600mm
It is a versatile machine designed for butt fusion of 1200mm to 1600mm pipe and fittings, with durability and reliability.
- Lead Time
- 7-15 days once order confirmed
- Terms of Payment
- T/T, Western Union, Paypal,X Transfer
- FOB Port
- Shanghai, Ningbo
- Certificate
- CE
- MOQ
- 1 Set
- Business type
- Plastic pipe welding machines manufacturer
Detail Information
1200/1600mm Hydraulic Butt Fusion Welding Machine for PE Pipes
DETAILS
HDPE pipe has been used extensively in the piping applications of municipal, industrial, marine, mining, landfill, duct and agricultural industries.
Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding machine can provide reliable joints, even as strong as the complete pipe.
The 1600mm butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.
The Butt Fusion Machine is designed to butt fuse pipe sizes 1200mm to 1600mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.
FEATURES
※ Robust structure of carriage part with streamline outlook
※ Swivel handle with gear transmission of extremely smooth operating structure
※ Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin
STANDARD ACCESSORIES |
|
|
Main Frame
|
1 Set
|
|
Heating Plate
|
1 Set
|
|
Trimmer
|
1 Set
|
|
Reducers
|
1 Set
|
Tool Box | 1 Set |
PARAMETER
|
Mode
|
WP1600A
|
|
Suitable materials
|
PE,PP, PB. PVDF
|
|
Range
|
1200-1400-1600mm
|
|
Power supply
|
380V
|
Frequency | 50HZ |
Pressure adjusting range | 0-25Mpa |
Total power | 61.5 KW |
Heating plate | 50 KW |
Planing tool | 7.5 KW |
Hydraulic Unit | 4 KW |
Max Temperature of Heating plate | 270℃ |
Temp.Deviation in Surface | ±5ºC |
Total Weight | 5200kg |
Packing Volume | 21CBM |
PRODUCT DETAILS MAP
Basic Frame
· Complete welded steel structure, strong, free of distortion
· Sturdy steel clamping parts with complex reinforced structure
· Balanced upper and lower clamping sets,for easy pipe tightening operation
· Separate actuation hydraulic cylinder design, for easy installation & maintenance
Hydraulic Station
· Integrated hydraulic and electrical control,for easy operation access
· All-in-one control panel: hydraulic actuation, pressure setting, timing,
electric info display, temperature setting
· Enclosure design, shielding splash and dirt and wheels, for easy transportation
Planning tool
· Double chains transmission system with self-centering and self-tightening function,ensures no loosing and stucking in operation
· Reinforced trimming plate, anti-crack
· Powerful copper-wiring motor
· Durable, double edges HSS blade
· Minimum 1000mm pipe trimming available
Heating Plate
· Cast aluminum body with Anti-stick PEFT coating from Daikin
· Qualified built-in heating elements, swift and steady temperature rising
· Standard equipped with aviation plug and heavy duty cable, ensures operation safety
