HDPE Elevated Butt Fusion Welding Machine 50–315mm | Air Series

Designed for suspended and elevated HDPE pipeline welding, the Air Series allows butt fusion directly on above-ground pipework where conventional ground-based machines are difficult to use. Suitable for both horizontal and vertical welding, with models covering 50–315 mm.

Categories: A Series Butt Fusion Machines

Brand: Fusion Equipment and Plumbing Tool｜WELPING

Model: WP160Air / WP200Air / WP250Air / WP315Air

Application: Suspended / Above-ground HDPE Pipeline Welding

Welding Direction: Horizontal & Vertical

Welding Range: 50–315 mm

Pipe Material: HDPE / PE

Operation: Hydraulic

Power Supply: 220V / 50Hz / 1PH

Max Heating Temperature: 270°C

Pressure Adjusting Range: 0–8 MPa

FOB port: Shanghai/Ningbo

Terms of Payment: L/C, Western Union, T/T, Paypal

Contact Now

Add to Wishlist

Detail Information

Elevated Butt Fusion Machine for HDPE Pipes

Designed for Suspended Horizontal & Vertical Pipeline Welding

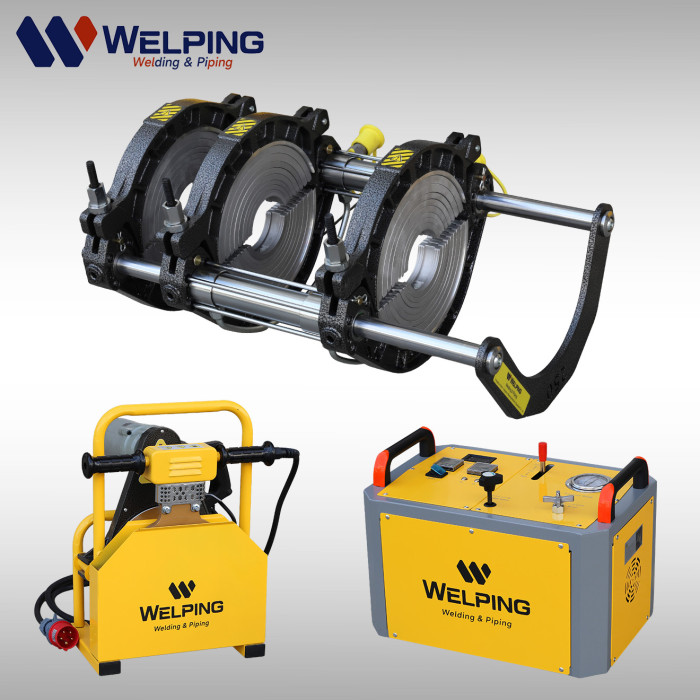

Welping WP160A hydraulic butt fusion machine

PRODUCT OVERVIEW

_DETAILS

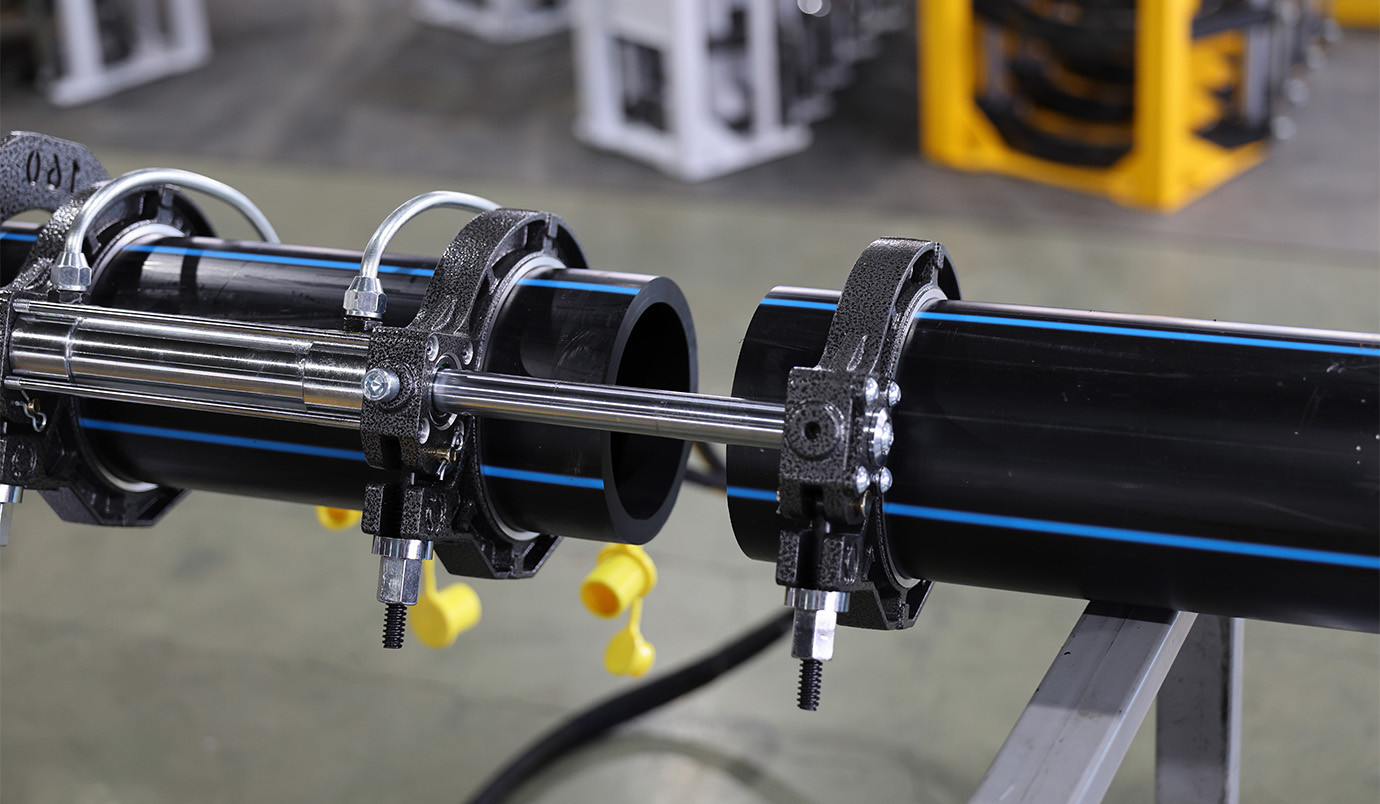

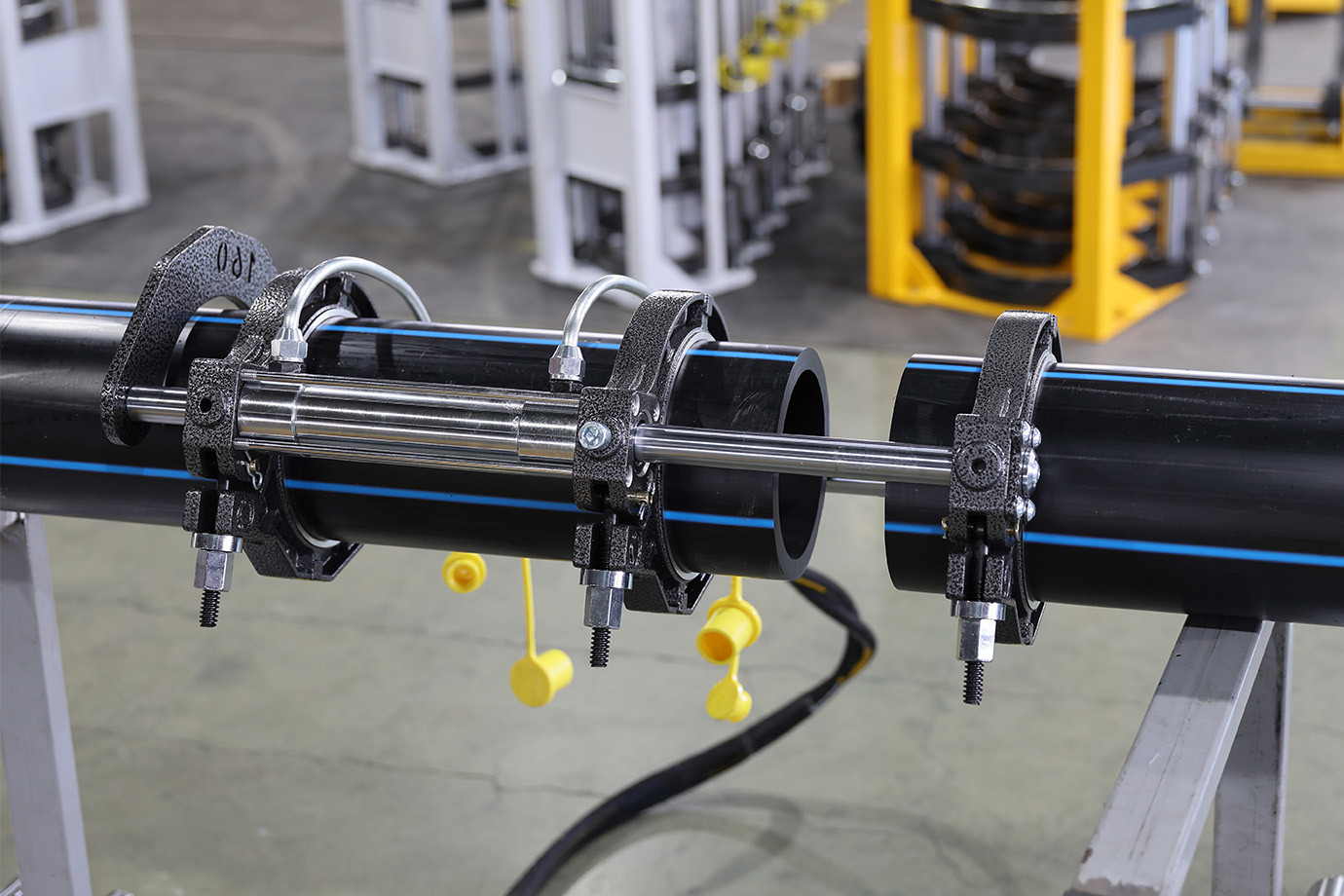

The Air Series is designed for butt fusion welding of elevated, suspended and above-ground HDPE pipelines where conventional ground-based machines are difficult to position.

With a compact machine frame installed directly around the pipe, it is suitable for both horizontal and vertical welding applications.

Four models are available, covering pipe sizes from 50 mm to 315 mm: WP160Air, WP200Air, WP250Air and WP315Air.

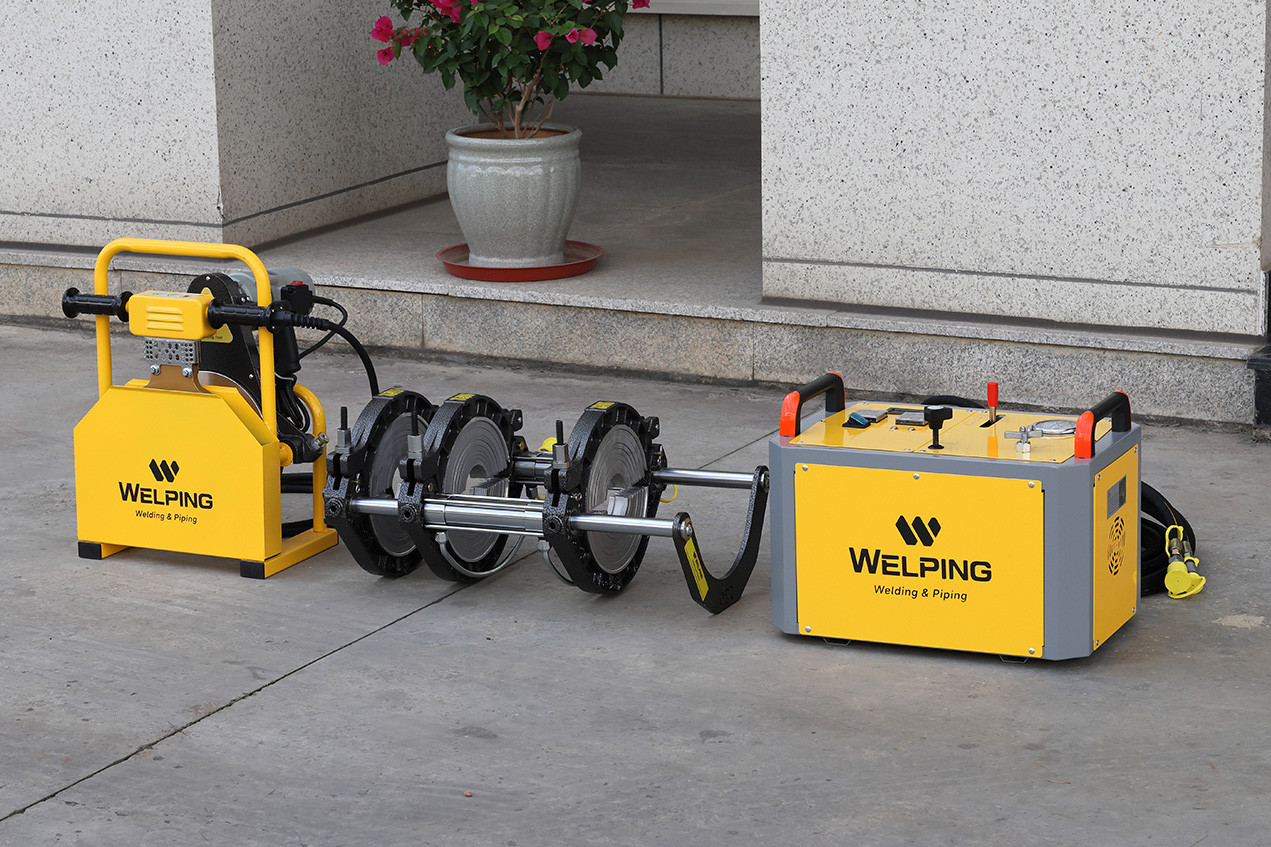

The separate hydraulic unit, facer and heating plate make the system easier to arrange around elevated pipelines and restricted working areas.

FEATURES

※ Designed for elevated, suspended and above-ground HDPE pipelines

※ Suitable for both horizontal and vertical butt fusion welding

※ Compact machine frame for direct installation around the pipe joint

※ Separate hydraulic unit, facer and heating plate for flexible on-site operation

STANDARD ACCESSORIES
Main Frame	1 Set
Heating Plate	1 Set
Trimmer	1 Set
Reducers	1 Set
Tool Box	1 Set

TECHNICAL PARAMETERS

Item	WP160Air	WP200Air	WP250Air	WP315Air
Welding Range	50–160 mm	63–200 mm	90–250 mm	90–315 mm
Power Supply	220V / 50Hz / 1PH	220V / 50Hz / 1PH	220V / 50Hz / 1PH	220V / 50Hz / 1PH
Total Power	3.65 kW	3.95 kW	5.05 kW	5.85 kW
Heating Plate	1.5 kW	1.8 kW	2.3 kW	3.1 kW
Facer	1.4 kW	1.4 kW	2.0 kW	2.0 kW
Hydraulic Unit	0.75 kW	0.75 kW	0.75 kW	0.75 kW
Pressure Adjusting Range	0–8 MPa	0–8 MPa	0–8 MPa	0–8 MPa
Max. Heating Plate Temperature	270°C	270°C	270°C	270°C
Temperature Deviation	±5°C	±5°C	±5°C	±5°C

STANDARD INSERTS

Model	Standard Inserts
WP160Air	50 / 63 / 75 / 90 / 110 / 125 / 140 / 160 mm
WP200Air	63 / 75 / 90 / 110 / 125 / 140 / 160 / 180 / 200 mm
WP250Air	90 / 110 / 125 / 140 / 160 / 180 / 200 / 225 / 250 mm （Optional Inserts: 63 / 75 mm）
WP315Air	90 / 110 / 125 / 140 / 160 / 180 / 200 / 225 / 250 / 280 / 315 mm

PRODUCT DETAILS MAP

Basic Frame

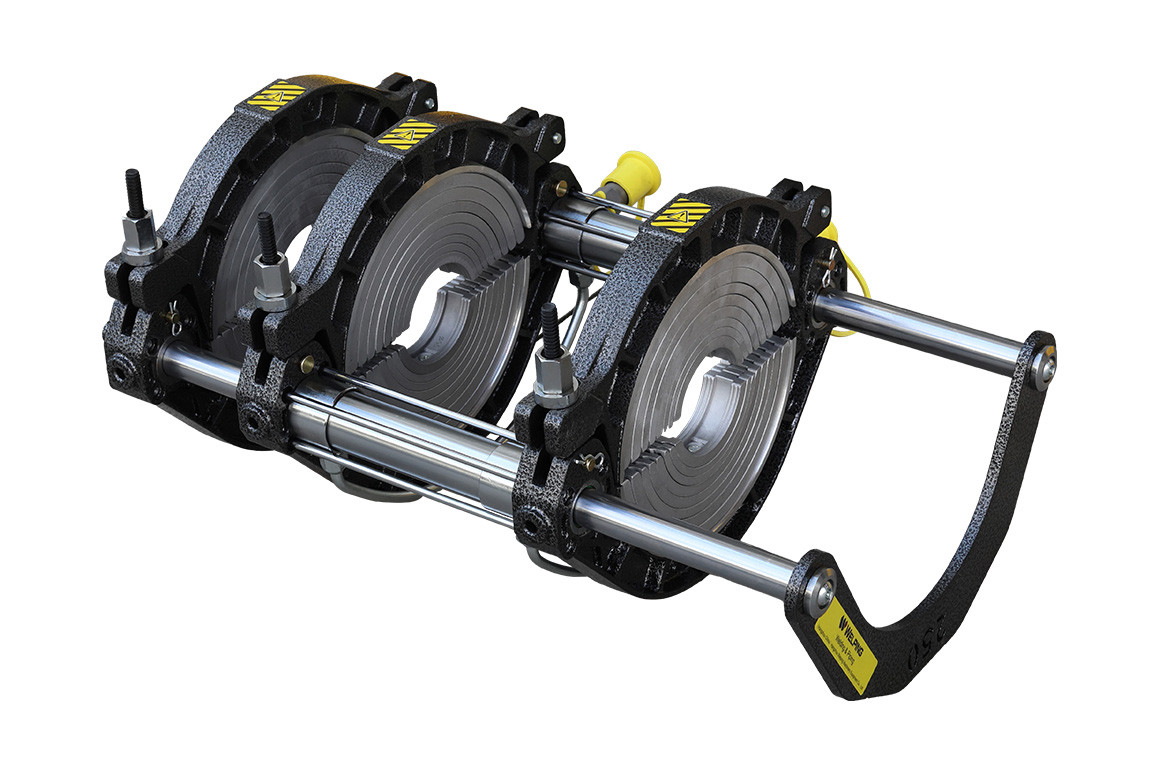

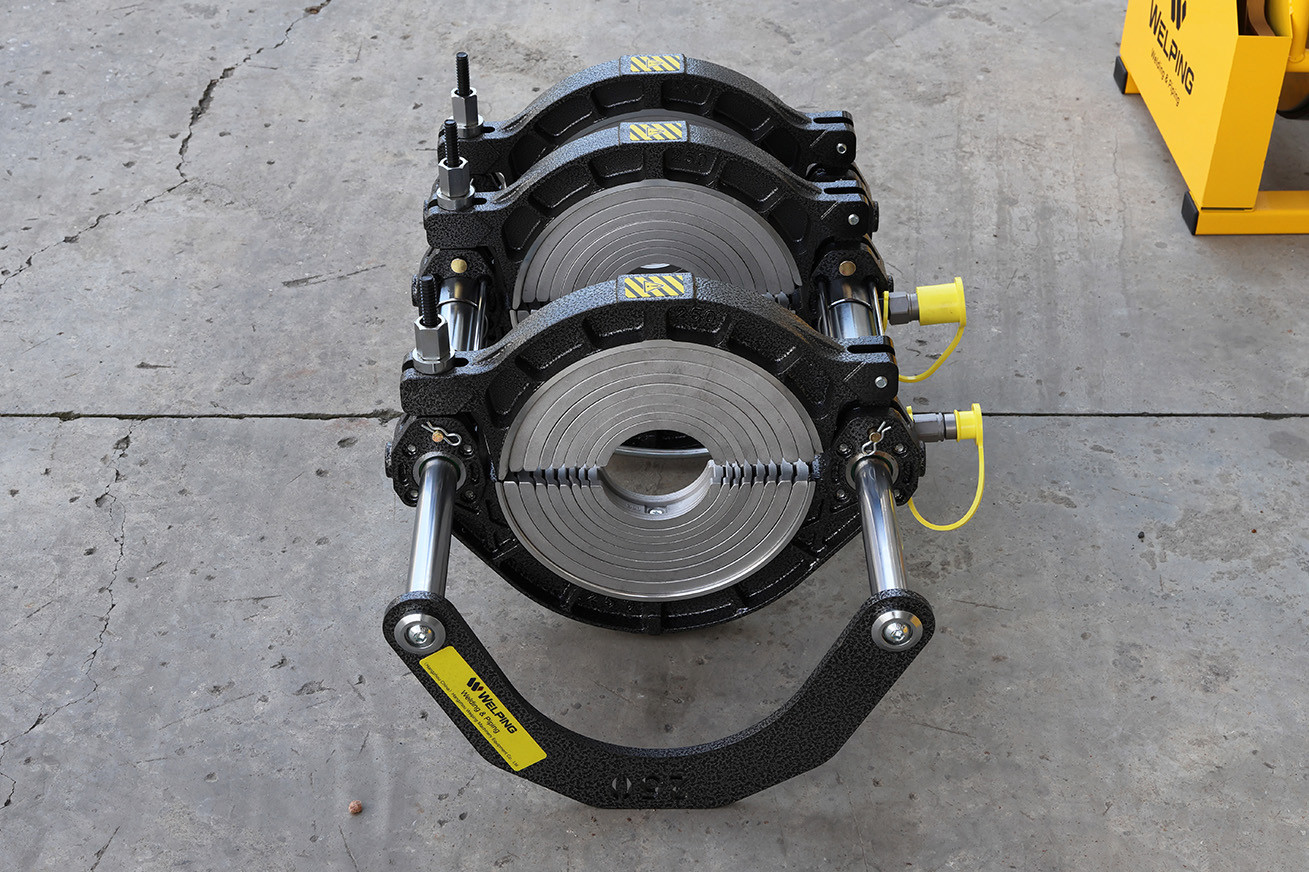

· Compact 4-jaw frame designed for elevated and suspended HDPE pipe welding

· Lightweight structure for easier installation and handling at height

· Open-frame design allows the machine to be mounted directly around the pipe joint

· Hydraulic cylinders provide smooth carriage movement and controlled fusion pressure

· Suitable for both horizontal and vertical butt fusion applications

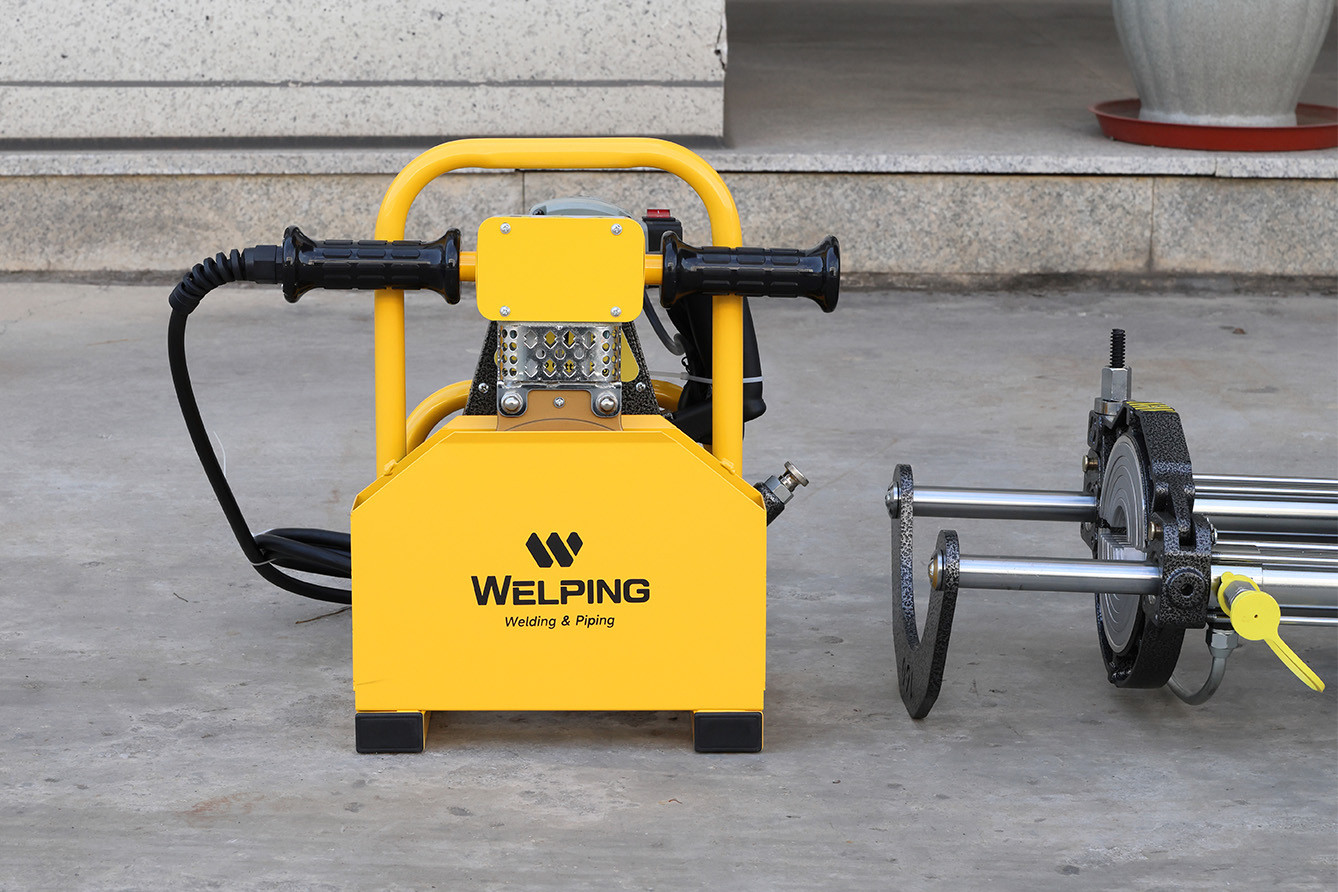

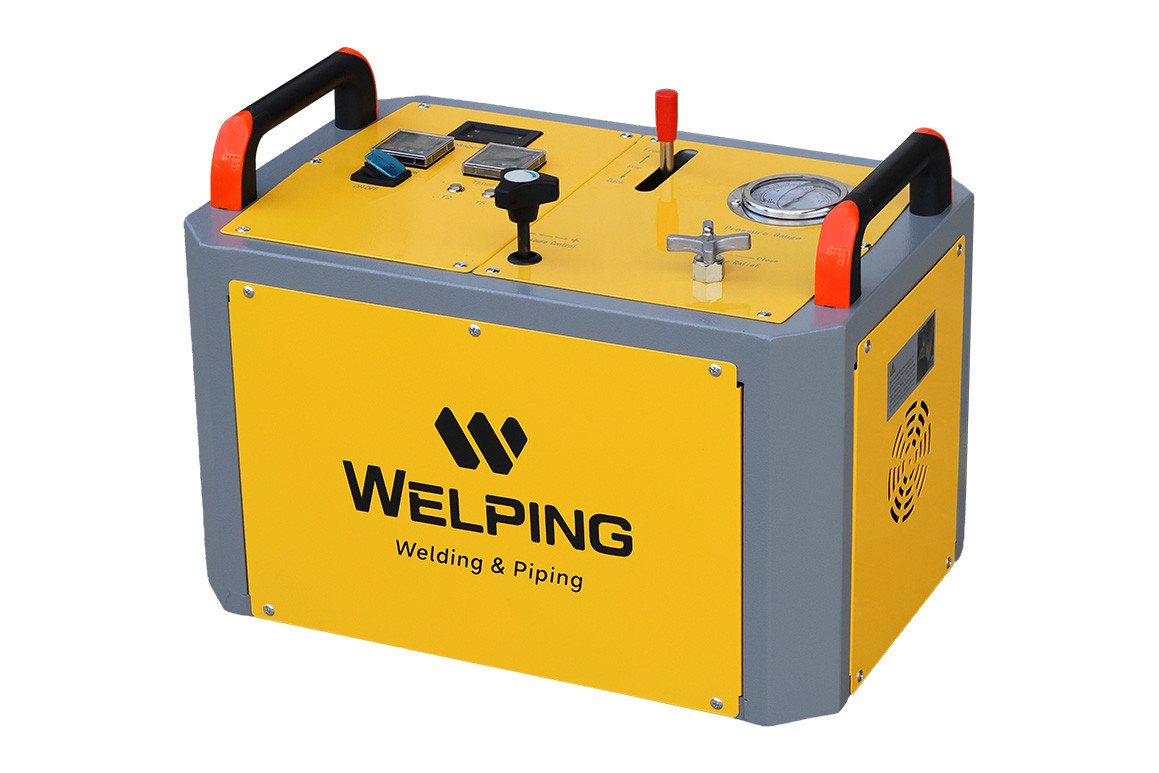

Hydraulic Station

· Standard equipping pressure more stable

· Fully enclosure structure,anti-dust,and anti-sand

· Electricity leakage protection switch

· 380V asynchronous motor

_{Planning tool}

· HSS blade with double edge

· Casting aluminum trimmer plate, durable and anti-corrosion

· Casting aluminum frame of motor with good heat dissipation performance

· Motor with pure copper wiring

_{Heating Plate}

· Bakelite handle with high insulating property and thermal insulation · Thermocouple temperature sensor · Heating element · Teflon Coating imported from Daikin in Japan · Aviation plug

_{Reducer Inserts}

· WP160Air — 50 / 63 / 75 / 90 / 110 / 125 / 140 mm

· WP200Air — 63 / 75 / 90 / 110 / 125 / 140 / 160 / 180 mm

· WP250Air — 90 / 110 / 125 / 140 / 160 / 180 / 200 / 225 mm

· WP315Air — 90 / 110 / 125 / 140 / 160 / 180 / 200 / 225 / 250 / 280 mm

· Optional for WP250Air: 63 / 75 mm
