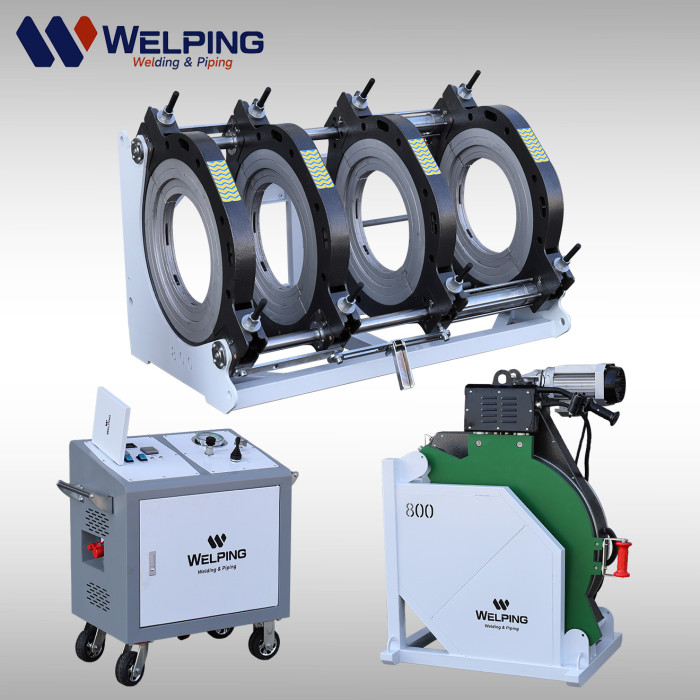

WP800A Pro HDPE Hydraulic Butt Fusion Welding Machine 500-800mm
WP800A Pro is a heavy-duty hydraulic butt fusion machine designed for PE, HDPE and thermoplastic pipes from 500 to 800 mm. The upgraded A Pro structure features a reinforced machine frame, durable clamping system and reliable hydraulic control for large-diameter pipe fusion work.
Detail Information
WP800A Pro HDPE Butt Fusion Machine
Designed for Heavy-duty Butt Fusion of 500-800 mm HDPE Pipes

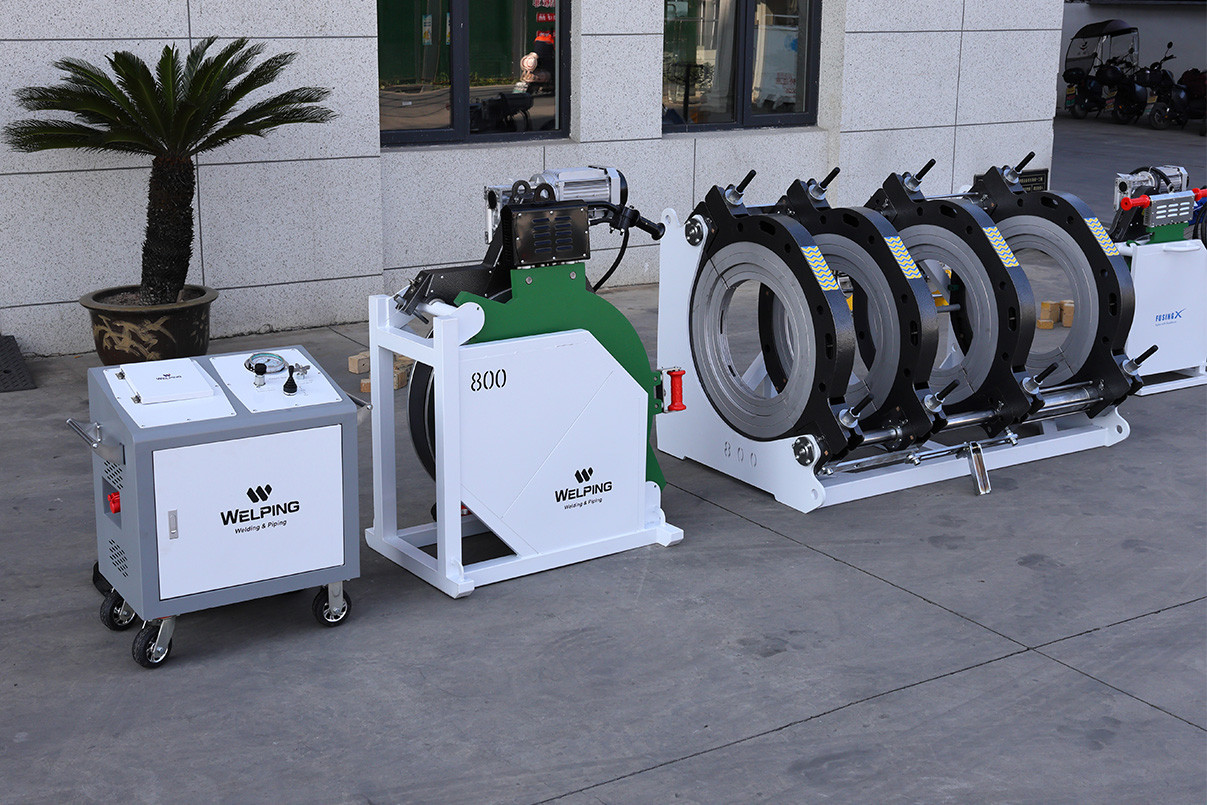

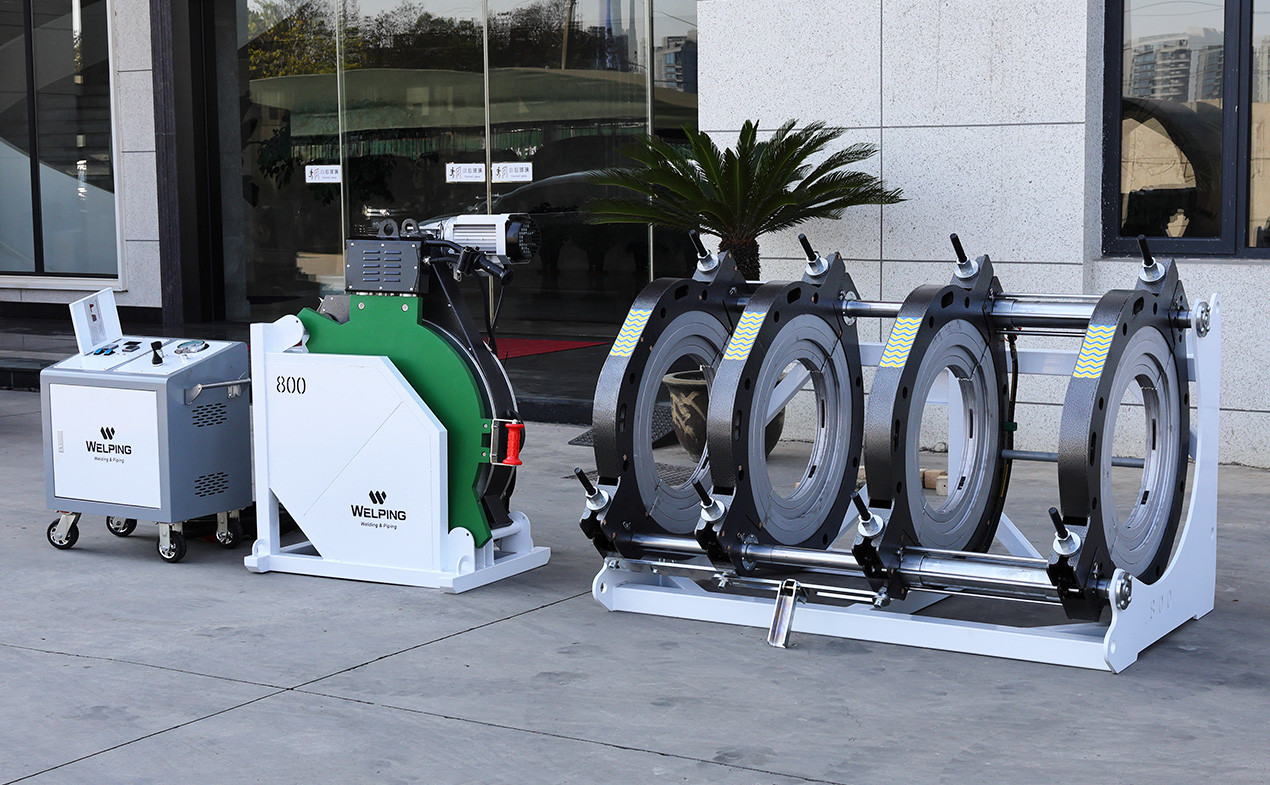

Machine Overview
WP800A Pro is a heavy-duty hydraulic butt fusion machine designed for HDPE pipes from 500 to 800 mm. It provides stable clamping, accurate pipe alignment, and reliable operation for large-diameter pipe fusion in both workshop and field applications.
The machine features a reinforced frame, heavy-duty clamp rings, an enclosed hydraulic unit, a durable facer, and a high-quality heating plate. These components support smooth facing, consistent heating, and reliable fusion preparation throughout the welding process.
Technical Specifications & Product Details
| Model. | WP800A Pro | Control | Hydraulic |
| Frequency Range | Low Frequency | Electric Current | AC |
Type | Resistance Butt Welder | ODM/OEM | Available |
Package | 2PCS | Hydraulic | Enclosure Housing |
Warranty | 1 Year | Color | White |
Transport Package | Plywood Case | Specification | Hydraulic drive |
| Trademark | WELPING | Origin | China |
| HS Code | 8515809090 | Production Capacity | 20000pieces/Year |
Specifications
| Model | WP800A Pro |
| Welding range (mm) | 500-800 |
| Standard inserts (mm) | 500-560-630-710-800 |
| Power supply | 380V/50Hz, 3PH |
| Total power | 16.2 KW |
Heating plate | 12.5 KW |
Facer | 2.2 KW |
Hydraulic station | 1.5 KW |
Pressure adjusting range | 0-10 MPa |
Max Temperature | 270ºC |
Temperature Deviation | ±7ºC |
Piston Area | 31.8 CM² |
Operation Video
Key Features

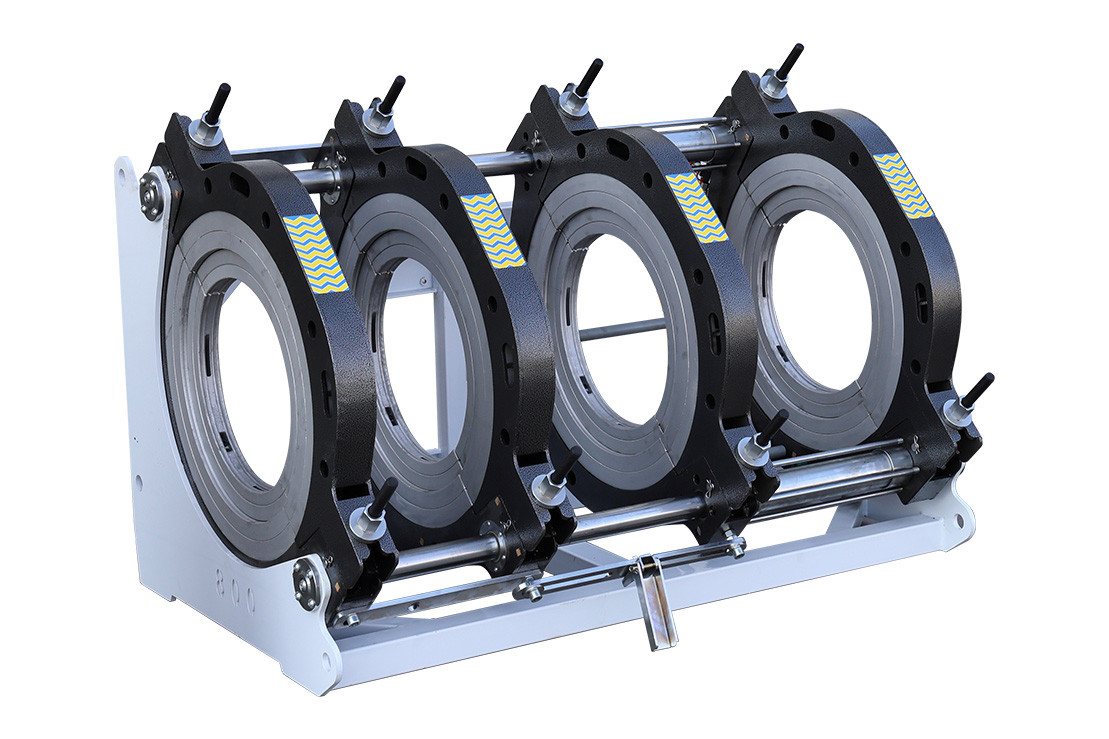

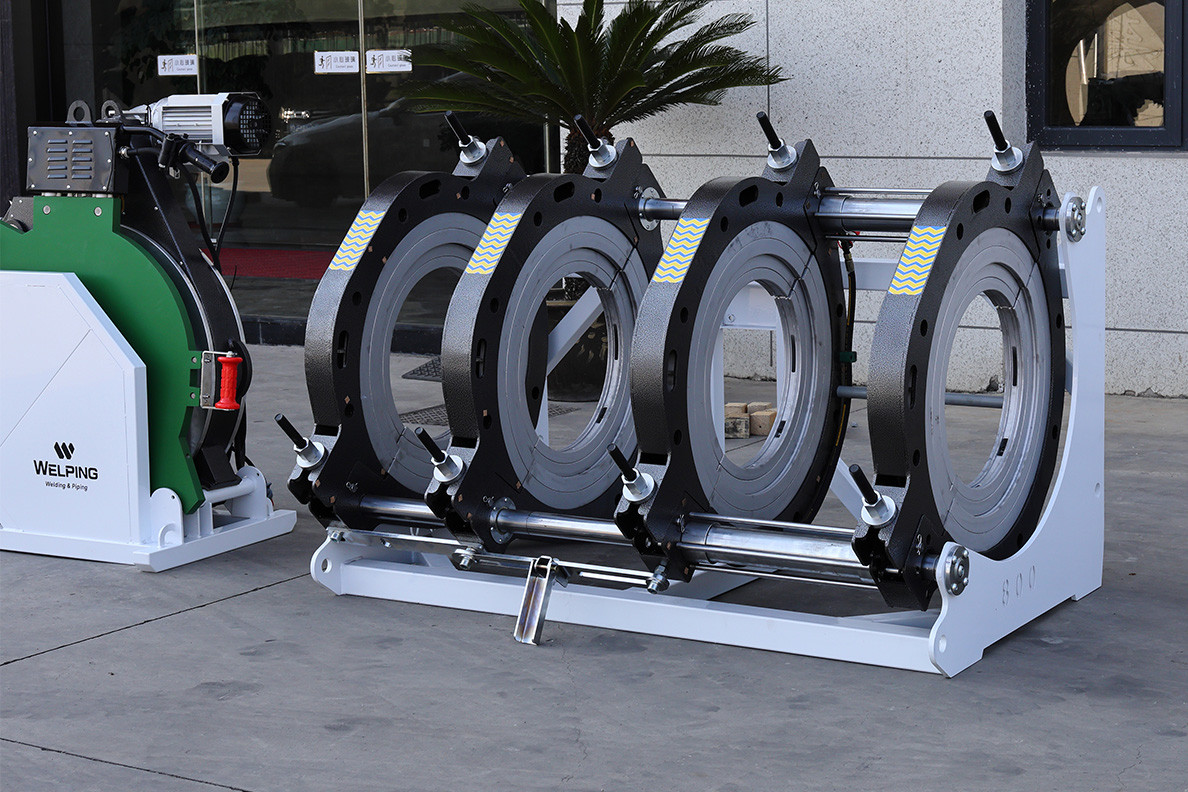

Frame(Carriage)
· Reinforced complex-structure frame, built toesist deformation under heavy loads.Thickened and widened side plates deliverro-level rigidity
· Newly designed upper and lower clamp rings,with a refined appearance, high structuralstrength, optional internal anti-slip pad blocks

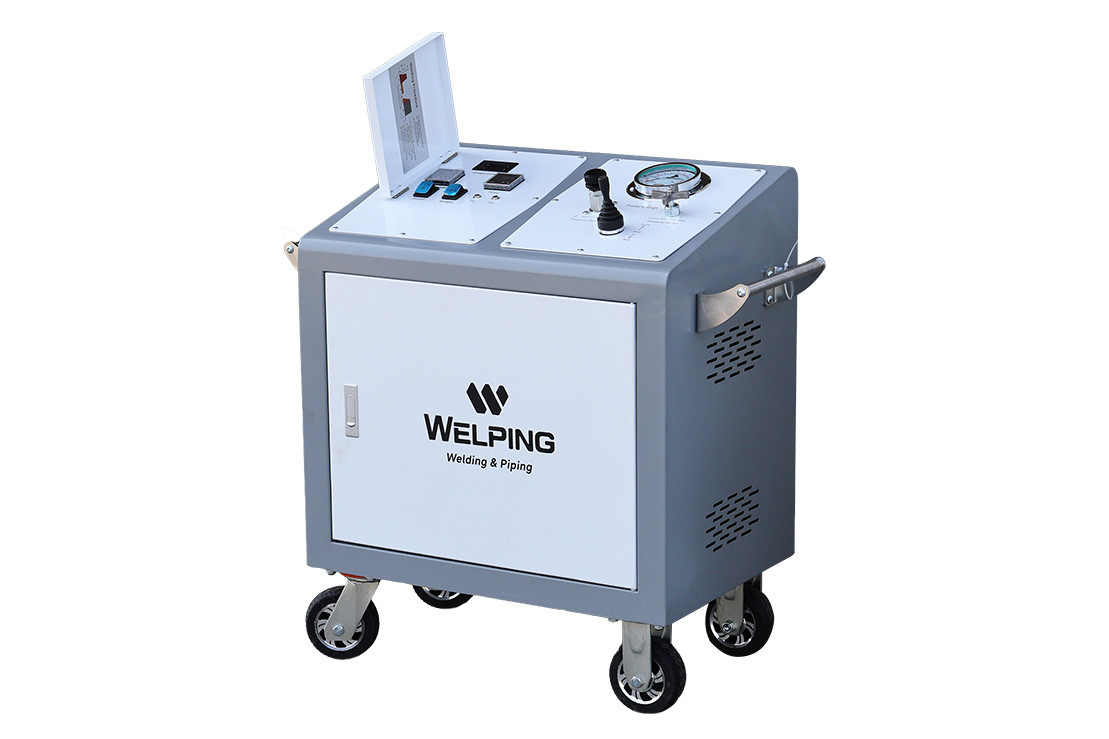

Hydraulic station
· Integrated hydraulic and electrical control.All-in-one control panel:hydraulic actuation, pressure setting, timing,electric info display, temperature setting
· Enclosure design, shielding splash and dirtand wheels, for easy transportation
· Built with Siemens or other well-knownbrand electronic components
Heating plate
· Thickened cast aluminum body with built-inheating elements
· Anti-stick PEFT coating from Daikin
· Excellent teperature diavation control,ess than 7°C
· Qualified aviation plug and heavy-duty powercord ensure operation safety
Facer (Milling Cutter)
· Reinforced chain drive with a self-tensioningdesign keeps the facer stable and helpsprevent loosening after long-term operatior
· Powerful copper-wiring motor
· Reinforced aluminum die-cast facer plate
· Durable, double edges HSS blades
· Innovative locking part,easy to use

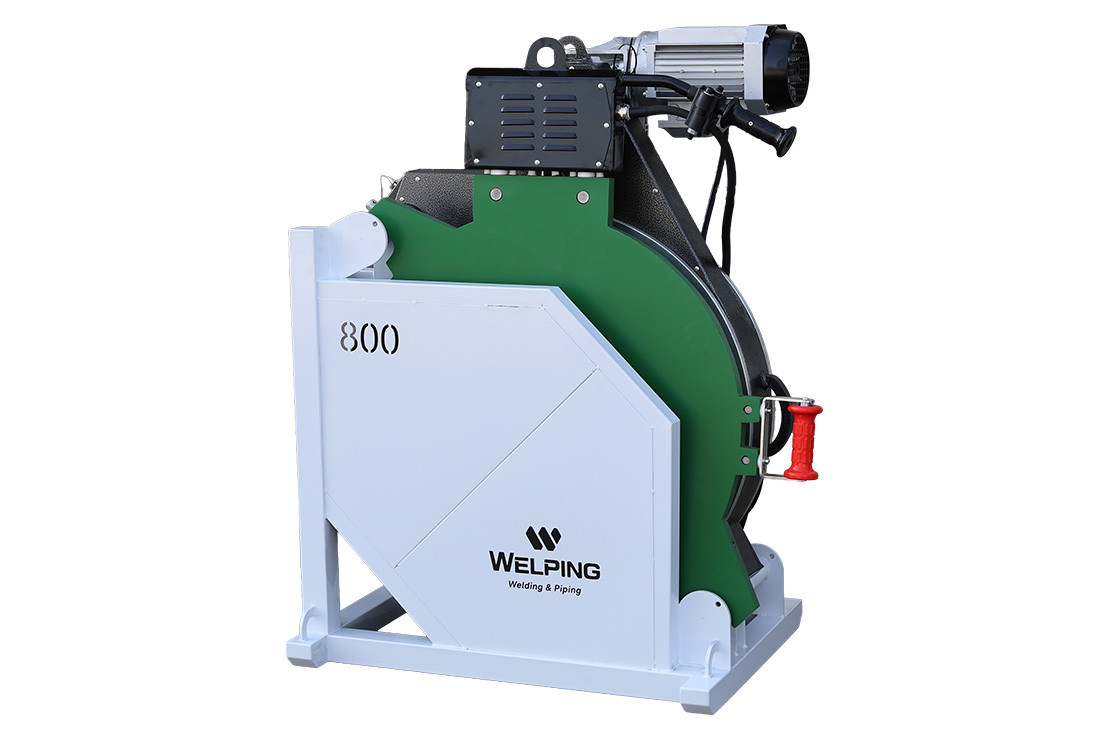

Tool holder
· Complete heating plate covers for betterprotection and heating conservation
· Wide base with lifting lugs
· For stable stock of facer and heating plate
Clamp inserts
· Die-cast aluminum inserts for 500, 560, 630, 710, and 800 mm pipe sizes
· Durable insert design for stable and even pipe clamping
· Designed for quick installation and removal
