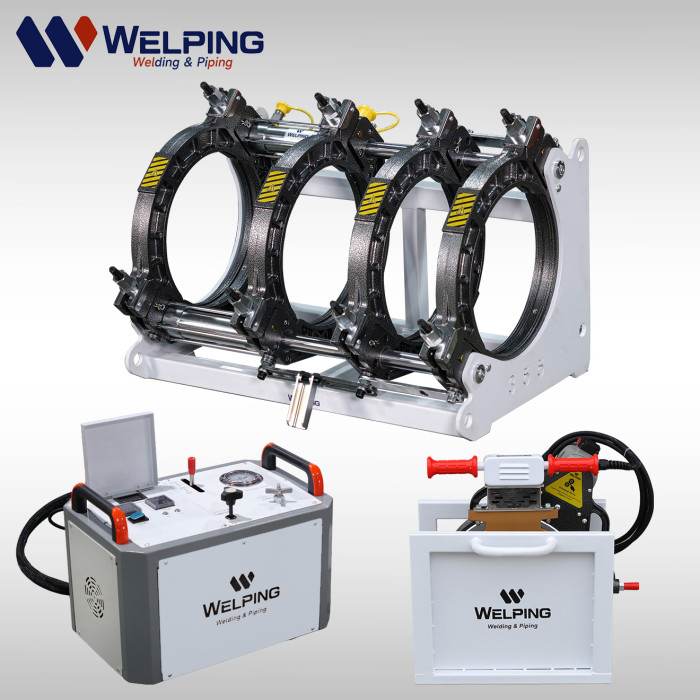

High-End Series Hydraulic HDPE Pipe Fusion Welding Machine Wp355A PRO

KeyWords

High-End Series Hydraulic HDPE Pipe Fusion Welding Machine Wp355A PRO

It is a versatile machine designed for butt fusion of 90mm to 355mm pipe and fittings, with durability and reliability.

Lead Time: 7-15 days once order confirmed

Terms of Payment: T/T, Western Union, Paypal,X Transfer

FOB Port: Shanghai, Ningbo

Certificate: CE

MOQ: 1 Set

Business type: Plastic pipe welding machines manufacturer

Contact Now

Favorites

Detail Information

High-End Series Hydraulic HDPE Pipe Fusion Welding Machine Wp355A PRO

DETAILS

HDPE pipe has been used extensively in the piping applications of municipal, industrial, marine, mining, landfill, duct and agricultural industries.

Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding machine can provide reliable joints, even as strong as the complete pipe.

The High-End Series WP315A PRO butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.

Basic Info

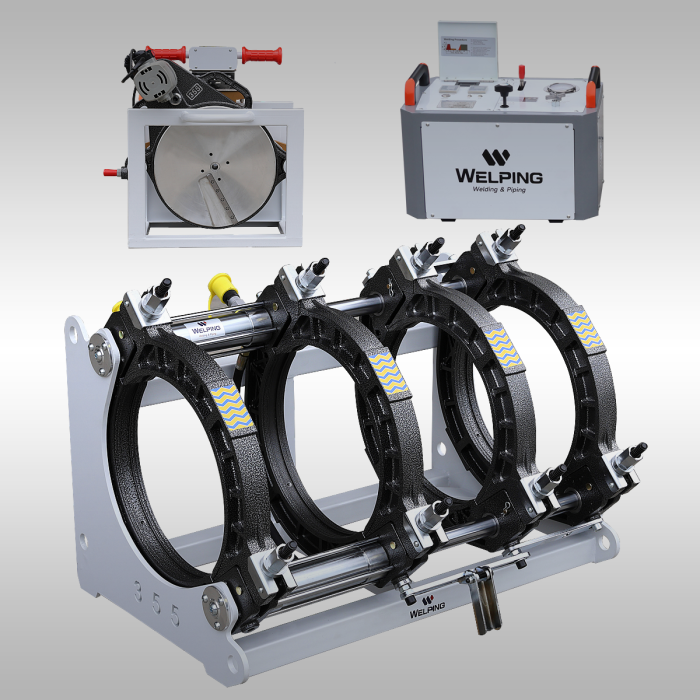

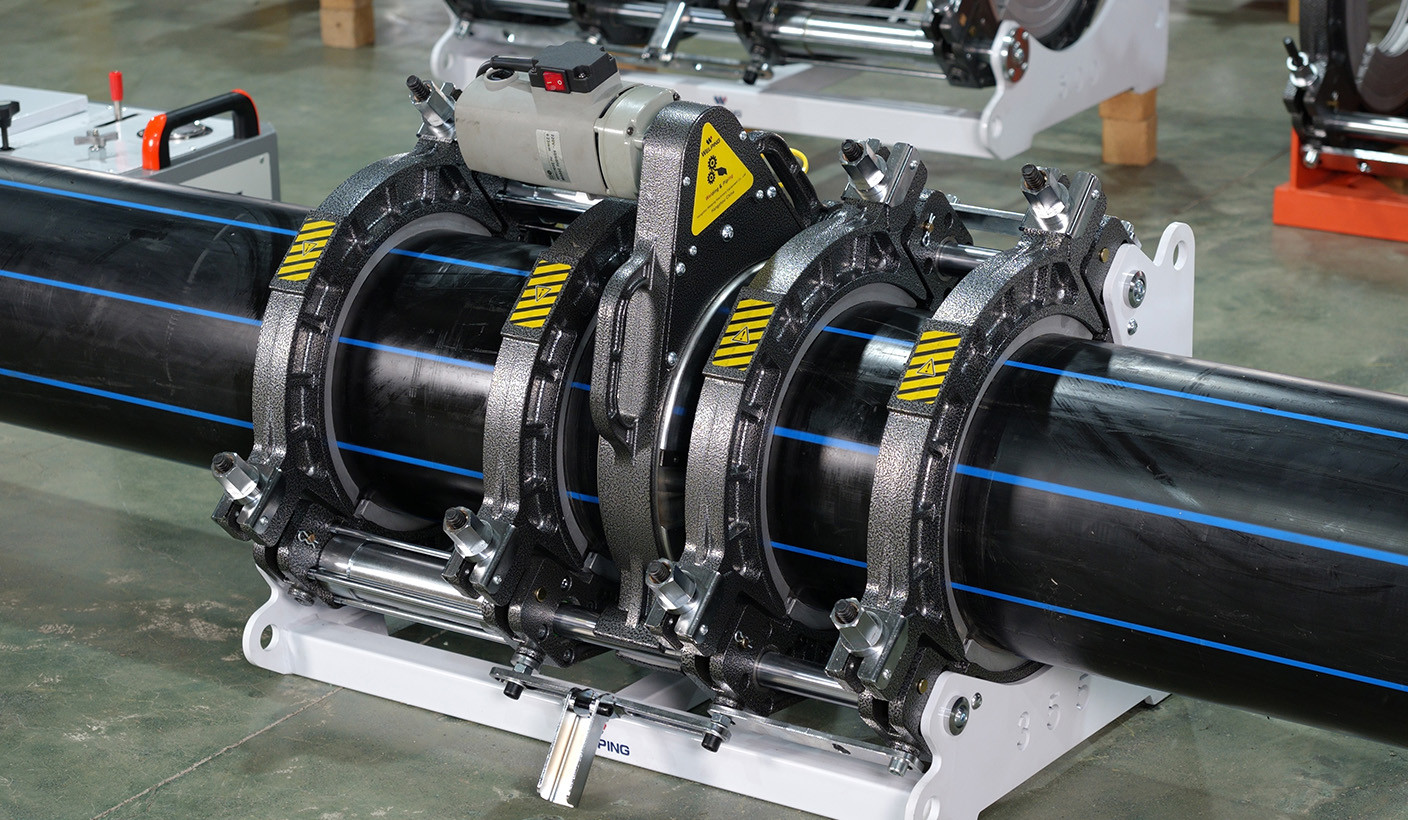

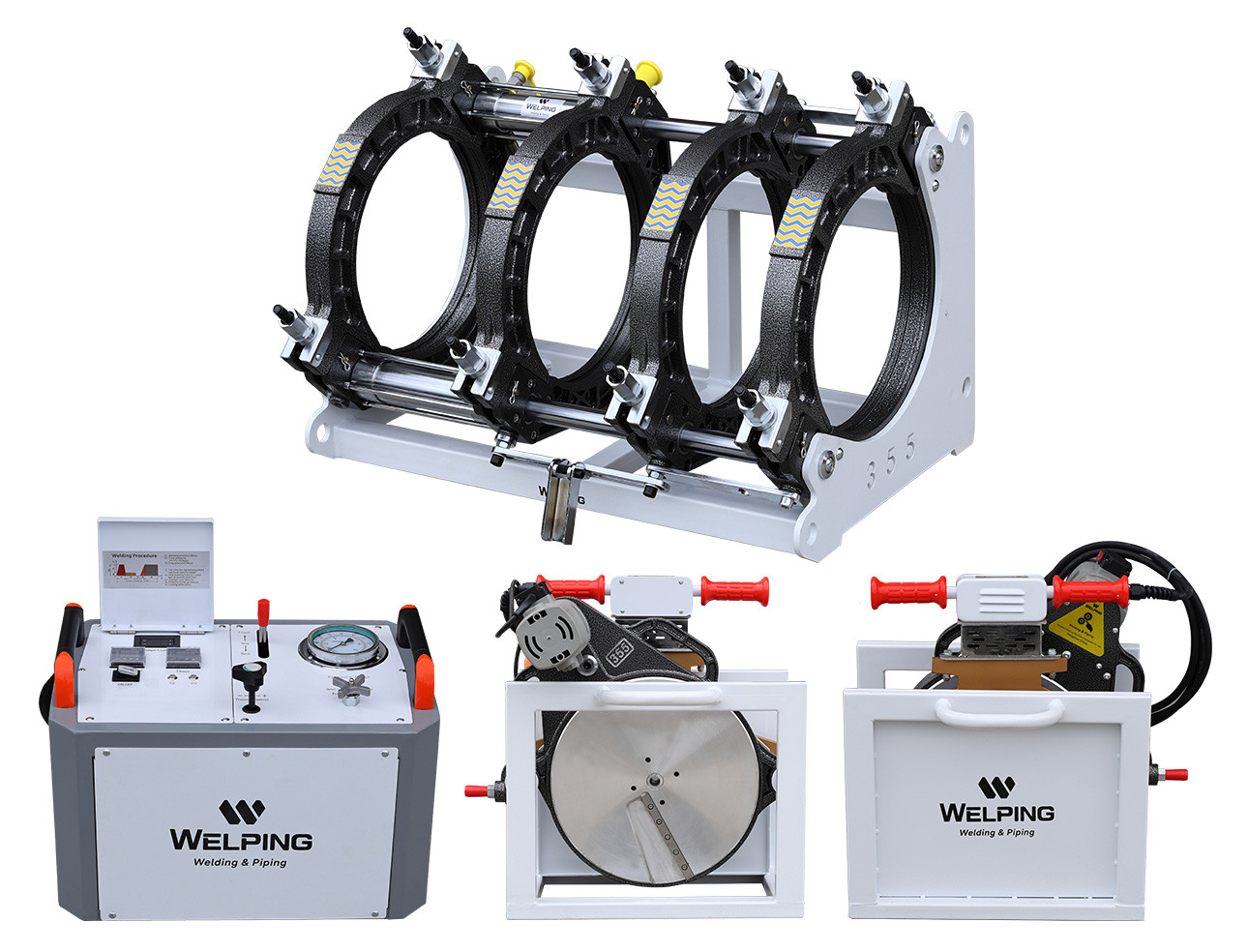

The Butt Fusion Machine is designed to butt fuse pipe sizes 90mm to 355mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.

Model NO.	WP355A Pro	Control	Semi-Automatic
Frequency Range	Low Frequency	Electric Current	AC
Type	Resistance Butt Welder	ODM/OEM	Available
Package	2PCS	Hydraulic	Enclosure Housing
Warranty	1 Year	Color	White
Transport Package	Plywood Case	Specification	Hydraulic drive
Trademark	WELPING	Origin	China
HS Code	8515809090	Production Capacity	20000pieces/Year

PARAMETER

Model	WP355A Pro
Welding range	90-110-125-140-160-180-200-225-250-280-315-355mm
Weldable Material	HDPE/PP/PVDF
Rated Voltage	AC 220V, 50Hz, 1PH
Rated Power	6.3kW
Heater	3.55kW
Trimmer	2.0kW
Hydraulic Unit	0.75kW
Pressure Range	0-6.3Mpa
Packing	Plywood Cases
Total Volume	0.85cbm
Gross Weight	245kg
Certificate	ISO/CE/VOC/Calibration
Warranty	12 Months

PRODUCT DETAILS MAP

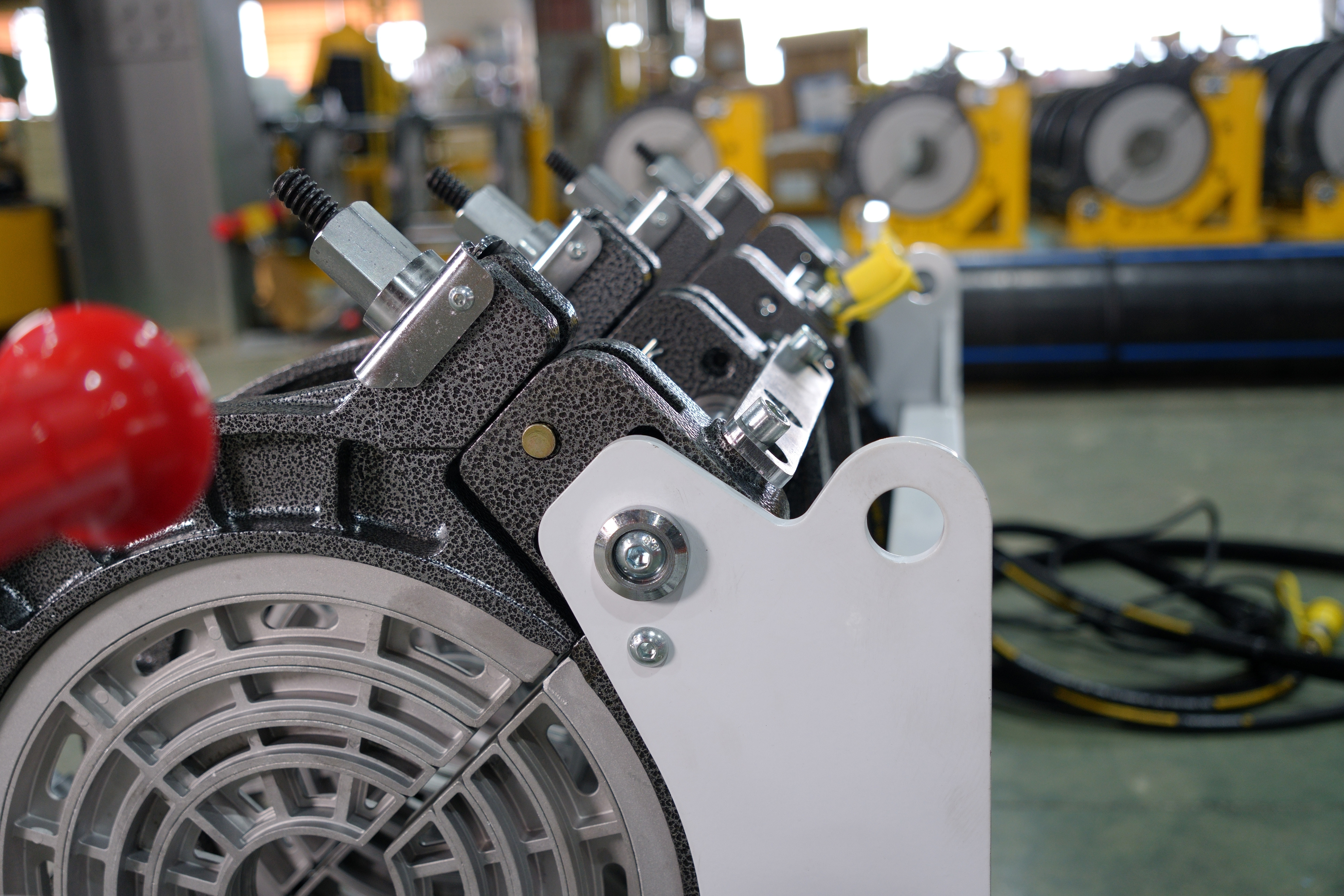

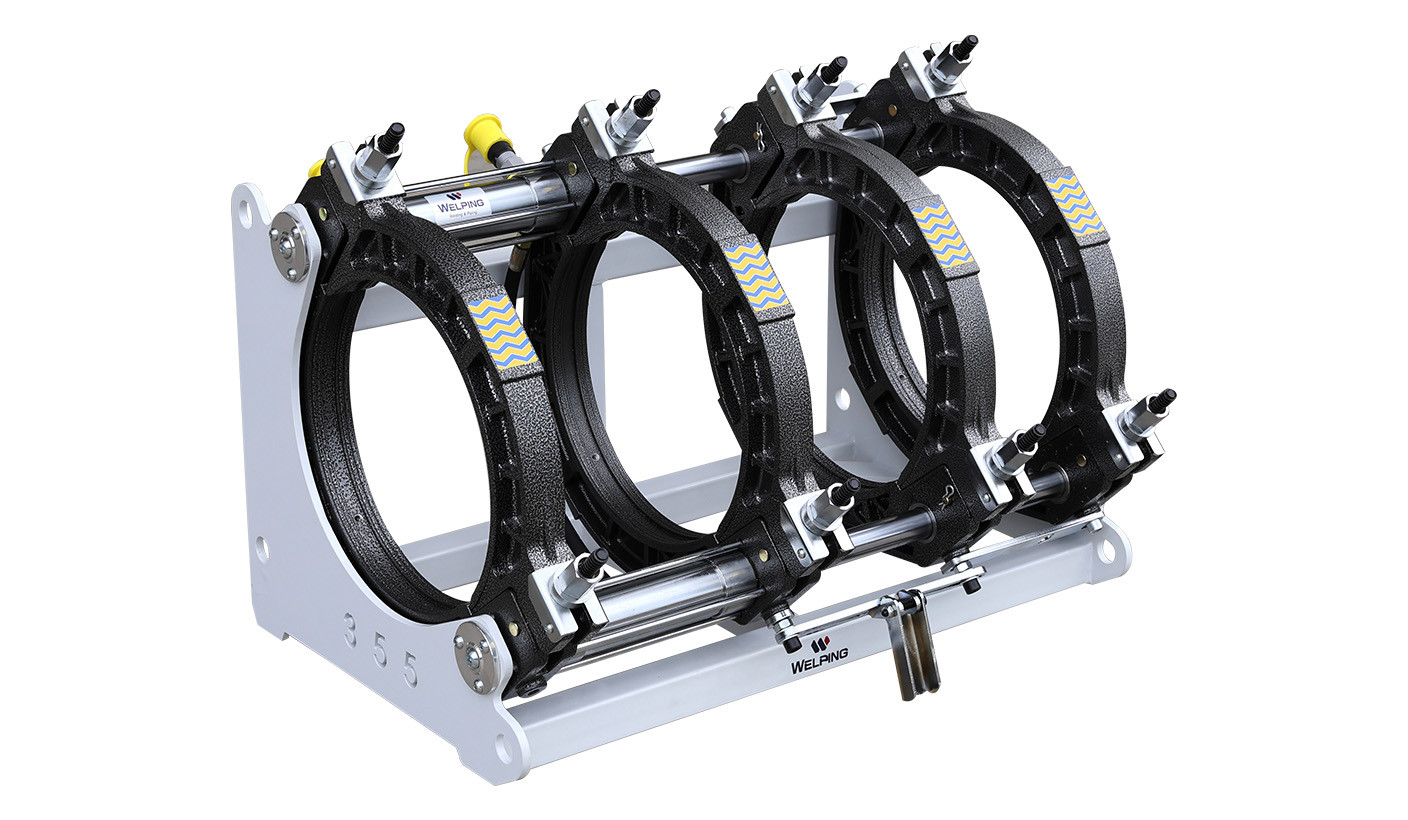

Frame(Carriage)

· Complete steel welded design, with complex reinforced structure, heavy-duty

· Thicker and bigger side plates for tough jobs

· Standard equipped with wear-resistantbushings to effectively prevent wear on the aluminum casting during use

· Qualified hydraulic cylinder with quickcouplings, for long-time steady performance

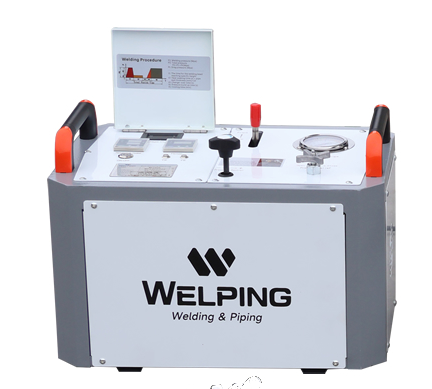

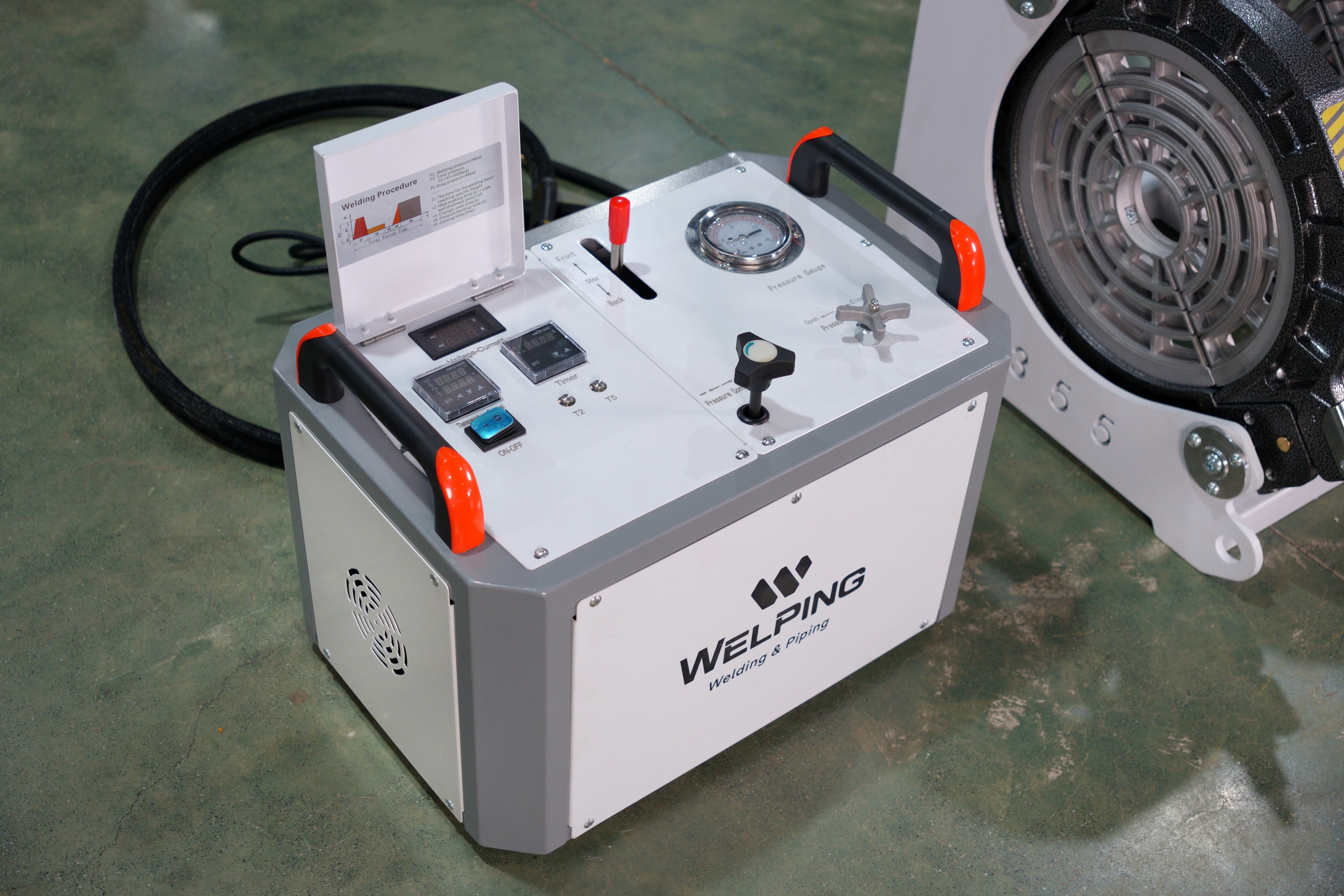

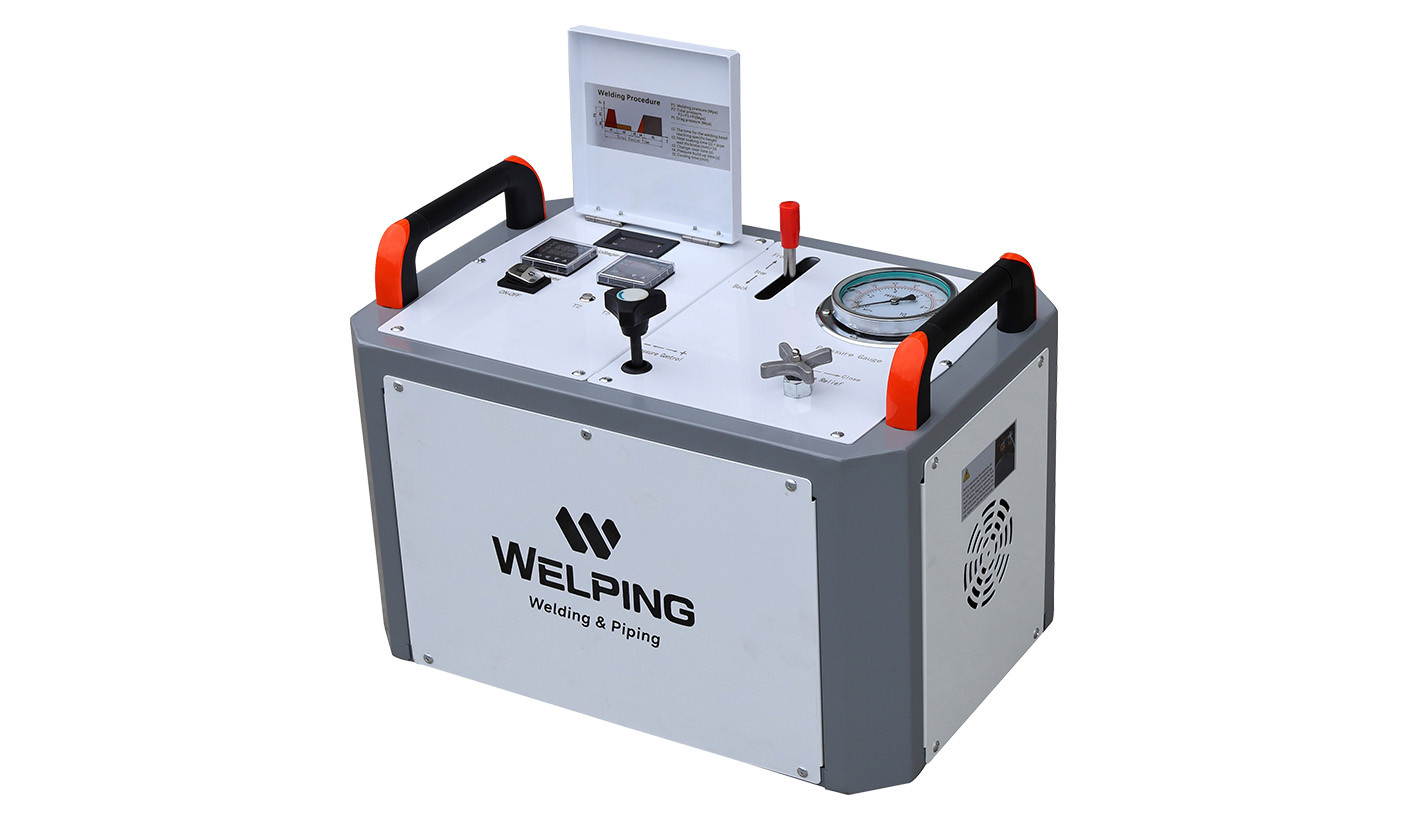

Hydraulic station

· Integrated hydraulic and electrical control, for easy operation access

· All-in-one control panel:

hydraulic actuation, pressure setting, timing, electric info display, temperature setting

· Enclosure design, shielding splash and dirt

· Qualified Siemens electrical parts

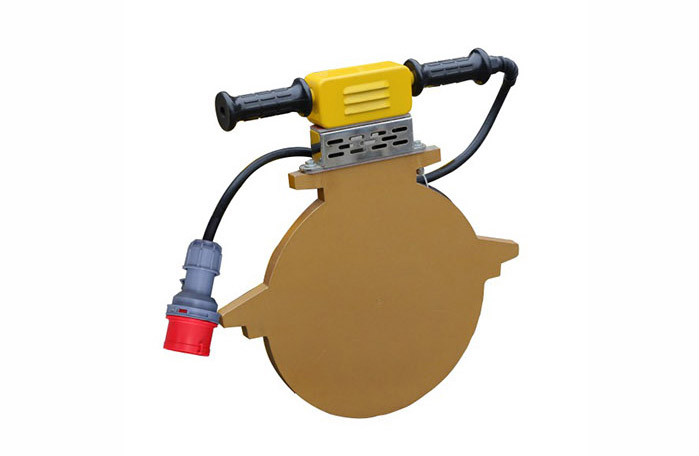

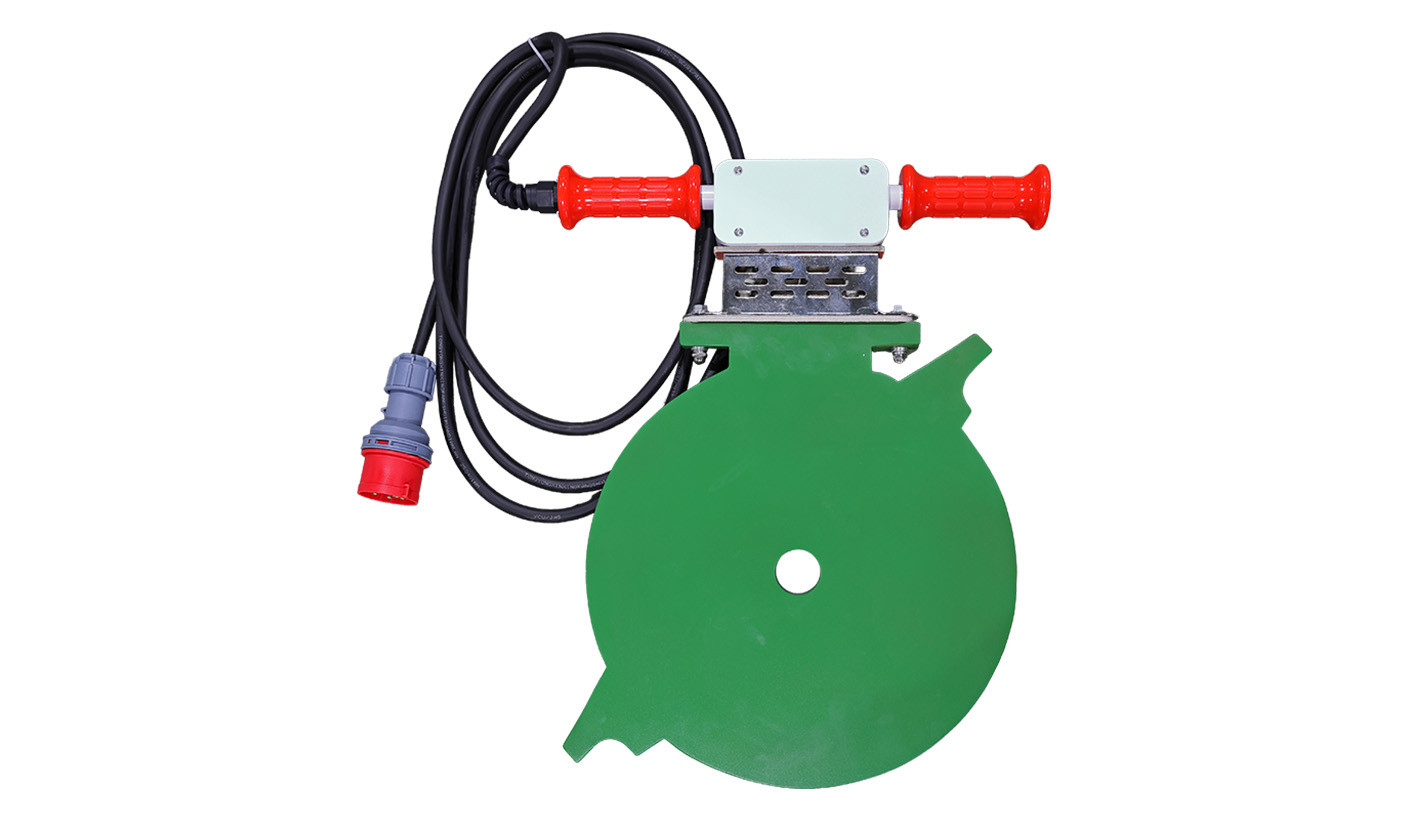

Heating plate

· Cast aluminum body with built-in heating elements

· Anti-stick PEFT coating from Daikin

· Qualified aviation plug and heavy duty cable ensure operation safety

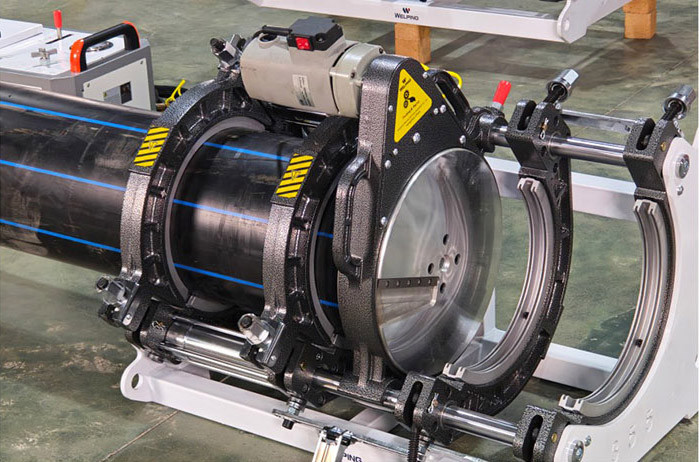

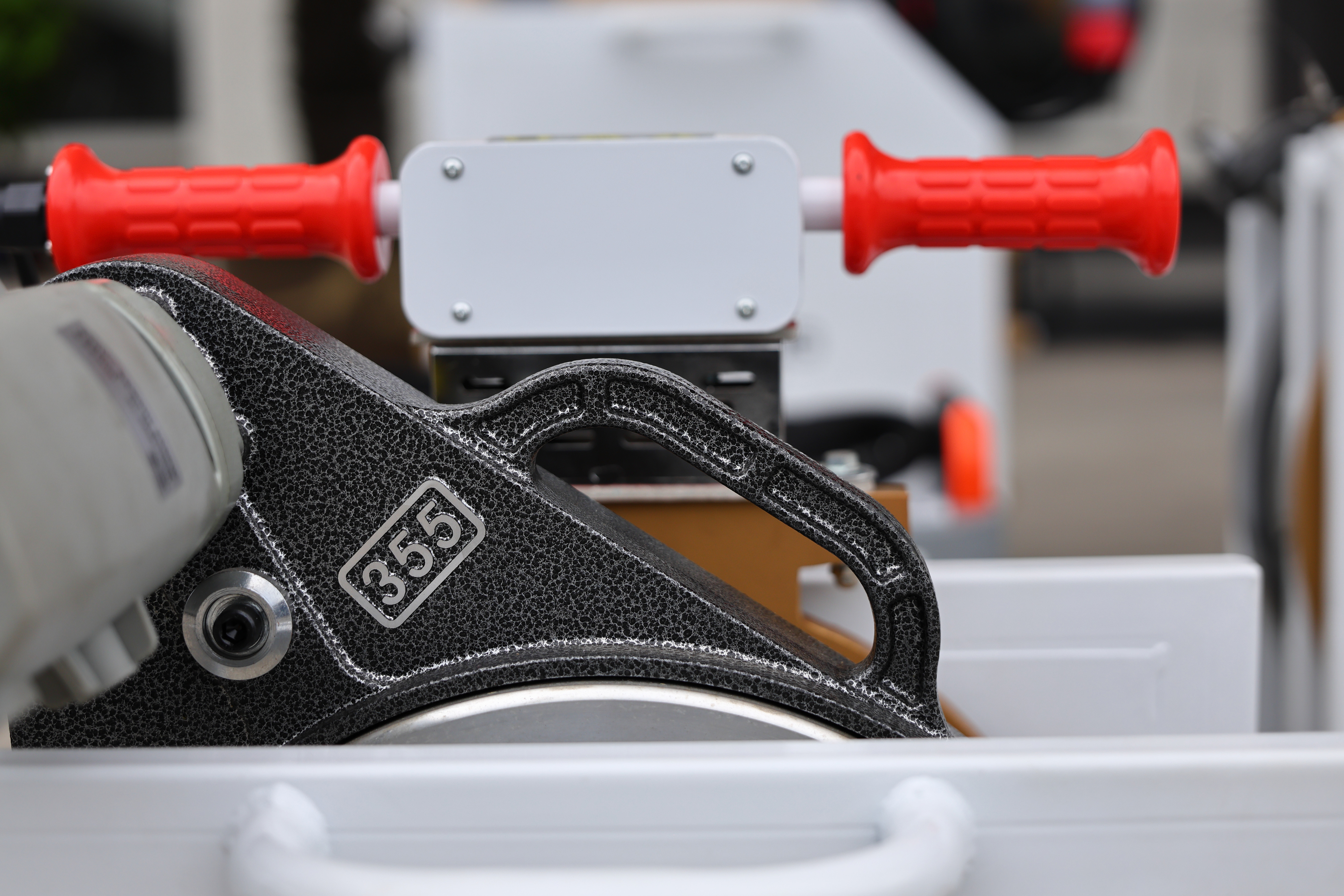

Milling cutter (facer)

· Full gear transmission structure, for steadyand long-life performance

· Thicker cutter disc is built for high strengthand durability, with a precision-ground surface for smooth and accurate contact

· Durable, double edges HSS blades

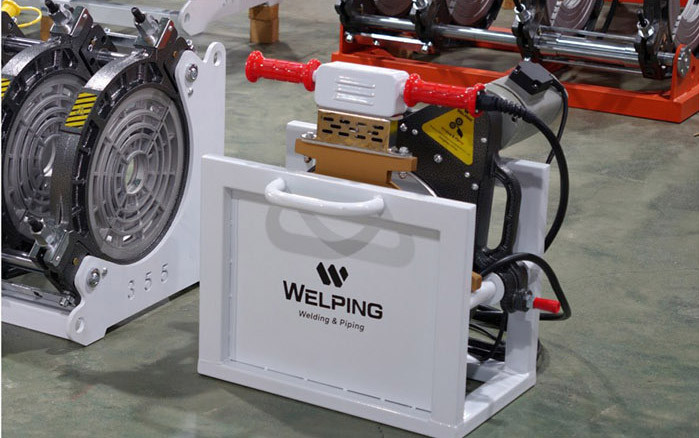

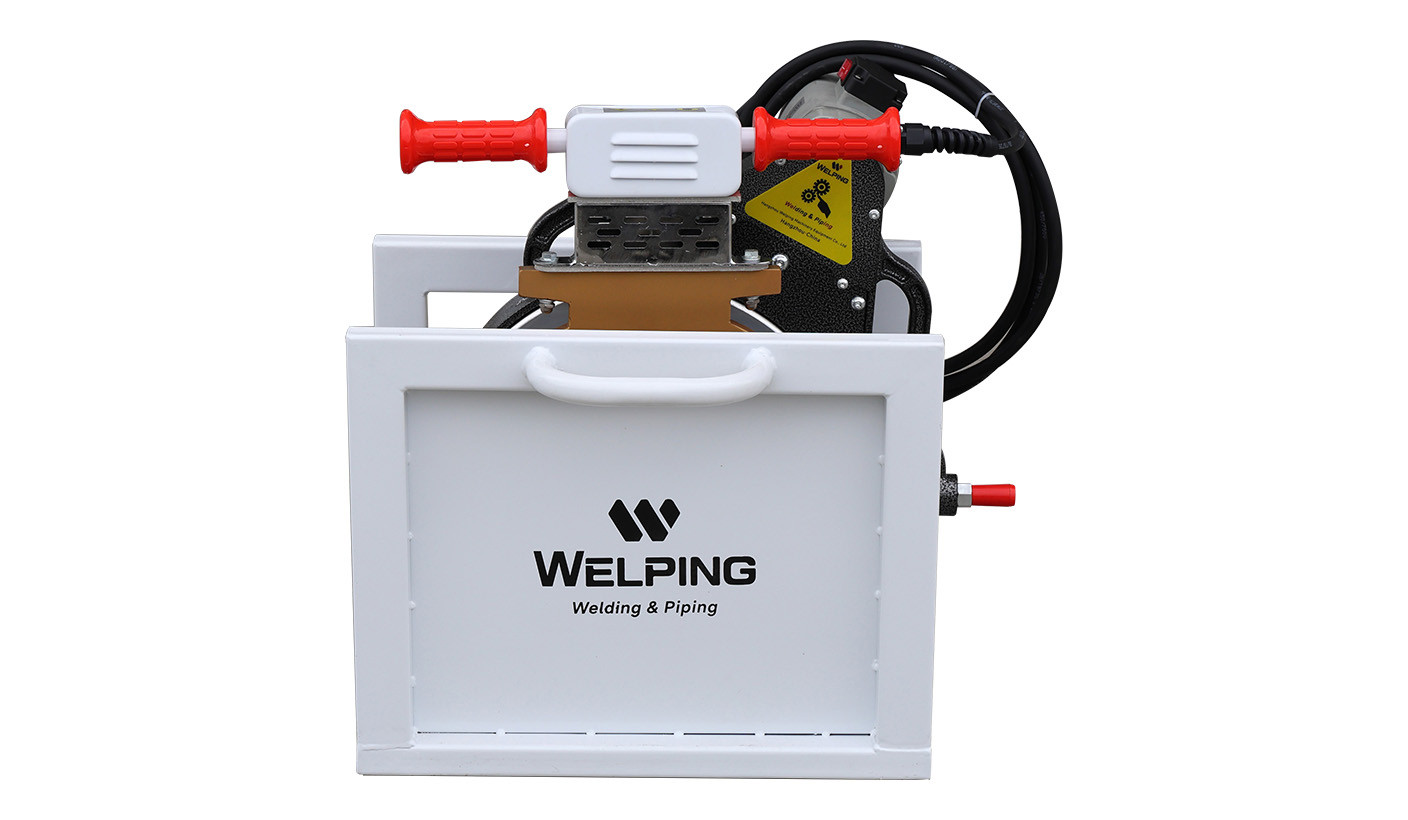

Tool holder

· The tool holder provides convenient storagefor the facer and heating plate during on-site operations

· Complete heating plate covers for betterprotection and heating conservation

· 2 Wider handles for better mobility
