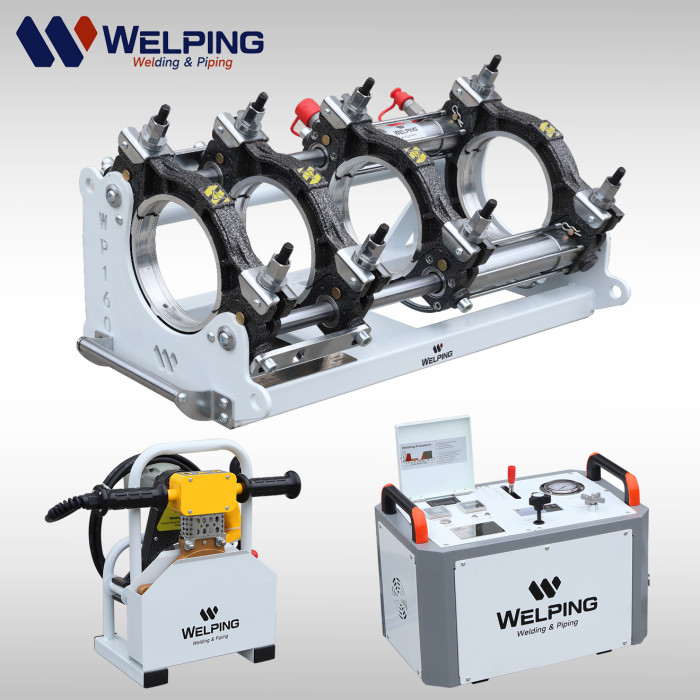

High-End Series Hydraulic HDPE Pipe Fusion Welding Machine Wp160A PRO

KeyWords

High-End Series Hydraulic HDPE Pipe Fusion Welding Machine Wp160A PRO

It is a versatile machine designed for butt fusion of 40mm to 160mm pipe and fittings, with durability and reliability.

Lead Time: 7-15 days once order confirmed

Terms of Payment: T/T, Western Union, Paypal,X Transfer

FOB Port: Shanghai, Ningbo

Certificate: CE

MOQ: 1 Set

Business type: Plastic pipe welding machines manufacturer

Contact Now

Favorites

Detail Information

High-End Series Hydraulic HDPE Pipe Fusion Welding Machine Wp160A PRO

DETAILS

HDPE pipe has been used extensively in the piping applications of municipal, industrial, marine, mining, landfill, duct and agricultural industries.

Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding machine can provide reliable joints, even as strong as the complete pipe.

The High-End Series WP160A PRO butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.

Basic Info

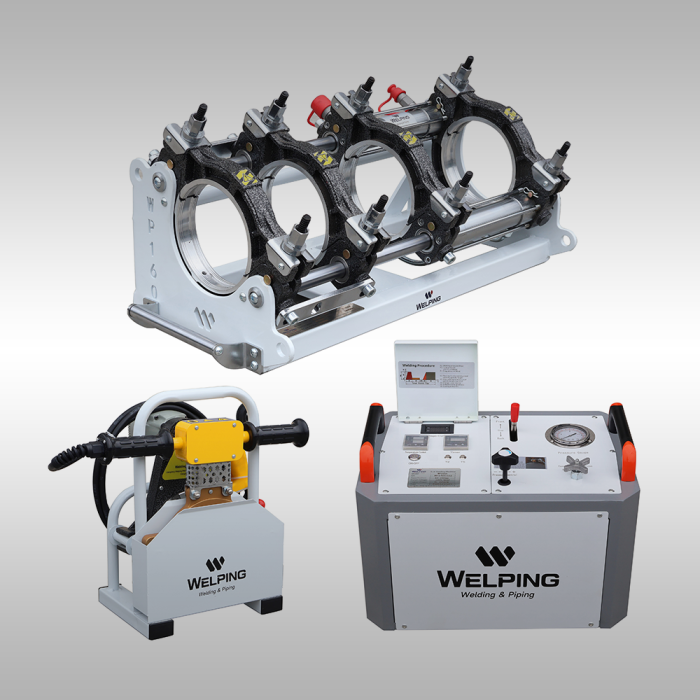

The Butt Fusion Machine is designed to butt fuse pipe sizes 40mm to 160mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.

Model NO.	WP160A Pro	Control	Semi-Automatic
Frequency Range	Low Frequency	Electric Current	AC
Type	Resistance Butt Welder	ODM/OEM	Alternative
Package	3 PCS	Hydraulic	Enclosure Housing
Certificate	CE, SGS	Warranty	1 Year
Heating Plate	1.5kw	Planing Tool	1.4kw
Hydraulic Unit	0.75kw	Color	White
Transport Package	Plywood Case	Specification	Hydraulic drive
Trademark	WELPING	Origin	China
HS Code	8515809090	Production Capacity	20000pieces/Year

PARAMETER

Model	WP160A Pro
Welding range	40-50-63-75-90-110-125-140-160 mm
Weldable Material	PE(HDPE, MDPE, LDPE), PP, PVDF, MPP
Power supply	220V, 50/60Hz, 1PH
Overall Power	3.65kW
Heater	1.5kW
Trimmer	1.4kW
Hydraulic station	0.75kW
Pressure range	0-8Mpa
Max. temperature	270ºC
Heating plate surface temp	170-250ºC
Temperature deviation	±7ºC
Gross Weight	112kg
Total Volume	0.3cbm

PRODUCT DETAILS MAP

Frame(Carriage)

· Complete steel welded design, with complex reinforced structure, heavy-duty

· Clamping part, inner fine-machined

· Standard equipped with carrying handles and wheels,for easy transportation

· Qualified hydraulic cylinder with quick couplings, for easy installation

Hydraulic station

· Integrated hydraulic and electrical control, for easy operation access

· All-in-one control panel:

hydraulic actuation, pressure setting, timing, electric info display, temperature setting

· Enclosure design, shielding splash and dirt

· Qualified Siemens electrical parts

Heating plate

· Cast aluminum body with built-in heating elements

· Anti-stick PEFT coating from Daikin

· Qualified aviation plug and heavy duty cable ensure operation safety

Planing tool (trimmer)

· Full gear transmission structure,for steady and long-life performance

· Powerful copper-wiring motor

· Durable, double edges HSS blades

Tool holder

· Complete heating plate covers for better protection and heating conservation

· Wider and longer handles for better mobility
