Combination Roll Groover Compact Designe for Steel Pipe SCH10/SCH40 1 1/4"-6 " (RG-3M)

Combination Roll Groover Compact Designe for Steel Pipe SCH10/SCH40 1 1/4"-6 " (RG-3M)
Combination Roll Groover Compact Designe for Steel Pipe SCH10/SCH40 1 1/4"-6 " (RG-3M)Combination Roll Groover Compact Designe for Steel Pipe SCH10/SCH40 1 1/4"-6 " (RG-3M)Combination Roll Groover Compact Designe for Steel Pipe SCH10/SCH40 1 1/4"-6 " (RG-3M)Combination Roll Groover Compact Designe for Steel Pipe SCH10/SCH40 1 1/4"-6 " (RG-3M)Combination Roll Groover Compact Designe for Steel Pipe SCH10/SCH40 1 1/4"-6 " (RG-3M)
roll groovers are designed to improve speed and efficiency for fire sprinkler and other industrial installations
Share
Categories
Manual Hydraulic Roll Groover
Brand
Fusion Equipment and Plumbing Tool|WELPING
Product Specifications
RG-3M
Grooving Capacity
1 1/4"-6"
Max Wall Thickness
6mm
Operation Radius
210mm/ 8 ¼"
Gross weight
12kg
Detail Information

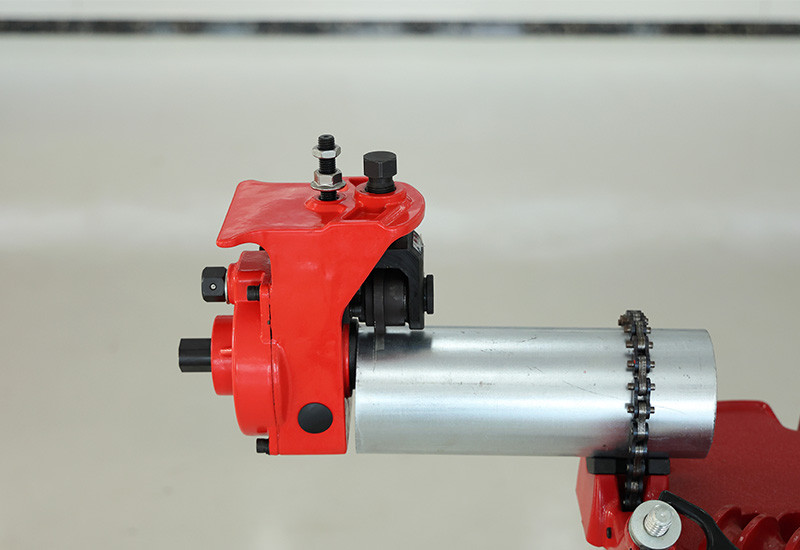

RG-3M Combination Roll Groover for 1¼″–6″ Steel Pipes
Compact Design · Manual or Power-Driven Operation
Features of Manual Roll Groover Machine
● Can be used manually or with a power drive. Ideal for on-site or flexible grooving tasks
● Featuring a compact design, the RG-3M is a versatile roll grooving tool that supports both manual operation and power drive through a threading machine. Suitable for both batch production and flexible on-site operations.
● Light-duty design for fire-fighting pipelines size range 1 1/4"~6"(DN32~DN150),SCH10 to SCH40.
●Compact design with a portable toolbox, allowing easy manual operation even in confined spaces
● Two-stage gear reduction for smooth, labor-saving operation
● Quick and easy swap shafts in 30 seconds.
roll groover
roll grooving machine
pipe roll groover
hydraulic roll groover
Pipe Roll Grooving Machine Parameter
24" roll groover
Mode:
RG-3M
Suitable Materials:
 Carbon Steel,Stainless Steel
Fabrication Capacity:
1 ¼"~4"(DN32~DN100,Φ33~Φ114) SCH10/40 Steel Pipe5"~6"(DN125~DN150,Φ139~Φ168) SCH10/20 Steel Pipe
Max Wall Thickness:
7mm
Operation Radius:
210mm / 8 ¼"
Gross Weight:
12kgs
Packing Size:
49*22*40cm
Drive Unit
Item Number
Description
Net weight
Size
900001
1 ¼"-6" roll grooving assembly
12 KG
49*22*40 CM
Standard Equipment
Item Number
Description
Net weight
911010
Drive roller 1 ¼"- 6"    (Φ42~Φ168)
0.70 KG
912016
Groove roller 1"-6"    (Φ33~Φ168)
0.30 KG
998036
Rachet with socket —— ①
1.65 KG
911016
Support arms (2pcs) for 300 —— ②
1.40 KG
911015
Drive bar adaptor —— ③
1.60 KG
Optional Accessories
Item Number
Description
Net weight
998114
Bracket set for horizontal threading machine —— ④
1.00 KG
911220
Drive roller 2"~6"     (Φ60~Φ168)
1.10 KG
RG-3M Features and Accessories
Manual or Power-Driven Operation

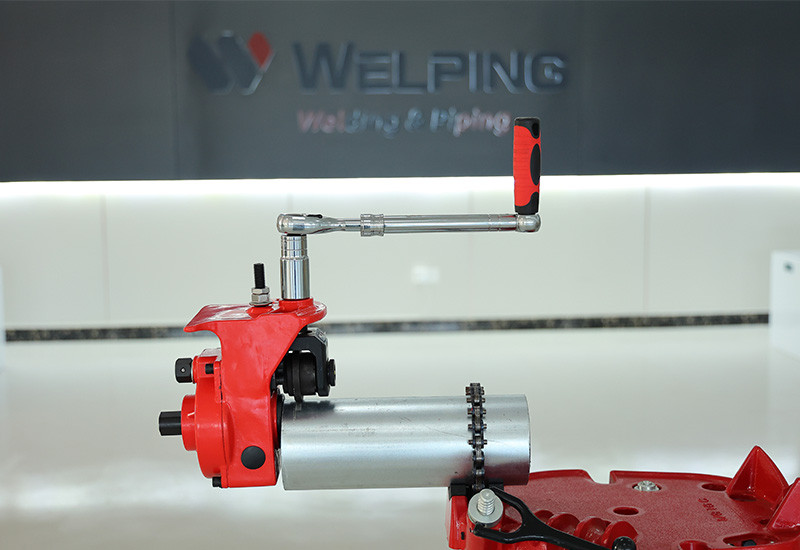

Use manually with a ratchet wrench or connect to a compatible power drive for flexible on-site and workshop grooving.

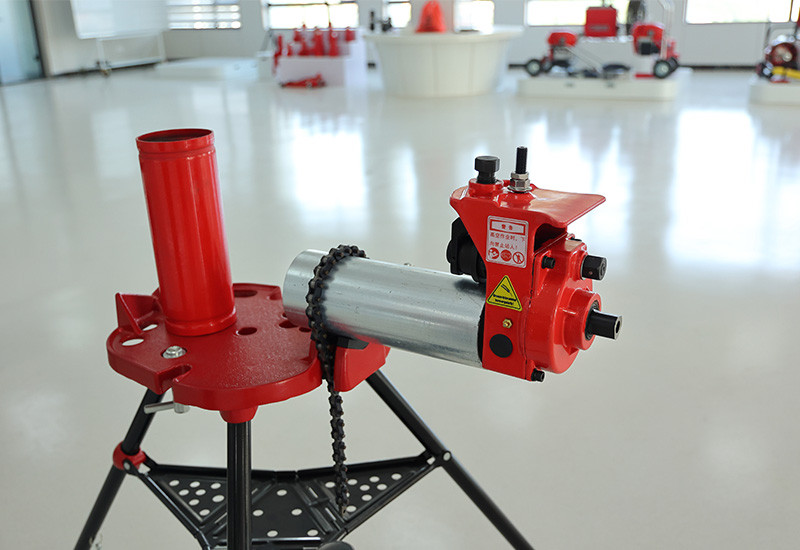

Compact Design
A compact body makes the RG-3M easy to carry and use in confined working spaces.
Two-Stage Gear Reduction
Two-stage gear reduction provides smoother turning with less effort during manual operation.
Drive and Groove Rollers
Supplied with a 1¼″–6″ drive roller and matching groove roller. A 2″–6″ drive roller is also available as an option.
Power Drive Accessories
Standard support arms and a drive bar adapter allow connection to a compatible 300 power drive. A bracket set for horizontal pipe threading machines is optional.
Carrying Case
Keeps the groover, rollers and operating accessories together for convenient storage and transport.
Resources of RG-3M Roll Grooving Machine
RG-3M Manual Roll Groover Catalog

Catalog of Steel Pipe Tools
