Combination Roll Groover Patented Designe for Steel Pipe SCH10/SCH40 1"-6 "(RG-2M)
Combination Roll Groover Patented Designe for Steel Pipe SCH10/SCH40 1"-6 "(RG-2M)
roll groovers are designed to improve speed and efficiency for fire sprinkler and other industrial installations
- Grooving Capacity
- 1"-6"
- Max Wall Thickness
- 6mm
- Operation Radius
- 210mm/ 8 ¼"
- Gross weight
- 15kg
Detail Information
1"-6" Heavy Duty manual Roll Groover
Model RG-2M combination Roll Groove is designed TWO TOOLS IN ONE.
With its compact and portable design, this roll grooving machine is perfect for performing medium volume grooving tasks in tight spaces and on job sites
Chuck your workpiece into the 300 threading machine's power drive or horizontal threading machine, or use a manual roll groove to create threads in place without the need for a power supply
Heavy duty design for fire-fighting pipelines size range 1"~6" (DN25~DN150),SCH10 to SCH40).
Groove depth lock net ensures high quality grooves and high grooving efficiency.
Quick and easy swap shafts in 30 seconds.
PARAMETER
|
Mode
|
RG-2M
|
|
Suitable materials
|
Carbon Steel,Stainless Steel
|
Capacity |
for 1"-4" steel pipe SCH10/SCH40 for 5"-6" steel pipe SCH10/SCH20 |
Max wall thickness | 6mm |
Operation Radius | 210mm/ 8 ¼” |
Packing gross weight | 15kgs |
Packing size | 50*22*53cm |
ORDERING INFORMATION
|
Catalog Number
|
Description
|
Net Weight
|
Packing Size
|
|
900001
|
1"-6" roll grooving assembly
|
12.5kg
|
50*22*53cm
|
STANDARD PARTS
|
Item Number
|
Description
|
Net weight
|
|
911011 | Drive roller 1"(φ33) | 0.70kg | |
|
911010
|
Drive roller 1 ¼"- 1 ½" (φ42~φ48)
|
0.70kg
|
|
|
911009
|
Drive roller 2"- 6" (φ60~φ168) |
0.70kg
|
|
912016 | Groove roller 1"-6"(φ33~φ168) | 0.30kg | |
998036 | Rachet with socket | 1.65kg | |
OPTIONAL PARTS
|
Item Number
|
Description
|
Net weight
|
|
911016 | Support arms (2pcs) for 300 power drive | 1.40kg | |
911015 | Drive bar adaptor | 1.60kg | |
998034 | HDPE tool case | 2.70kg | |
PRODUCT DETAILS MAP
Drive Roller
one set 1" (φ33)
One set 1¼"- 6" (φ42~φ48);
Groove roller
one set 1"- 6" (φ33~φ48);
Drive Bar Adapter
Ratchet with socket
Support Arm
2 pcs for 300 threading machine

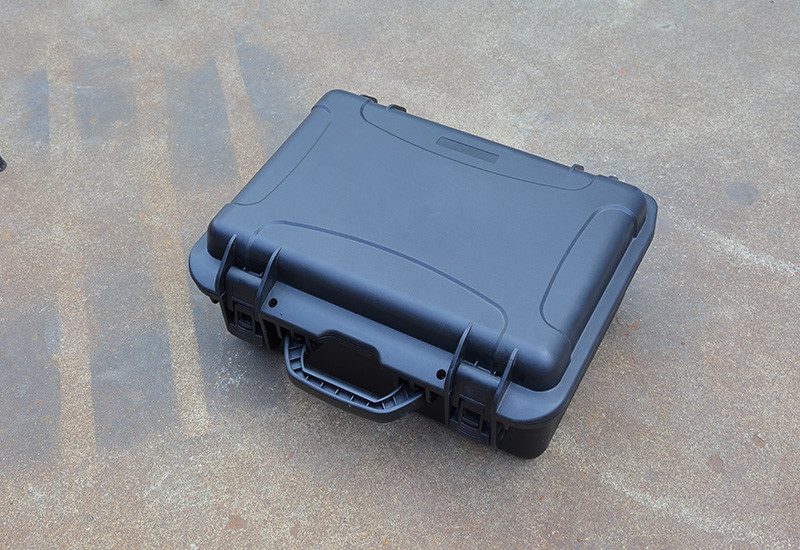

HDPE Tool Case
2 pcs for 300 threading machine
Tool Bag(for option)
DOWNLOAD
