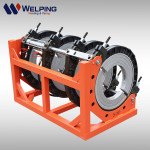

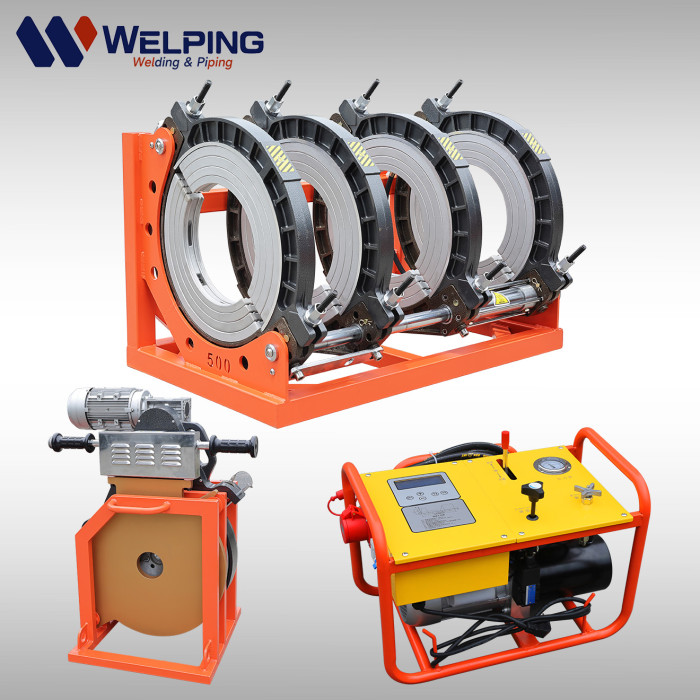

WP500B Hydraulic Butt Fusion Machine for 250–500 mm HDPE Pipe
1.Heavy-Duty 4-Clamp Frame — Stable pipe alignment
2.Gear-Driven Facer — Smooth and consistent facing
3.Hydraulic Control — Precise fusion pressure adjustment
4.Durable Heating Plate — Stable and even heating
2.Gear-Driven Facer — Smooth and consistent facing
3.Hydraulic Control — Precise fusion pressure adjustment
4.Durable Heating Plate — Stable and even heating
- Share
- Categories
- B Series Butt Fusion Machines
- Brand
- Fusion Equipment and Plumbing Tool｜WELPING
- Model
- WP500B
- Working Range
- 250–500 mm
- Pipe Material
- PE / HDPE
- Operation Type
- Hydraulic
- Power Supply
- 380V / 415V Optional
- Applicable Standard
- ISO 21307 / DVS 2207
- Certificate
- CE
- FOB port
- Shanghai/Ningbo
- Terms of Payment
- L/C, Western Union, T/T, Paypal
Detail Information
Hydraulic Butt Fusion Machine for 250MM to 500MM HDPE Pipes
PRODUCT OVERVIEW
PRODUCT OVERVIEW
DETAILS
The WP500B is a versatile machine capable of butt fusing pipe and fittings with a variety of pressure ratings. With its small footprint and light weight, it can be carried from joint to joint yet has the same rugged durability and long-lasting performance expected of any Welping butt fusion machine.
The WP500B hydraulic butt fusion machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.
The Butt Fusion Machine is designed to butt fuse pipe sizes 250mm to 500mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.
FEATURES
※ Robust structure of carriage part with streamline outlook
※ Swivel handle with gear transmission of extremely smooth operating structure
※ Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin
STANDARD ACCESSORIES |
|
|
Main Frame
|
1 Set
|
|
Heating Plate
|
1 Set
|
|
Trimmer
|
1 Set
|
|
Reducers
|
1 Set
|
Tool Box | 1 Set |
PRODUCT VIDEO
PRODUCT VIDEO
PARAMETER
PARAMETER
|
Mode
|
WP500B
|
|
Suitable materials
|
PE,PP, PB. PVDF
|
Range | 250-280-315-355-400-450-500mm |
|
Power supply
|
380V/50HZ, 3PH
|
Total power | 8.7 KW |
Heating plate | 6.5 KW |
Planing tool | 1.1 KW |
Hydraulic Unit | 1.1 KW |
Max Temperature of Heating plate | 270℃ |
Temp.Deviation in Surface | ±7ºC |
Total Weight | 405 KG |
Net weight | 375 KG |
Packing Size( for frame ) | 125*79*88cm |
Packing Size ( for heater, trimmer ) | 88*60*108cm |
Packing Size ( for Hydraulic ) | 67.5*53*73cm |
PRODUCT DETAILS MAP
PRODUCT DETAILS MAP

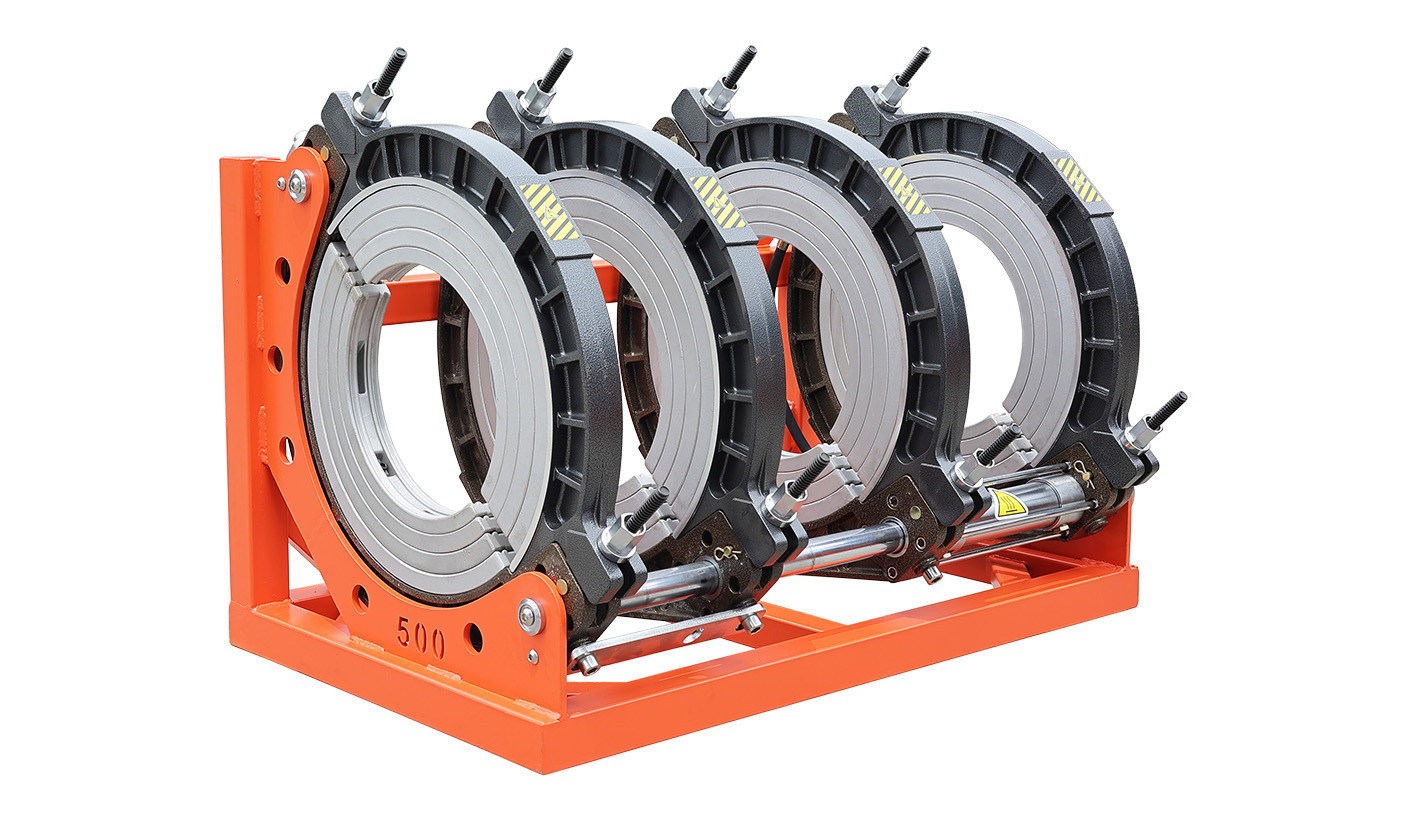

Basic Frame
· 4 Jaw Clamps to ensure precise alignment
· Italy DNP quick coupler
· Chromated hydraulic cylinder made of 1045(ASTM)/S45)(JIS)/C45(DIN) steel
· Chromated integral shaft made of 1045(ASTM)/S45C(JIS)/C45(DIN) steel
· Steel plate cutting clamp with sandblasting &spraying treatment
· Base made of Q235 steel with spraying treatment

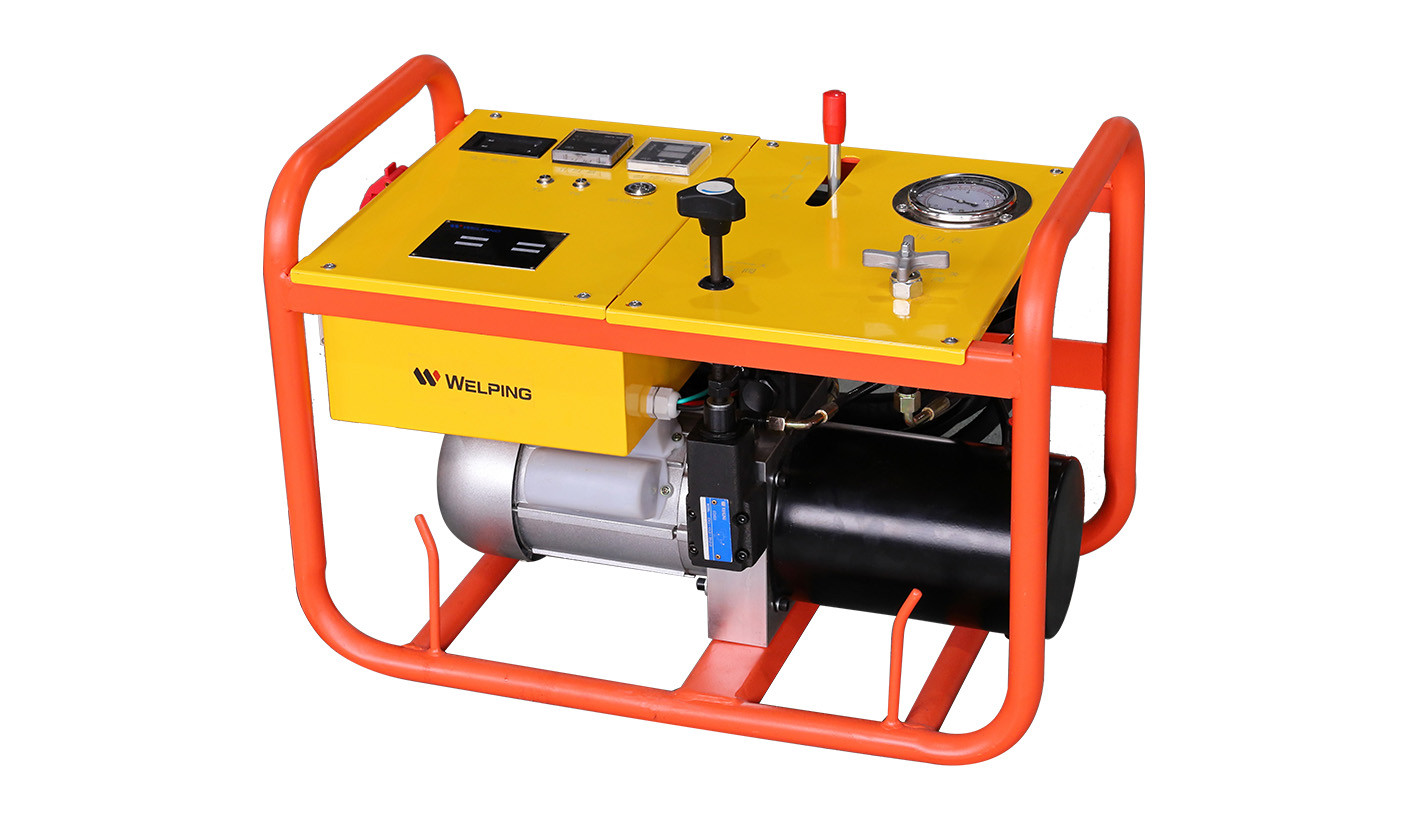

Hydraulic Power Unit
· Standard equipping pressure more stable
· Electricity leakage protection switch
· 380V asynchronous motor

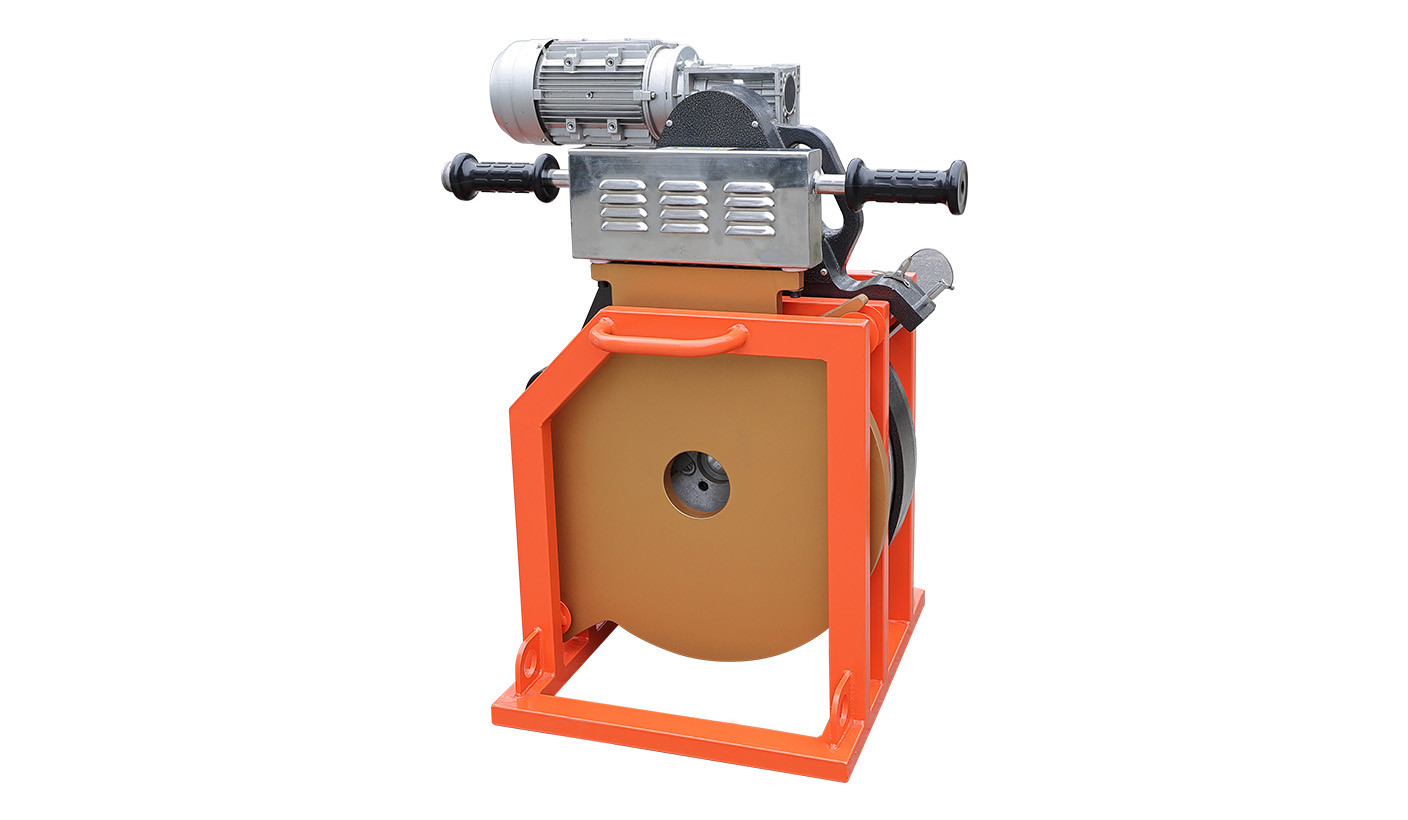

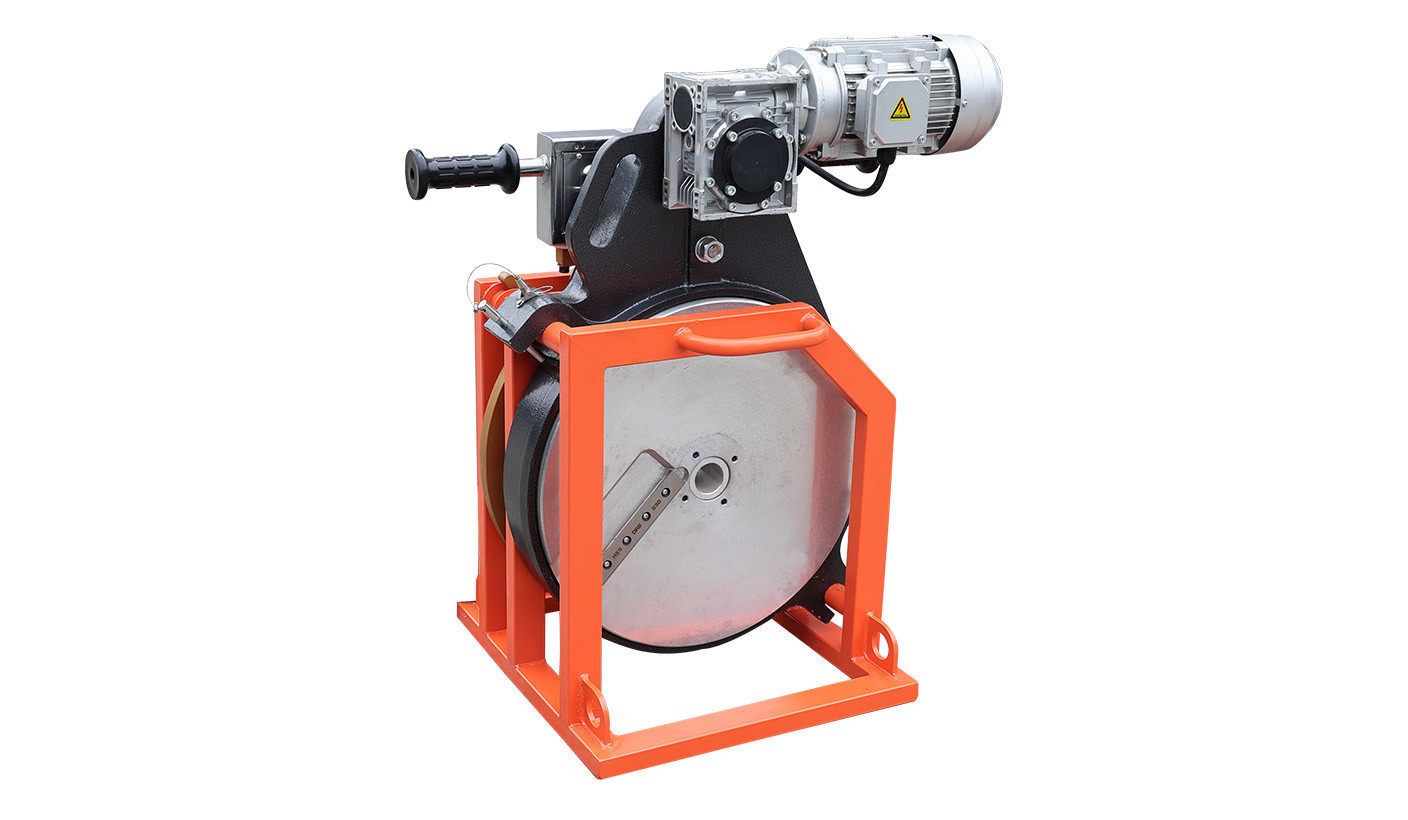

Planning tool
· HSS blade with double edge
· Casting aluminum trimmer plate, durable and anti-corrosion
· Casting aluminum frame of motor with good heat dissipation performance
· Motor with pure copper wiring
Heating Plate
· Bakelite handle with high insulating property and thermal insulation
· Thermocouple temperature sensor
· Heating element
· Teflon Coating imported from Daikin in Japan
· Aviation plug

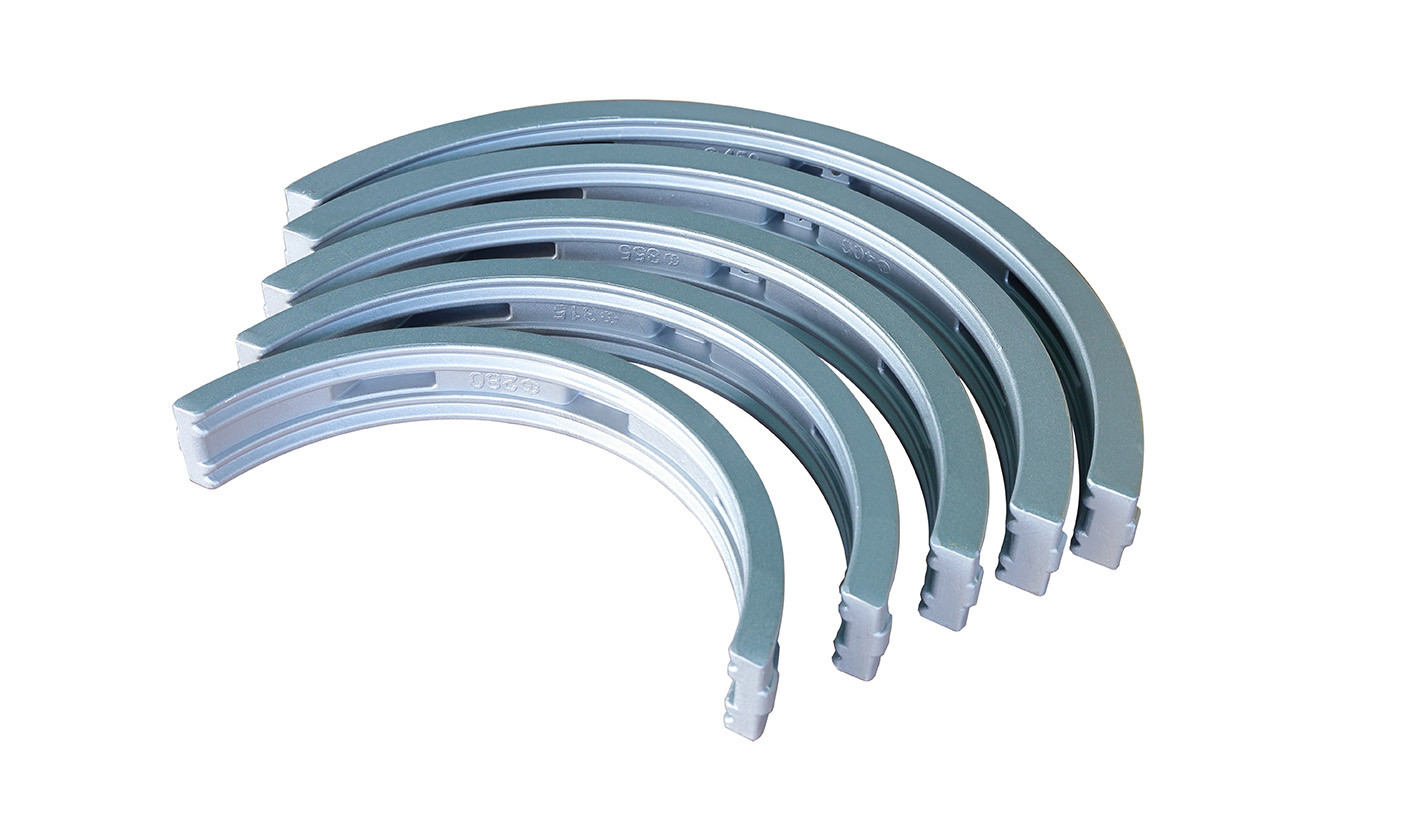

clamp inserts
250-280-315-355-400-450-500mm reducers
DOWNLO
AD
DOWNLO AD
WHAT WE CAN DO FOR YOU?
WHAT WE CAN DO FOR YOU?
OUR SERVICES
WELPING develops, manufactures, and sells devices and systems for welding thermoplastics and, in this area, focuses consciously on pipeline systems as the main field of application. And We have been in this field for more than 17 years since 2005.
We aim to bring industrial level design, performance and quality together, to provide professional solutions for a variety of mining & industrial, marine, municipal, irrigation, energy and landfill to help you build reputation.
WELPING is committed to becoming a business for all thermoplastic pipe, which includes the fusion equipment and certified technical training to assist with the installation and fabrication of any plastic pipes related project. WELPING has continually broadened the scope of supply and usage for polyethylene pipe, valve, and fitting system design into new market segments. Also, We help our customers source pipe tools to support their projects. Our success is in the quality of our products and the knowledge and service of our people.
