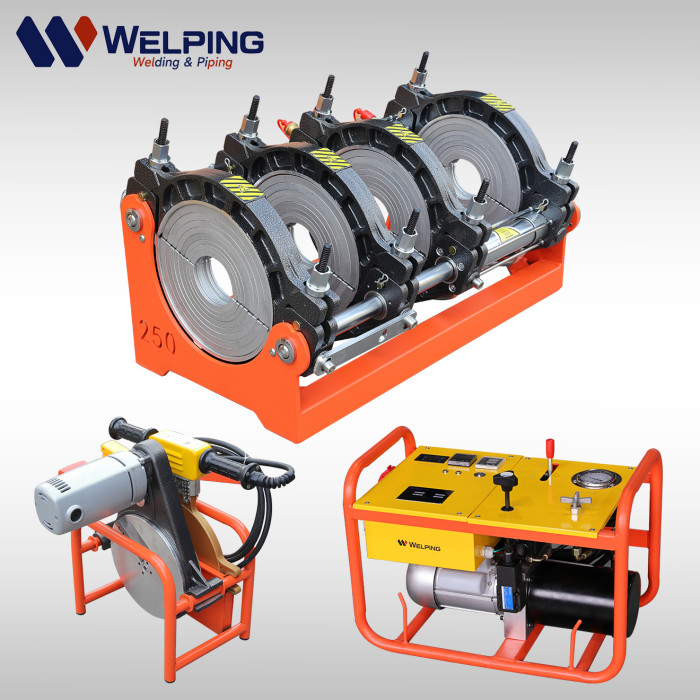

Hydraulic Butt Fusion Machine for 63MM to 250MM HDPE Pipes

Hydraulic Butt Fusion Machine for 63MM to 250MM HDPE Pipes

Hydraulic Butt Fusion Machine for 63MM to 250MM HDPE Pipes
Hydraulic Butt Fusion Machine for 63MM to 250MM HDPE PipesHydraulic Butt Fusion Machine for 63MM to 250MM HDPE PipesHydraulic Butt Fusion Machine for 63MM to 250MM HDPE PipesHydraulic Butt Fusion Machine for 63MM to 250MM HDPE PipesHydraulic Butt Fusion Machine for 63MM to 250MM HDPE Pipes
It is a versatile machine designed for butt fusion of 90mm to 250mm pipe and fittings, with durability and reliability.
Lead Time
7-15 days once order confirmed
Terms of Payment
T/T, Western Union, Paypal,X Transfer
FOB Port
Shanghai, Ningbo
Certificate
CE
MOQ
1 Set
Business type
Plastic pipe welding machines manufacturer
Detail Information
Hydraulic Butt Fusion Machine for 63MM to 250MM HDPE Pipes
Welping WP160A hydraulic butt fusion machine
DETAILS
The WP250B is a versatile machine capable of butt fusing pipe and fittings with a variety of pressure ratings. With its small footprint and light weight, it can be carried from joint to joint yet has the same rugged durability and long-lasting performance expected of any Welping butt fusion machine.

The WP250B hydraulic butt fusion machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.

The Butt Fusion Machine is designed to butt fuse pipe sizes 90mm to 250mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.

FEATURES

※ Robust structure of carriage part with streamline outlook ※ Swivel handle with gear transmission of extremely smooth operating structure ※ Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin
STANDARD ACCESSORIES
Main Frame
1 Set
Heating Plate
1 Set
Trimmer
1 Set
Reducers
1 Set
Tool Box
1 Set

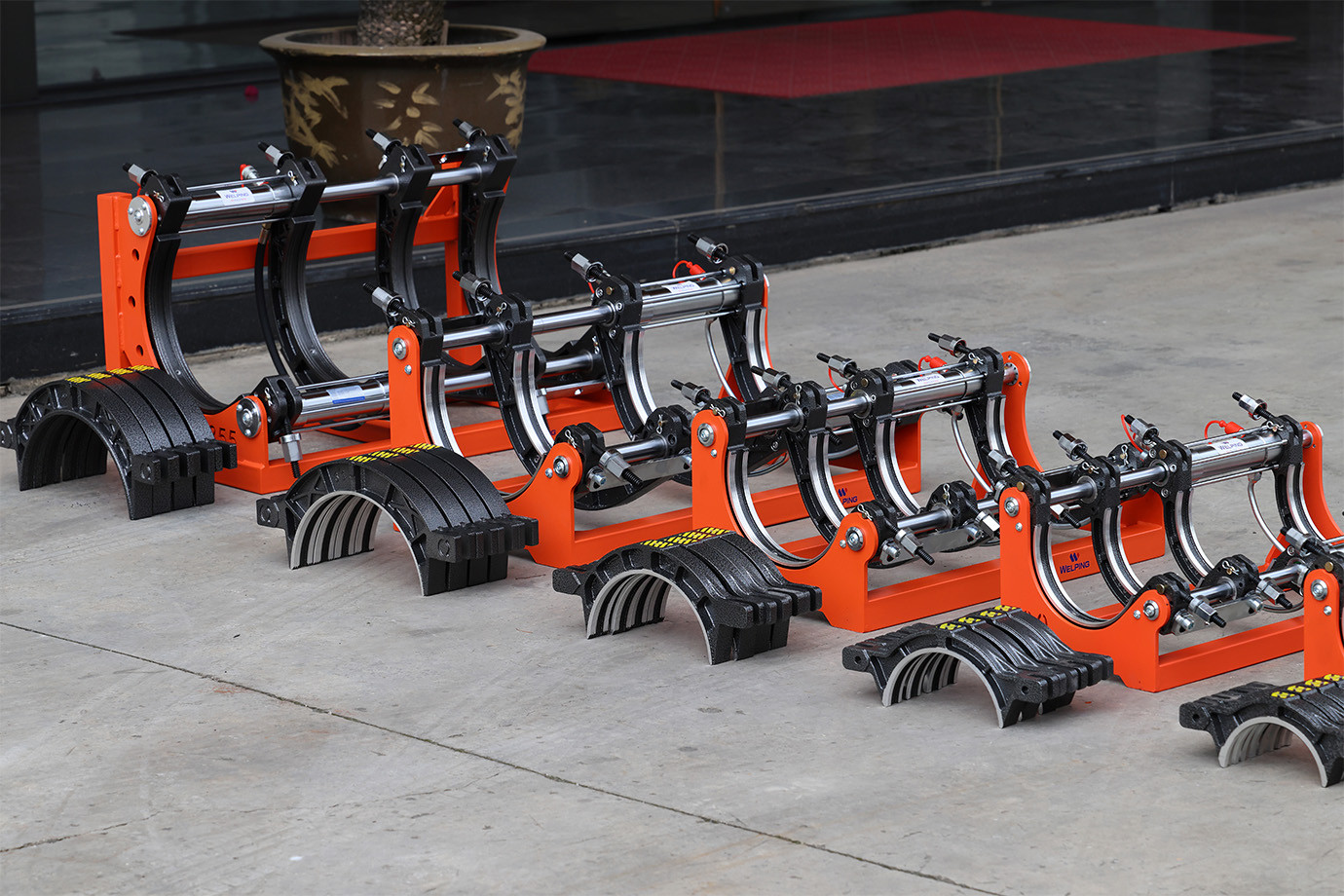

200mm hydraulic butt fusion machine

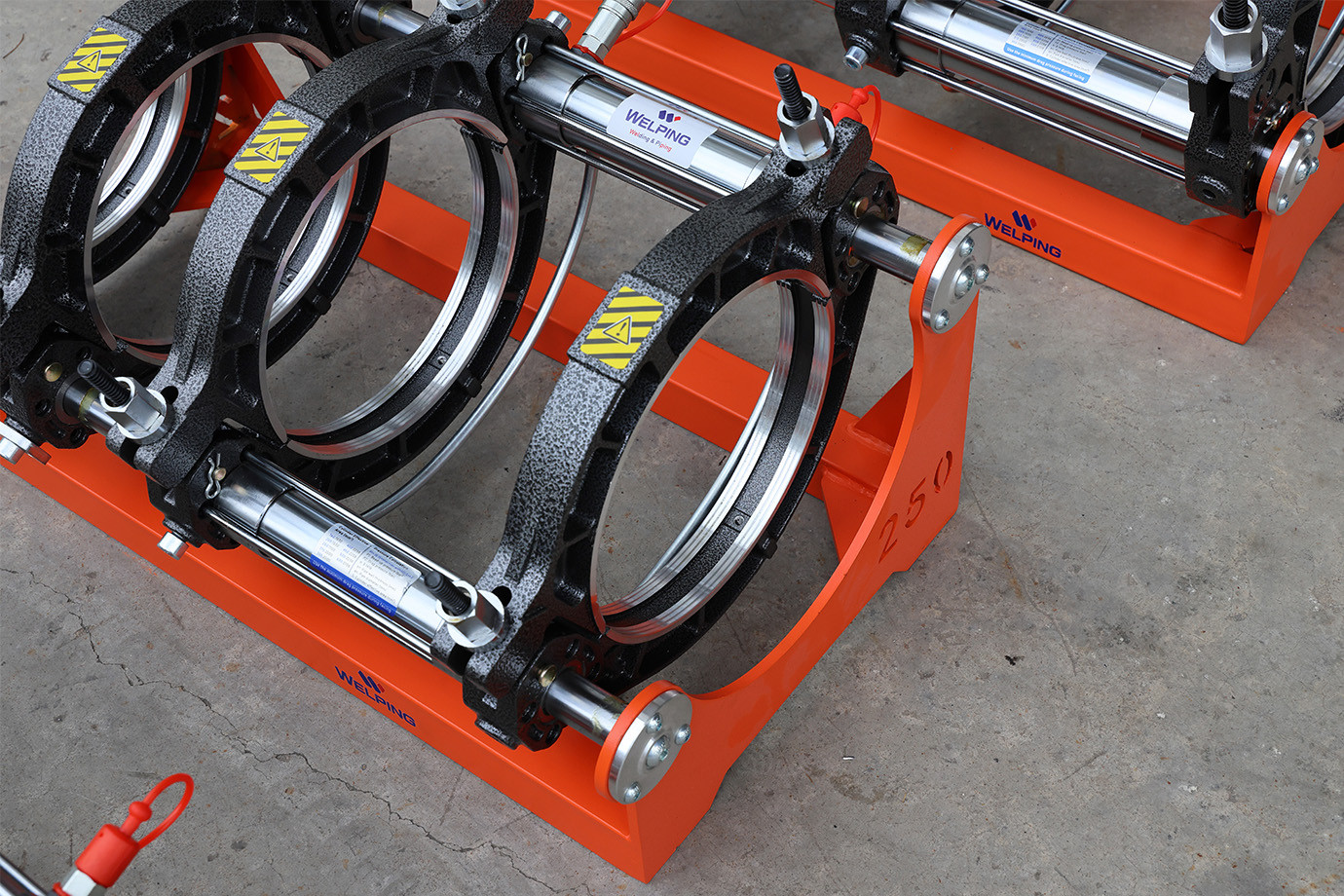

200mm butt welding machine

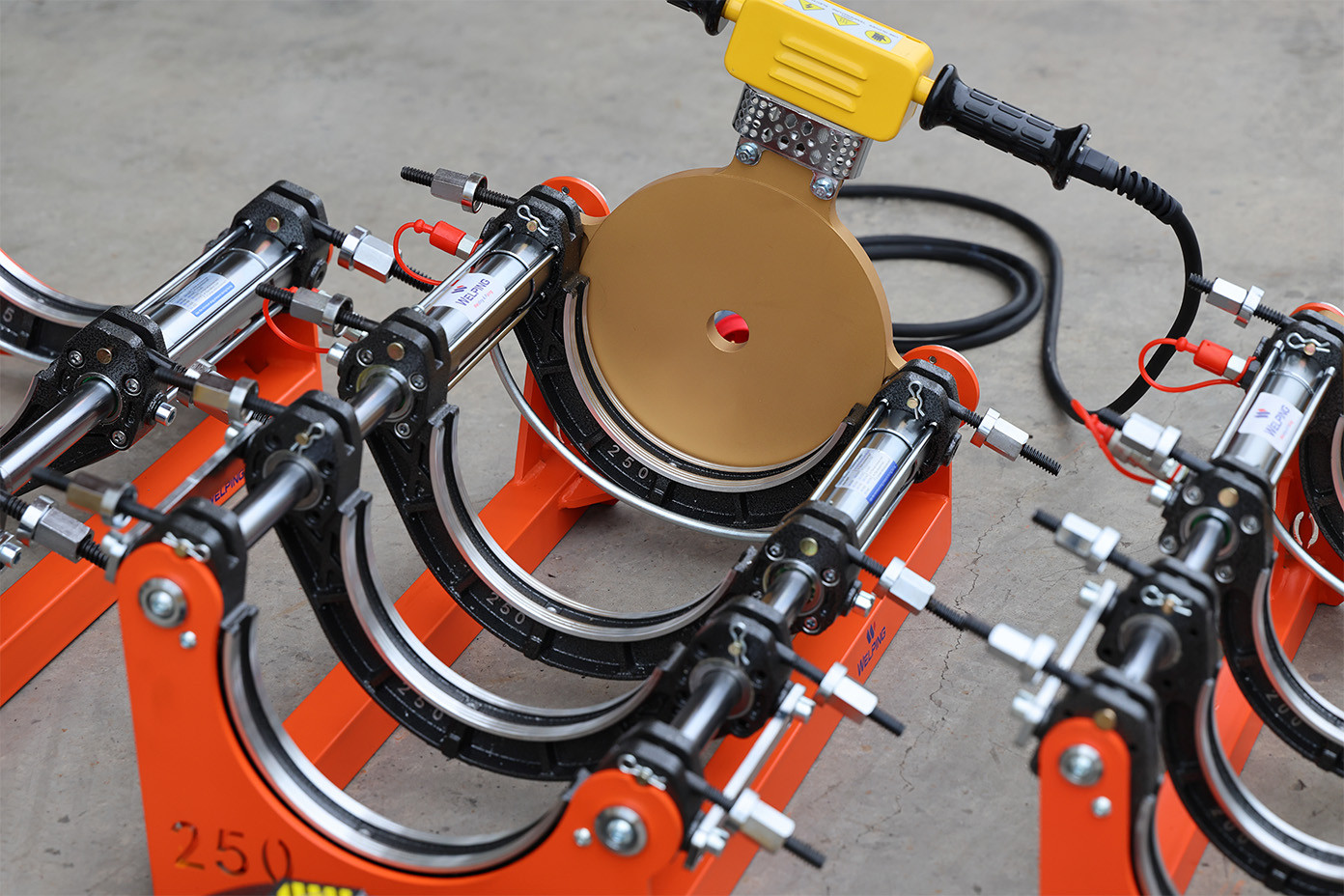

200mm pipe jointing fusion machine

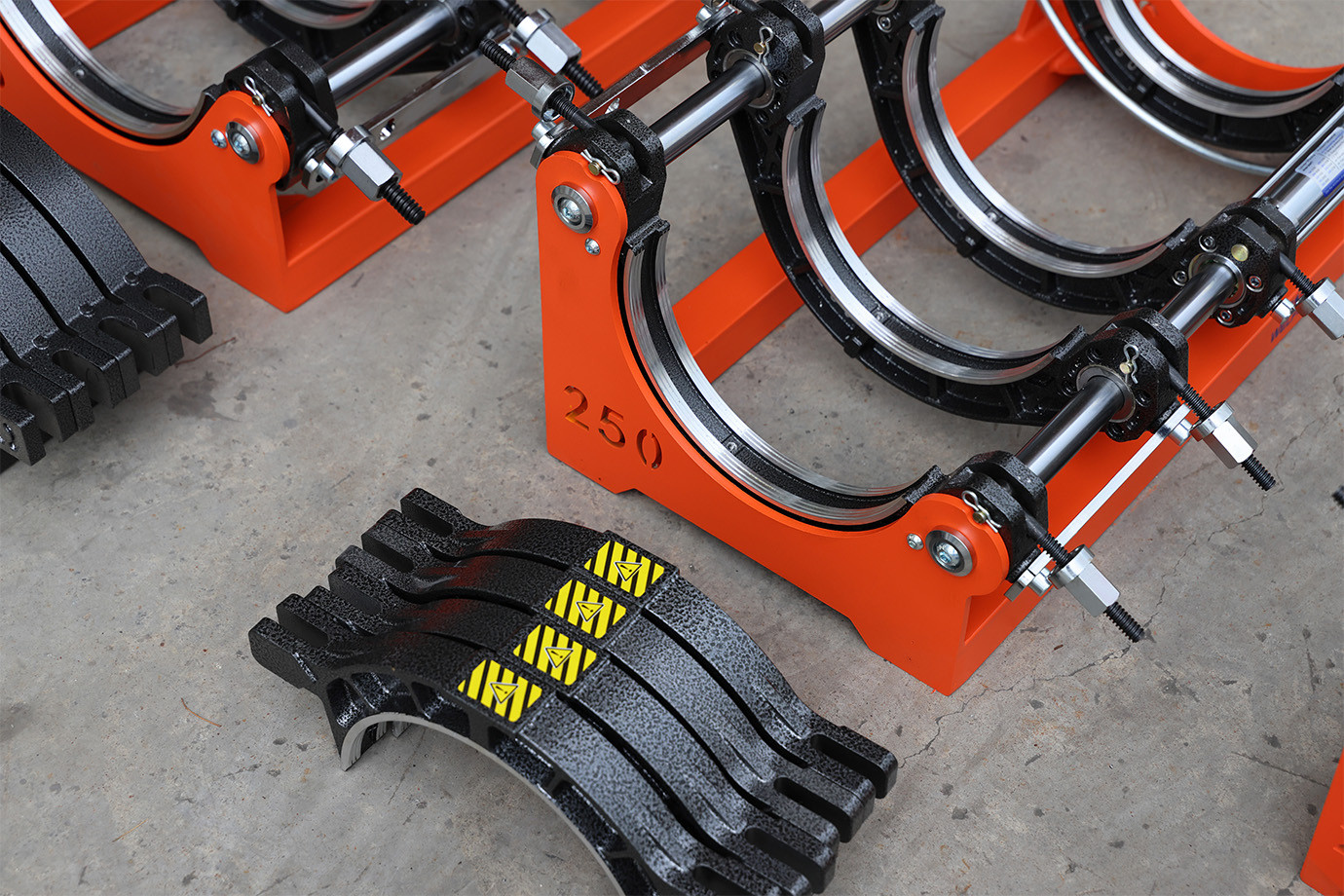

200mm HDPE pipe welding machine
 PARAMETER
Welping WP160C 160mm butt fusion machine
Mode
WP250B
Suitable materials
 PE,PP, PB. PVDF
Range
90-110-125-140-160-180-200-225-250mm
Power supply
 110V/220V
Frequency
50HZ
Total power
5.05KW
Heating plate
2.3KW
Planing tool
2.0KW
Hydraulic Unit
0.75KW
Max Temperature of Heating plate
270℃
Temp.Deviation in Surface
 ±5ºC
Total Weight
158kg
Net weight
138kg
Packing Size(for frame)
84*57*54cm
Packing Size (for Hydraulic unit,heater,trimmer)
80*55*64cm
 PRODUCT DETAILS MAP
200mm butt fusion machine frame
Basic Frame
· 4 Jaw Clamps to ensure precise alignment
· Italy DNP quick coupler · Chromated hydraulic cylinder made of 1045(ASTM)/S45)(JIS)/C45(DIN) steel
· Chromated integral shaft made of 1045(ASTM)/S45C(JIS)/C45(DIN) steel · Steel plate cutting clamp with sandblasting &spraying treatment · Base made of Q235 steel with spraying treatment
Title
· Standard equipping pressure more stable
· Electricity leakage protection switch
· 220V asynchronous motor

Hydraulic Pipe Fusion Machine
planning tool for butt fusion machine
Planning tool
· HSS blade with double edge
· Casting aluminum trimmer plate, durable and anti-corrosion
· Casting aluminum frame of motor with good heat dissipation performance
· Motor with pure copper wiring
Heating Plate
· Bakelite handle with high insulating property and thermal insulation · Thermocouple temperature sensor · Heating element · Teflon Coating imported from Daikin in Japan · Aviation plug
heating plate of butt fusion machine
reducers of butt fusion machine
Reducers
90-110-125-140-160-180-200-225-250mm reducers
DOWNLOAD
Welping E-Catalog of Butt Fusion Machine
Operational Manual of Hydraulic Butt Fusion Machine
Warranty Certificate of Butt Fusion Machine
