AG-8Z Automatic Roll Grooving Machine: Stable, Efficient and Flexible Pipe Processing
AG-8Z Automatic Roll Grooving Machine: Stable, Efficient and Flexible Pipe Processing

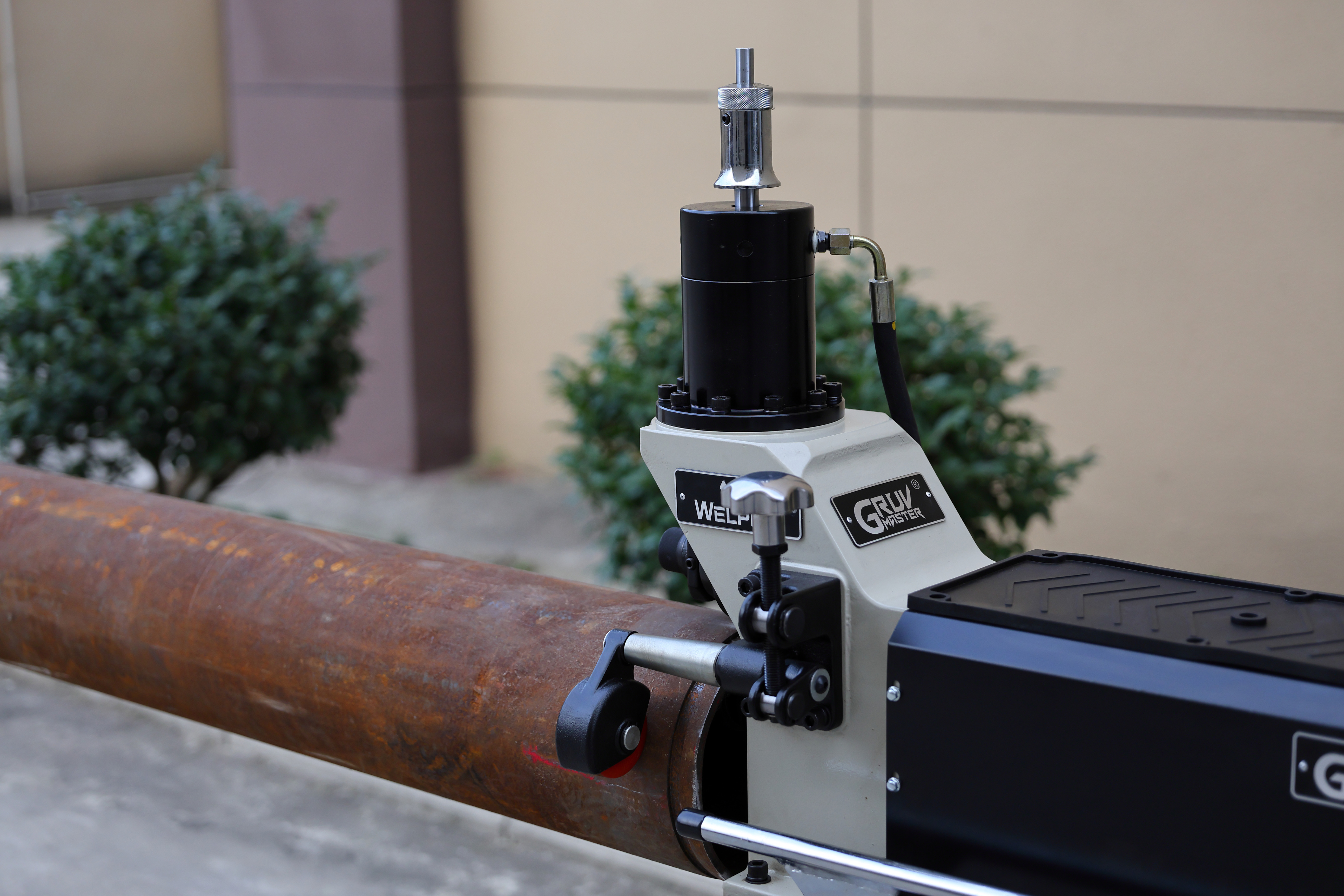

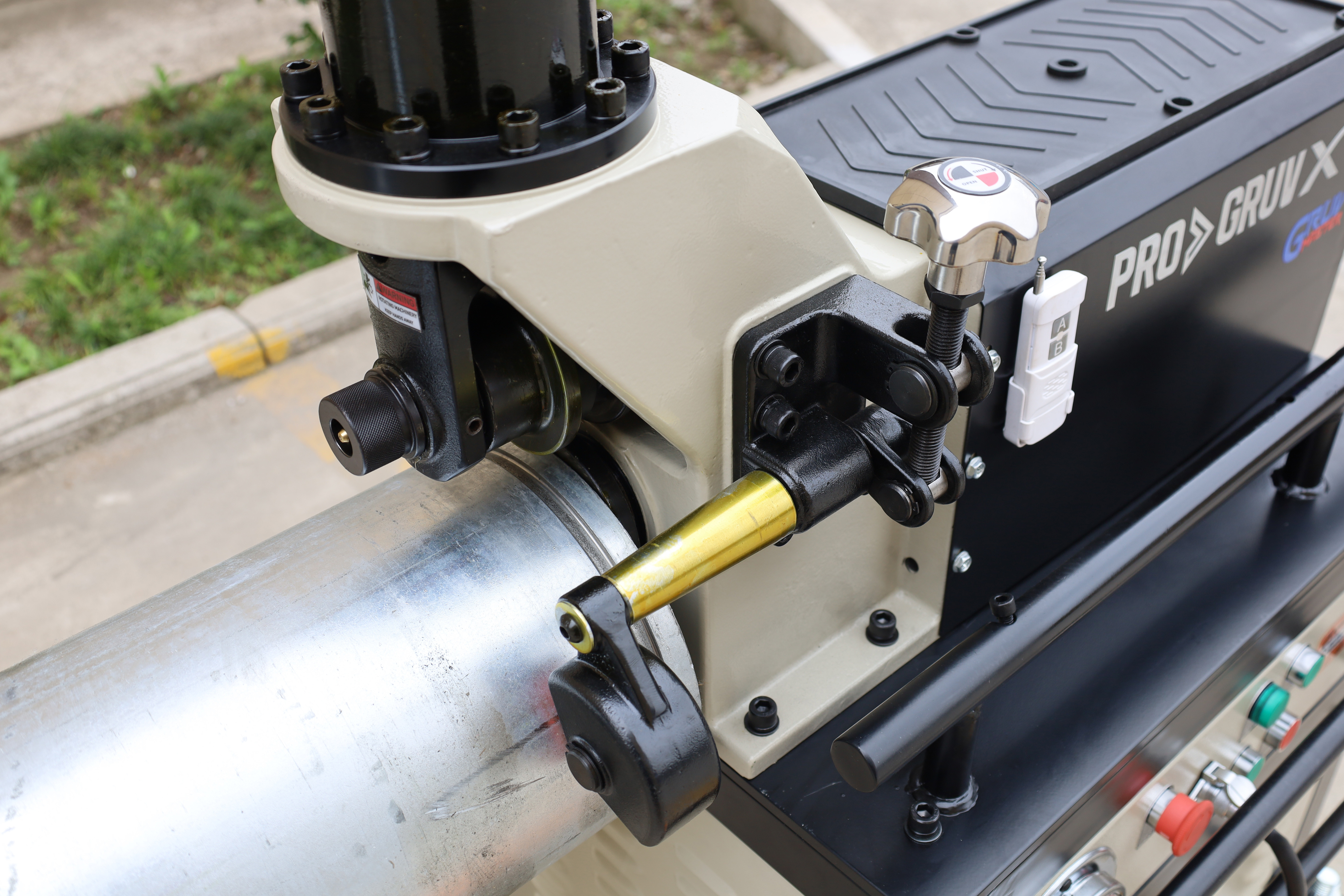

The AG-8Z fully automatic roll grooving machine is designed for pipe grooving applications where stable operation, compact equipment size, and efficient processing are required. Its design combines a sealed hydraulic system with automatic operation, wireless control, and a mobile structure, making it suitable for both workshop production and on-site pipe processing.

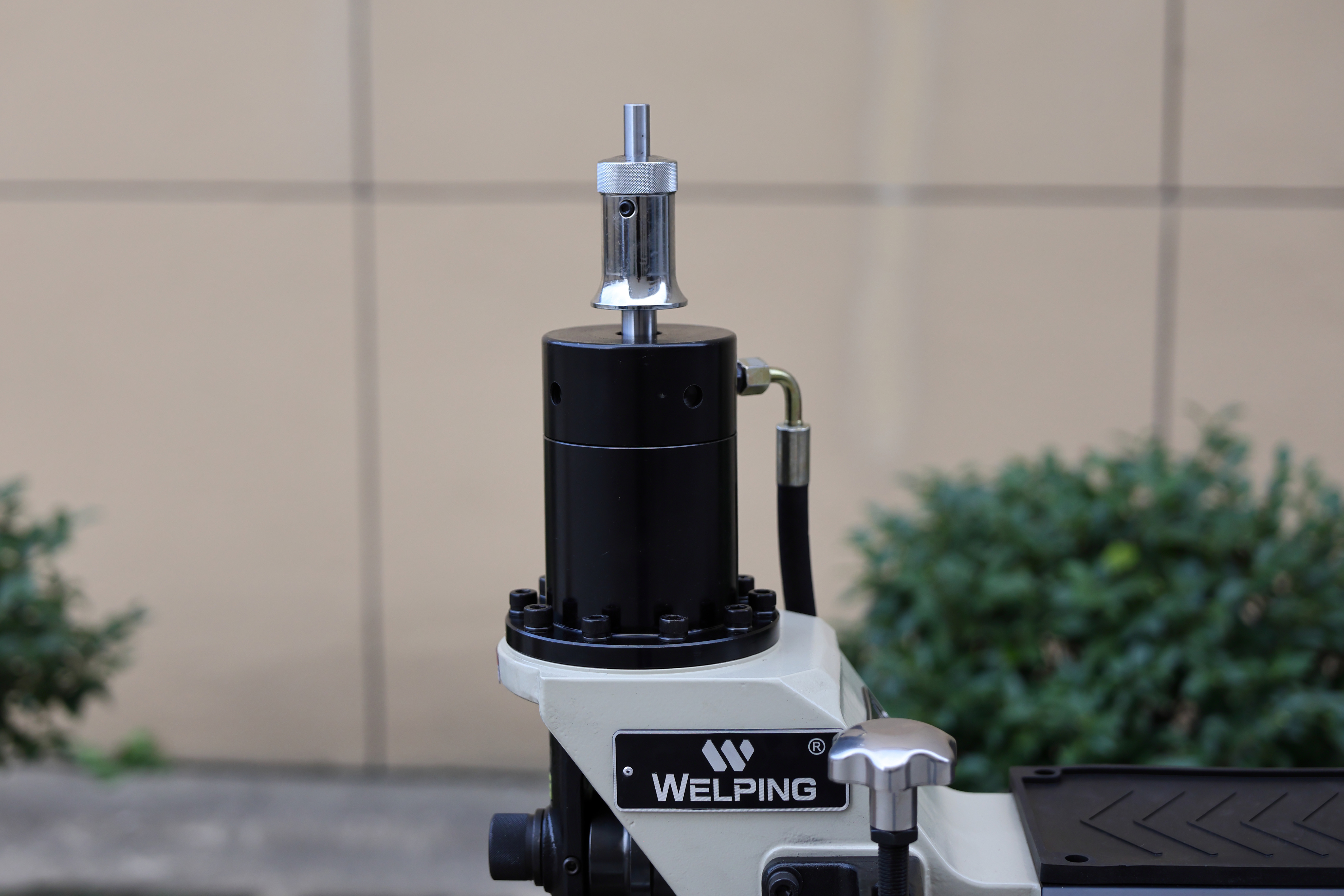

A key feature of the AG-8Z is its independently designed Gruv-X® hydraulic system. The system is engineered for stable hydraulic operation during continuous use and is integrated into the machine with a fully sealed design. Critical components use double sealing to help reduce the risk of hydraulic oil leakage and contamination during operation. The sealed structure also helps control hydraulic oil temperature during extended use. Under normal operating conditions, the hydraulic oil does not require frequent replacement, which supports long-term machine operation and reduces routine maintenance requirements.
The AG-8Z provides a standard roll grooving capacity from 2 to 12 inches and can process pipes with wall thicknesses of up to 12 mm. Its grooving range can also be extended to cover pipe sizes from 1 to 14 inches, allowing the machine to accommodate a wider range of pipe specifications. This flexibility makes it suitable for different pipe processing requirements without changing the basic machine configuration.
With a maximum rotational speed of 32 RPM, the AG-8Z is designed for efficient roll grooving operations. The relatively high working speed allows multiple pipes to be processed in succession, making the machine particularly suitable for batch processing in workshops. Its compact and lightweight structure also allows it to be transported between different work areas when pipe grooving is required on construction sites.
The machine supports both wireless and wired operation. With the wireless remote control, operators can control the grooving process without remaining directly beside the machine, while wired operation provides an alternative control method when required. This dual-control design provides greater flexibility for different working environments and operating conditions.
For transportation, the AG-8Z is equipped with a retractable handle and wheels. The handle can be folded or extended according to the working situation, while the wheels make it easier to move the machine between locations. These features are intended to simplify equipment handling without adding unnecessary complexity to the machine structure.
Overall, the AG-8Z combines automatic roll grooving, a sealed hydraulic system, flexible control options, and a mobile design in one compact machine. Its operating range, 32 RPM maximum speed, and reduced routine hydraulic maintenance requirements make it suitable for construction sites as well as workshop environments where repeated pipe grooving is required.
