Apro vs A Series Butt Fusion Machine: What Are the Key Differences?
When choosing a hydraulic butt fusion machine for HDPE pipe welding, many customers may ask one question:
The A Series is already a mature and reliable machine, so what exactly is different about the Apro Series?
In simple terms, the Apro Series is not a completely different product line. It is an upgraded version based on the A Series. It keeps the familiar operation and basic configuration of the A Series, while improving several details in frame design, reducing inserts, standard accessories, and appearance.
For users who already know the A Series, the Apro Series is easy to operate. But in daily use, it provides a stronger structure, easier size adjustment, and a more refined working experience.
1. Stronger Frame Design
The Apro Series adopts a newly designed frame. Compared with the A Series, the overall frame size is larger and the structure looks more solid.
For a butt fusion machine, the frame is not only a supporting part. It directly affects pipe clamping stability, alignment during welding, and long-term reliability on the jobsite.
This frame upgrade gives the Apro Series a more stable working feel, especially when the machine is used frequently or in more demanding site conditions.

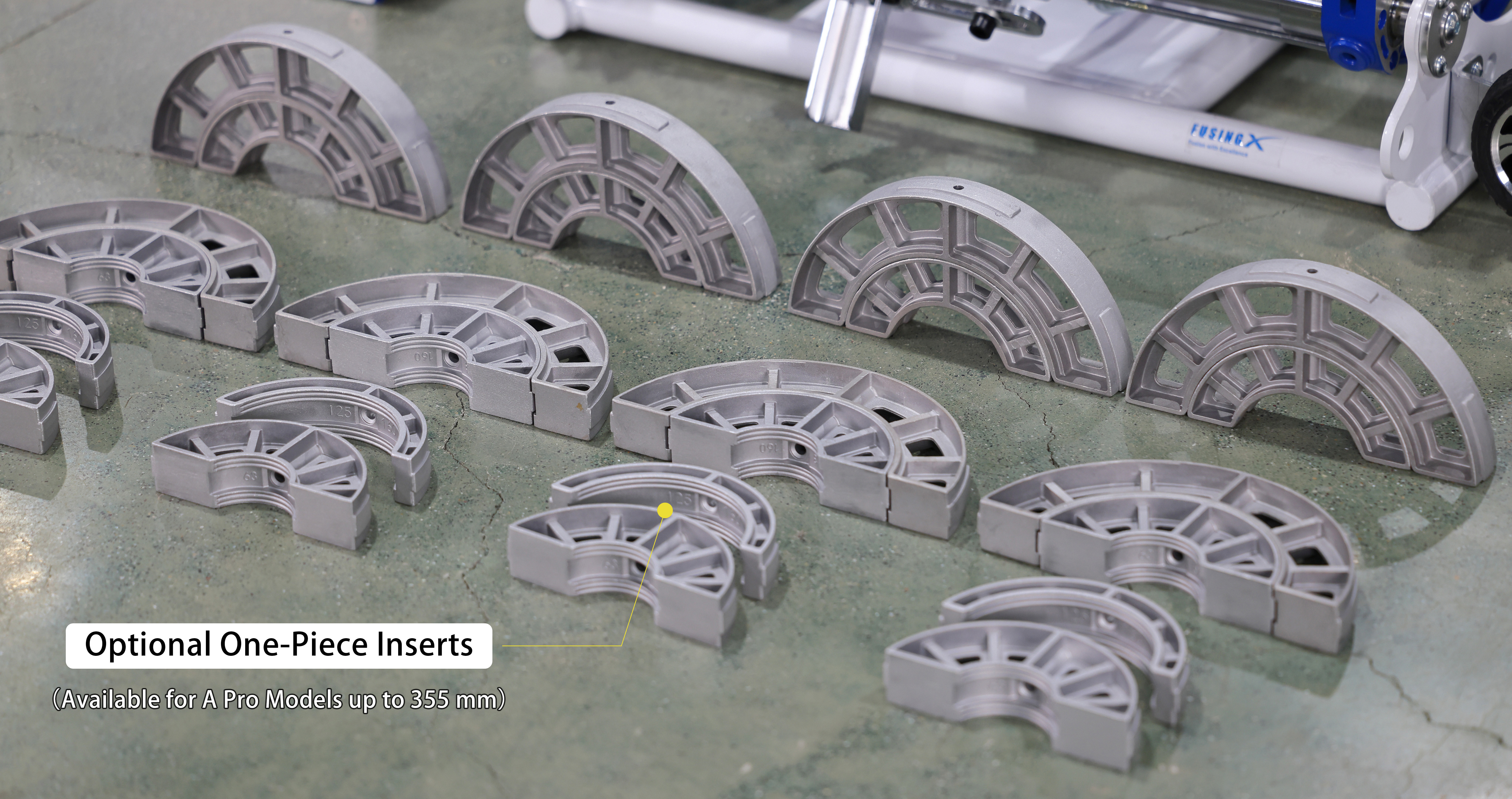

2. Easier Reducing Insert Combination
Another important improvement is the reducing insert design.
For models such as 160, 200, 250, 315, and 355, some sizes of the Apro Series use single-piece reducing inserts. This helps reduce the number of stacked inserts required for certain pipe sizes.
For example, when welding 90mm pipe with a 315A machine, the operator may need to stack 10 pieces of reducing inserts. With the 315Apro, only 4 pieces are needed for the same pipe size.
This may look like a small change, but it makes a real difference on the jobsite. Fewer inserts mean faster installation, easier adjustment, and less chance of incorrect assembly.
3. Upgraded Standard Details
The Apro Series also includes several upgrades in small but important details.

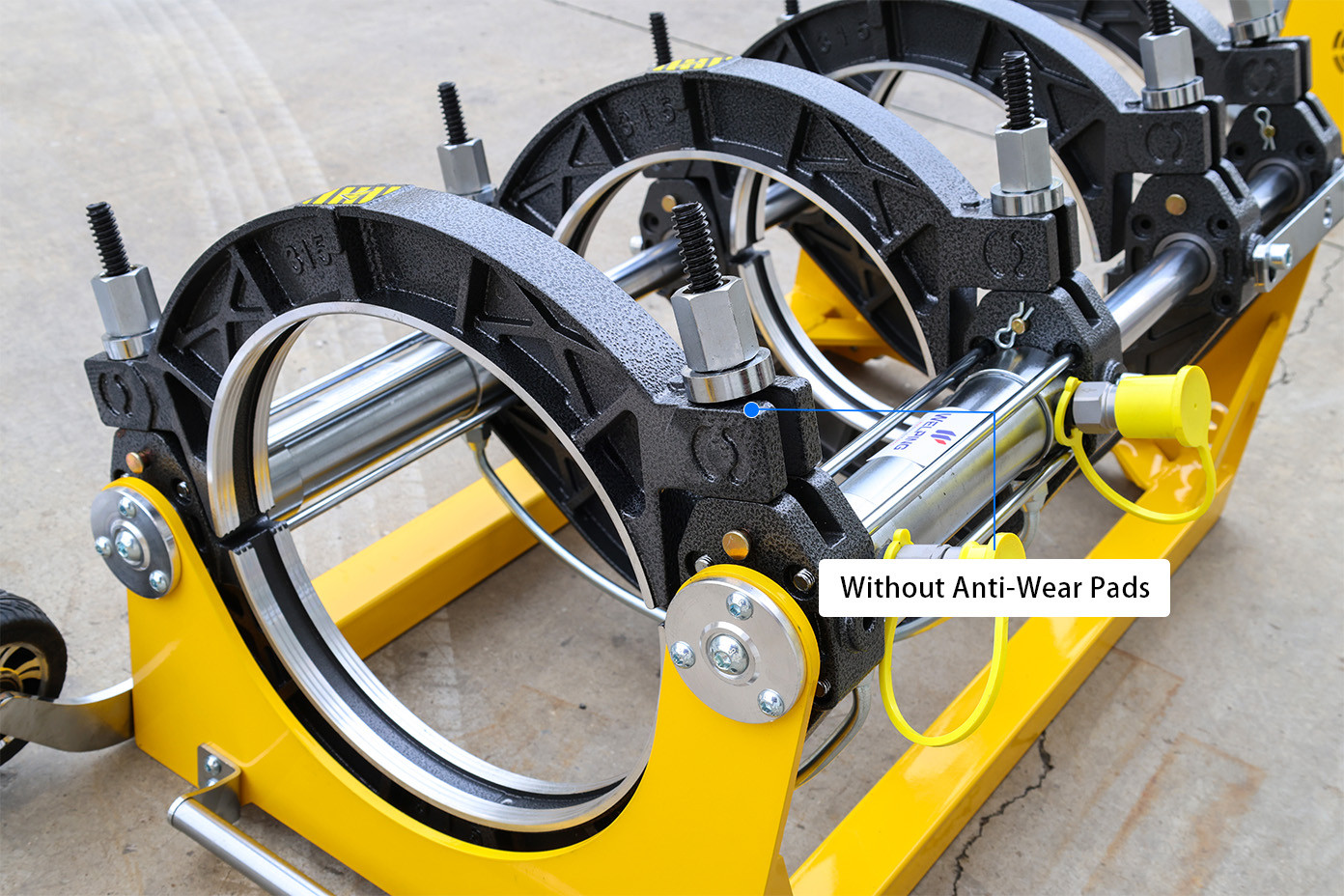

For 160–630mm models, the aluminum upper clamps are equipped with anti-wear pads. These pads help reduce wear between metal parts during long-term use.
Some electrical components are upgraded to Siemens brand components, which helps improve the stability of the electrical system.
For the 1200Apro, the machine is equipped as standard with the high-quality heating plate used on the FX Series, offering better performance for large-size pipe welding applications.
These upgrades are not designed to make the machine more complicated. They are made to improve durability, stability, and the overall user experience.

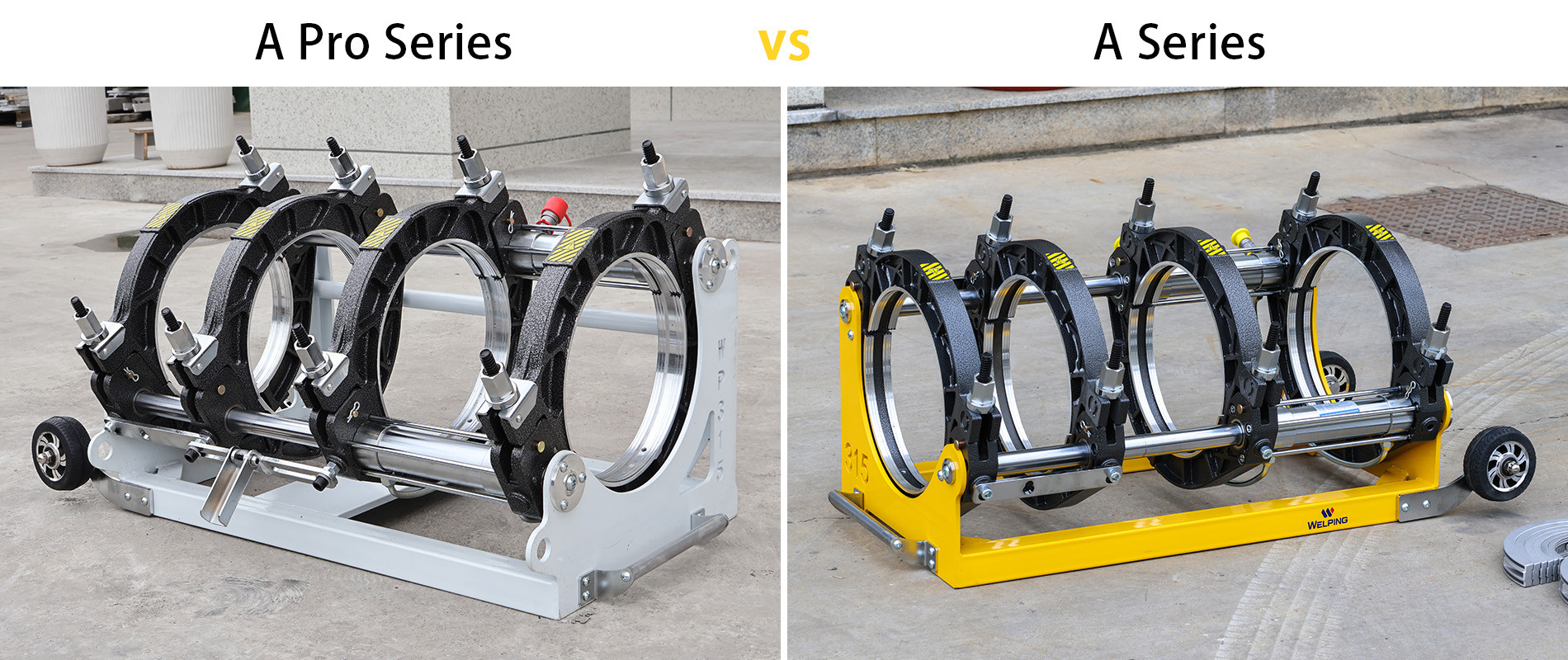

4. Clearer Appearance for Series Identification
The Apro Series also has a different color design from the A Series.

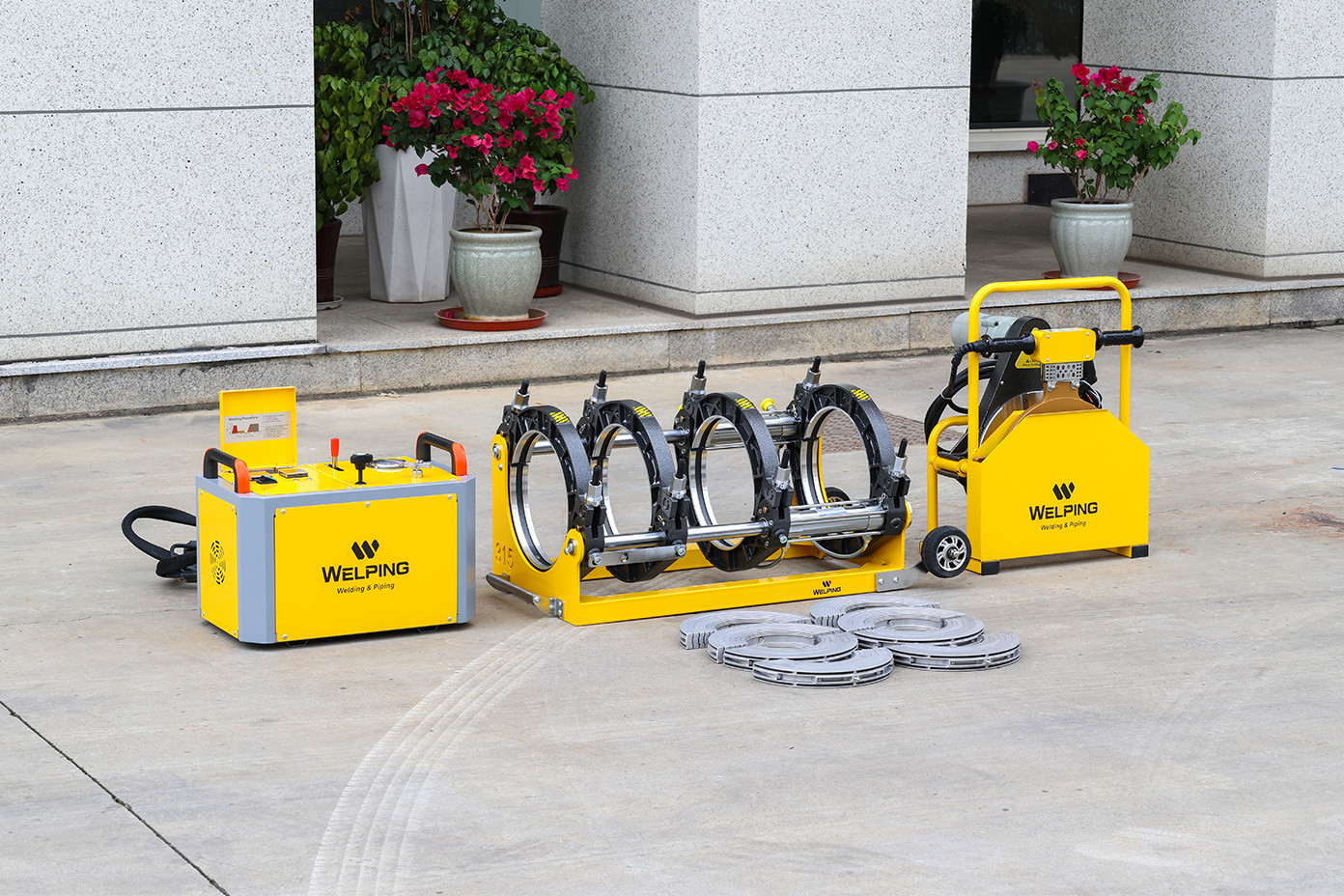

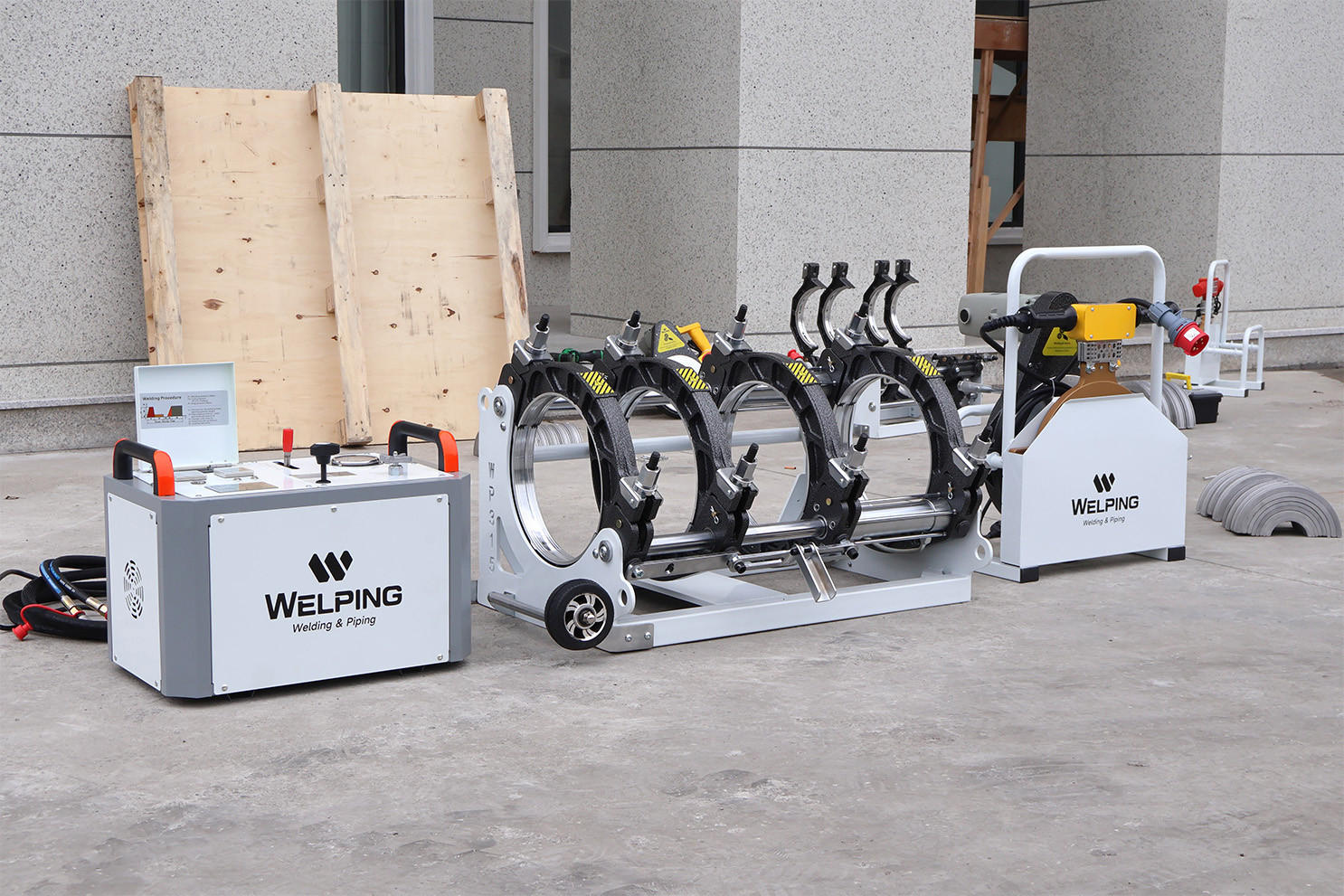

The standard Apro color is mainly white, matched with black and gray. The A Series uses yellow as the main color, also matched with black and gray.
This visual difference makes the two series easier to identify. It is also useful for distributors, product display, and jobsite equipment management.
5. Familiar Operation, Lower Learning Cost
Although the Apro Series has several upgrades, it keeps the basic operation habit of the A Series.
For customers who have already used the A Series, switching to the Apro Series does not require complicated retraining. The machine remains easy to understand and easy to operate.
This is one of the key advantages of the Apro Series. It does not try to change everything. Instead, it improves the parts that matter while keeping the proven operation experience of the A Series.
Who Is the Apro Series Suitable For?
If customers are looking for a practical and economical solution, the A Series is still a reliable choice.
But if they want a stronger frame, easier reducing insert setup, better standard details, and clearer product identification, the Apro Series is a better option.
It is especially suitable for distributors, contractors, and pipe installation teams who need machines for regular or long-term use.
Conclusion
The difference between the Apro Series and the A Series is not about being completely different. It is about making a mature product better.
The Apro Series keeps the stability and easy operation of the A Series, while improving the frame structure, reducing insert design, standard accessories, and appearance.
For customers who want a more upgraded hydraulic butt fusion machine without changing their familiar operation habits, the Apro Series is worth considering.
