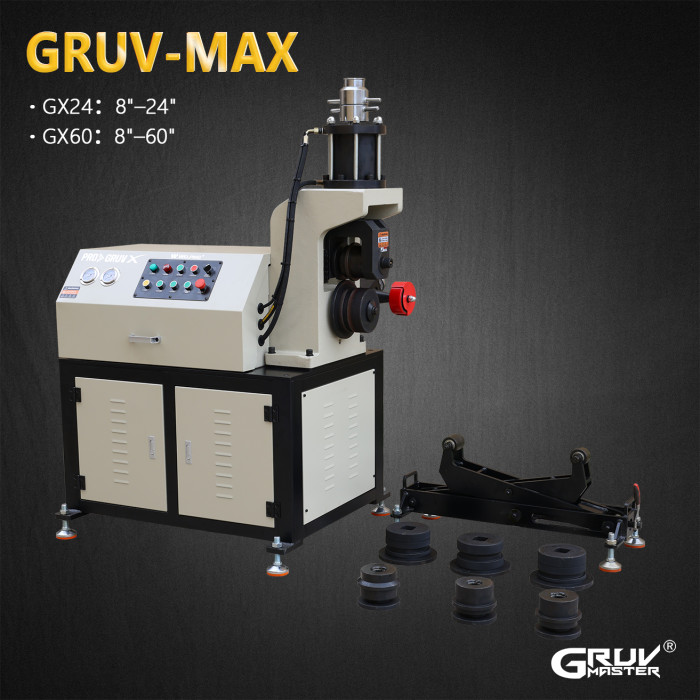

Gruv-Max Heavy-Duty Pipe Grooving Machine for 8"–60" Large-Diameter Pipes
① Gruv-Max heavy-duty roll groover for 8"–60" large-diameter steel pipes.
② Handles thick-wall pipes up to 20 mm with powerful dual-motor drive.
③ Available in GX24 and GX60 models, with OGS or AGS roll sets for different grooving requirements.
② Handles thick-wall pipes up to 20 mm with powerful dual-motor drive.
③ Available in GX24 and GX60 models, with OGS or AGS roll sets for different grooving requirements.
Detail Information
Gruv-Max Heavy-Duty Roll Groover
Built for 8"–60" Pipes and Wall Thicknesses up to 20 mm
Key Features of Gruv-Max
· Designed for heavy-duty grooving of large-diameter steel pipes, with a maximum grooving capacity of up to 60".
· Handles thick-wall steel pipes up to 20 mm, suitable for demanding fabrication and construction applications.
· Equipped with high-power dual motors and a high-strength gearbox for stable, continuous operation.
· Heavy-duty groove rollers and drive rollers with interlocking structure help improve groove consistency and pipe sealing surface control.
· Available in GX24 8"–24" and GX60 8"–60" models, with OGS or AGS roll sets available for different grooving requirements.
Gruv-Max Model Options
| Model | GX24 | GX60 |
Grooving Capacity | 8"~24"(DN200~DN600,Φ219~Φ630) | 8"~60"(DN200~DN1500,Φ219~Φ1524) |
Max. Wall Thickness | 20mm | 20mm |
Output Speed | 20RPM | 20RPM |
Power | 380V/ 5500W+2200W 3Ph | 380V/ 5500W+2200W 3Ph |
| Gross Weight | 1300kgs | 1450kgs |
| Packing Size | 195*110*120cm | 240*110*173cm |
GX24 | 8"–24"
Compact heavy-duty model for large-diameter pipe grooving, ideal for workshop production and common heavy-wall applications.
GX60 | 8"–60"
Extended large-diameter model with elevated base structure, developed for extra-large pipe grooving up to 60".
Standard Configuration & Optional Accessories
Standard Configuration & Optional Roller Sets
Standard
| Catalog No. | Description | Net weight |
| 912167 | Drive roller 8"–12"（Φ219~Φ325） | |
| 912168 | Drive roller 14"–16" （Φ355~Φ426） | |
| 912169 | Drive roller 18"–24" （Φ457~Φ630） | |
911336 | Groove roller 8"–12" | |
911337 | Groove roller 14"–16" | |
911338 | Groove roller 18"–24" |
Optional
| Catalog No. | Description | Net weight |
| 912170 | AGS drive roller 14"–24" | |
| 911339 | AGS groove roller 14"–24" |
(For 26"–60" roller set configurations, please contact us for details.)
Roll Grooving Machine Configuration
Large-Diameter Grooving up to 60"
Designed for large steel pipes, Gruv-Max supports grooving capacities up to 60" (DN1500) for large-scale piping and fabrication projects.
Up to 20 mm Wall Thickness
The heavy-duty machine structure allows Gruv-Max to groove steel pipes with wall thicknesses up to 20 mm, making it suitable for demanding thick-wall applications.
5500W + 2200W Dual-Motor Drive
High-power dual motors provide strong and stable output for continuous grooving of large-diameter and thick-wall steel pipes.
Heavy-Duty Rollers & Drive System
Reinforced groove rollers and drive rollers with an interlocking structure provide stable pipe control and more consistent groove quality.
Adjustable Groove Depth with Auto Reset
The groove depth can be preset for different pipe sizes. Once the target depth is reached, the groove roller automatically resets for easier and more consistent operation.
Simple & Intuitive Control Panel
Clear push-button controls with pressure gauges, operating indicators, manual/automatic mode selection, and emergency stop make daily operation straightforward and easy to monitor.
Adjustable Support Roller
The auxiliary support roller helps stabilize the pipe during grooving, while the manual adjustment mechanism allows the support position to be adjusted for different pipe sizes and working conditions.
Reliable & Service-Friendly Electrical System
The enclosed electrical cabinet features well-organized wiring and modular components for reliable operation, easier troubleshooting, and convenient maintenance.
Gruv-Max Resources
Gruv-Max Overview
Gruv-Max Overview
