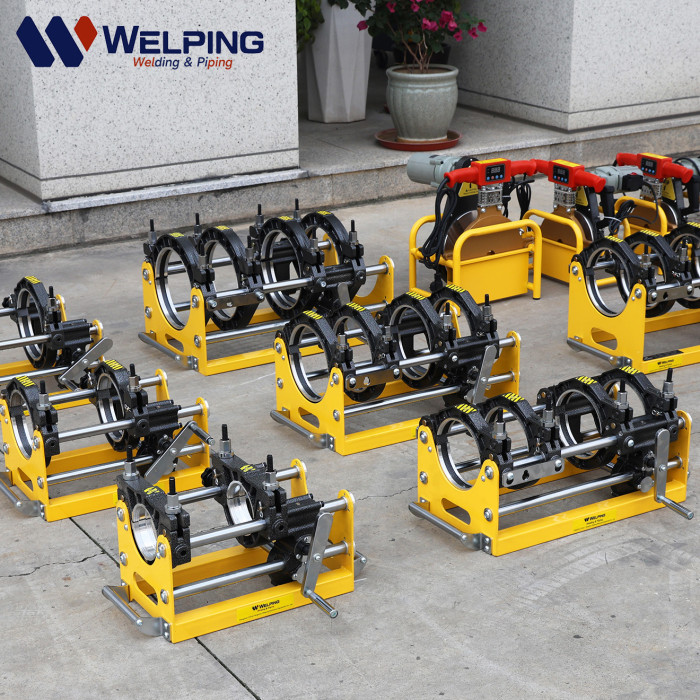

C Series Gear-Driven Manual Butt Fusion Machines for 40–250mm PE/PP Pipes
C Series manual butt fusion machines cover 40–250mm PE/PP pipes, featuring gear-driven facing, solid steel body and smooth operation.
- Share
- Categories
- Manual Butt Fusion Machines
- Brand
- Fusion Equipment and Plumbing Tool｜WELPING
- Model
- WP110C2, WP160C, WP160C2, WP200C, WP200C2, WP250C
- Product Type
- Manual Butt Fusion Machine
- Welding Range
- 40–250mm
- Applicable Pipe
- PE, PP, HDPE Plastic Pipe
- Operation Type
- Manual Operation
- Facing System
- Gear-Driven Facer
- Frame Structure
- 4-Guide-Post Structure
- Body Material
- All-Steel Welded Body
- Download
Detail Information

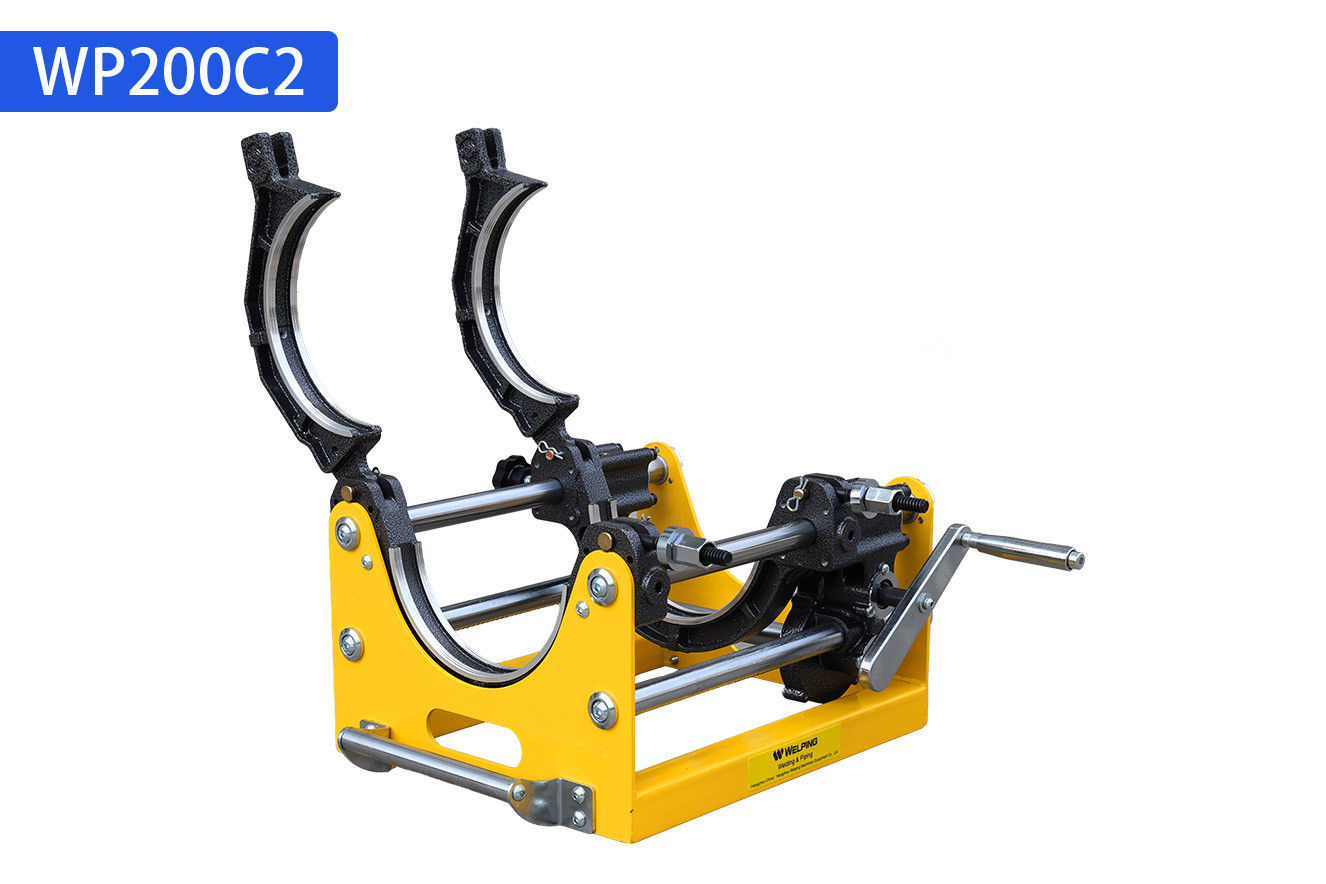

C Series Manual Butt Fusion Machines
Gear-driven manual welding machines for 40–250mm PE/PP pipes
Choose the Right C Series Model
| Model | Welding Range | Recommended Use |

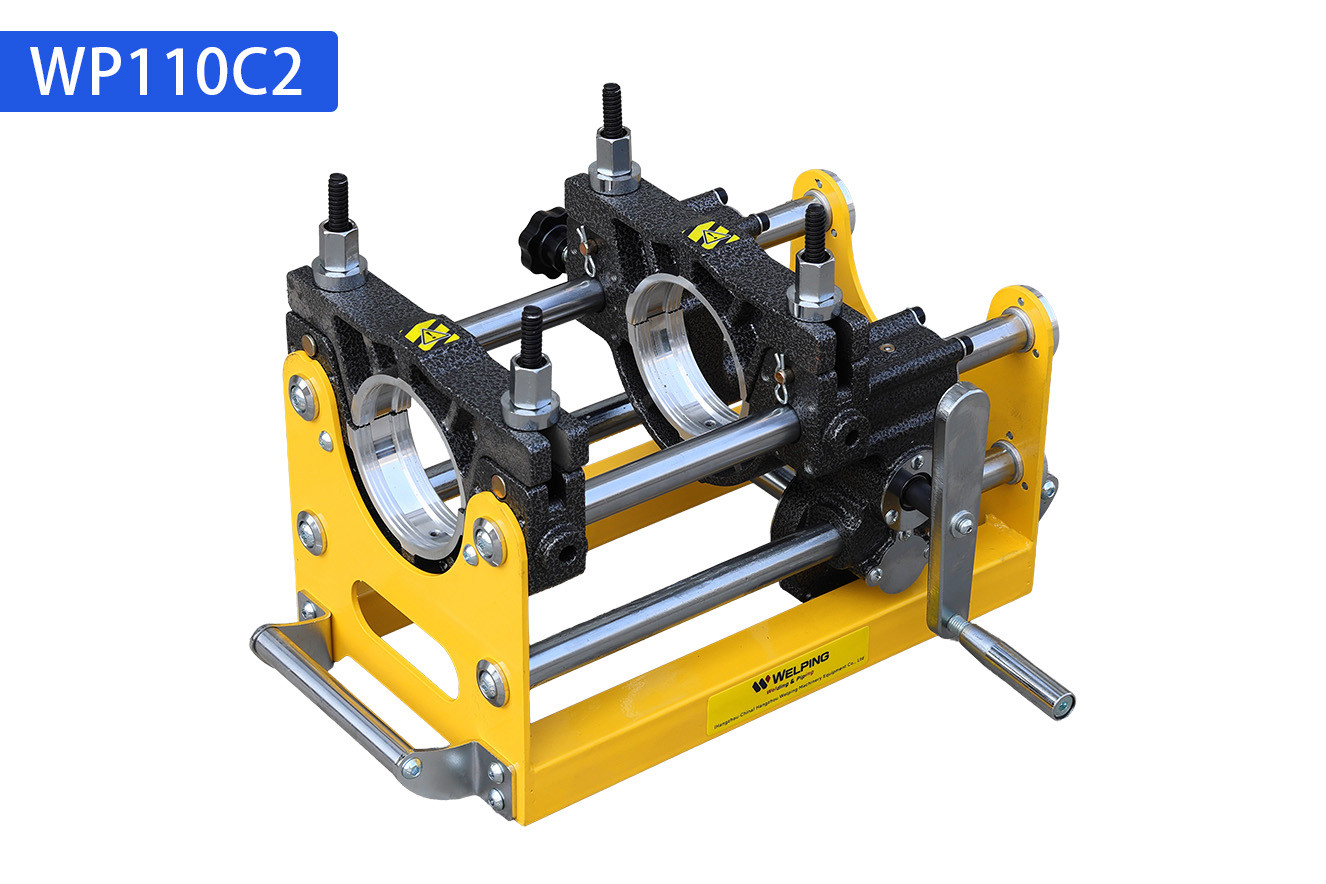

| WP110C2 | 40–110mm | Small pipe welding and repair work |

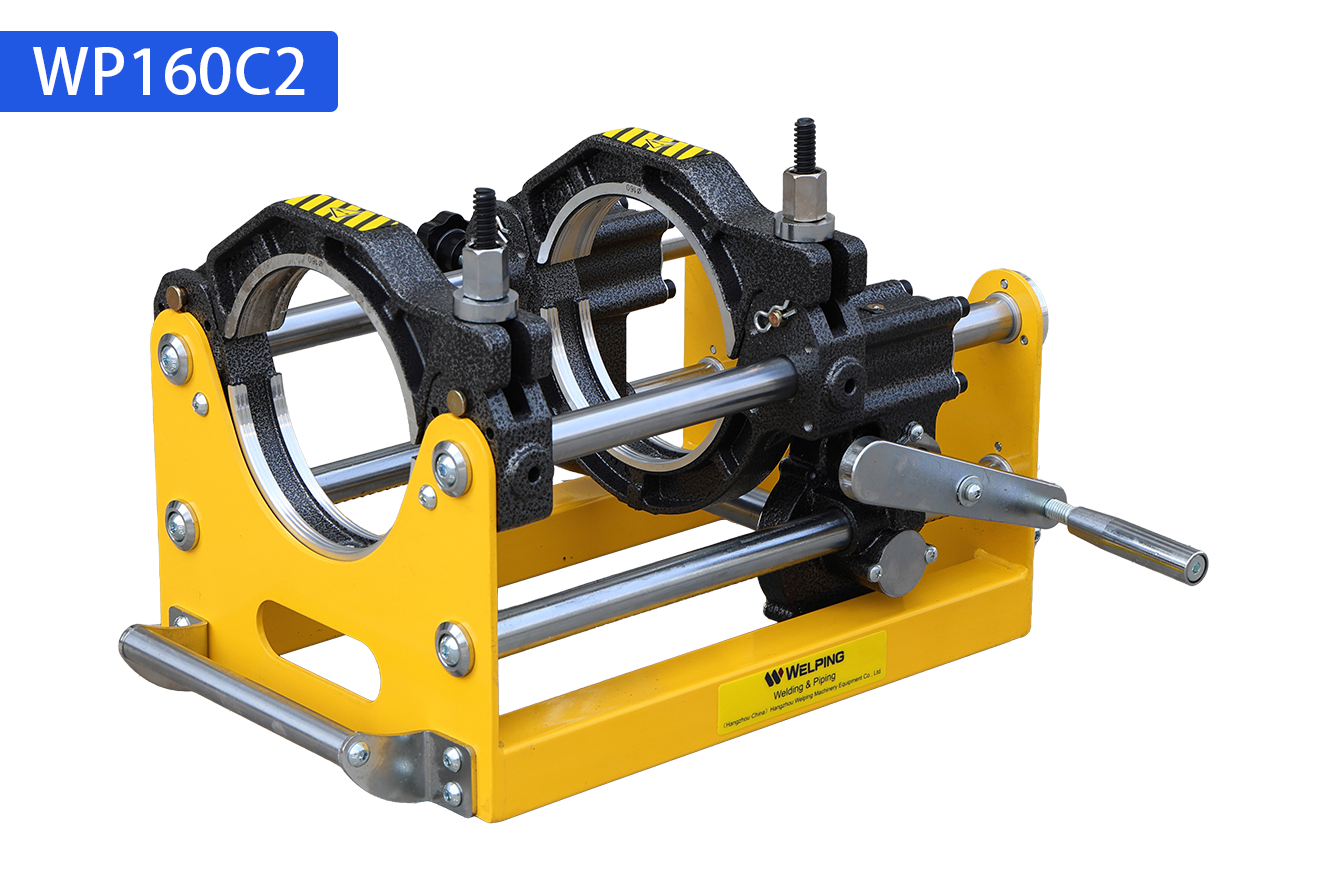

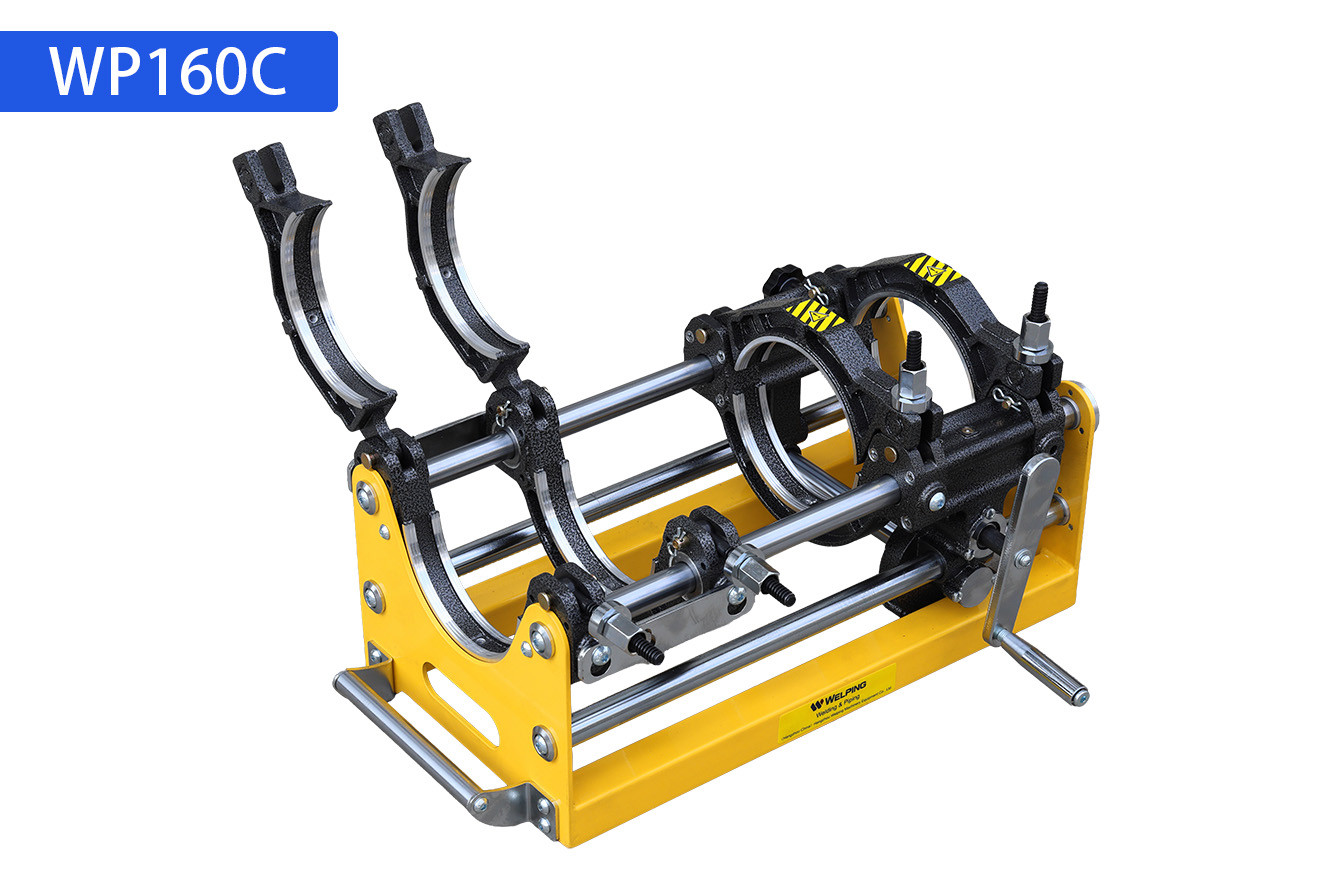

WP160C / WP160C2 | 63–160mm | Common small pipe installation |

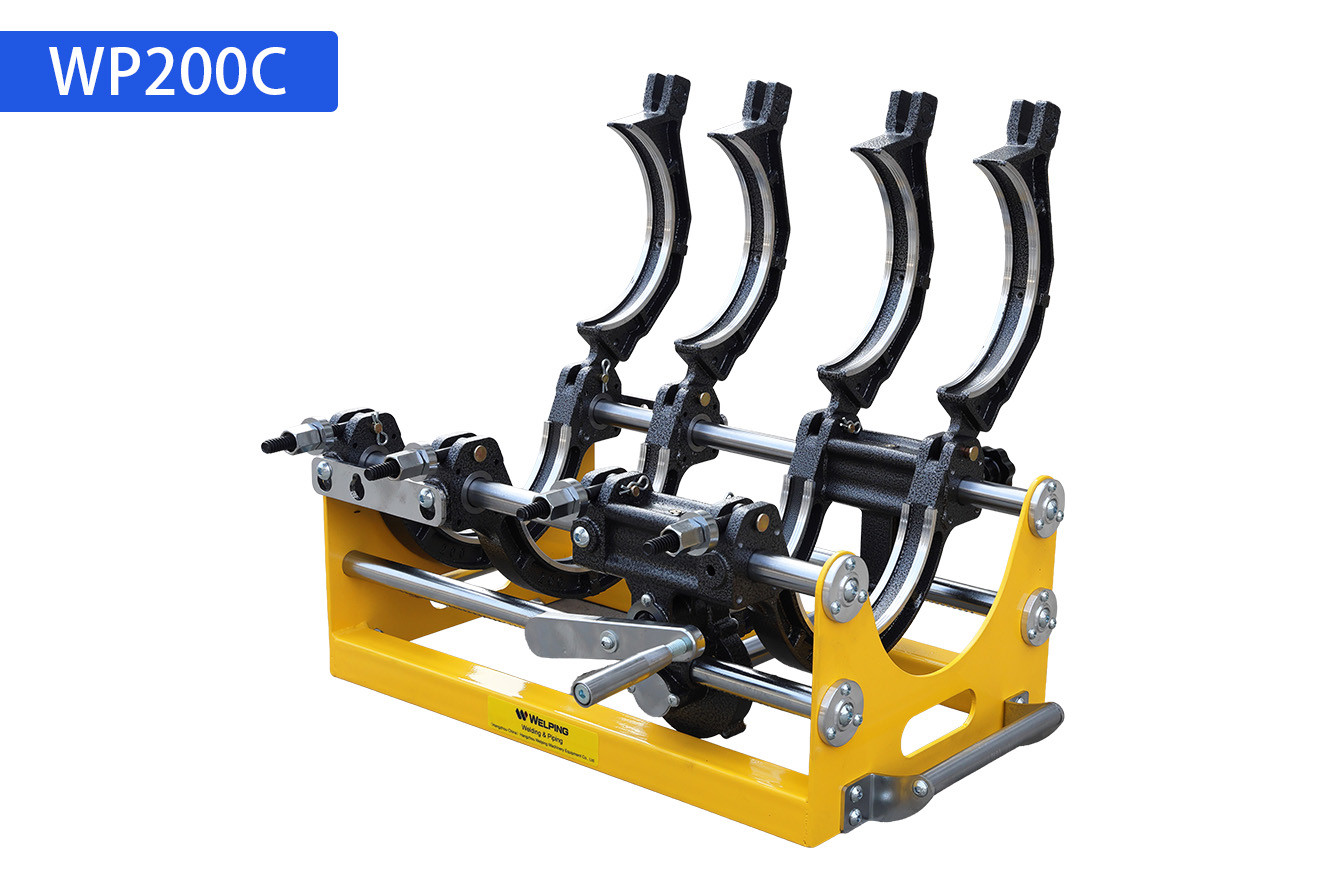

| WP200C / WP200C2 | 63–200mm | Wider jobsite applications |

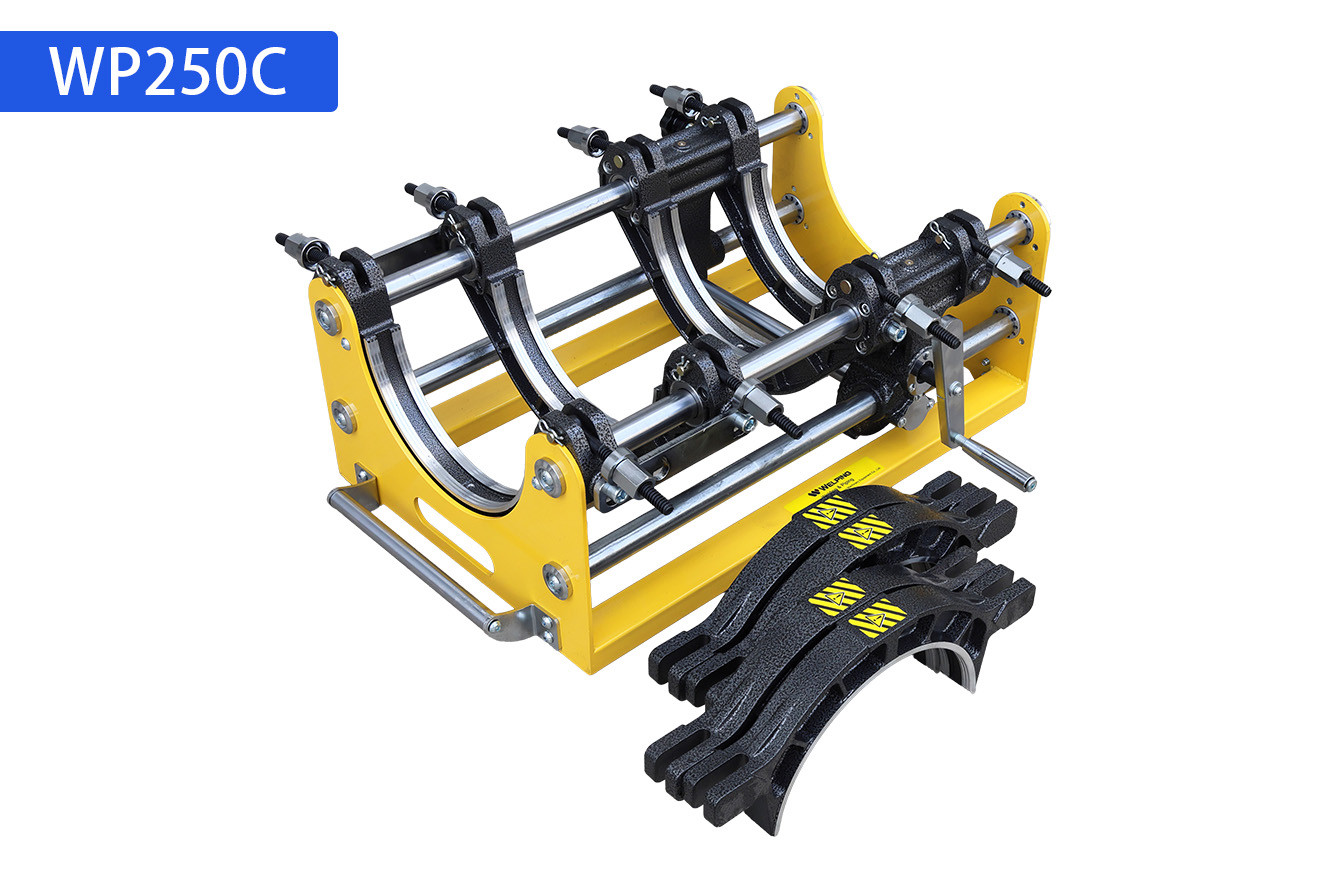

| WP250C | 63–250mm | Larger manual welding range |
Built for Smooth and Reliable Manual Welding
Full-Gear Driven Facing System
The full-gear driven facing system provides smoother transmission and more controlled pipe end preparation, helping operators achieve cleaner and more consistent fusion surfaces.

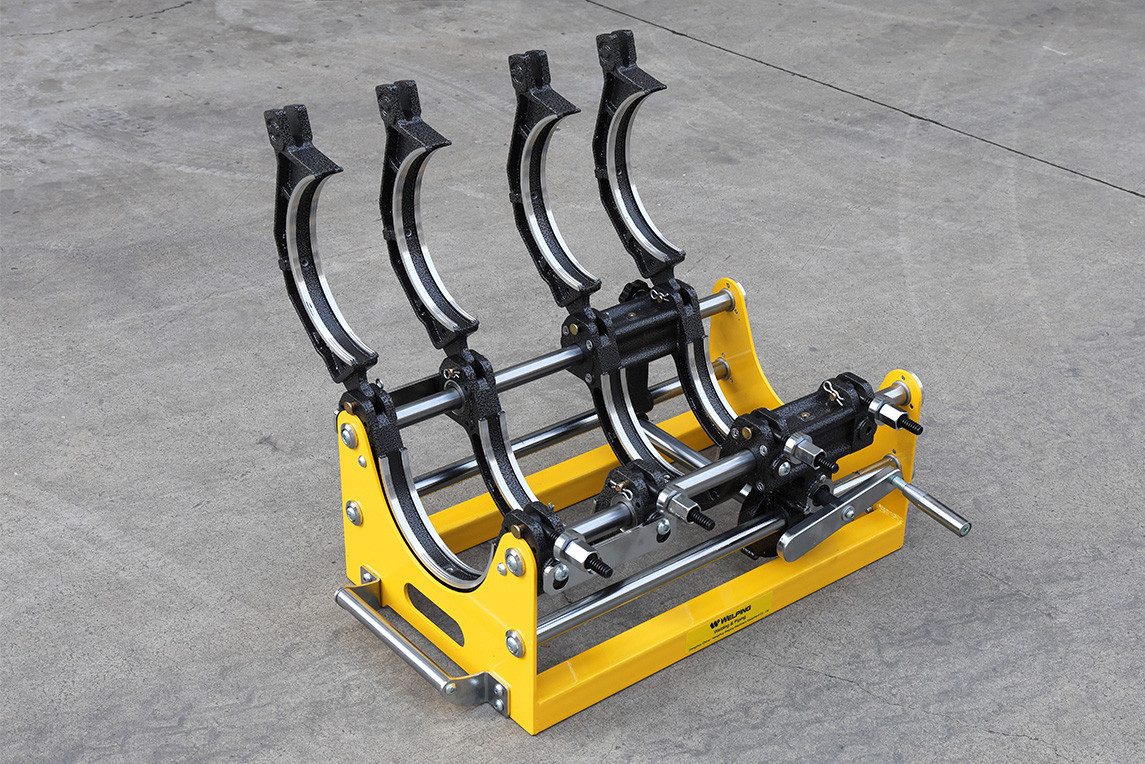

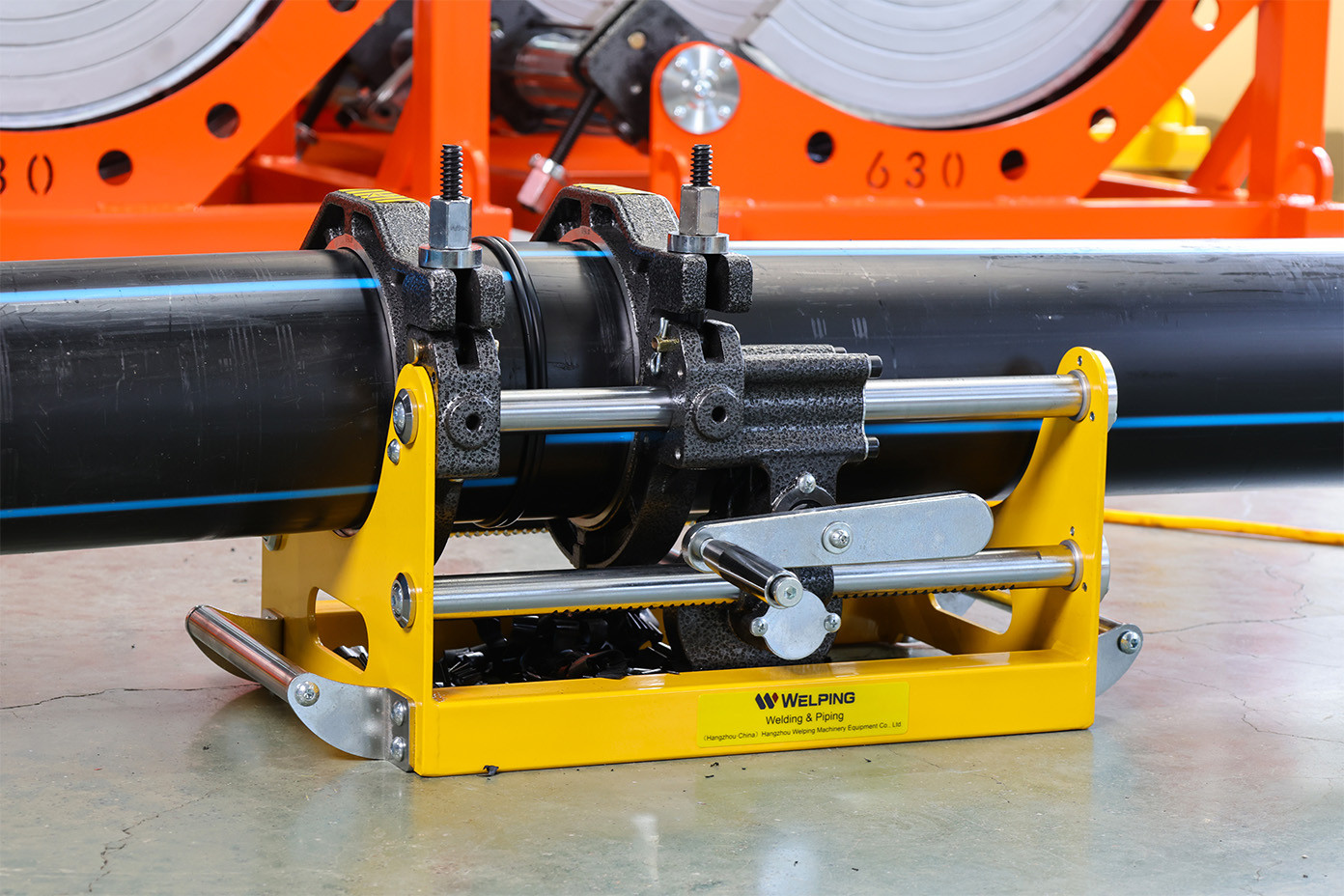

Stable 4-Guide-Post Frame
The 4-guide-post structure keeps pipe movement stable during clamping, facing, heating and fusion, helping improve alignment throughout the welding process.
Solid All-Steel Welded Body
The all-steel welded body gives the machine a strong and durable structure, making it suitable for repeated workshop and on-site pipe welding work.
Practical Manual Solution for 40–250mm Pipes
For small and medium pipe sizes, the C Series offers a practical balance between stable welding performance, simple manual operation and lower investment than hydraulic models.

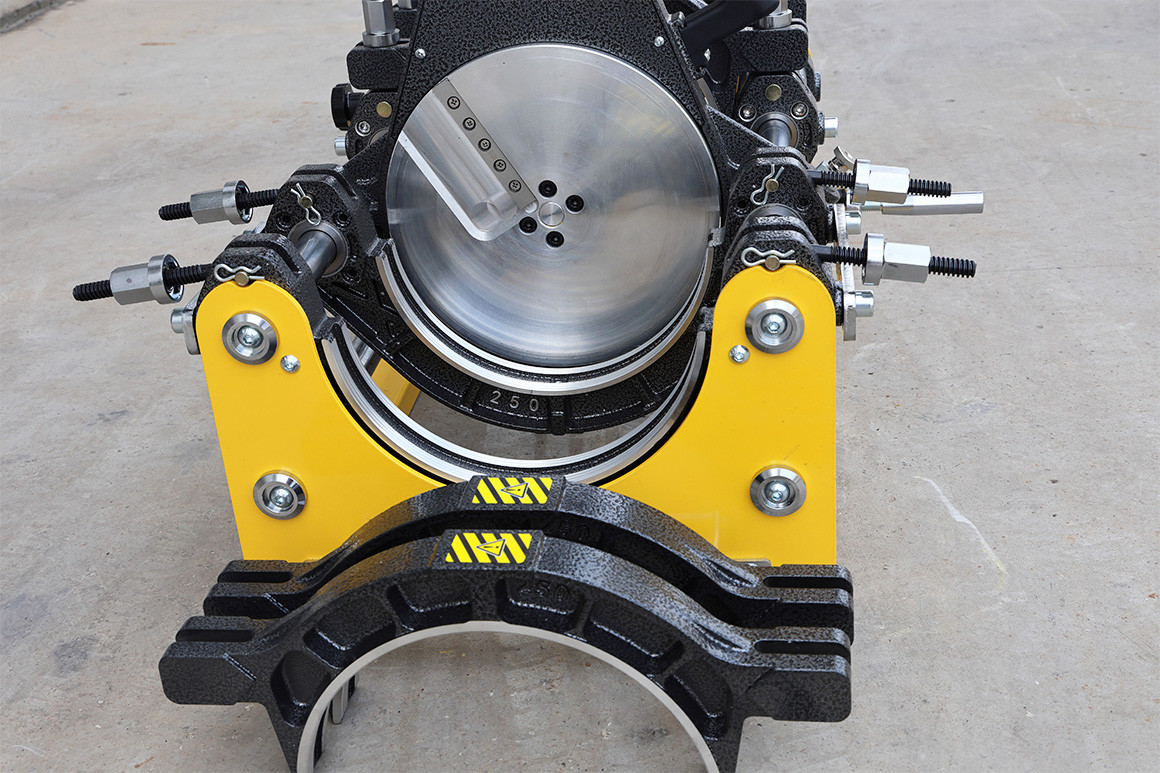

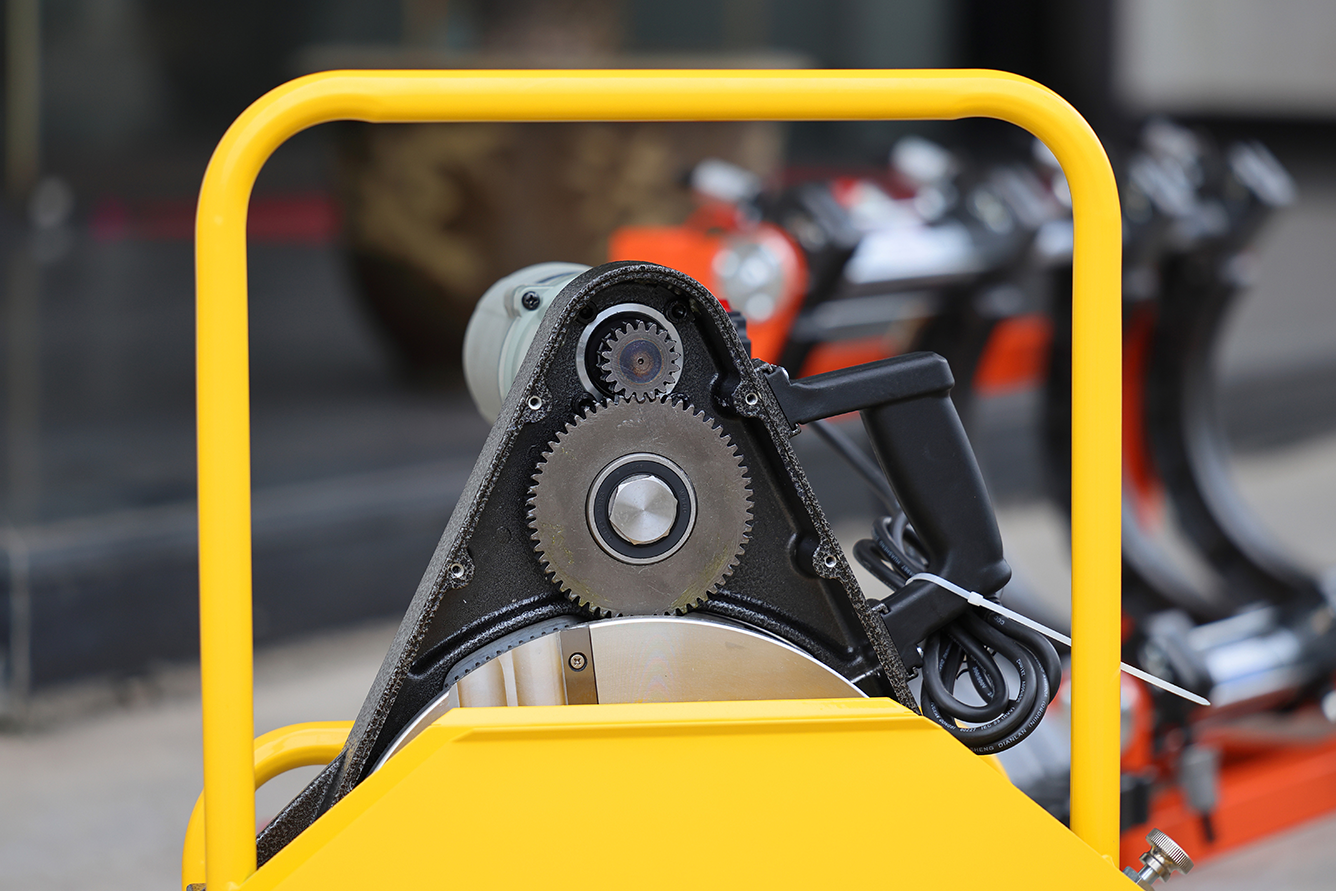

Full-Gear Driven Facing for Smoother Operation
The gear-driven facing system provides stable transmission and smoother pipe end preparation. Compared with simple manual structures, it helps operators achieve cleaner and more consistent pipe facing before fusion.
Technical Specifications
| Model | Welding Range | Power Supply | Total Power | Heating Plate | Facer | Max Temp. | Temp. Deviation |
| WP110C2 | 40–110mm | 220V/50Hz, 1PH | 2.9kW | 1.5kW | 1.4kW | 270°C | ±5°C |
| WP160C/C2 | 63–160mm | 220V/50Hz, 1PH | 2.9kW | 1.5kW | 1.4kW | 270°C | ±5°C |
WP200C/C2 | 63–200mm | 220V/50Hz, 1PH | 3.2kW | 1.8kW | 1.4kW | 270°C | ±5°C |
| WP250C | 63–250mm | 220V/50Hz, 1PH | 4.3kW | 2.3kW | 2.0kW | 270°C | ±5°C |

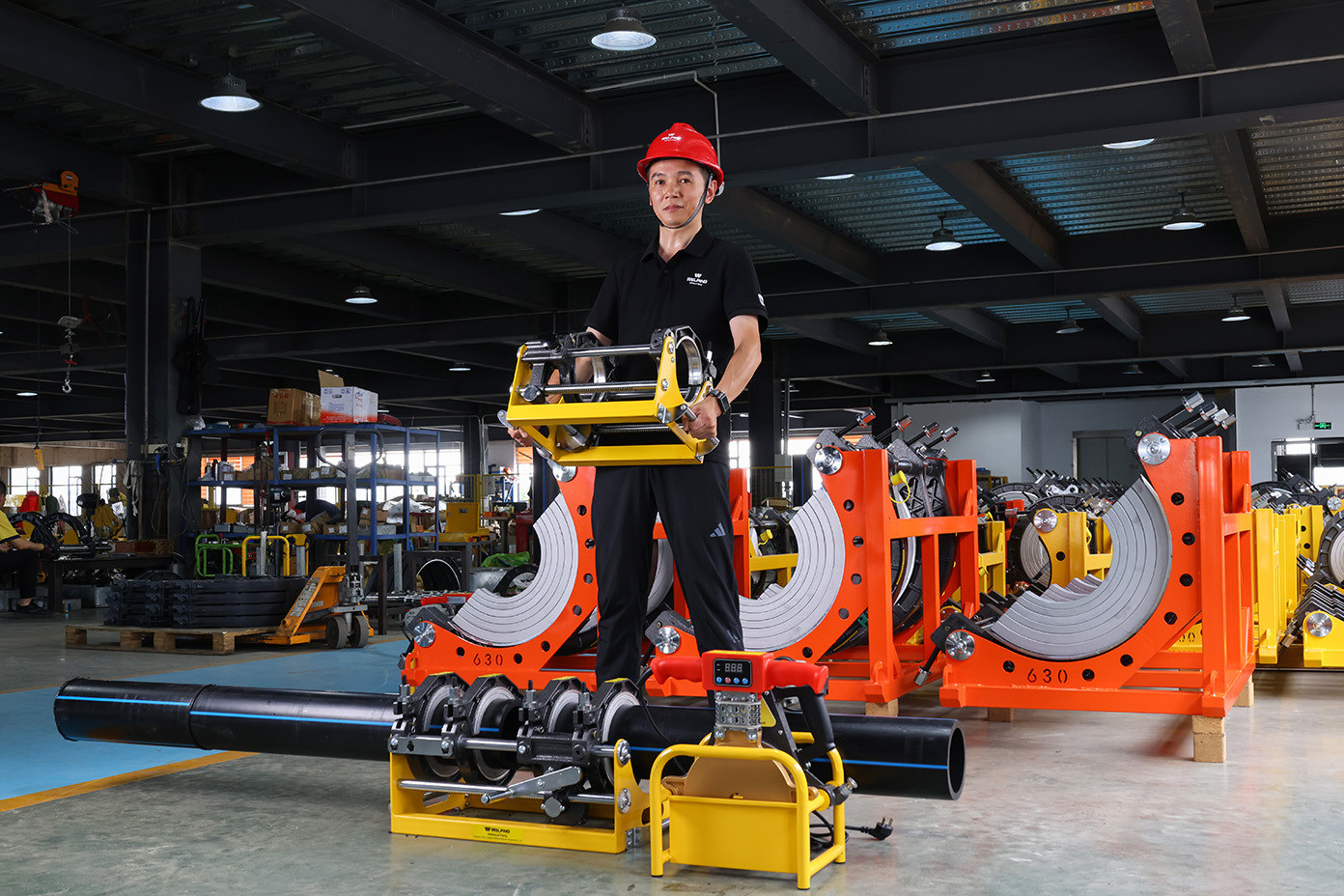

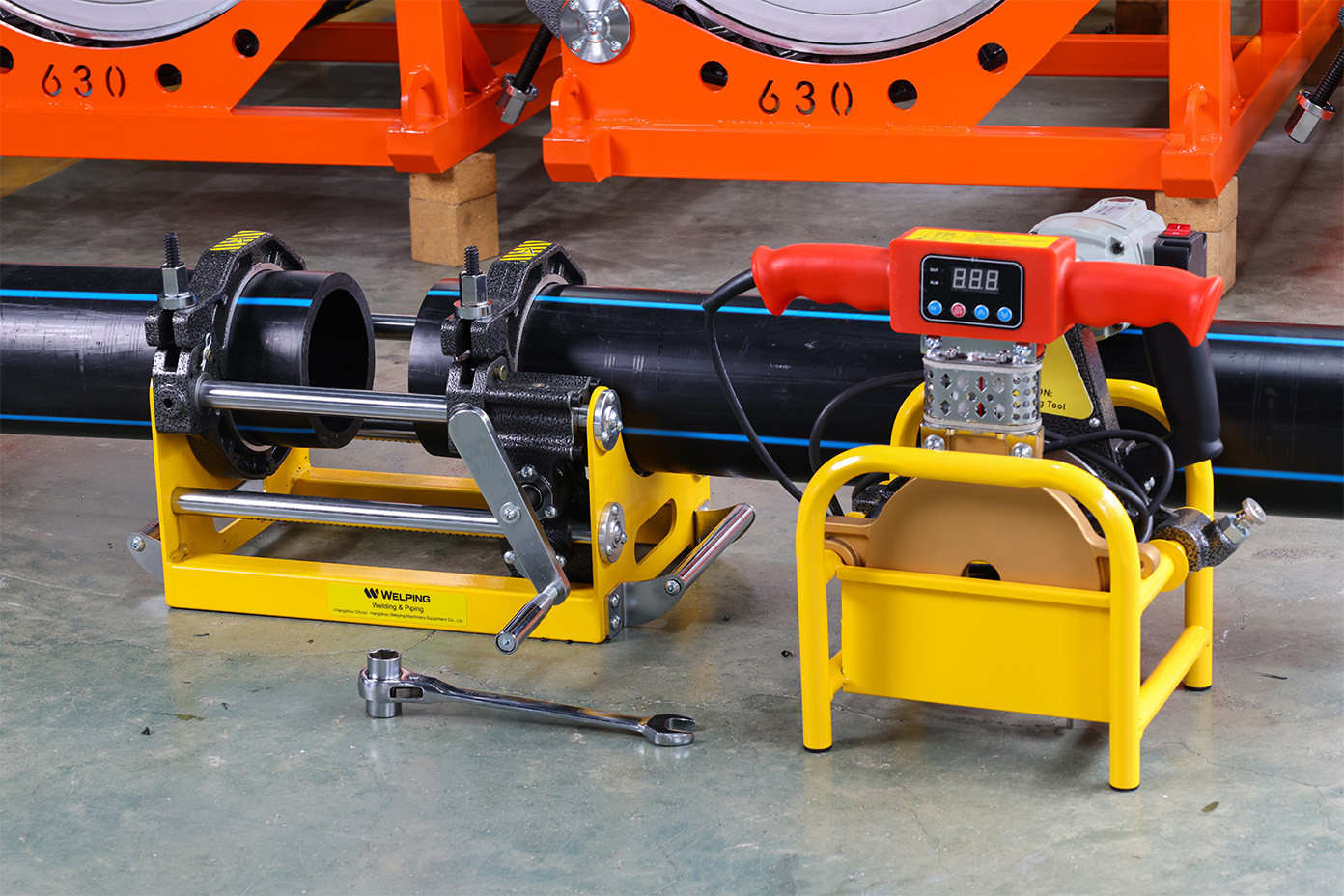

Manual Control, Practical Choice
For many small and medium pipe welding jobs, a manual butt fusion machine is a practical choice. It is easier to move, simple to operate and more economical than hydraulic models, while still providing stable performance for daily pipe welding work.
Need Help Choosing a Model?
Tell us your pipe size, pipe material and jobsite requirements. We can help you choose the right C Series model for your application.
