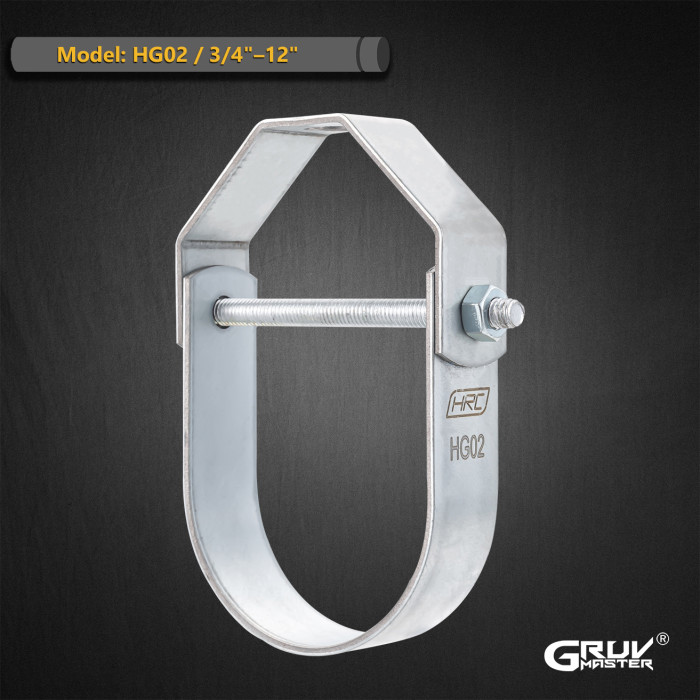

HG02 Clevis Hanger 3/4"–12" Carbon Steel Pipe Hanger
Provides reliable suspension for stationary steel pipes, with an adjustable swivel design for versatile applications.
- Share
- Categories
- Pipe Hangers
- Brand
- Fusion Equipment and Plumbing Tool｜WELPING
- Model
- HG02
- Material
- Carbon steel
- Finish
- 3/4" – 12" (20–300 mm)
- Application
- Plain or Zinc Plated (Hot-Dip Galvanized optional)
- Installation Type
- Ductile / Cast Iron Pipe Suspension
- Adjustment Type
- Threaded Rod Suspension
- Support Type
- Vertical Adjustment (Adjustable Nut)
- Max Temperature
- Plain 343°C / 650°F; Galvanized 232°C / 450°F
- Standards Compliance
- A-A-1192A (Type 1), WW-H-171-E (Type 1), ANSI/MSS SP-69, MSS SP-58
- Certification
- UL Listed / FM Approved
Detail Information

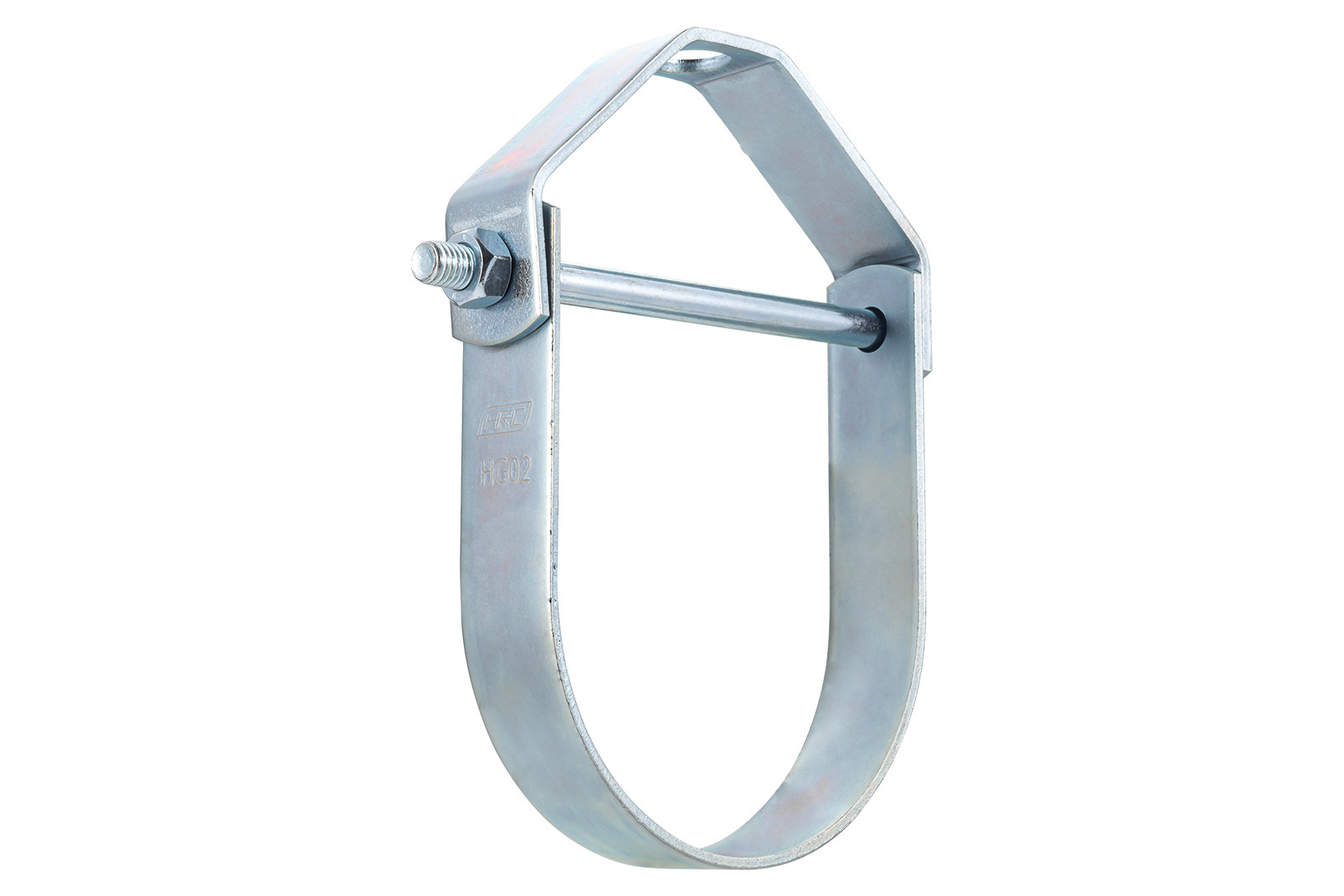

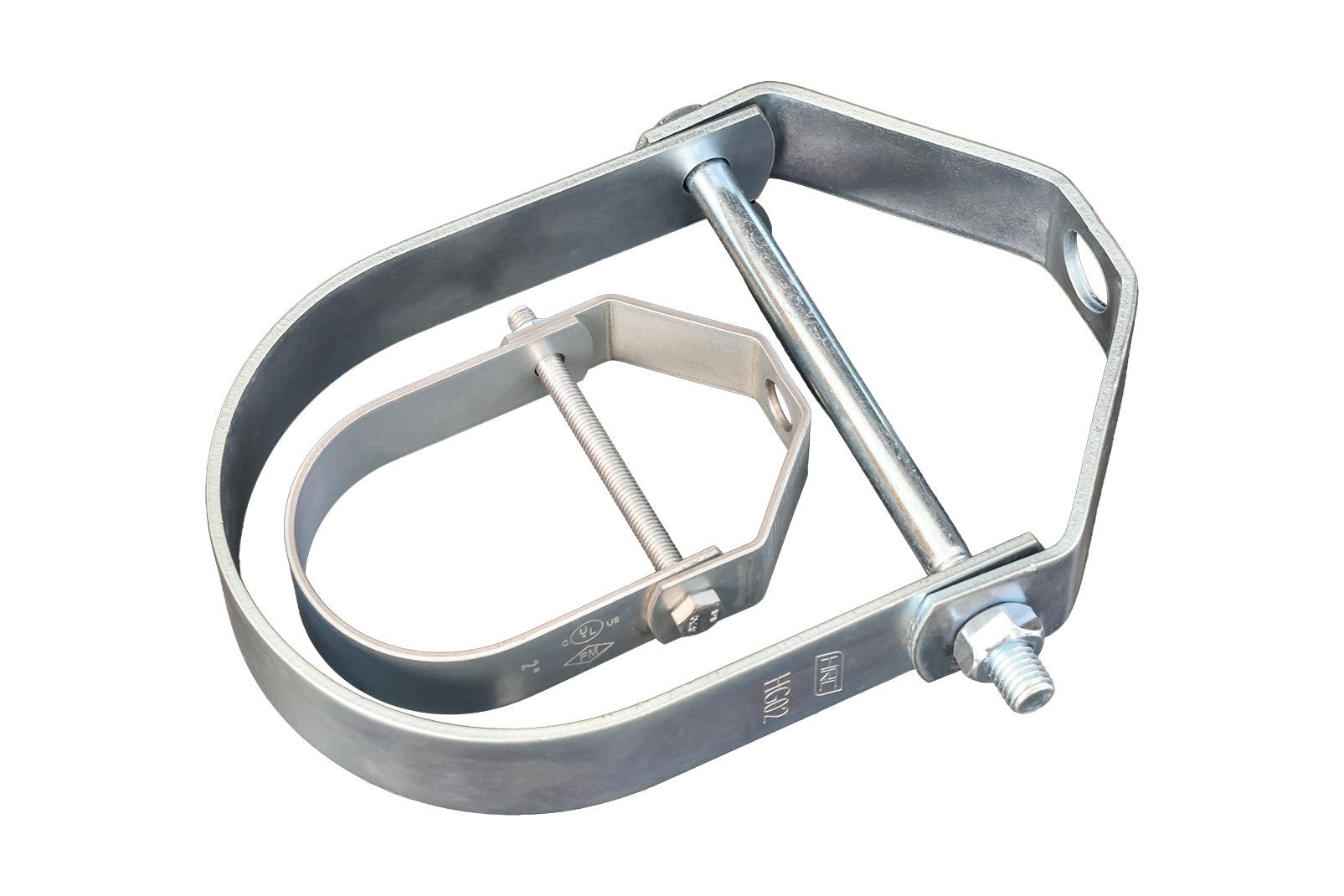

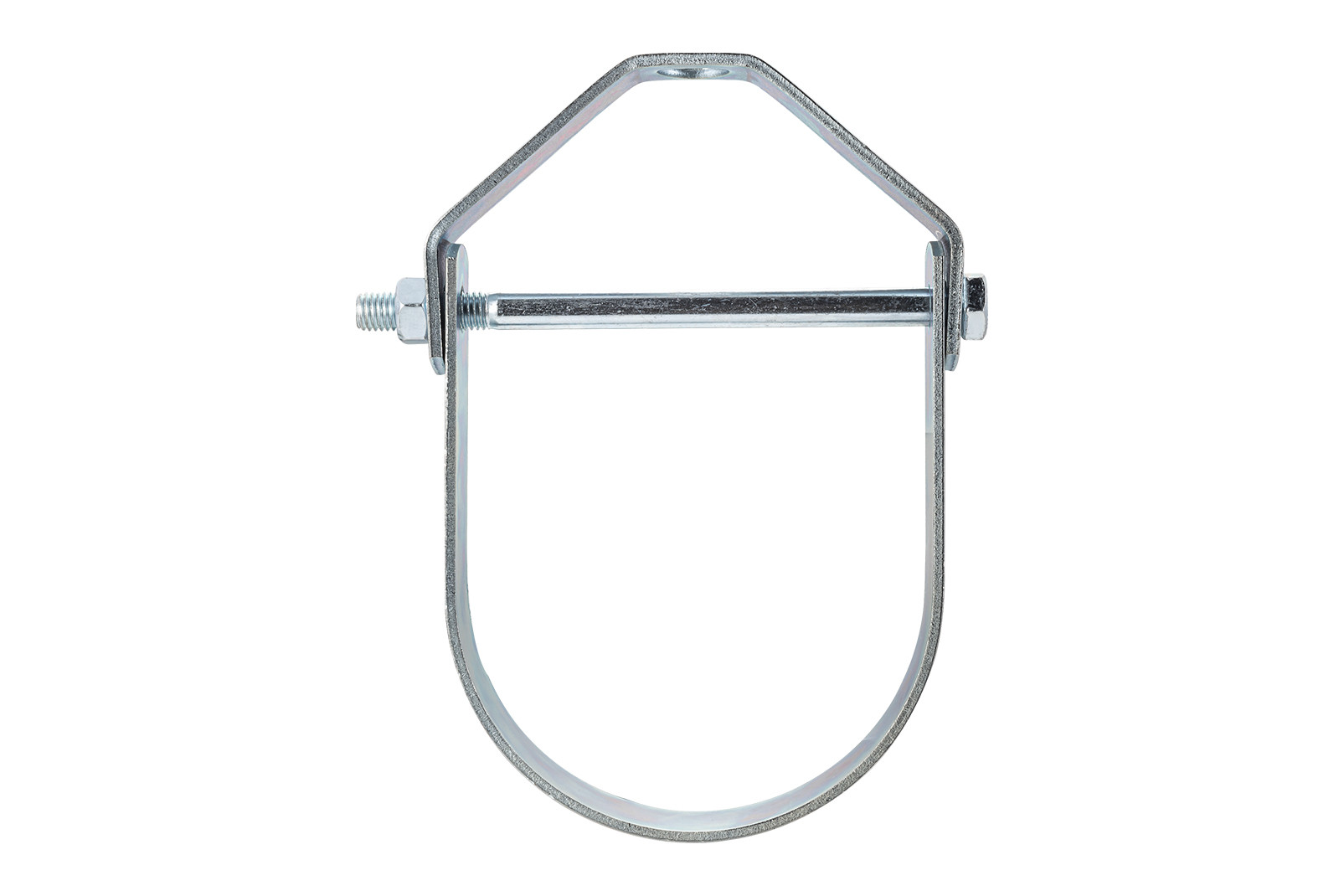

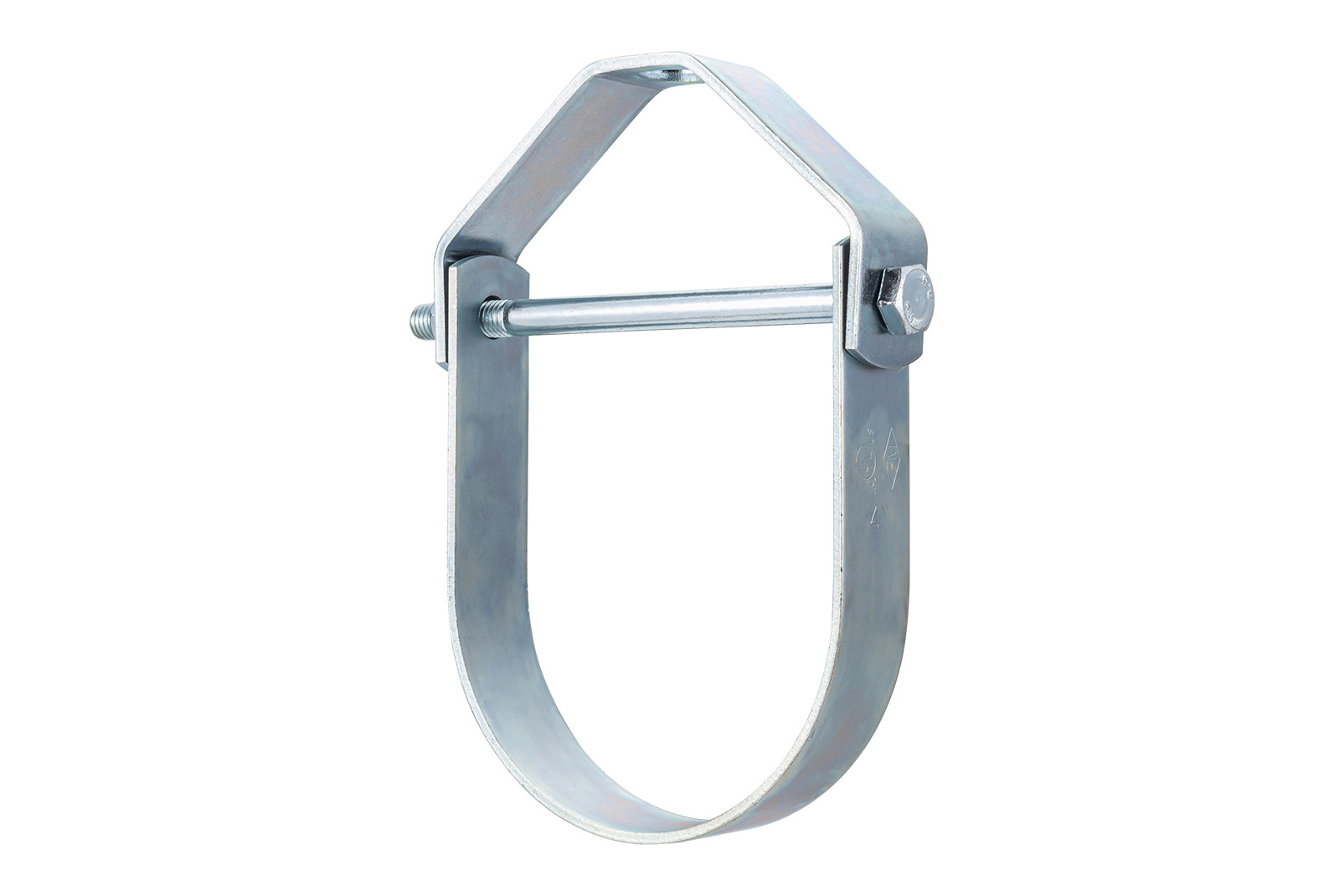

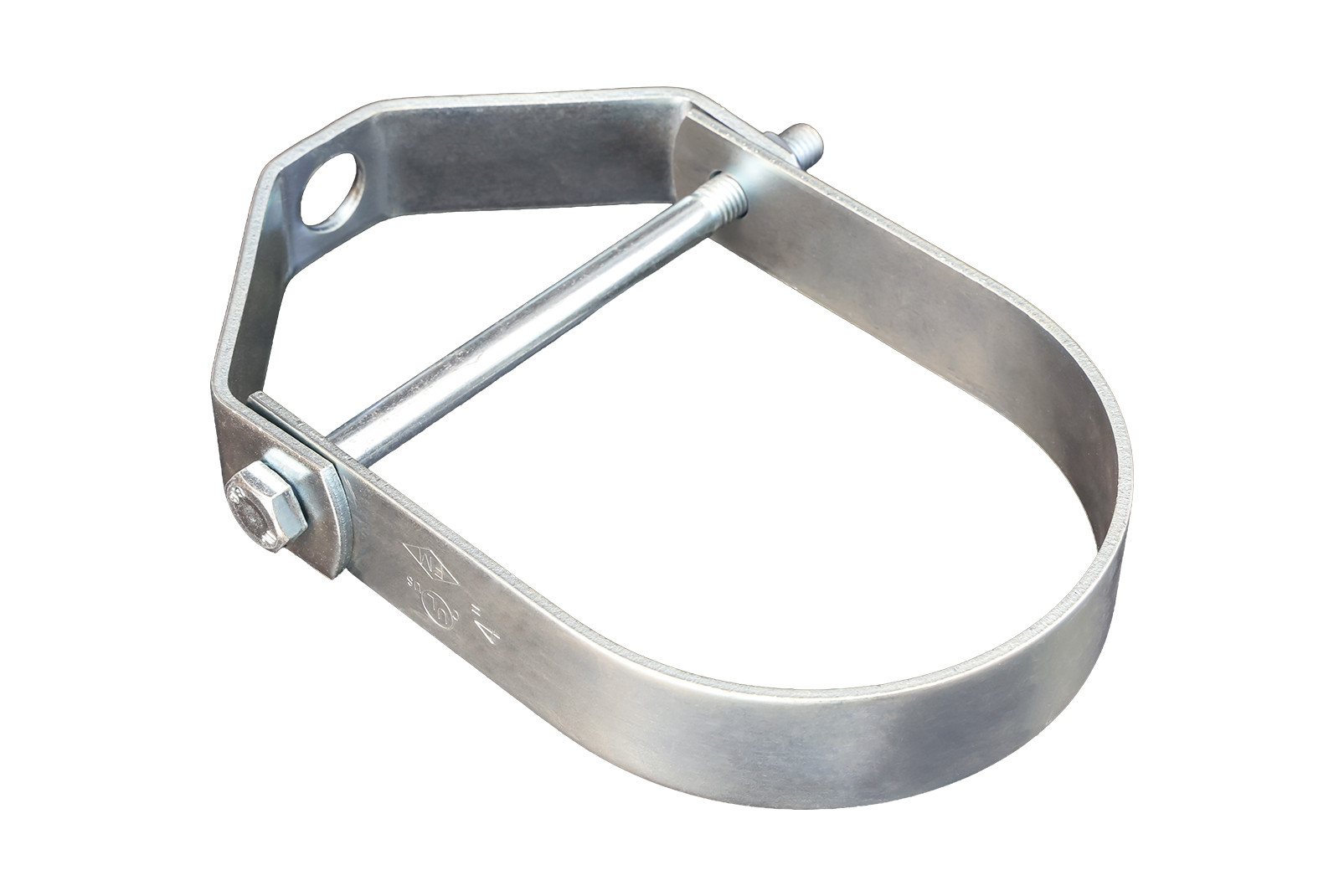

HG02 Clevis Pipe Hanger – Carbon Steel
(Size Range: 3/4"–12" | UL / FM Approved)
Product Overview
The HG02 Clevis Hanger is designed for the suspension of ductile and cast iron pipes in piping systems. It provides stable and secure vertical pipe support using threaded rod installation.
The adjustable clevis structure allows vertical height adjustment without removing the pipe, improving installation flexibility and maintenance efficiency. Manufactured from carbon steel with optional zinc plating or hot-dip galvanizing, it ensures reliable strength and corrosion resistance across different environments.
Product Specifications
Model: | HG02 |
| Product Name: | Clevis Hanger |
| Material: | Carbon Steel |
| Finish: | Plain or Zinc Plated (Hot-Dip Galvanized optional) |
Size Range: | 3/4" – 12" (20–300 mm) |
Application: | Ductile / Cast Iron Pipe Suspension |
Installation: | Threaded Rod Suspension |
Adjustment: | Vertical Adjustable (Clevis Nut) |
Pipe Type: | Ductile Iron / Cast Iron Pipe |
| Support Type: | Suspended Pipe Support |
Max Temperature: | Plain 343°C / 650°F; Galvanized 232°C / 450°F |
Certification: | UL Listed / FM Approved |
Key Features
Adjustable Height Design
Allows vertical adjustment without removing the pipe, improving installation efficiency.
Secure Suspension Support
Provides stable and reliable support for suspended piping systems.
Heavy-Duty Construction
Made from carbon steel to ensure strength and durability under load.
Corrosion-Resistant Finish
Available in zinc plated or hot-dip galvanized finish for enhanced corrosion protection.
Selection Guide
· Select hanger size according to pipe outer diameter
· Suitable for suspension of heavy-duty piping systems
· Recommended for ductile and cast iron pipe applications
· Choose finish based on indoor or outdoor environment
· Ensure proper threaded rod size and load capacity
Standards & Certification
· UL Listed
· FM Approved
· Complies with A-A-1192A (Type 1)
· WW-H-171-E (Type 1)
· ANSI/MSS SP-69
· MSS SP-58
Technical Data

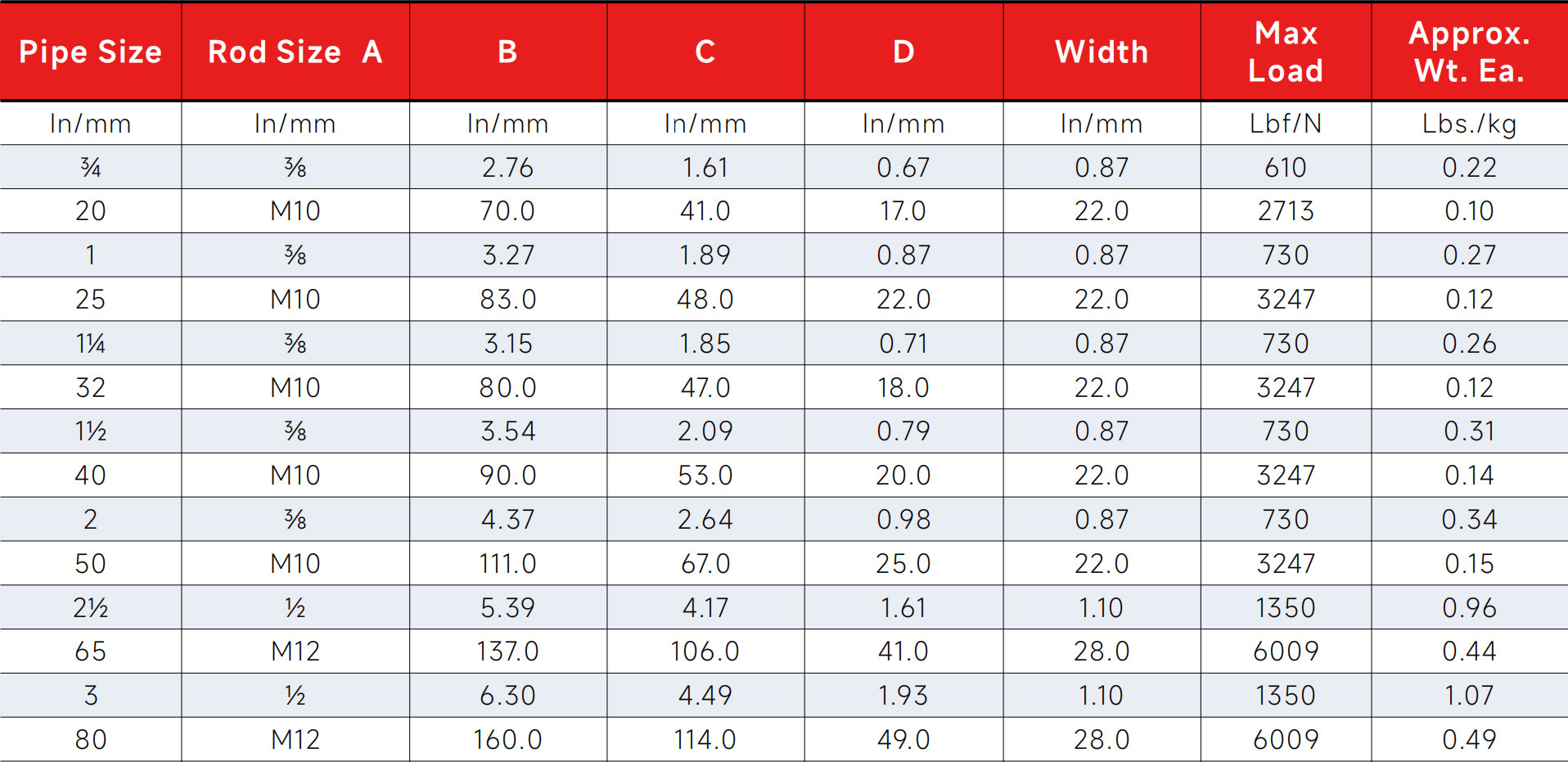

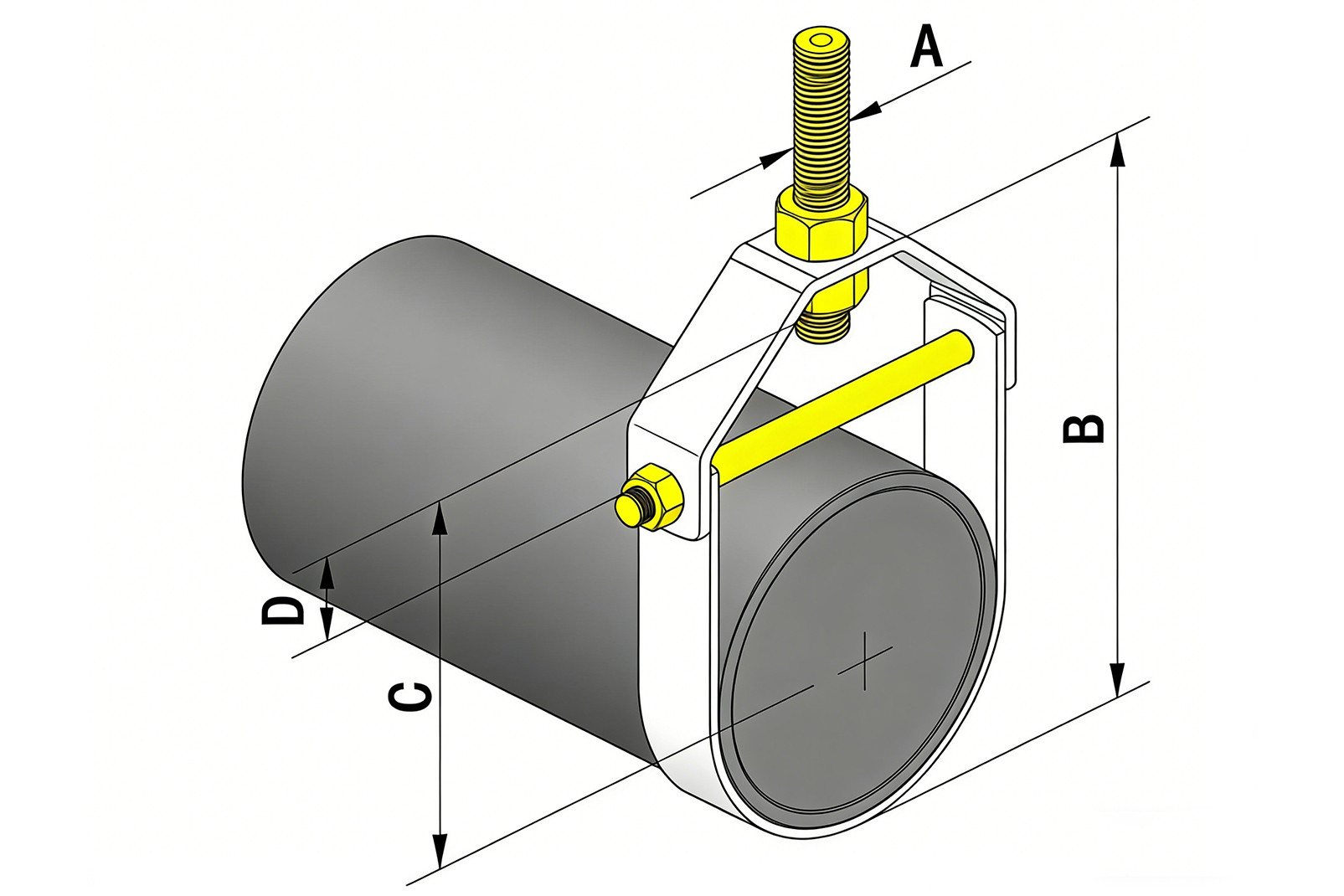

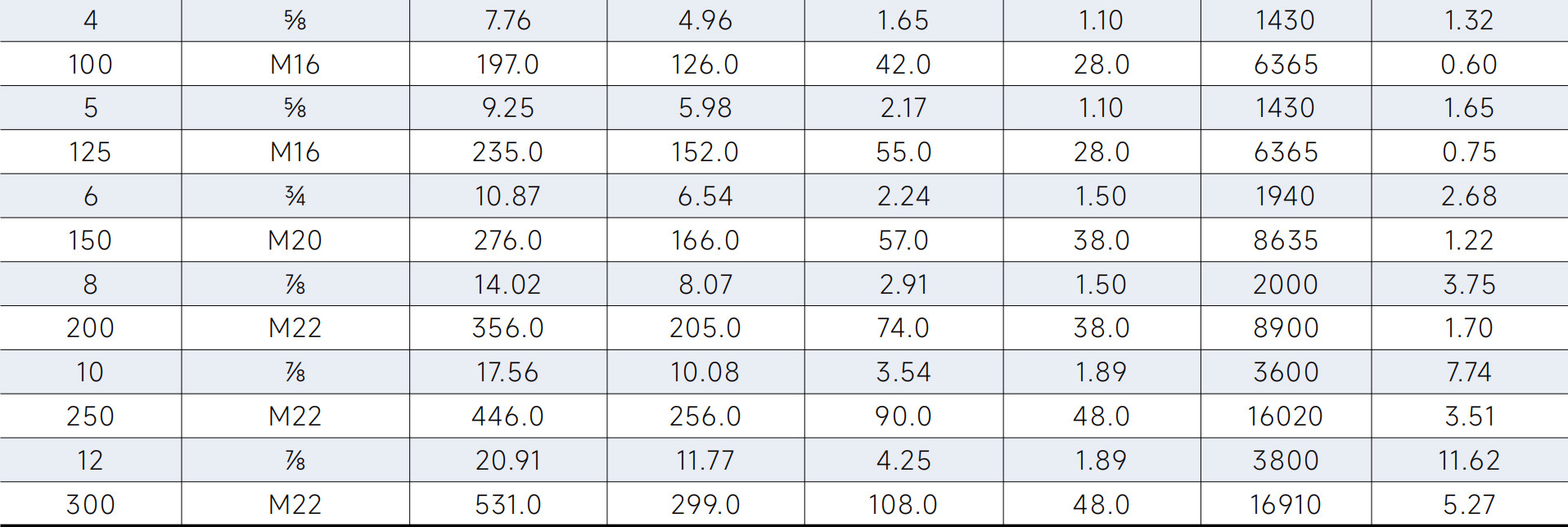

Dimensions and load capacity vary by pipe size. Refer to the table below for detailed specifications.
FAQ
Q: What is a clevis hanger used for?
A: It is used for suspending pipes in piping systems, especially for vertical load support.
Q: Can the height be adjusted after installation?
A: Yes, vertical adjustment can be made using the clevis nut without removing the pipe.
Q: What types of pipes are suitable?
A: Designed for ductile iron and cast iron pipes.
Q: Is it suitable for outdoor use?
A: Yes, hot-dip galvanized finish is recommended for outdoor environments.
