High-End Series Hydraulic HDPE Pipe Fusion Welding Machine Wp630A PRO

It is a versatile machine designed for butt fusion of 315mm to 630mm pipe and fittings, with durability and reliability.

Lead Time: 7-15 days once order confirmed

Terms of Payment: T/T, Western Union, Paypal,X Transfer

FOB Port: Shanghai, Ningbo

Certificate: CE

MOQ: 1 Set

Business type: Plastic pipe welding machines manufacturer

Contact Now

Favorites

Detail Information

High-End Series Hydraulic HDPE Pipe Fusion Welding Machine Wp630A PRO

DETAILS

HDPE pipe has been used extensively in the piping applications of municipal, industrial, marine, mining, landfill, duct and agricultural industries.

Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding machine can provide reliable joints, even as strong as the complete pipe.

The High-End Series WP630A PRO butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.

Basic Info

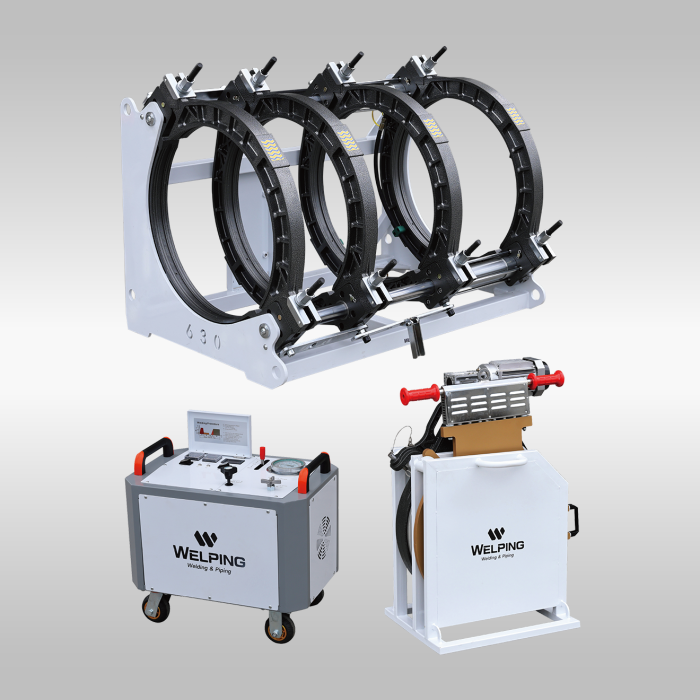

The Butt Fusion Machine is designed to butt fuse pipe sizes 315mm to 630mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.

Model NO.	WP630A Pro	Control	Semi-Automatic
Frequency Range	Low Frequency	Electric Current	AC
Type	Resistance Butt Welder	ODM/OEM	Available
Package	2PCS	Hydraulic	Enclosure Housing
Warranty	1 Year	Color	White
Transport Package	Plywood Case	Specification	Hydraulic drive
Trademark	WELPING	Origin	China
HS Code	8515809090	Production Capacity	20000pieces/Year

PARAMETER

Model	WP630A Pro
Welding range	315-355-400-450-500-mm
Weldable Material	HDPE/PP/PVDF
Rated Voltage	AC 380V, 50Hz, 3PH
Total power	10.1kw
Temperature deviation	±7ºC
max Tem of heater	270ºC
Heater	7.5kw
Cutter	1.5kW
Hydraulic unit	1.1kW
Pressure Range	0-16Mpa
Certificate	ISO/CE/VOC/Calibration
Warranty	12 Months

PRODUCT DETAILS MAP

Frame(Carriage)

· Complete reinforced welded steel structure, strong, free of distortion

· Aluminum strengthened clamping part

· 4 upper rings are equipped with anti - friction pads to protect the aluminum casting

· Qualified hydraulic cylinder with quick couplings, for easy installation

Hydraulic station

· Integrated hydraulic and electrical control. All - in - one control panel: hydraulic actuation, pressure setting, timing, electric info display, temperature setting

· Enclosure design, shielding splash and dirt and wheels, for easy transportation

· Built with Siemens or other well - known brand electronic components

Heating plate

· Cast aluminum body with built - in heating elements

· Anti - stick PEFT coating from Daikin

· Qualified aviation plug and heavy duty cable ensure operation safety

· Optional FX series heating plate with thicker casting and updated heating elements

Facer (milling cutter)

· Full gear transmission structure, for steady and long - life performance

· Powerful copper - wiring motor

· Durable, double edges HSS blade

· Reinforced milling plate, withstands heavy - duty operation

Electric hoist (optional)

· An Optional electric hoist is available for convenient installing and moving the facer and heating plate

· Connected to the rear mounting plate of the frame for overall stability

· Designed for quick installation and removal
