8inch to 24inch Steel Pipes for Max 10mm Automatic Roll Grooving Machine Roll Groover

KeyWords

8inch to 24inch Steel Pipes for Max 10mm Automatic Roll Grooving Machine Roll Groover

The semi-automatic steel pipe grooving machine is designed for efficiently creating grooves on steel pipes, primarily used in piping systems such as fire protection, plumbing, and HVAC.

Grooving Capacity: 8"-24"

Max Wall Thickness: 16mm

Power Supply: 2200W-3PH

Output Speed: 23RPM

Contact Now

Favorites

Detail Information

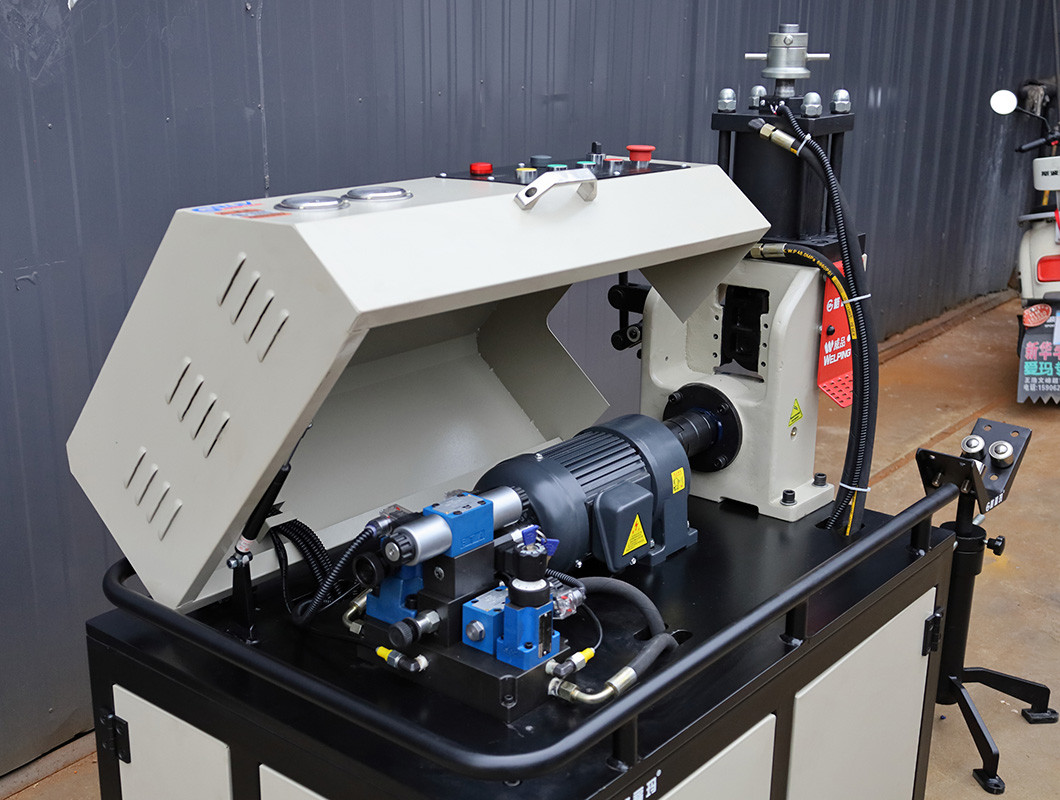

8"-24" Automatic hydraulic pipe groove machine

Welding 1600mm hydraulic butt welding machine

Below are its main functions and features:

Key Functions:

1. Groove Formation: Accurately processes grooves on steel pipes to ensure secure connections with coupling systems.

2. Compatibility: Handles various pipe diameters and wall thicknesses, making it suitable for diverse project requirements.

3. Semi-Automatic Operation: Combines manual control with automated processes to achieve precision and consistency while offering operational flexibility.

Features:

1. Robust Construction: Built with durable materials to withstand high-intensity operations and ensure a long service life.

2. High Efficiency: Semi-automatic operation speeds up the grooving process while maintaining accuracy.

3. User-Friendly Design: Simple controls and an ergonomic structure make the machine easy to operate, even for users with minimal training.

4. Adjustable Settings: Equipped with adjustable rollers and blades to accommodate different pipe specifications.

5. Compact and Portable: The machine's compact design ensures easy transport and storage, ideal for on-site applications.

This machine is a cost-effective solution for professionals seeking reliable and efficient grooving for steel pipe installations.

scope

model	AG-4X
Applicable materials	Carbon steel, stainless steel
capacity	Suitable for 8"-24" steel pipe
capacity	Suitable for 8"-24" steel pipe
power supply	380V
frequency	50Hz/60Hz
Maximum wall thickness	16mm
Motor Power	2200W
Output speed	23 rpm
Packaging gross weight	550kg
Package Size	125110160cm

Ordering Information

catalog number	stage	strength	Voltage frequency
999020	three phase	2200W	380V, 50/60HZ

Standard Parts

Item Number	describe	net weight
911087	Drive roller 8"~12" (φ219~Φ325)	3.5kg
911088	Driving roller 14"~16" ((Φ355~Φ426)	3.5kg
911089	Drive roller 18"~24" (Φ457~Φ630)	3.5kg
912029	Groove roller 8"~12" ( Φ219~Φ325)	1.4kg
912030	Groove roller 14"~16" (Φ355~Φ426)	1.4kg
912031	Groove roller 18"~24" (Φ457)~Φ630)	1.4kg
998038	Pipe stand for 8"~24" (Φ219~Φ630)	33.0kg

Optional Parts

Item Number	describe	net weight
911099	AGS Groove roller 14"~24" (Φ355~Φ630)	3.5kg
912034	AGS Drive roller 14"~24" (Φ355~Φ630)	2.0kg

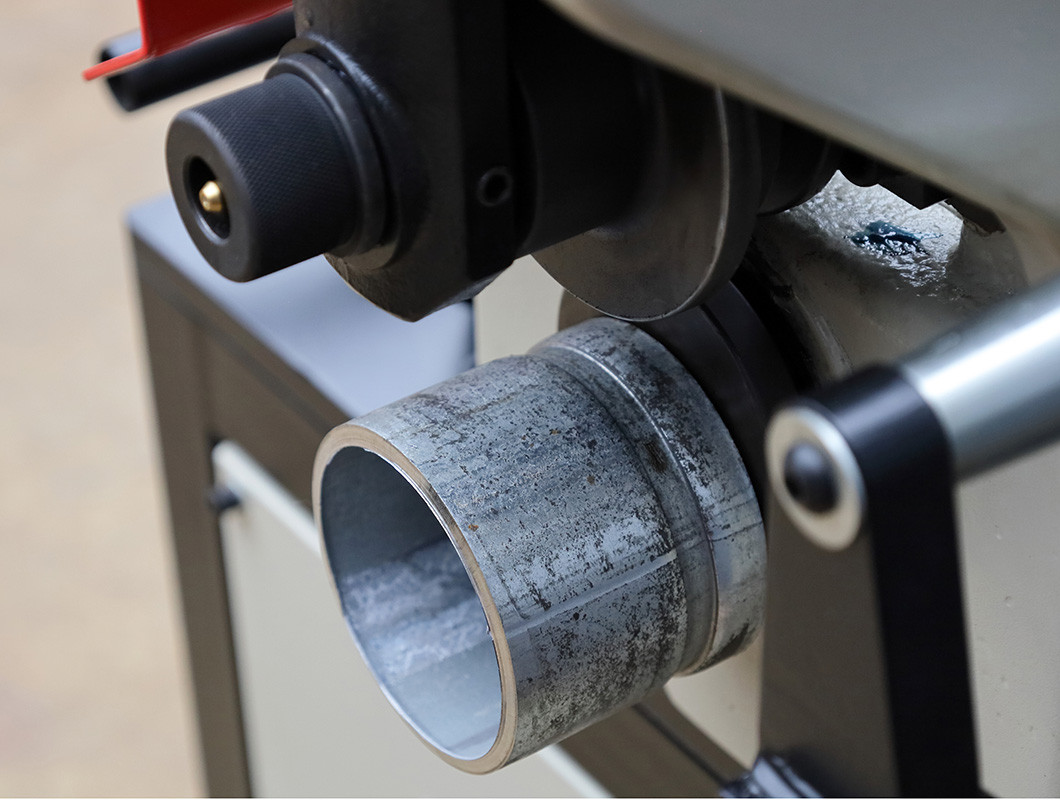

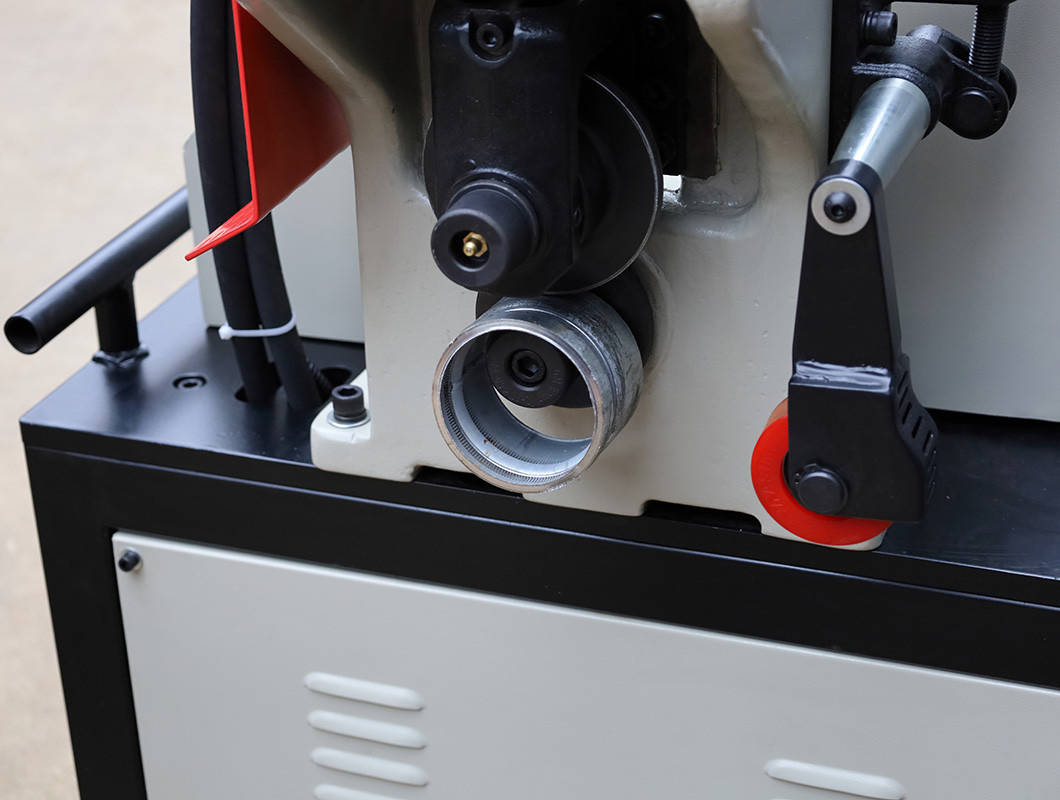

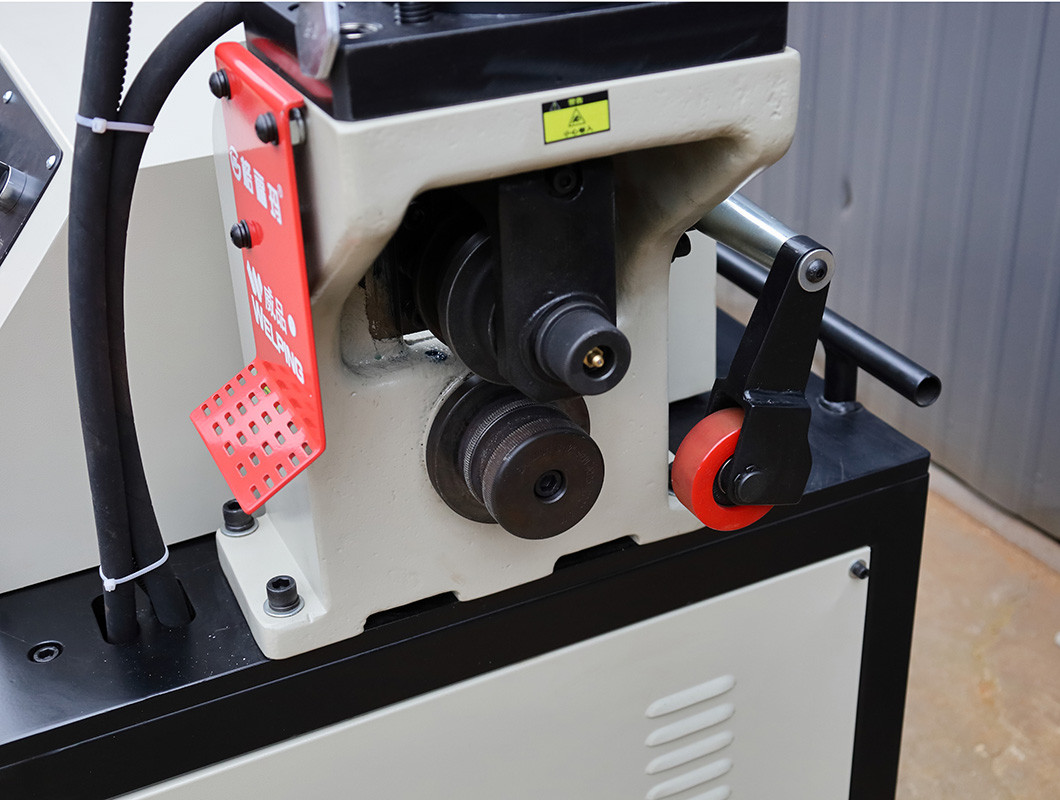

Product details picture

pipe stand

Suitable for 8"-24" steel pipe

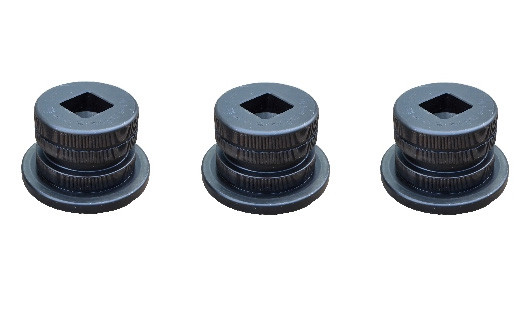

drive roller

A set of 8"~12" (Φ219~Φ325)

A set of 14"~16" (Φ355~Φ426)

A set of 18"~24" (Φ457~Φ630)

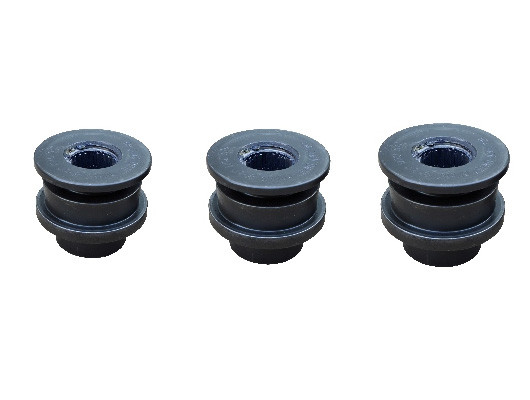

_{groove roller}

A set of 8"~12" (Φ219~Φ325)

A set of 14"~16" (Φ355~Φ426)

A set of 18"~24" (Φ457~Φ630)
