FX800: A Butt Fusion Machine Designed for Large-Scale Welding Projects
In large-diameter pipeline welding projects, equipment is not an isolated machine but an integral part of the overall construction system.

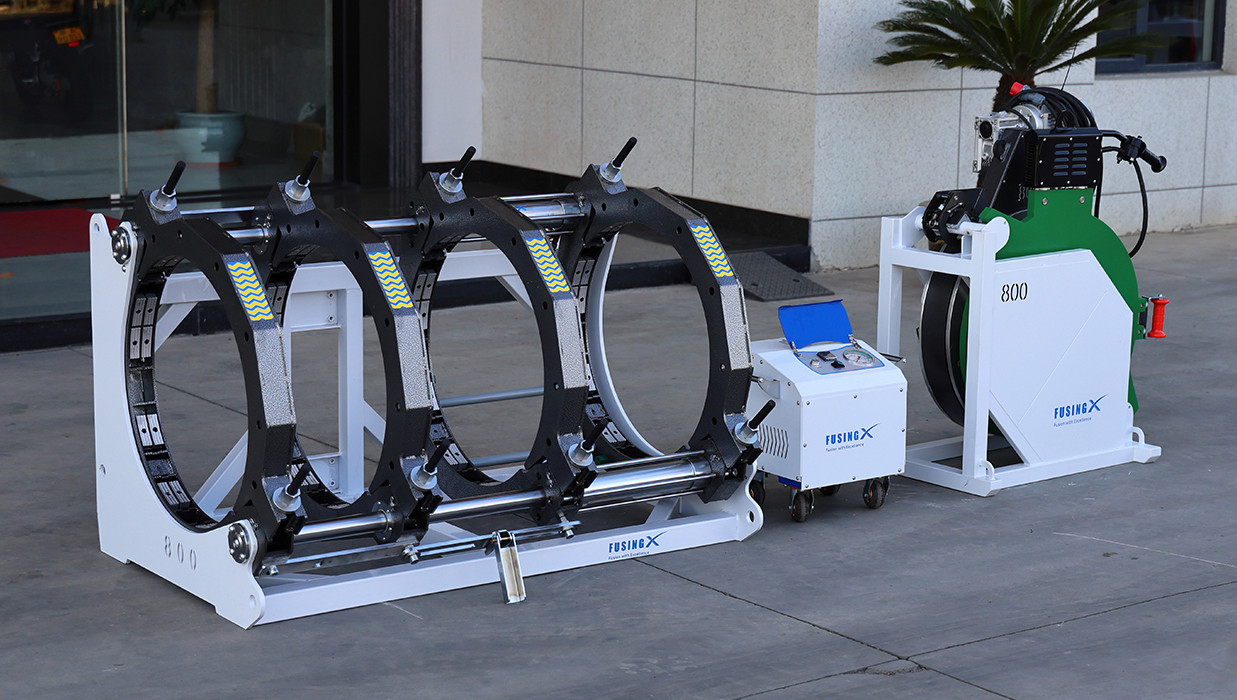

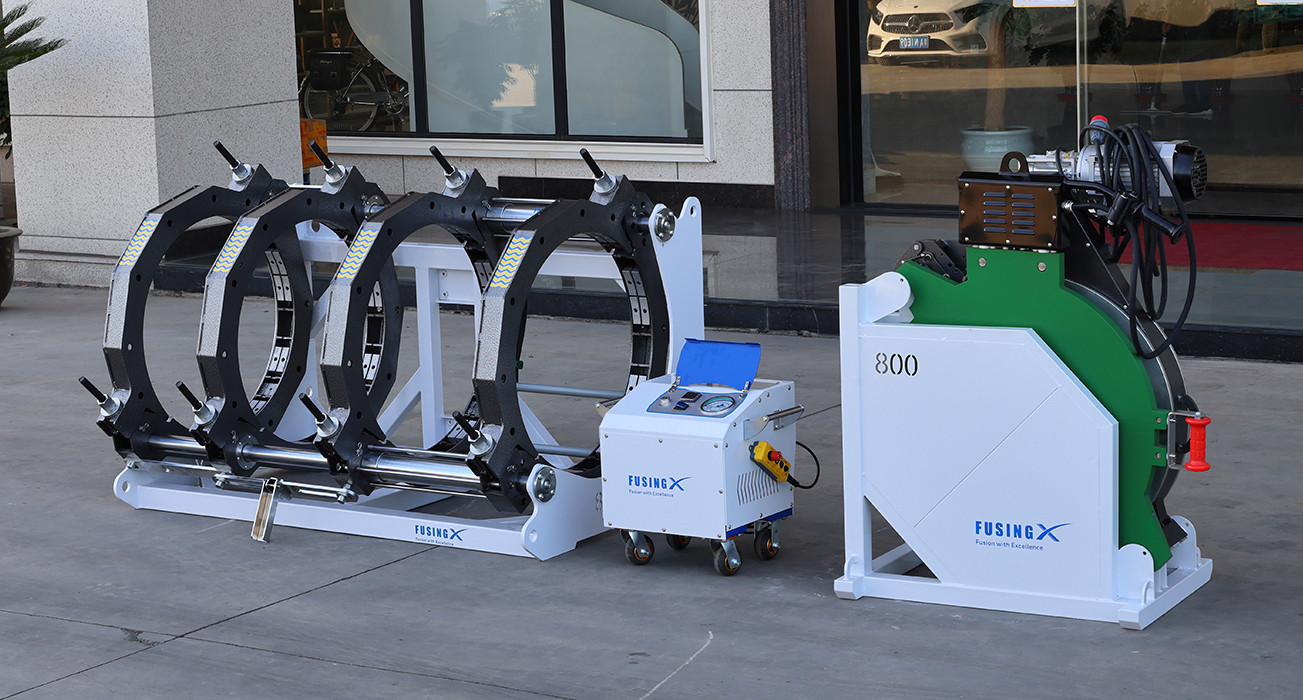

The FX800 butt fusion machine is developed specifically for such applications, supporting pipe diameters from 450 to 800 mm and commonly used in projects with long construction cycles and complex site conditions.
In these environments, factors such as stability, structural reliability, and controllable on-site operation are often more critical than individual technical specifications.
Practical Challenges of Large-Size Equipment on Site
Due to its size and weight, the FX800 is classified as heavy-duty welding equipment. Under real job-site conditions, manual handling alone is insufficient for positioning and movement. The use of lifting equipment, such as cranes, is typically required and represents a standard condition in large-diameter pipeline construction.
This is not a limitation of the FX800 itself, but a practical reality of large-scale welding projects. The key consideration is how equipment design supports safe, efficient, and well-organized operation under these conditions.

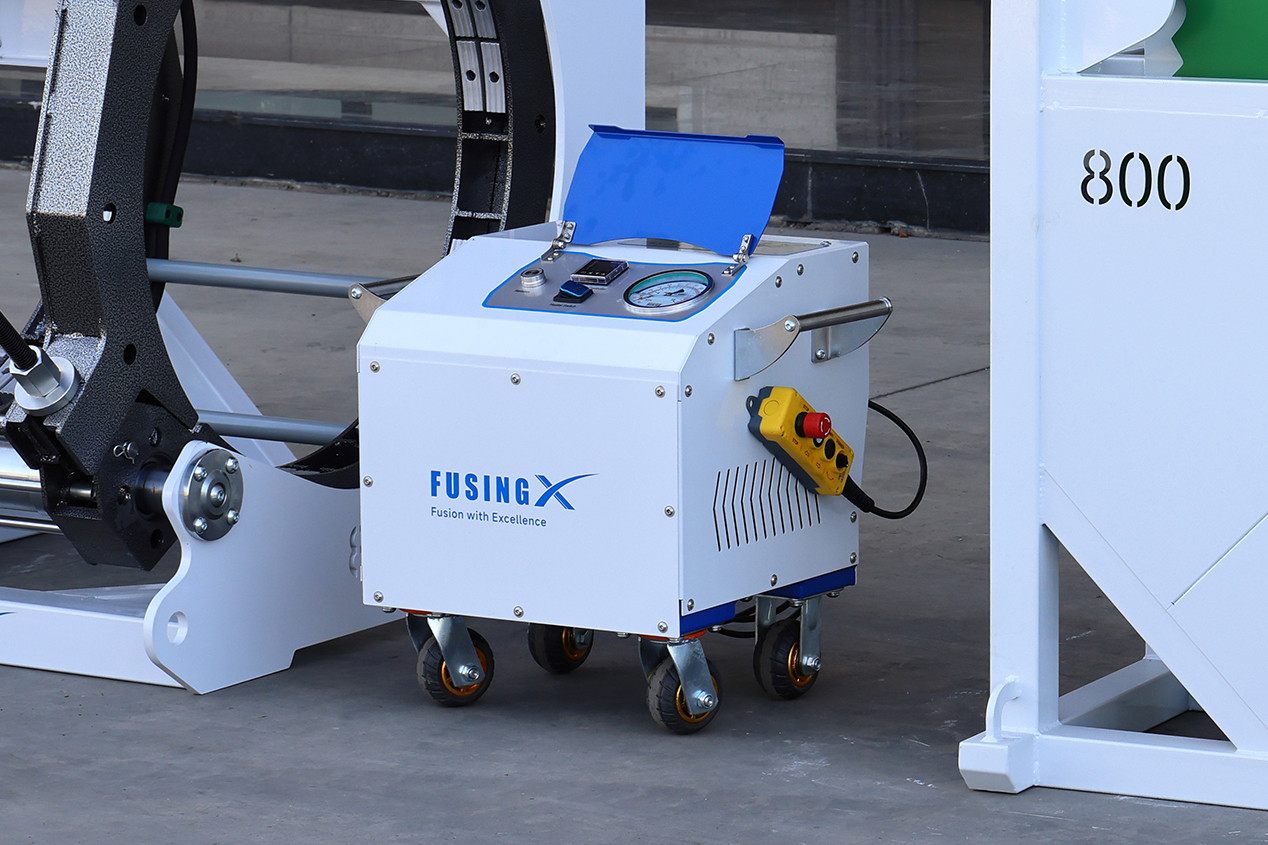

Dedicated Hydraulic Unit Designed Exclusively for FX800
The FX800 is equipped with a hydraulic unit developed specifically for this model and not shared with other machine sizes.
This dedicated configuration allows the hydraulic system to match the machine’s structure and welding demands more precisely, particularly under heavy-load and large-diameter operating conditions.
Compared with general-purpose hydraulic units, the FX800’s dedicated unit delivers more stable output and consistent performance during continuous operation, helping reduce operational uncertainty on site.

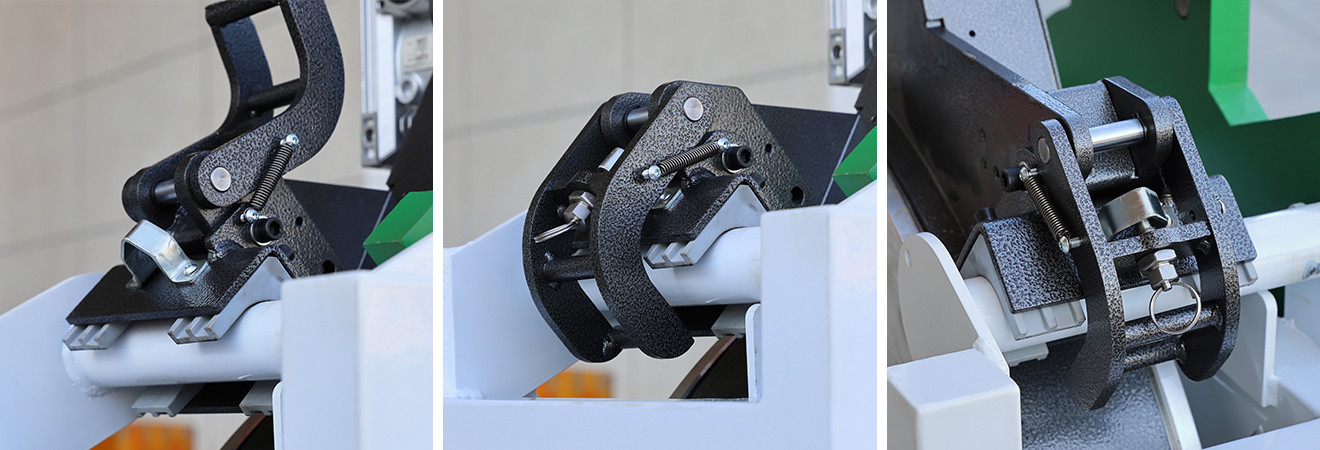

Safety-Oriented Structural Design: Upgraded Facer Locking
During butt fusion welding, the placement and securing of the facer is a small but important detail.
On the FX800, the facer locking structure has been upgraded to ensure the facer remains stable when positioned on the machine frame.
This improvement helps reduce safety risks associated with unstable placement and supports a more organized and secure working environment—an important consideration when operating large and heavy equipment on site.
Clear Operating Logic for Efficient Team Coordination
As part of the FX series, the FX800 emphasizes clear operating logic and a high level of functional integration.
In practice, operators with basic training can complete standard welding procedures without unnecessary complexity.
Rather than lowering professional requirements, this approach helps streamline workflows, improve coordination within the construction team, and make daily operation more predictable and controllable.
Positioned for Systematic, Large-Scale Welding Projects
The FX800 is not designed for small or occasional tasks. It is positioned for systematic, large-scale pipeline welding projects where stability, safety, and operational control are essential.
From its dedicated hydraulic unit and safety-focused structural details to its clear operating logic, the FX800 is designed with a consistent objective:
to provide reliable and well-controlled support for demanding large-diameter welding applications.
