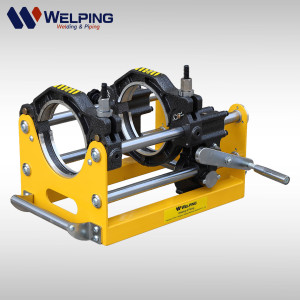

Two Clamps 63mm to 200mm Manual Butt Fusion Machine

Two Clamps 63mm to 200mm Manual Butt Fusion Machine

Two Clamps 63mm to 200mm Manual Butt Fusion Machine
Two Clamps 63mm to 200mm Manual Butt Fusion MachineTwo Clamps 63mm to 200mm Manual Butt Fusion MachineTwo Clamps 63mm to 200mm Manual Butt Fusion MachineTwo Clamps 63mm to 200mm Manual Butt Fusion MachineTwo Clamps 63mm to 200mm Manual Butt Fusion Machine
63mm to 200mm manual pipe fusion jointing machine,used for welding HDPE pipes
Lead Time
7-15 days once order confirmed
Terms of Payment
T/T, Western Union, Paypal,X Transfer
FOB Port
Shanghai, Ningbo
Certificate
CE
MOQ
1 Set
Business type
fusion equipment manufacturer
Detail Information
Two Clamps 63mm to 200mm Manual Butt Fusion Machine
Welping 200mm Manul butt fusion machine
DETAILS
Manual Butt fusion machine provides standard welding range of 63mm to 200mm, with unique gear transmission structure. mainly consists of 2 major parts: Carriage (also called frame or base), planing tool (also called trimmer or facer) and heater. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating. It's an effective, trouble free connecting for PE, PP, PVDF pipes.

FEATURES
※ Robust structure of carriage part with streamline outlook ※ Swivel handle with gear transmission of extremely smooth operating structure ※ Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin
STANDARD ACCESSORIES
Main Frame
1 Set
Heating Plate
1 Set
Trimmer
1 Set
Reducers
1 Set
Tool Box
1 Set
160mm manual butt fusion machine
160mm butt welding machine
160mm pipe jointing machine
160mm HDPE pipe welding machine
 PARAMETER
Welping 200mm butt fusion machine
Mode
WP200C2
Suitable materials
 PE,PP, PB. PVDF
Range
63-75-90-110-125-140-160-180-200mm
Power supply
 110V/220V
Frequency
50HZ
Total power
2.9 KW
Heating plate
1.6 KW
Planing tool
 1.1 KW
Max.Temperature of heating plate
270ºC
Temp.Deviation in Surface
 ±5ºC
Total Weight
58kg
Net weight
50kg
Packing Size
52*47*60cm
 PRODUCT DETAILS MAP
200mm butt fusion machine frame
Basic Frame
· Complete welded frame structure, steady and robust
· Hand-wheel driving, simple and convenient
· Chromated integral shaft made of1045(ASTM)/S45C(JIS)/C45(DIN) steel
· Base made of Q235 steel with spraying treatment
· Cast aluminum clamps, sandblasting &
  Spraying treatment
Planning tool
· HSS blade with double edge
· Casting aluminum trimmer plate, durable and anti-corrosion
· Gear transmission instead of chain
· Motor with pure copper wiring
planning tool for butt fusion machine
heating plate of butt fusion machine
Heating Plate
- Teflon Coating from Japan - Thermocouple sensor - Bakelite handle - Digtal display
Reducers
63-75-90-110-125-140-160-180-200mm reducers
reducers of butt fusion machine
DOWNLOAD
Welping E-Catalog of Butt Fusion Machine
Breakdown Part List of Manual Butt Fusion Machine
Operational Manual of Manual Butt Fusion Machine
Warranty Certificate of Butt Fusion Machine
