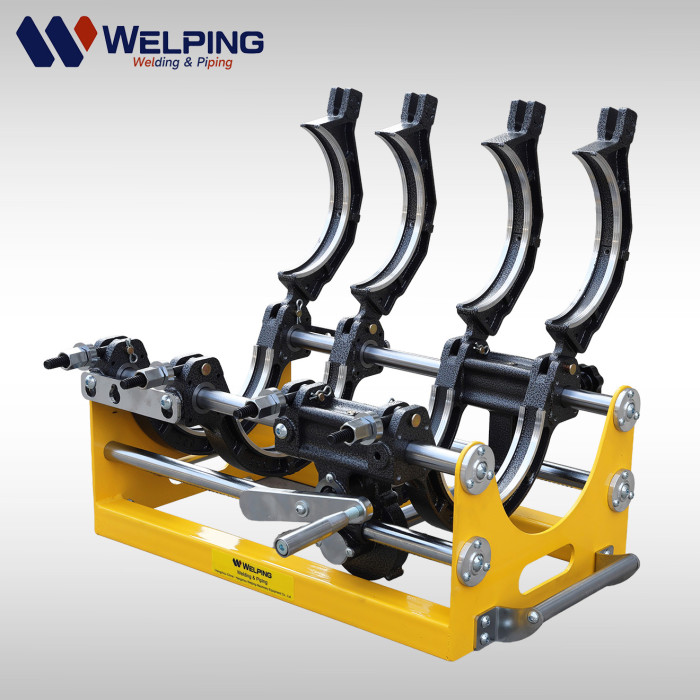

Manual Butt Fusion Machine 63mm to 200mm for HDPE Pipes

Manual Butt Fusion Machine 63mm to 200mm for HDPE Pipes

Manual Butt Fusion Machine 63mm to 200mm for HDPE Pipes
Manual Butt Fusion Machine 63mm to 200mm for HDPE PipesManual Butt Fusion Machine 63mm to 200mm for HDPE PipesManual Butt Fusion Machine 63mm to 200mm for HDPE PipesManual Butt Fusion Machine 63mm to 200mm for HDPE PipesManual Butt Fusion Machine 63mm to 200mm for HDPE Pipes
Rugged and reliable, the 63mm to 200mm manual HDPE butt fusion machine are lightweight and require only one operator
Lead Time
7-15 days once order confirmed
Terms of Payment
T/T, Western Union, Paypal,X Transfer
FOB Port
Shanghai, Ningbo
Certificate
CE
MOQ
1 Set
Business type
fusion equipment manufacturer
Detail Information
Manual Butt Fusion Machine 63mm to 200mm for HDPE Pipes

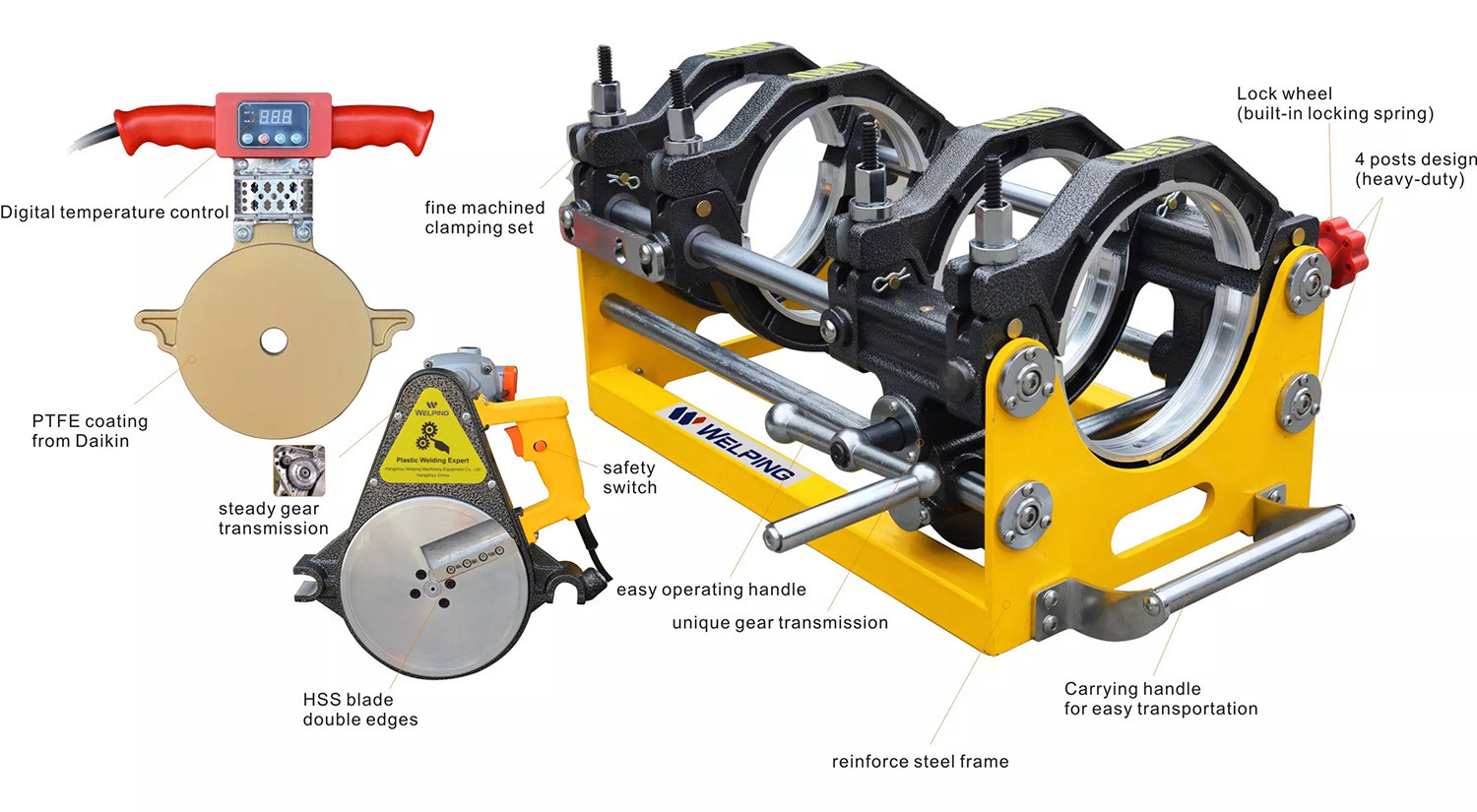

Welping 200mm Manul butt fusion machine
DETAILS
This small manual Butt fusion machine provides standard welding range of 63mm to 200mm, with unique gear transmission structure. mainly consists of 2 major parts: Carriage (also called frame or base), planing tool (also called trimmer or facer) and heater. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating. It's an effective, trouble free connecting for PE, PP, PVDF pipes.

FEATURES
※ Robust structure of carriage part with streamline outlook ※ Swivel handle with gear transmission of extremely smooth operating structure ※ Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin
STANDARD ACCESSORIES
Main Frame
1 Set
Heating Plate
1 Set
Trimmer
1 Set
Reducers
1 Set
Tool Box
1 Set

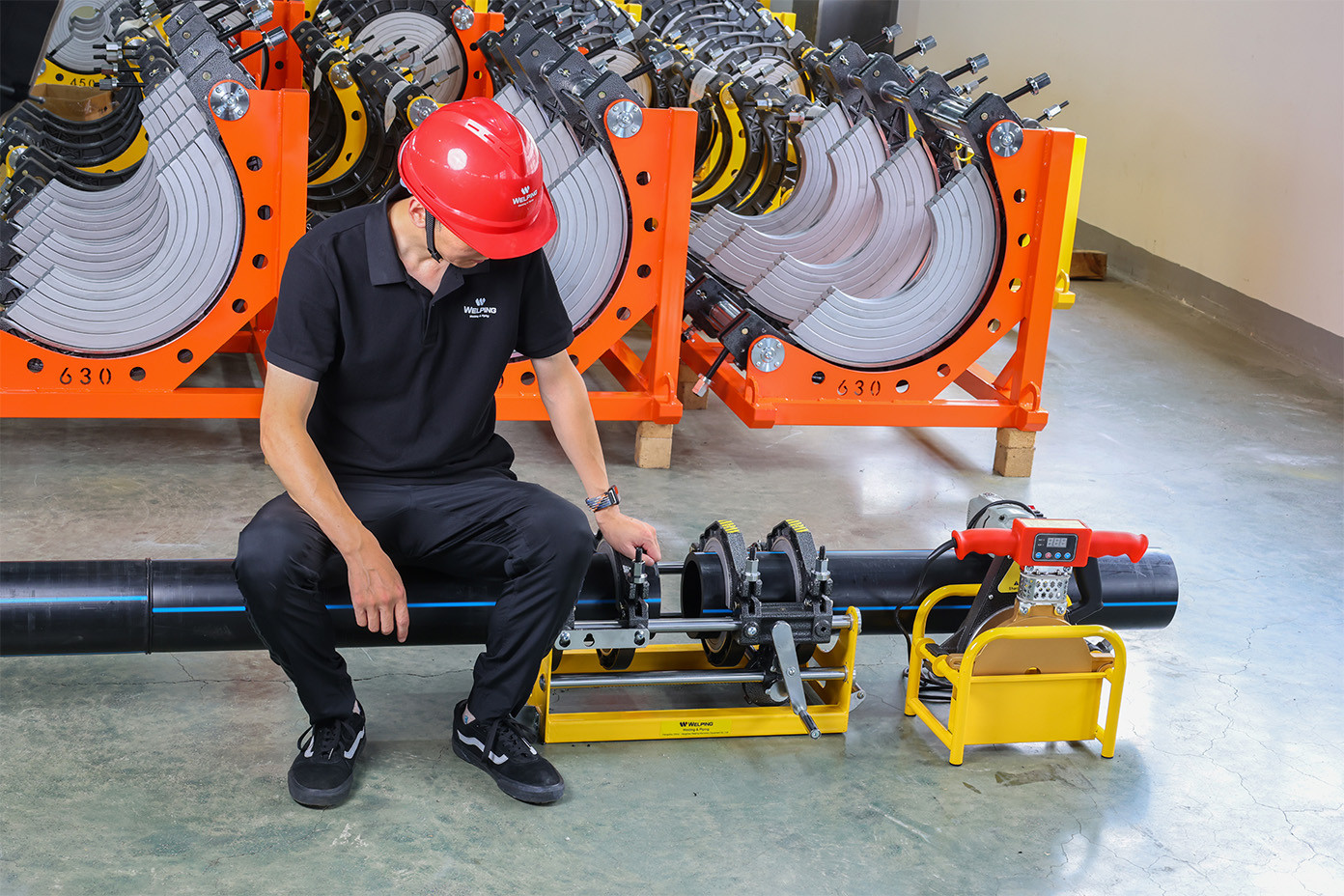

160mm manual butt fusion machine

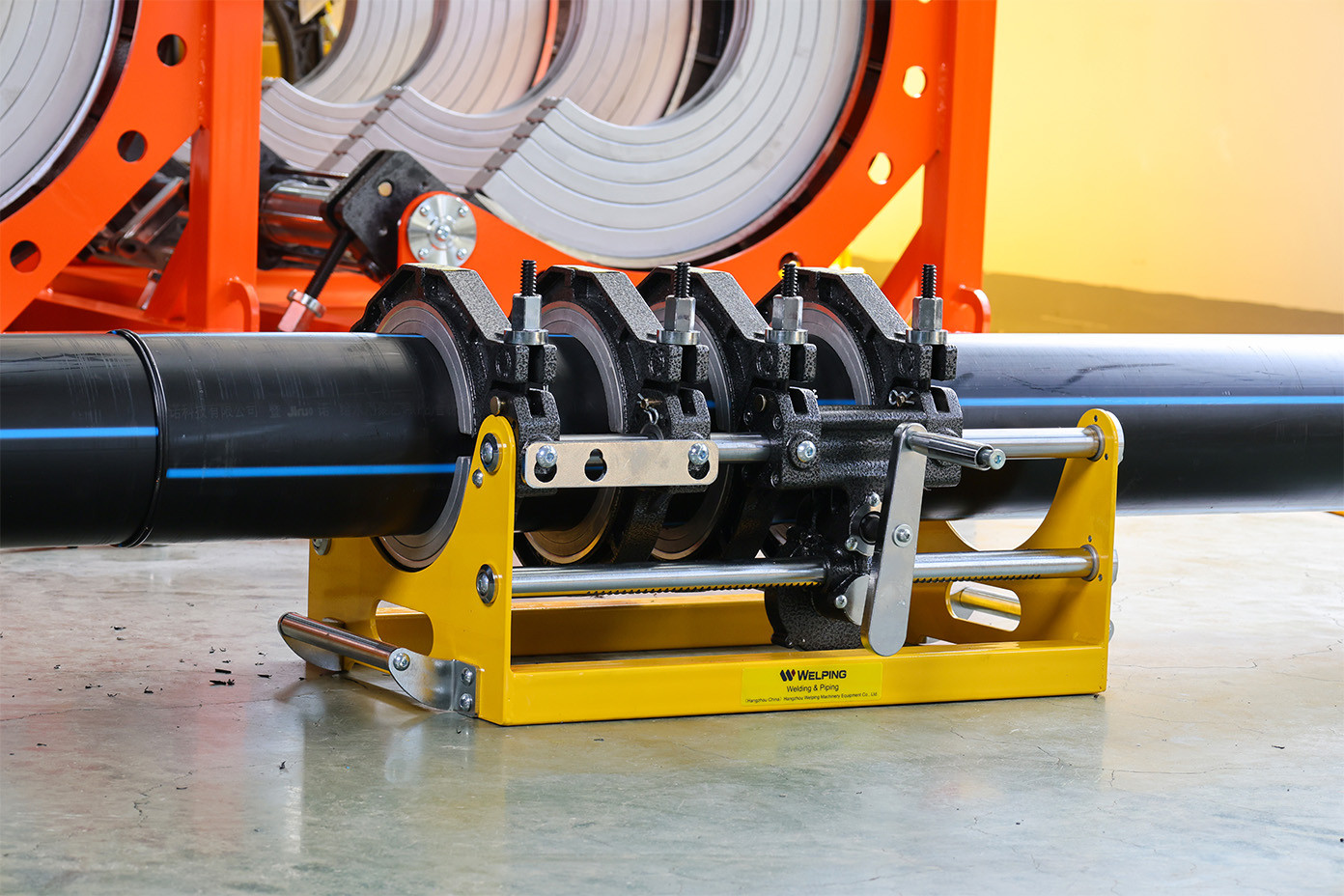

160mm butt welding machine

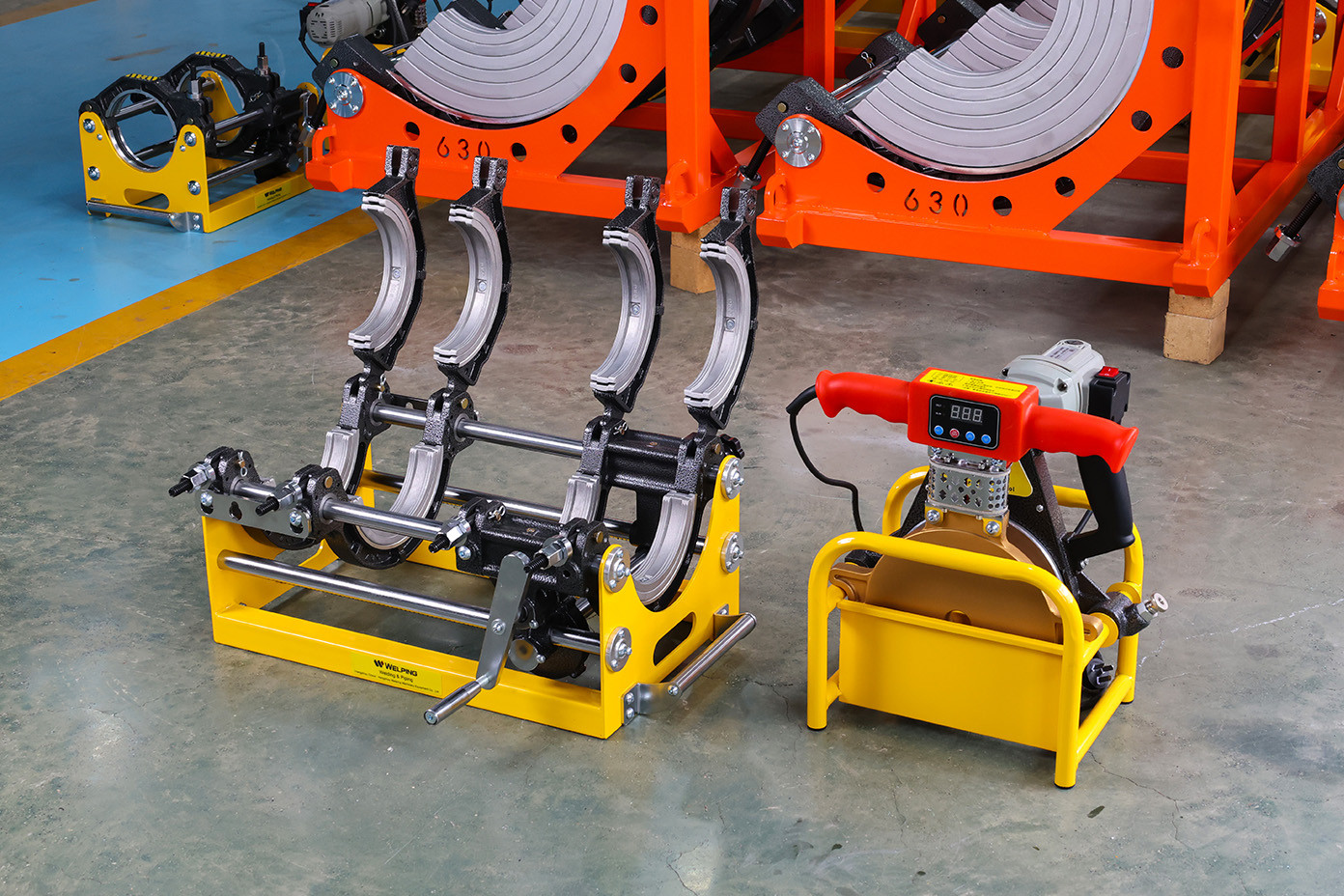

160mm pipe jointing machine

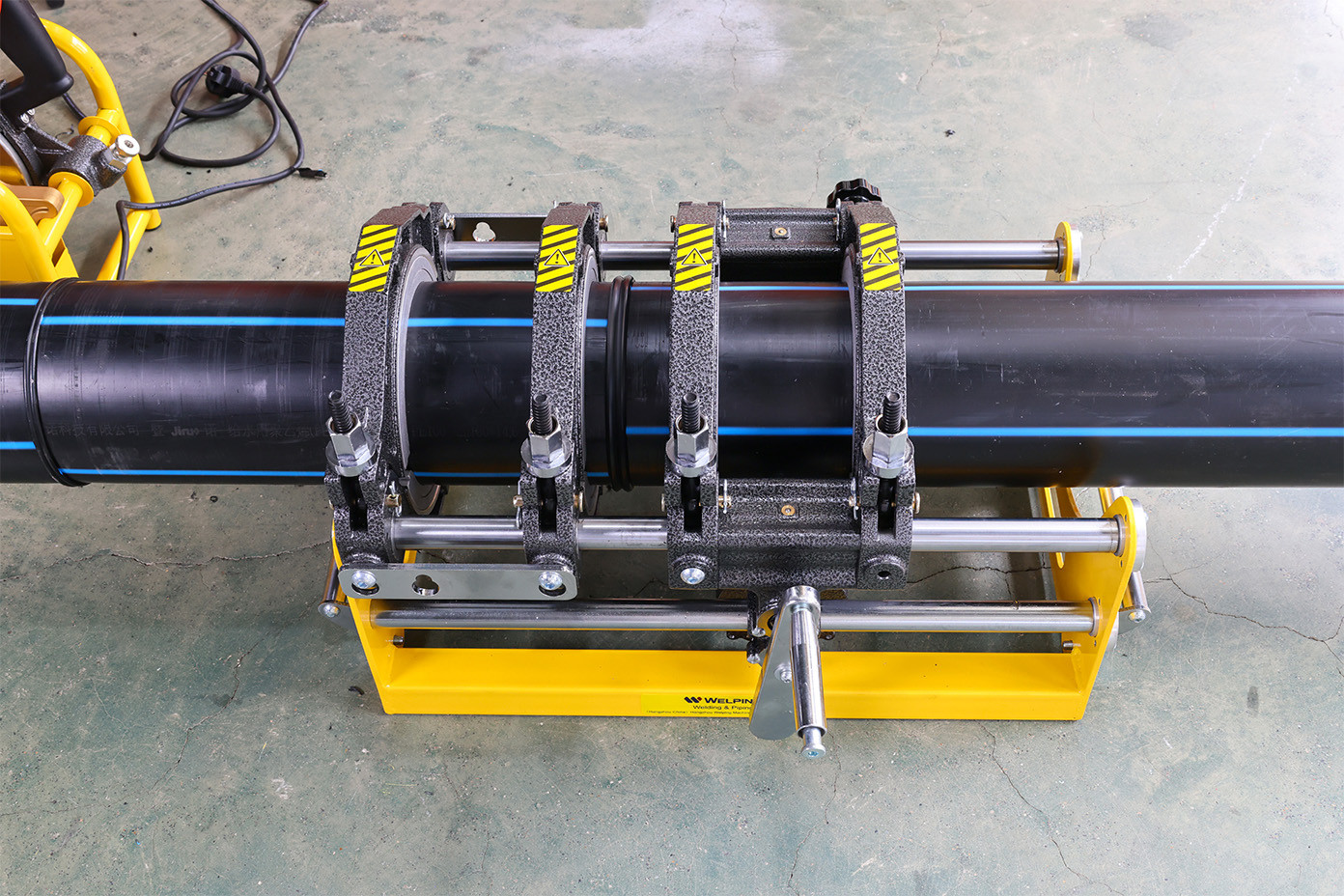

160mm HDPE pipe welding machine
 PARAMETER

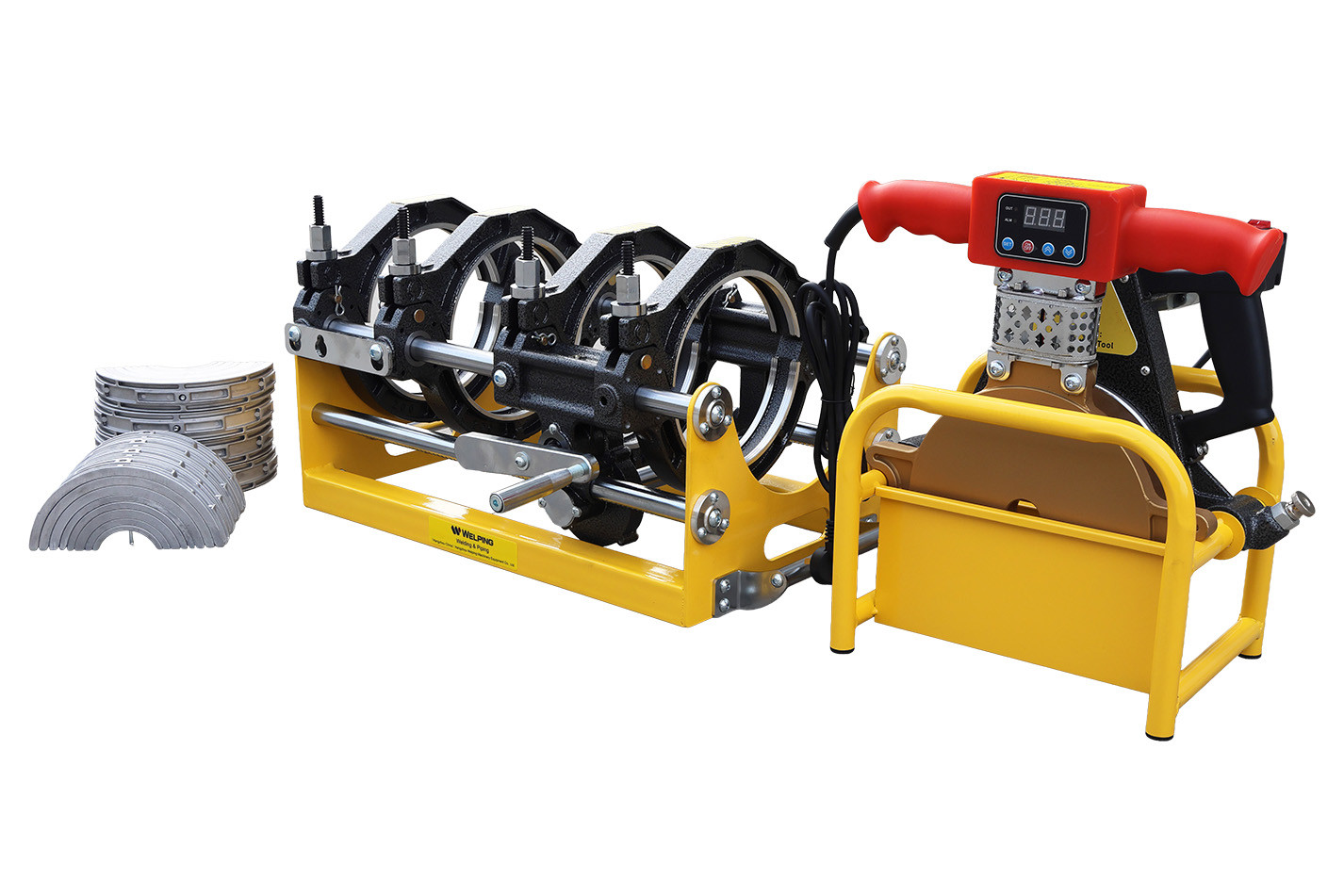

Welping 200mm butt fusion machine
Mode
WP200C
Suitable materials
 PE,PP, PB. PVDF
Range
63-75-90-110-125-140-160-180-200mm
Power supply
 110V/220V
Frequency
50HZ
Total power
2.9 KW
Heating plate
1.6 KW
Planing tool
 1.1 KW
Max.Temperature of heating plate
270ºC
Temp.Deviation in Surface
 ±5ºC
Total Weight
70kg
Net weight
62kg
Packing Size
79*54*61cm
 PRODUCT DETAILS MAP

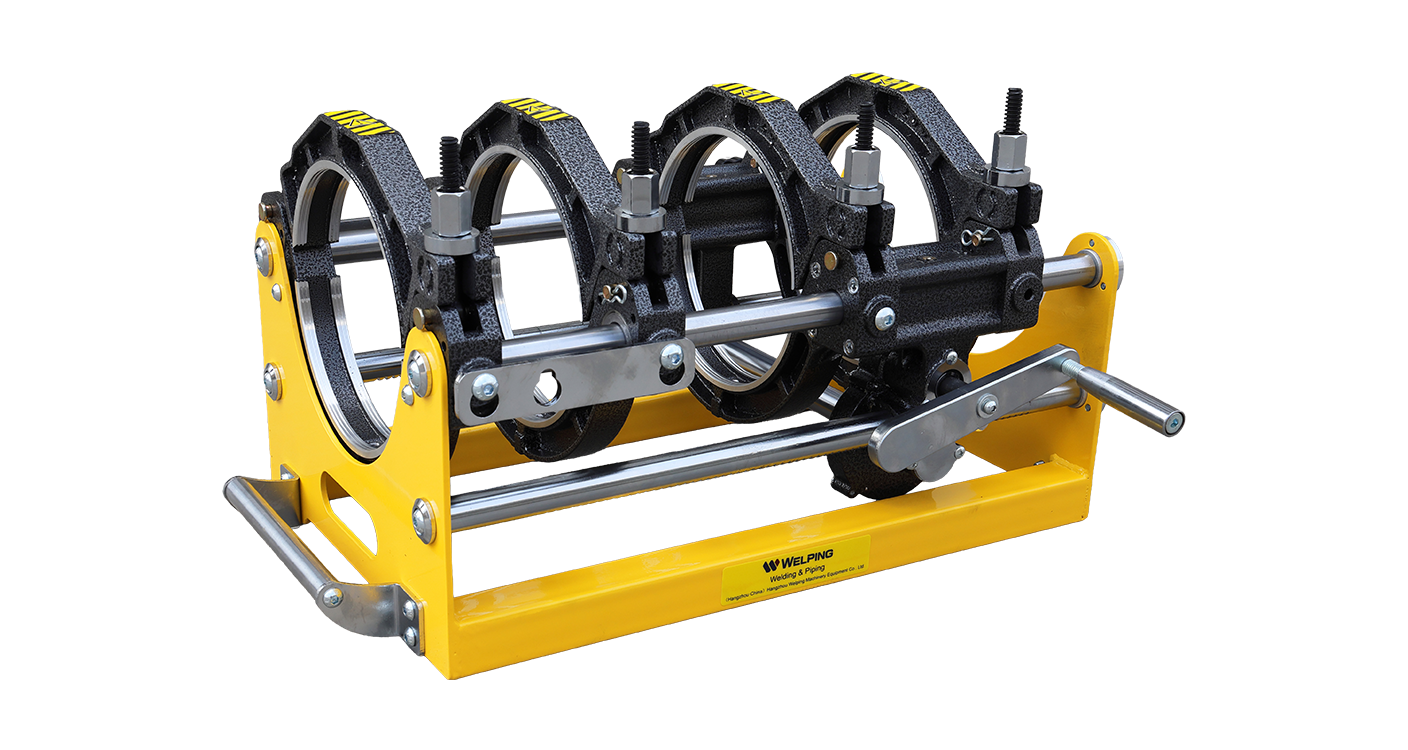

160mm butt fusion machien frame
Basic Frame
· Complete welded frame structure, steady and robust
· Hand-wheel driving, simple and convenient
· Chromated integral shaft made of1045(ASTM)/S45C(JIS)/C45(DIN) steel
· Base made of Q235 steel with spraying treatment
· Cast aluminum clamps, sandblasting &
  Spraying treatment

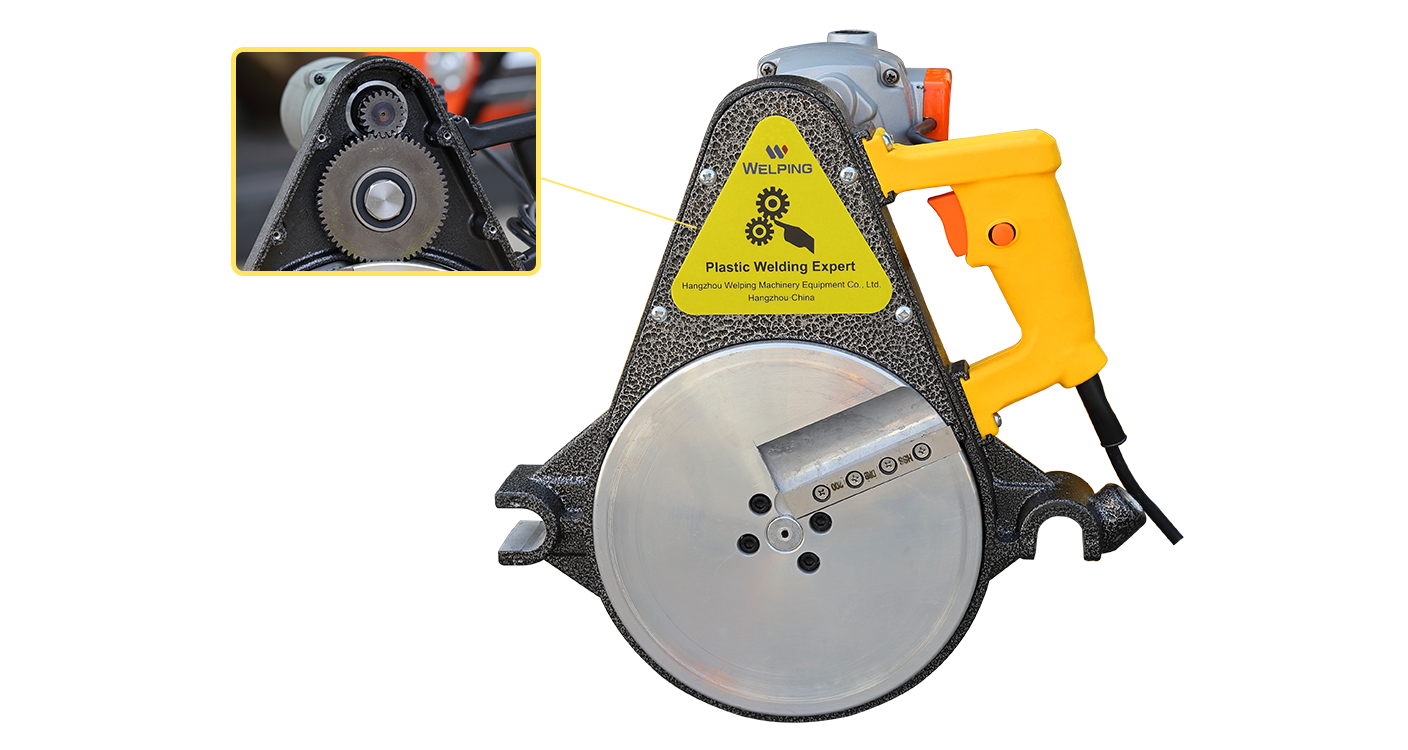

Planning tool
· HSS blade with double edge
· Casting aluminum trimmer plate, durable and anti-corrosion
· Gear transmission instead of chain
· Motor with pure copper wiring
planning tool for butt fusion machine

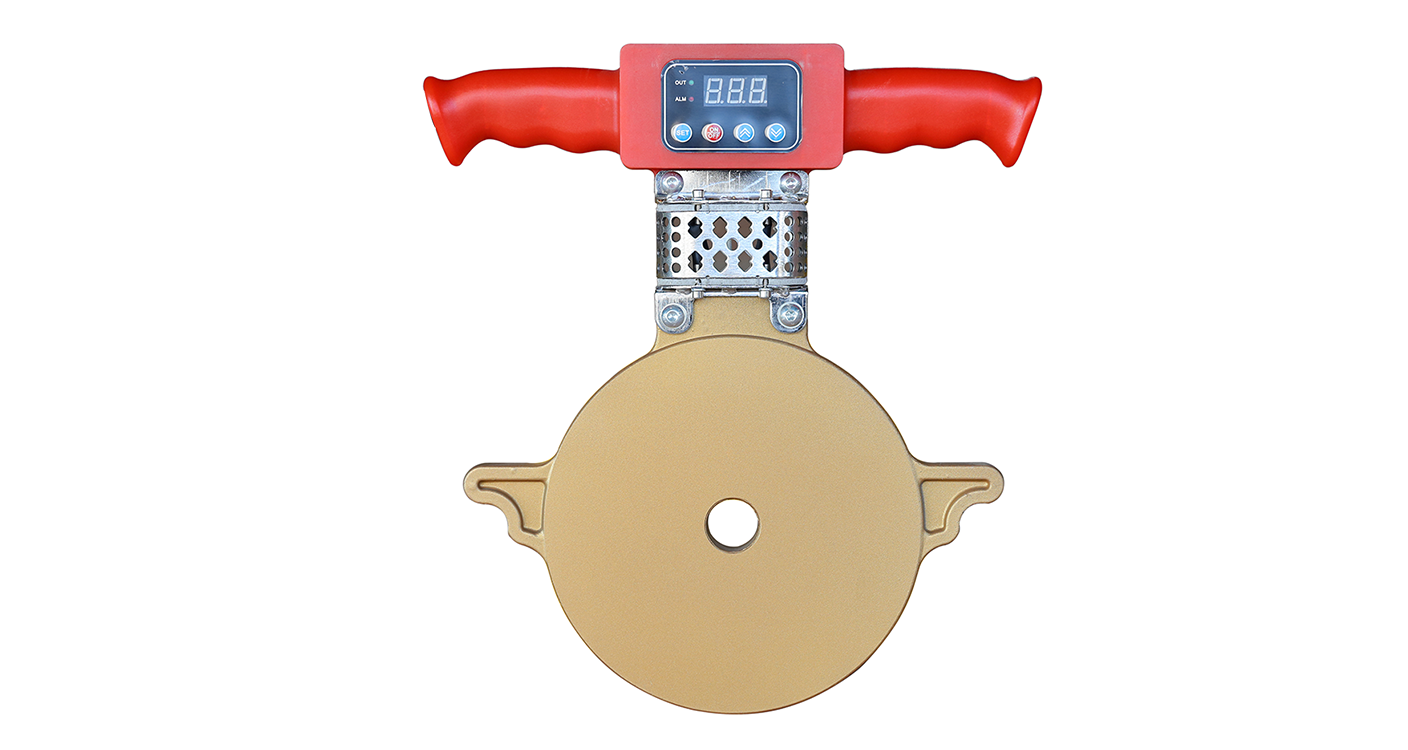

heating plate of butt fusion machine
Heating Plate
- Teflon Coating from Japan - Thermocouple sensor - Bakelite handle - Digtal display

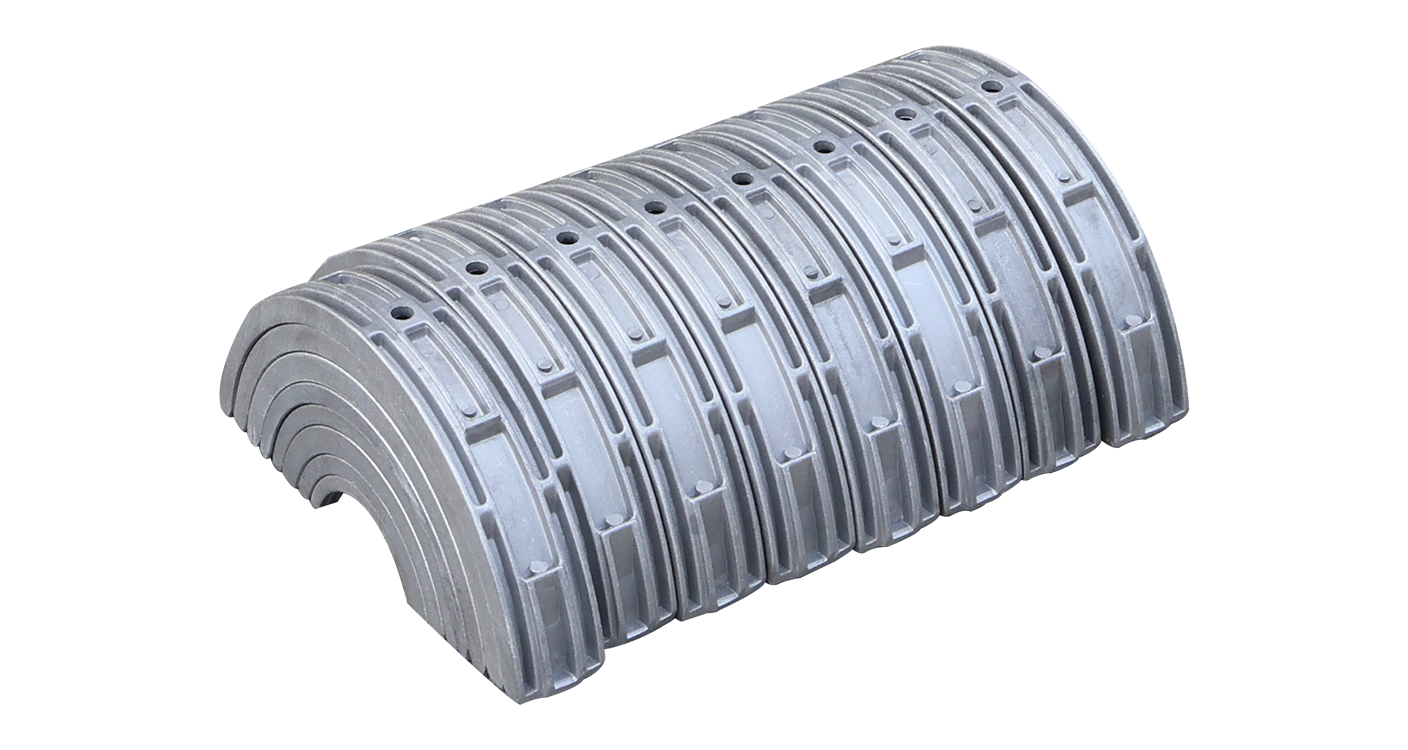

Reducers
63-75-90-110-125-140-160-180-200mm reducers
reducers of butt fusion machine
DOWNLOAD
Welping E-Catalog of Butt Fusion Machine
Breakdown Part List of Manual Butt Fusion Machine
Operational Manual of Manual Butt Fusion Machine
Warranty Certificate of Butt Fusion Machine
WHAT WE CAN DO FOR YOU?
Welping Factory for Butt Fusion Machine
OUR SERVICES
WELPING develops, manufactures, and sells devices and systems for welding thermoplastics and, in this area, focuses consciously on pipeline systems as the main field of application. And We have been in this field for more than 17 years since 2005.
We aim to bring industrial level design, performance and quality together, to provide professional solutions for a variety of mining & industrial, marine, municipal, irrigation, energy and landfill to help you build reputation.
WELPING is committed to becoming a business for all thermoplastic pipe, which includes the fusion equipment and certified technical training to assist with the installation and fabrication of any plastic pipes related project. WELPING has continually broadened the scope of supply and usage for polyethylene pipe, valve, and fitting system design into new market segments. Also, We help our customers source pipe tools to support their projects. Our success is in the quality of our products and the knowledge and service of our people.
