HDPE Stub End Holder for Butt Fusion Machines | Models 160–2250 mm
① For Short Pipes & Fittings – Securely holds stub ends, short pipes and fittings during butt fusion.
② 160–2250mm Size Range – Suitable for a wide range of butt fusion welding machines.
③ Strong Steel Construction – Precision laser-cut steel structure ensures stable and reliable clamping.
④ Customizable Design – Custom sizes and configurations are available for different applications.
② 160–2250mm Size Range – Suitable for a wide range of butt fusion welding machines.
③ Strong Steel Construction – Precision laser-cut steel structure ensures stable and reliable clamping.
④ Customizable Design – Custom sizes and configurations are available for different applications.
Detail Information
HDPE Stub End Holder
Adjustable Clamping for HDPE Stub End Butt Fusion
Product Overview

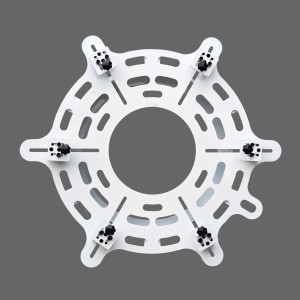

The Welping HDPE Stub End Holder secures stub ends for butt fusion welding with a compatible fusion machine. Its steel plate construction provides firm support during welding.
The clamping blocks slide along slots to accommodate different stub end sizes, while the black knobs allow the clamping tightness to be adjusted.
Multiple models and custom sizes are available. Contact us with your fusion machine model and stub end dimensions to confirm compatibility.
Product Specifications
| Product Name | HDPE Stub End Holder / Stub End Device |
Model Range | 160–2250 |
| Application | HDPE Stub End Butt Fusion Welding |
| Material | Steel |
Manufacturing Process | Laser Cutting and Welding |
Clamping Position | Adjustable Along Slots |
Clamping Tightness | Adjustable via Hand Knobs |
Customization | Custom Sizes and Machine Adaptations Available |
Key Features
Secure Clamping for Short Components
Provides stable holding for stub ends, short pipes and fittings during butt fusion.
Adjustable Clamping Positions
Multiple adjustment slots allow flexible positioning for different pipe and fitting sizes.
Strong Steel Construction
Precision laser-cut and welded steel structure provides reliable support during welding.
Wide Size Range
Available from 160 mm to 2250 mm, with custom sizes available on request.
Product Demonstration
Construction Detail
Adjustable Clamp
The clamp secures the component firmly for more stable holding during welding.
Flexible Adjustment Slot
The slot design allows flexible adjustment for different stub end sizes.
Positioning Support
Helps keep the stub end aligned and stable during butt fusion.
DOWNLOAD
160–315 mm Model Overview
160 Model
75-180 mm
200 Model
75-225 mm
250 Model
110-280 mm
315 Model
110-355 mm
（For additional models and sizes, please contact us.）
Application Showcase
The holder mounts on a compatible butt fusion machine to secure the HDPE stub end during welding.
Compatibility & Customization
To help us recommend the right holder, please provide your fusion machine brand and model, stub end dimensions, and photos of the machine’s mounting area.
Contact us for model selection and customization.
