PVDF pipe welding machine 1000/1200mm

PVDF pipe welding machine 1000/1200mm

PVDF pipe welding machine 1000/1200mm
PVDF pipe welding machine 1000/1200mmPVDF pipe welding machine 1000/1200mmPVDF pipe welding machine 1000/1200mmPVDF pipe welding machine 1000/1200mmPVDF pipe welding machine 1000/1200mm
It is a versatile machine designed for butt fusion of 1000mm to 1200mm pipe and fittings, with durability and reliability.
Lead Time
7-15 days once order confirmed
Terms of Payment
T/T, Western Union, Paypal,X Transfer
FOB Port
Shanghai, Ningbo
Certificate
CE
MOQ
1 Set
Business type
Plastic pipe welding machines manufacturer
Detail Information
1000/1200mm Hydraulic Butt Fusion Welding Machine for PE Pipes
Welping WP160A hydraulic butt fusion machine
DETAILS
WP1200A PVDF pipe welding machine pipe has been used extensively in the piping applications of municipal, industrial, marine, mining, landfill, duct and agricultural industries. Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding machine can provide reliable joints, even as strong as the complete pipe.

The 1000-1200mm butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.

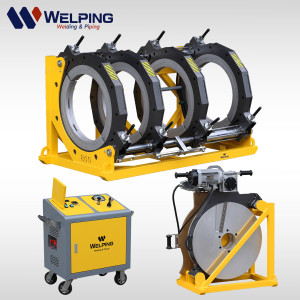

The Butt Fusion Machine is designed to butt fuse pipe sizes 1000mm to1200mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.

FEATURES

※ Robust structure of carriage part with streamline outlook ※ Swivel handle with gear transmission of extremely smooth operating structure ※ Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin
STANDARD ACCESSORIES
Main Frame
1 Set
Heating Plate
1 Set
Trimmer
1 Set
Reducers
1 Set
Tool Box
1 Set
200mm hydraulic butt fusion machine
200mm butt welding machine
200mm pipe jointing fusion machine
200mm HDPE pipe welding machine
 PARAMETER
Welping WP160C 160mm butt fusion machine
Mode
WP1200A
Suitable materials
 PE,PP, PB. PVDF
Range
1000-1100-1200mm
Power supply
380V
Frequency
50HZ
Pressure adjusting range
0-16Mpa
Total power
30.5  KW
Heating plate
22.5 KW
Planing tool
4 KW
Hydraulic Unit
4 KW
Max Temperature of Heating plate
270℃
Temp.Deviation in Surface
 ±7ºC
Total Weight
2997kg
Net weight
2630kg
Packing Volume
11.7CBM
 PRODUCT DETAILS MAP
200mm butt fusion machine frame
Basic Frame
· 4 Jaw Clamps to ensure precise alignment
· Italy DNP quick coupler · Chromated hydraulic cylinder made of 1045(ASTM)/S45)(JIS)/C45(DIN) steel
· Chromated integral shaft made of 1045(ASTM)/S45C(JIS)/C45(DIN) steel · Steel plate cutting clamp with sandblasting &spraying treatment · Base made of Q235 steel with spraying treatment
Hydraulic Station
· Standard equipping pressure more stable
· Fully enclosure structure,anti-dust,and anti-sand
· Electricity leakage protection switch
· 380V asynchronous motor

hydraulic 200mm butt fusion machine
planning tool for butt fusion machine
Planning tool
· HSS blade with double edge
· Casting aluminum trimmer plate, durable and anti-corrosion
· Casting aluminum frame of motor with good heat dissipation performance
· Motor with pure copper wiring
Heating Plate
· Bakelite handle with high insulating property and thermal insulation · Thermocouple temperature sensor · Heating element · Teflon Coating imported from Daikin in Japan · Aviation plug
heating plate of butt fusion machine
DOWNLOAD
Welping E-Catalog of Butt Fusion Machine
Breakdown Part List of Hydraulic Butt Fusion Machine
Operational Manual of Hydraulic Butt Fusion Machine
Warranty Certificate of Butt Fusion Machine
