Hydraulic HDPE Pipe Fusion Welding Machine1200/1600mm

Hydraulic HDPE Pipe Fusion Welding Machine1200/1600mm

Hydraulic HDPE Pipe Fusion Welding Machine1200/1600mm
Hydraulic HDPE Pipe Fusion Welding Machine1200/1600mmHydraulic HDPE Pipe Fusion Welding Machine1200/1600mmHydraulic HDPE Pipe Fusion Welding Machine1200/1600mmHydraulic HDPE Pipe Fusion Welding Machine1200/1600mmHydraulic HDPE Pipe Fusion Welding Machine1200/1600mm

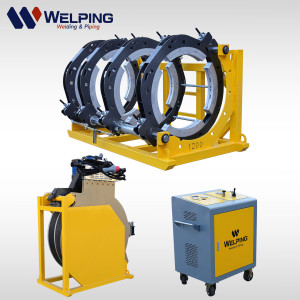

It is a versatile machine designed for butt fusion of 1200mm to 1600mm pipe and fittings, with durability and reliability.
Lead Time
7-15 days once order confirmed
Terms of Payment
T/T, Western Union, Paypal,X Transfer
FOB Port
Shanghai, Ningbo
Certificate
CE
MOQ
1 Set
Business type
Plastic pipe welding machines manufacturer
Detail Information

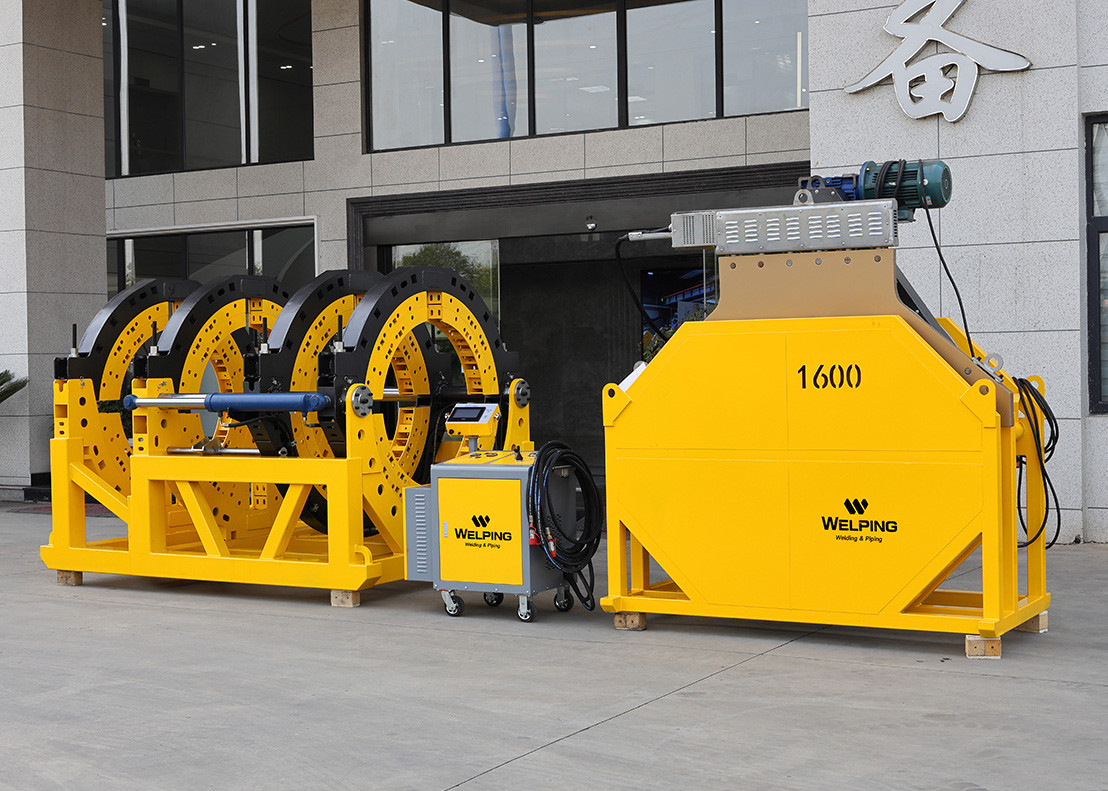

1200/1600mm Hydraulic Butt Fusion Welding Machine for PE Pipes
Welping WP160A hydraulic butt fusion machine
DETAILS
HDPE pipe has been used extensively in the piping applications of municipal, industrial, marine, mining, landfill, duct and agricultural industries. Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding machine can provide reliable joints, even as strong as the complete pipe.

The 1600mm butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.

The Butt Fusion Machine is designed to butt fuse pipe sizes 1200mm to 1600mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.

FEATURES

※ Robust structure of carriage part with streamline outlook ※ Swivel handle with gear transmission of extremely smooth operating structure ※ Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin
STANDARD ACCESSORIES
Main Frame
1 Set
Heating Plate
1 Set
Trimmer
1 Set
Reducers
1 Set
Tool Box
1 Set

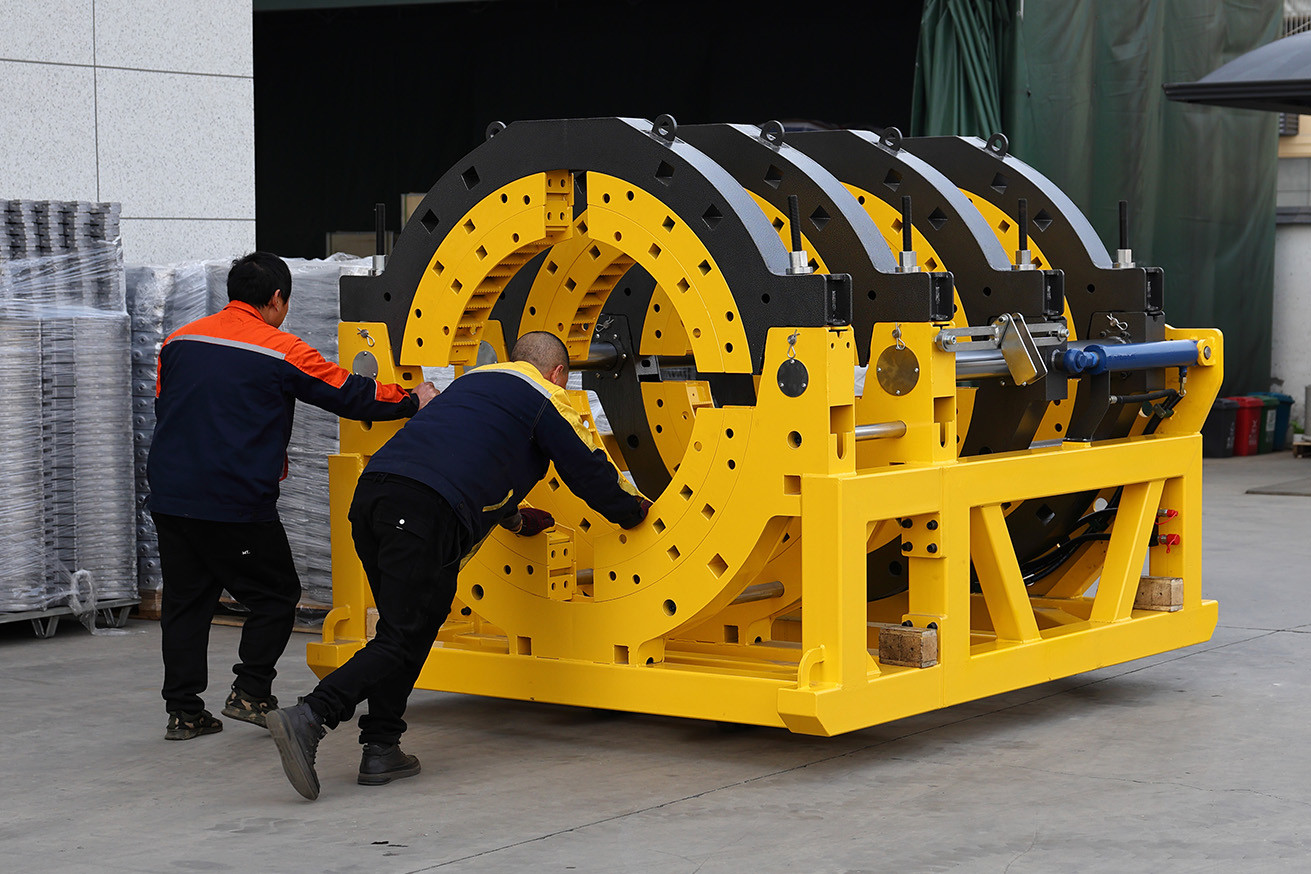

200mm hydraulic butt fusion machine

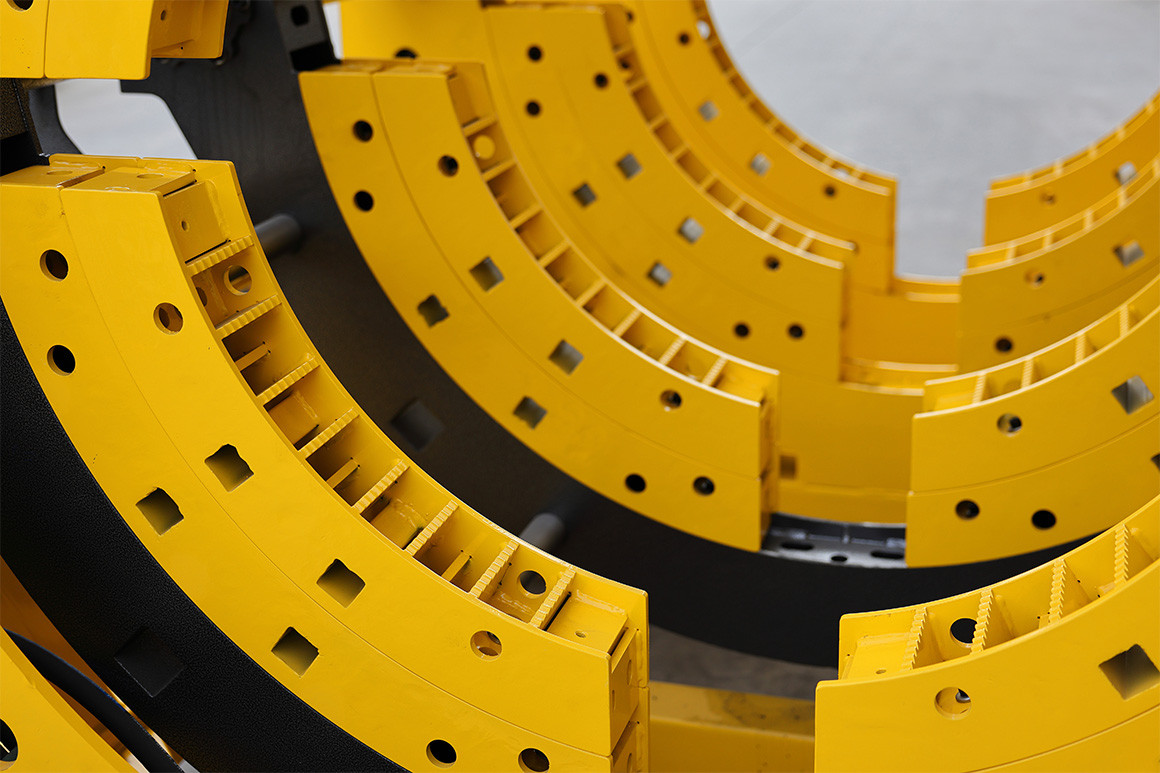

200mm butt welding machine

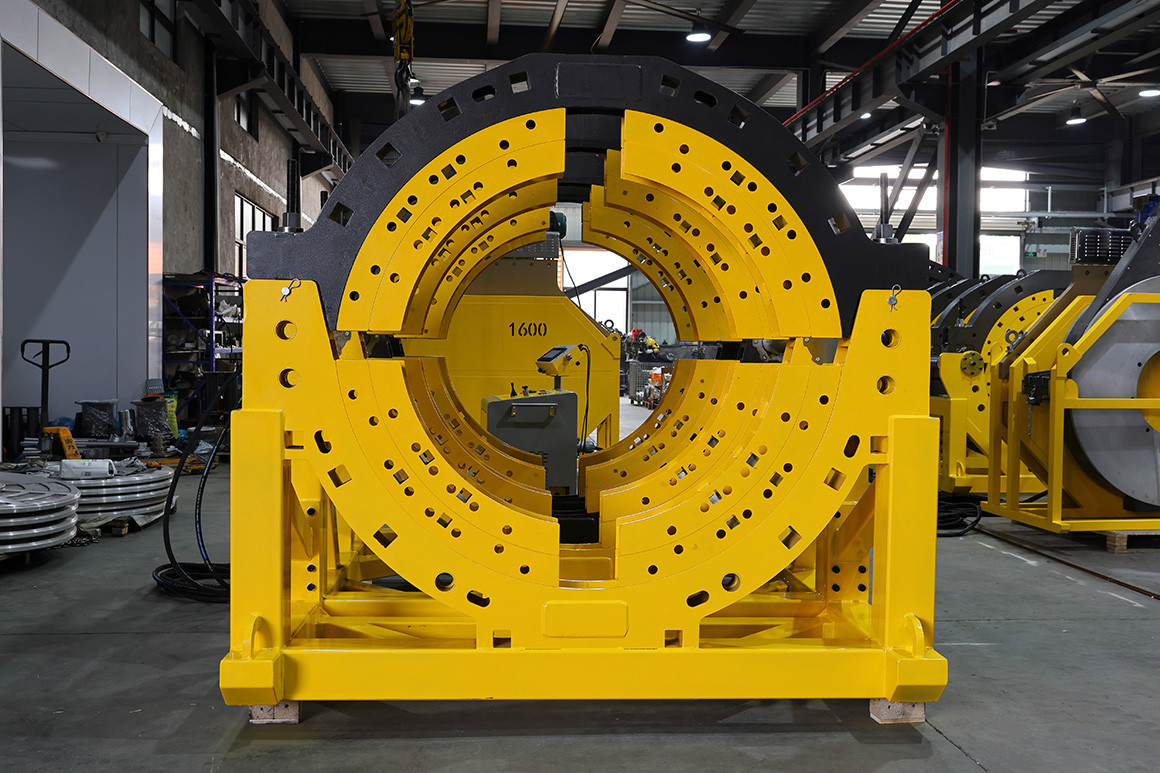

200mm pipe jointing fusion machine

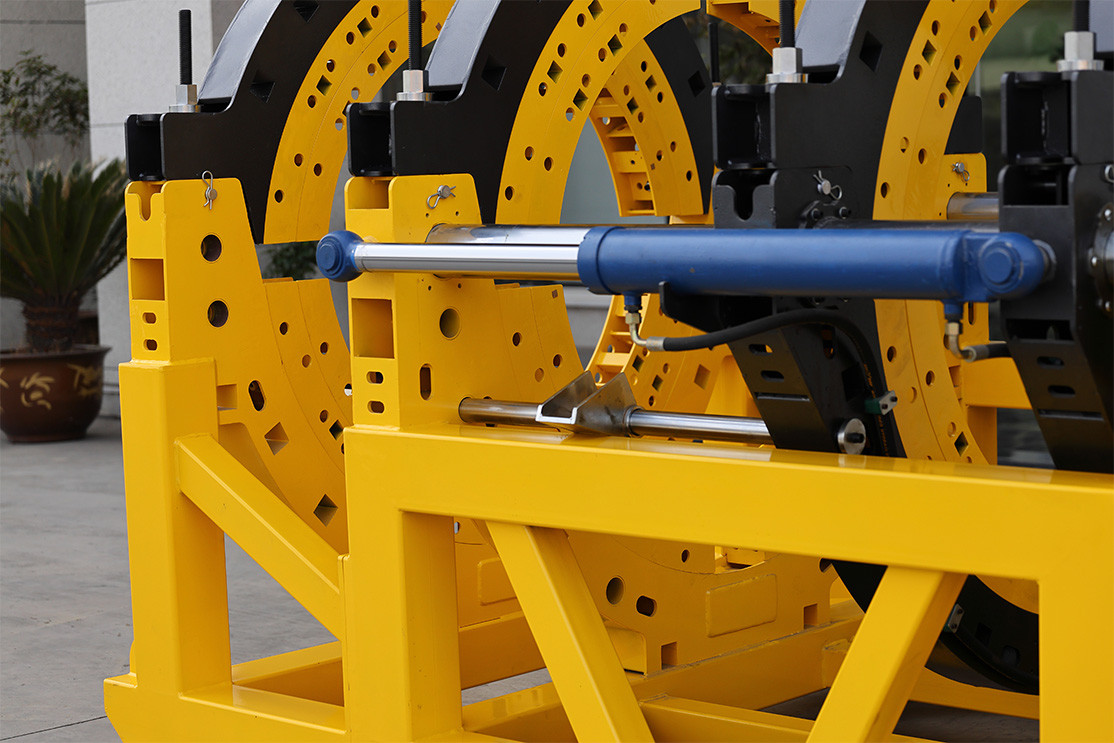

200mm HDPE pipe welding machine
 PARAMETER
Welping WP160C 160mm butt fusion machine
Mode
WP1600A
Suitable materials
 PE,PP, PB. PVDF
Range
1200-1400-1600mm
Power supply
380V
Frequency
50HZ
Pressure adjusting range
0-25Mpa
Total power
61.5  KW
Heating plate
50 KW
Planing tool
7.5 KW
Hydraulic Unit
4 KW
Max Temperature of Heating plate
270℃
Temp.Deviation in Surface
 ±5ºC
Total Weight
5200kg
Packing Volume
21CBM
 PRODUCT DETAILS MAP

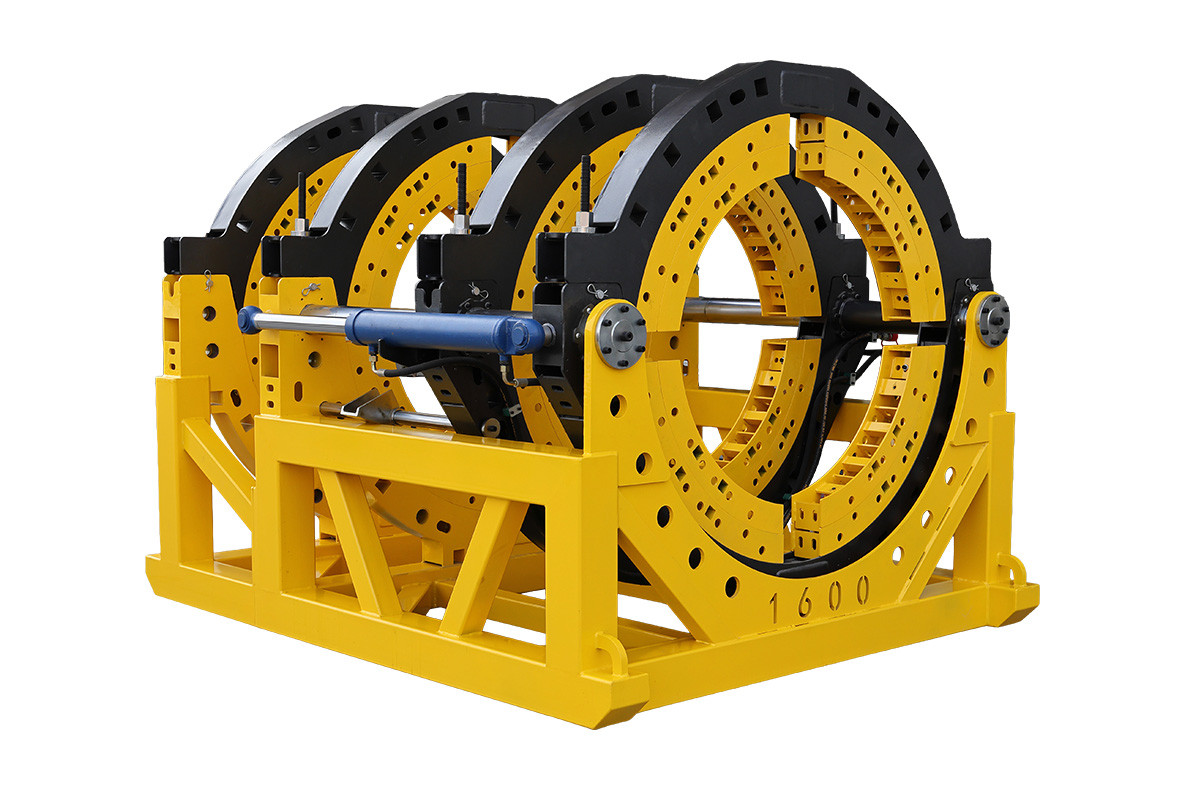

200mm butt fusion machine frame
Basic Frame
· Complete welded steel structure, strong, free of distortion · Sturdy steel clamping parts with complex reinforced structure · Balanced upper and lower clamping sets,for easy pipe tightening operation · Separate actuation hydraulic cylinder design, for easy installation & maintenance

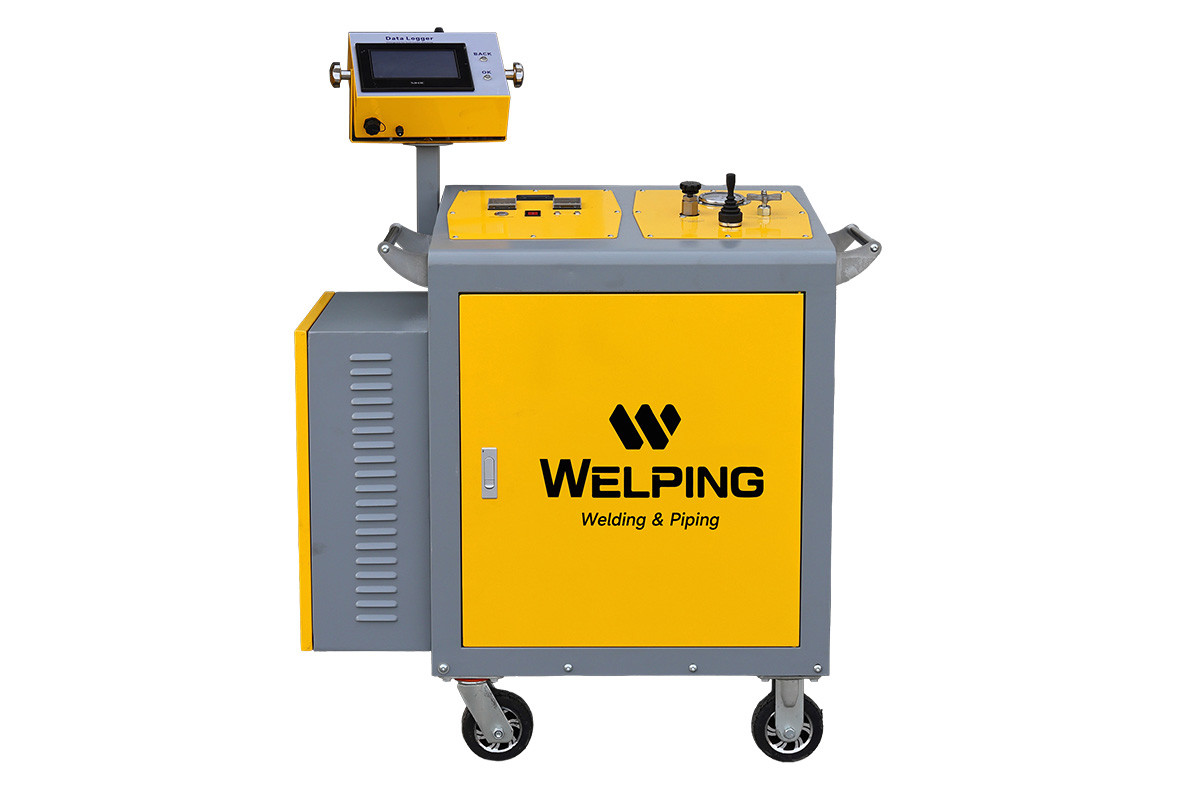

Hydraulic Station
· Integrated hydraulic and electrical control,for easy operation access · All-in-one control panel: hydraulic actuation, pressure setting, timing, electric info display, temperature setting · Enclosure design, shielding splash and dirt and wheels, for easy transportation

hydraulic 200mm butt fusion machine

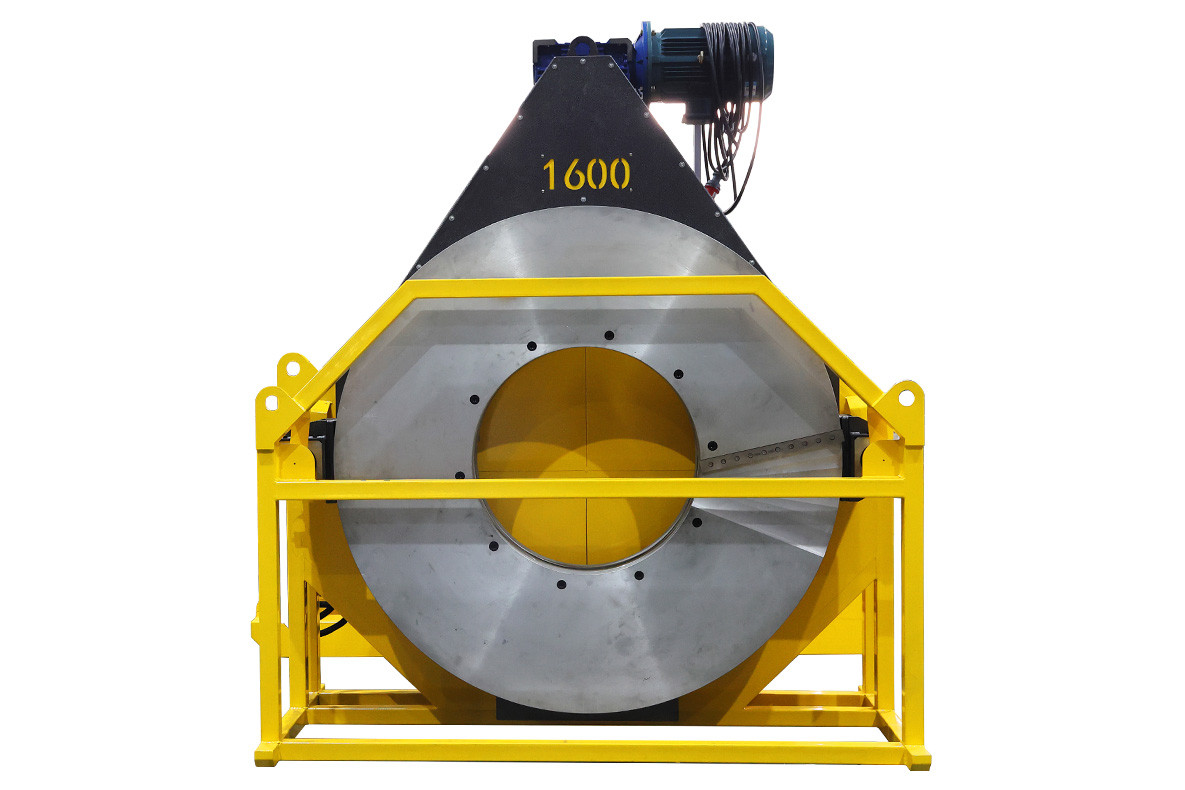

planning tool for butt fusion machine
Planning tool
· Double chains transmission system with self-centering and self-tightening function,ensures no loosing and stucking in operation · Reinforced trimming plate, anti-crack
· Powerful copper-wiring motor · Durable, double edges HSS blade · Minimum 1000mm pipe trimming available
Heating Plate
· Cast aluminum body with Anti-stick PEFT coating from Daikin · Qualified built-in heating elements, swift and steady temperature rising · Standard equipped with aviation plug and heavy duty cable, ensures operation safety
heating plate of butt fusion machine
DOWNLOAD
Welping E-Catalog of Butt Fusion Machine
Breakdown Part List of Hydraulic Butt Fusion Machine
Operational Manual of Hydraulic Butt Fusion Machine
Warranty Certificate of Butt Fusion Machine
