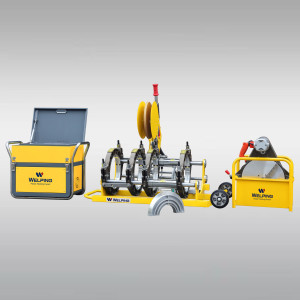

Automatic Butt Fusion Welding Machine with Data Logger 200mm

Automatic Butt Fusion Welding Machine with Data Logger 200mm

Automatic Butt Fusion Welding Machine with Data Logger 200mm
Automatic Butt Fusion Welding Machine with Data Logger 200mmAutomatic Butt Fusion Welding Machine with Data Logger 200mmAutomatic Butt Fusion Welding Machine with Data Logger 200mmAutomatic Butt Fusion Welding Machine with Data Logger 200mmAutomatic Butt Fusion Welding Machine with Data Logger 200mm
It is a versatile machine designed for butt fusion of 90mm to 250mm pipe and fittings, with durability and reliability.
Fusion Capacity
200mm Max.
Lead Time
7-15 days once order confirmed
Package
Plywood case
Detail Information
INTRODUCTION
Welping WP160A hydraulic butt fusion machine
DETAILS
WELPING full-auto butt fusion welding machines , are designed to carry out butt fusion operations correctly and efficiently, for plastic pipes, material of PE, PP, PB, PVDF etc.

Suitable for using in applications of municipal drainage, natural gas, sewage, chemical, agricultural irrigation and so on.

Precision die casting aluminum clamps, steel base with cylinder & auto-jump device, provides stable performance Integrated digital control system with LCD display, welding parameters auto setting

Heating plate with high quality PTFE coating, enables swift temperature control.

FEATURES

·Due to the fully enclosed design, the hydraulic station could prevent the operators from being injured.
·A 7" inch, 16-bit true color touch screen has been installed, and buttons are also availabe.
·There are three operational lanuages:  English, Russian and Chinese.
·Each operation step is reminded by a flash which can help operators quite understand it.
·All connections sockets are located at the back of hydraulic station, including sockets for planing tool and heating plate. No additional power distributor is needed.
·All welding reports could be saved immediately to internal memory after welding accomplished, or print the report. Meanwhile, it is available for downloading through the USB interface.
·Power supply voltage, frequency, pressure and heating plate temperature are always detected by PLC control unit.
STANDARD ACCESSORIES
Main Frame
1 Set
Heating Plate
1 Set
Trimmer
1 Set
Reducers
1 Set
Tool Box
1 Set
315mm butt fusion machine
315mm butt welding machine
315mm pipe jointing fusion machine
315mm HDPE pipe welding machine
 PARAMETER
315mm butt fusion machine
Mode
WP200Q
Suitable materials
 PE,PP, PB. PVDF
Range
63-90-110-160-200mm
Power supply
 110V/220V
Frequency
50HZ
Total power
3.65KW
Heating plate
1.8KW
Planing tool
1.1KW
Hydraulic Unit
0.75KW
Max Temperature of Heating plate
270℃
Pressure adjusting range
0-6.3Mpa,Auto
Temp.Deviation in Surface
 ±5ºC
Total Weight
201kg
Net weight
181kg
Packing Size 1
124*70*66cm
Packing Size  2
64*47*55cm
 PRODUCT DETAILS MAP
315 Auto butt fusion machine
Basic Frame
· 4 Jaw Clamps to ensure precise alignment
· Italy DNP quick coupler · Chromated hydraulic cylinder made of 1045(ASTM)/S45)(JIS)/C45(DIN) steel
· Chromated integral shaft made of 1045(ASTM)/S45C(JIS)/C45(DIN) steel · Steel plate cutting clamp with sandblasting &spraying treatment · Base made of Q235 steel with spraying treatment
Planing Tool
· HSS blade with double edge · Casting aluminum trimmer plate, durable and anti-corrosion · Casting aluminum frame of motor with good heat dissipation performance · Gear transmission · Motor with pure copper wiring
315mm CNC Pipe Fusion Machine
315mm butt fusion machine
Hydraulic Unit
· Standard equipping pressure more stable · Fully enclosure structure shielding splash and dirt · Electricity leakage protection switch · 380V asynchronous motor · Data logger(optional) · Integrated digital control system with LCD display, welding parameters auto setting
Reducers
63-90-110-160-200mm reducers
reducers of butt fusion machine
DOWNLOAD
Welping E-Catalog of Butt Fusion Machine
Operational Manual of Hydraulic Butt Fusion Machine
Warranty Certificate of Butt Fusion Machine
WHAT WE CAN DO FOR YOU?
Welping Factory for Butt Fusion Machine
OUR SERVICES
WELPING develops, manufactures, and sells devices and systems for welding thermoplastics and, in this area, focuses consciously on pipeline systems as the main field of application. And We have been in this field for more than 17 years since 2005.

We aim to bring industrial level design, performance and quality together, to provide professional solutions for a variety of mining & industrial, marine, municipal, irrigation, energy and landfill to help you build reputation.

WELPING is committed to becoming a business for all thermoplastic pipe, which includes the fusion equipment and certified technical training to assist with the installation and fabrication of any plastic pipes related project. WELPING has continually broadened the scope of supply and usage for polyethylene pipe, valve, and fitting system design into new market segments. Also, We help our customers source pipe tools to support their projects. Our success is in the quality of our products and the knowledge and service of our people.
