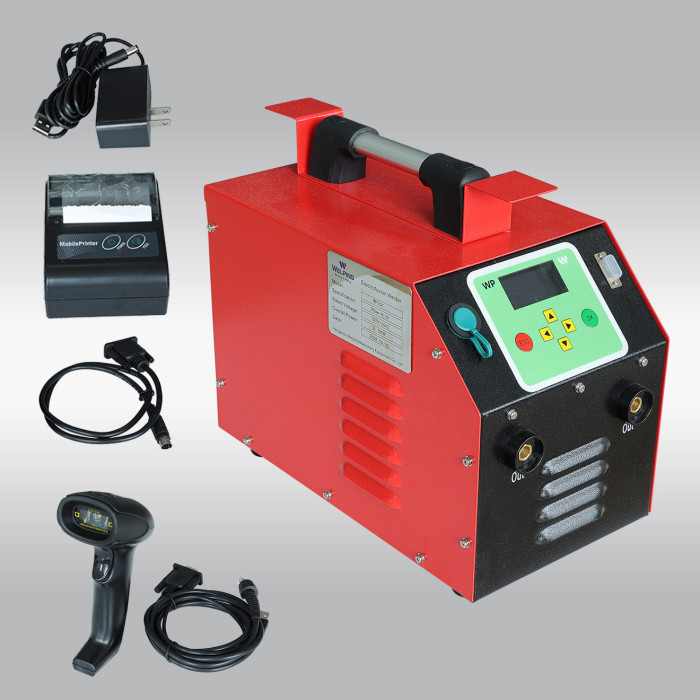

Light Weight 315/355/450/630/1000mm Electrofusion Machines for HDPE, PP, PP-R Fittings or Couplings,IGBT type
Light Weight 315/355/450/630/1000mm Electrofusion Machines for HDPE, PP, PP-R Fittings or Couplings,IGBT type
Electrofusion machine suitables for welding pipe/fittings for the transport of gas, water and welding fire sprinkler system
- Color
- Orange
- Welding Capacity
- 315/355/450/630/1000/1200mm
- Package
- 1set/CTN
Detail Information
INTRODUCTION

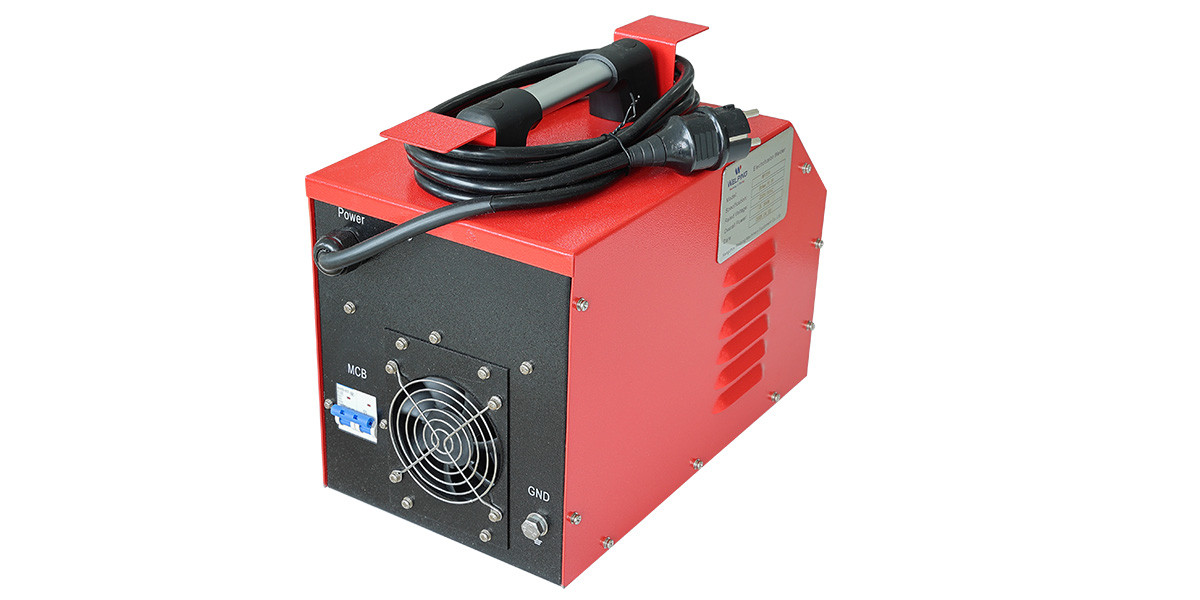

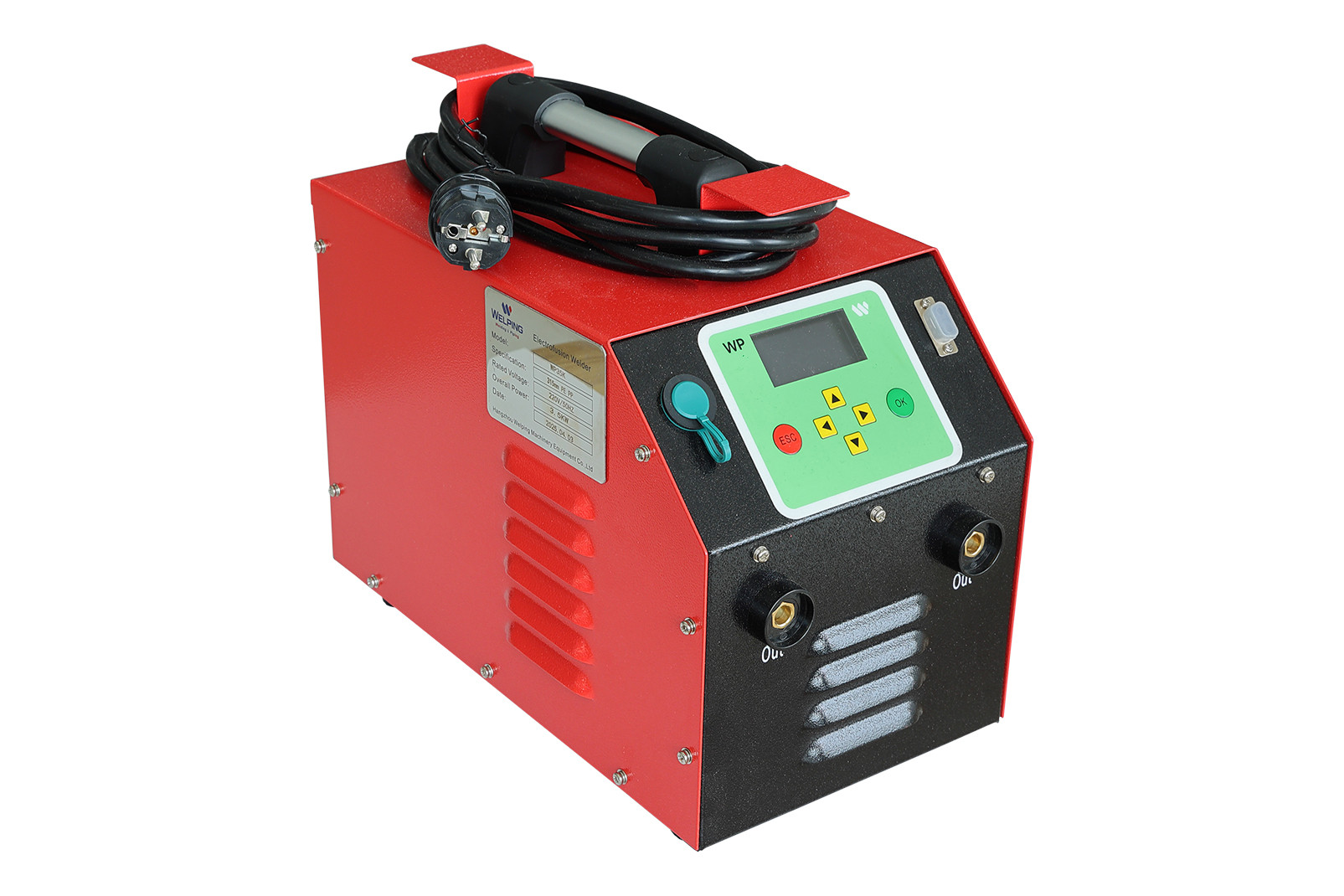

Electrofusion Machine
* The Electrofusion Machine is a reliable, easy-to-use, rugged tool designed to withstand conditions found at typical construction sites throughout the world.
* Splash proof and highly shock resistant.
* Can fuse all manufacturers’ fittings requiring outputs that are within the voltage and current values listed below.
* Welding modes of operation: Barcode Scanner
* Has an intuitive user interface that is easy to learn.
* Built in Data-logger with internal memory for data storage.
* Fusion data can be downloaded to your smartphone to document installation conditions and fusion cycle status
PARAMETER
|
Model
|
WP35K
|
WP40K
|
WP45K
|
WP60K | WP100K | WP1200K |
|
Suitable Materials
|
PE,PP
|
|||||
|
Welding Model
|
Automatic & Manual
|
|||||
|
Welding Range
|
315mm
|
355mm
|
450mm
|
630mm | 1000mm | 1200mm |
Power Supply | 220V | 380V | ||||
Power | 3.5KW | 4.5KW | 8.0KW | 12KW | 15KW | 16KW |
Ambient Temperature | -15-45℃ | |||||
Output Voltage | 0-75V adjustable | 0-85V | 0-130V | 0-170V | 0-210V | 0~255V |
Output Current | 0-55A adjustable | 0-80A Adjustable | ||||
Control Mode | Constant voltage/Constant current | |||||
Data Record | 500 | |||||
Output Accuracy | ±1.5% | |||||
Duty Rate | 60% | |||||
Data Interface | Optional: USB,Scanner,Printer | |||||

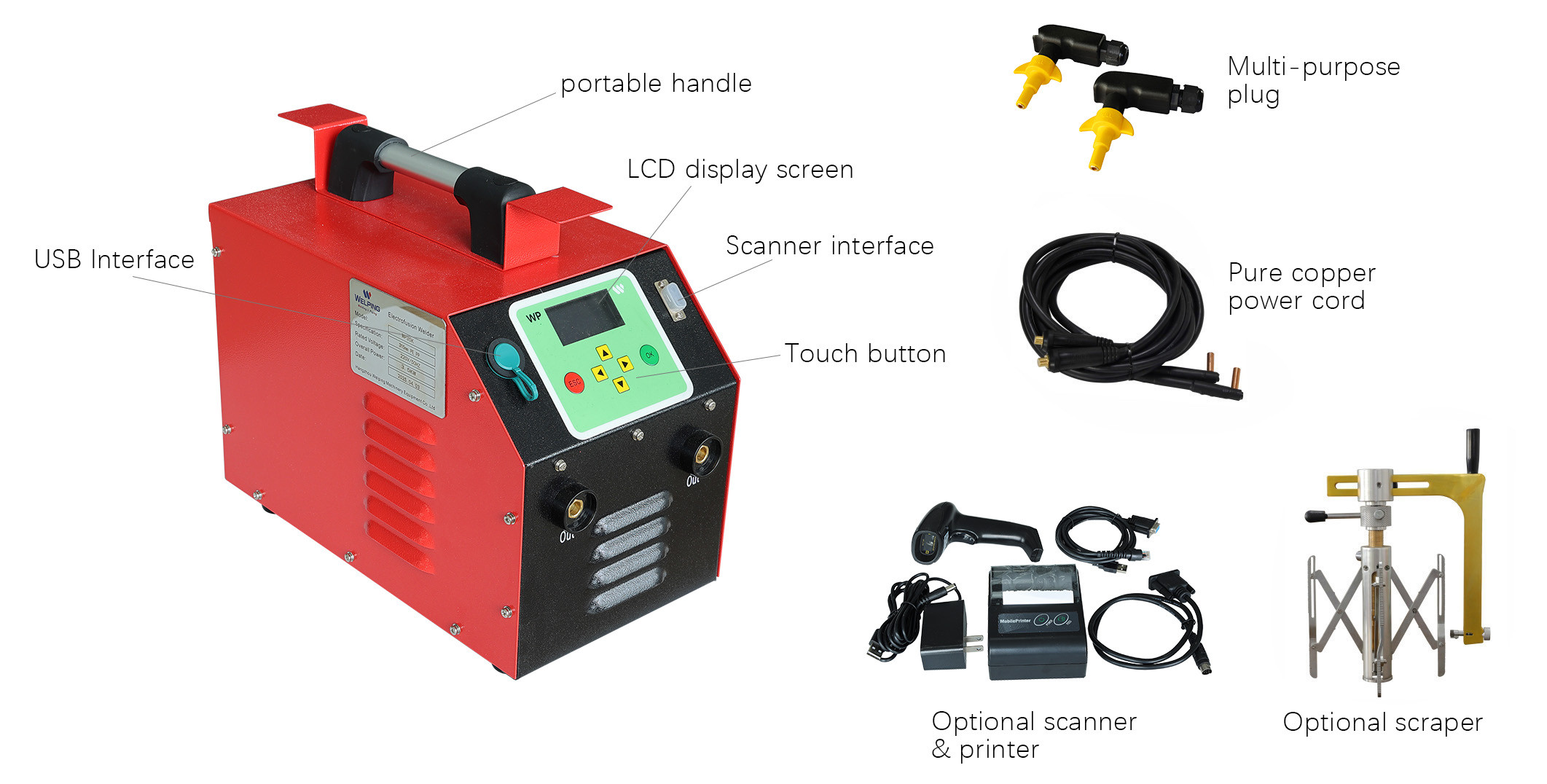

PRODUCT DETAILS MAP

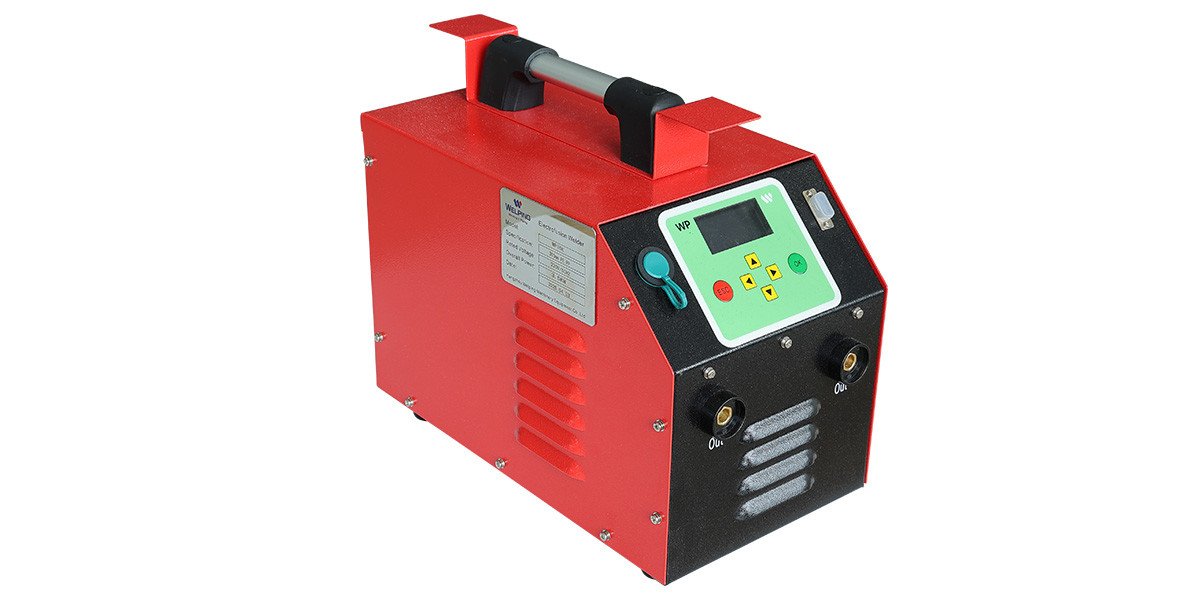

Panel
· Clear HD LCD screen
· English OS
· Touch button - Easy operate

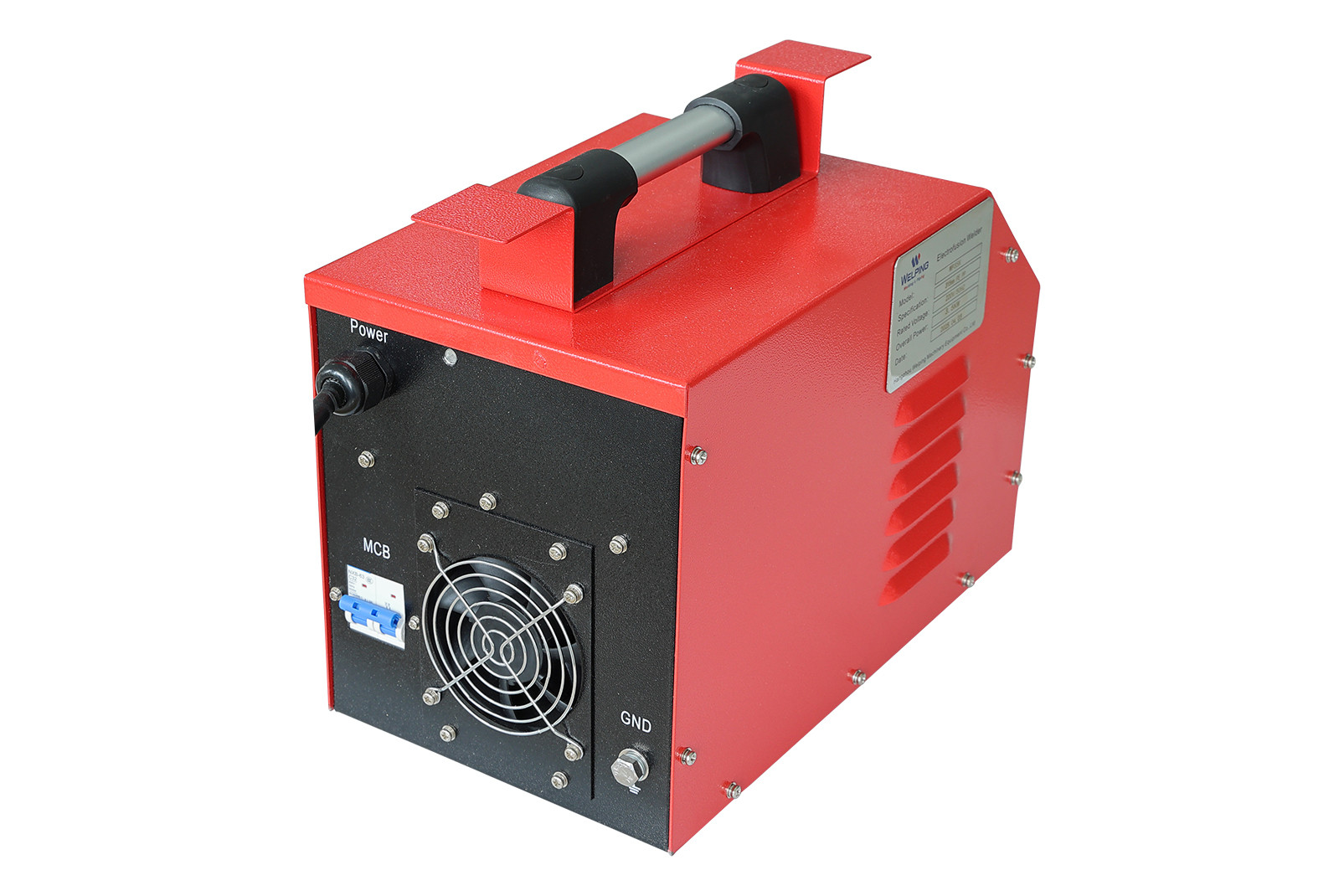

Power Supply
· 170-250V wide voltage input power
· 40-65HZ frequency
- Chinese famous brand breaker
Planning tool
· Pure copper wire
· Muuti-function connector, suitable for various terminals
· High temperature resistance

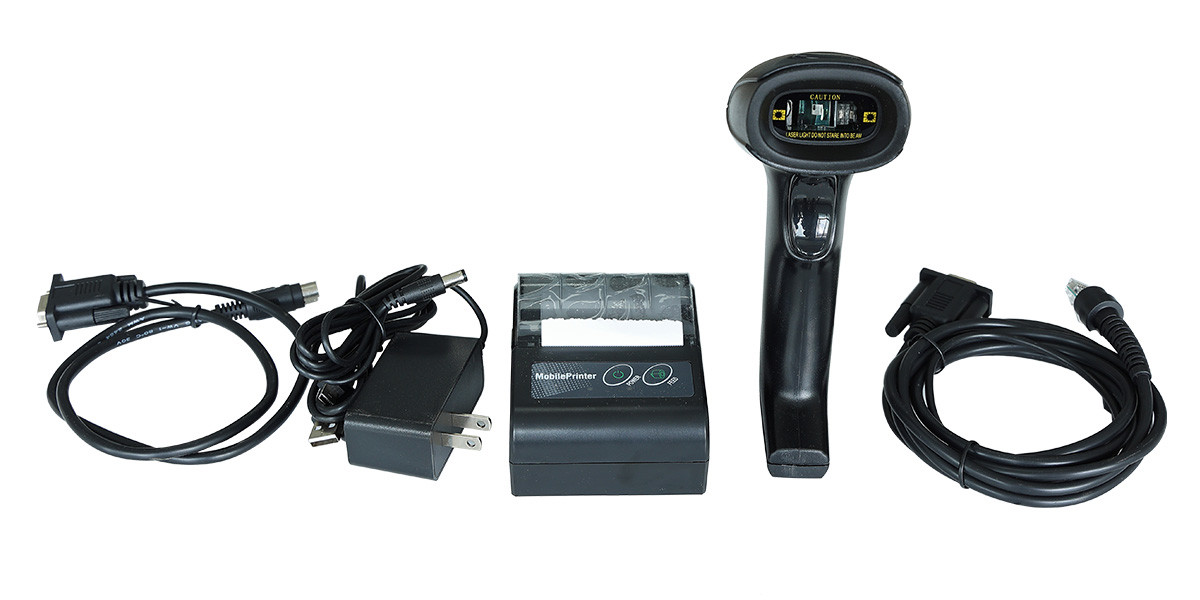

Data Record

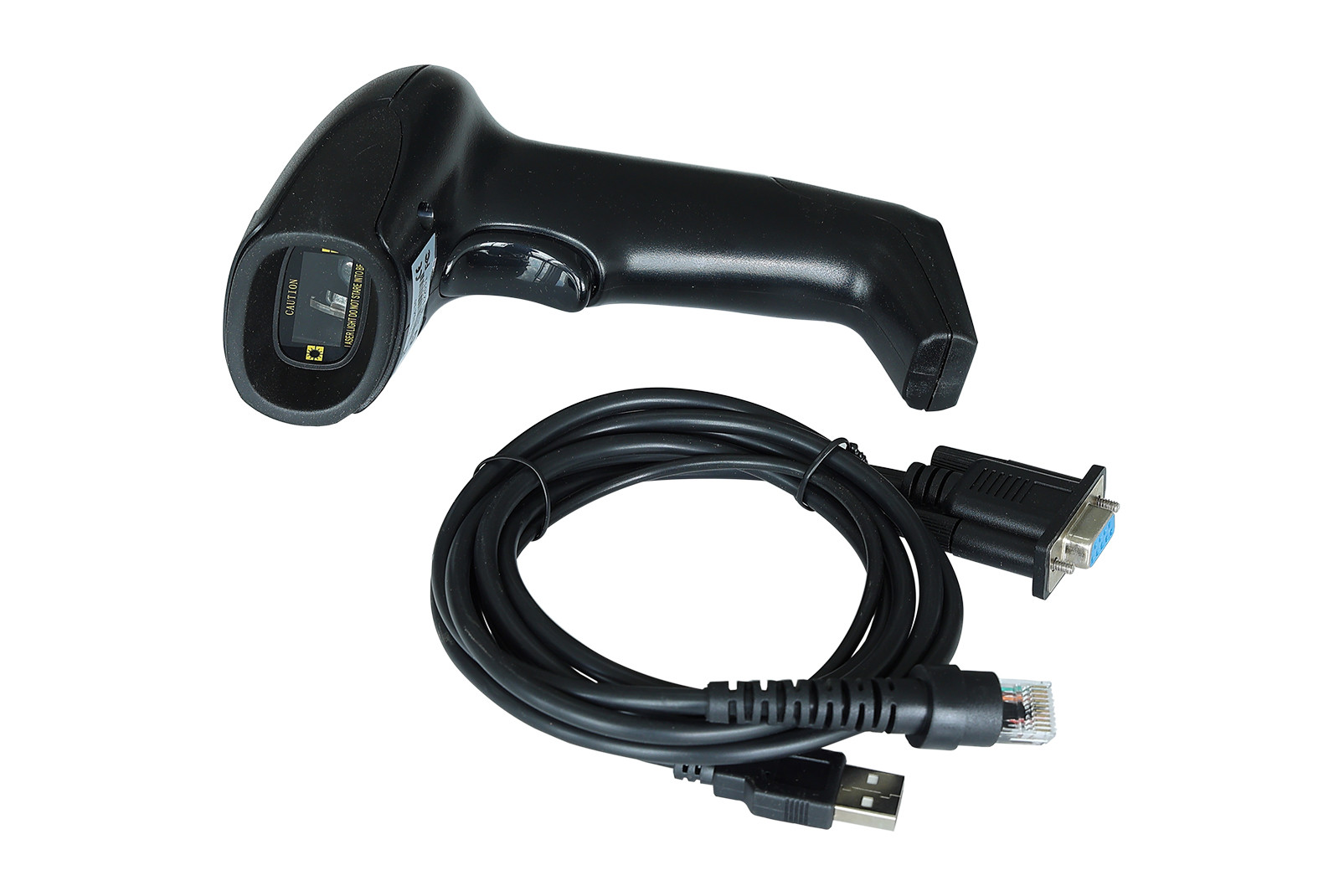

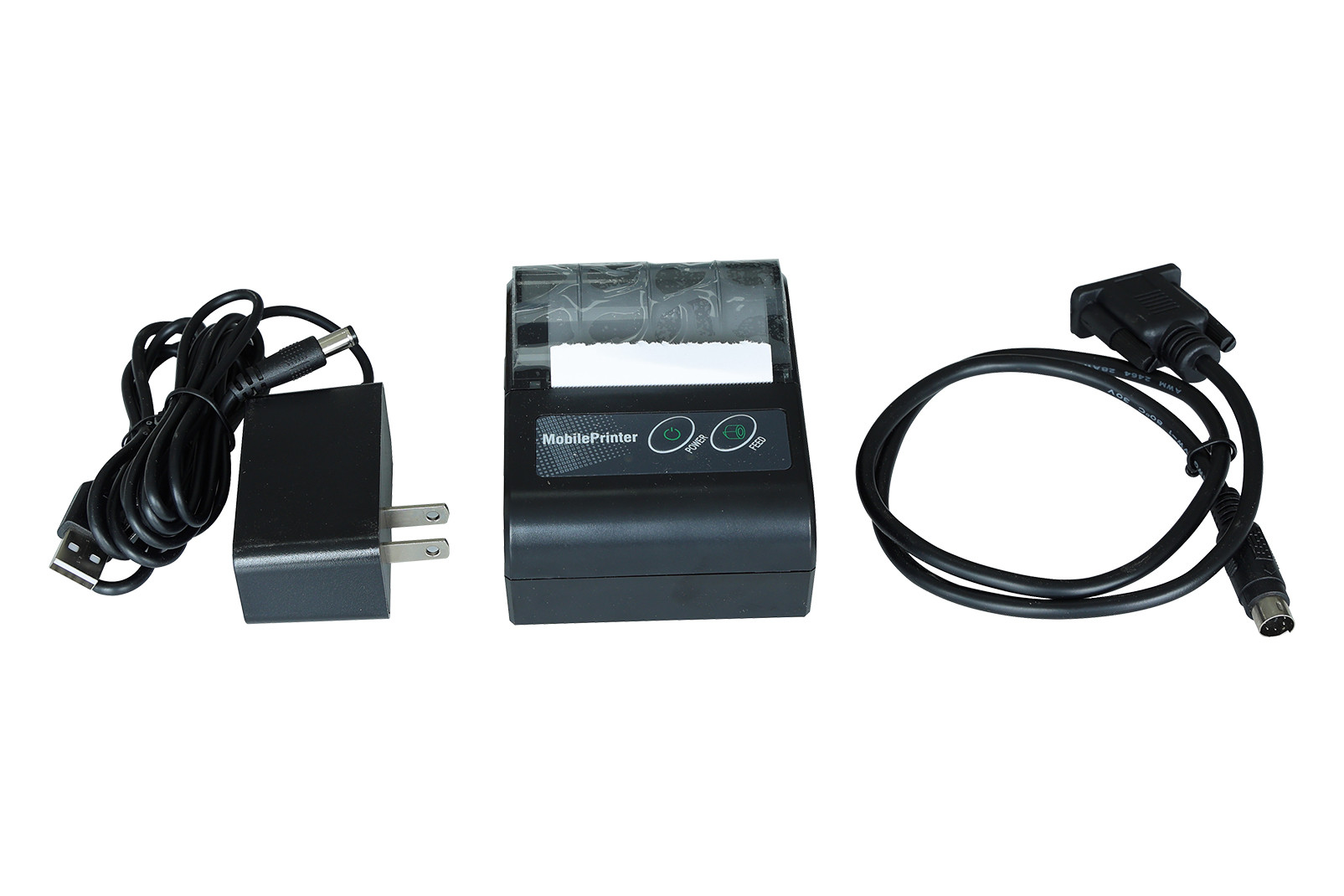

Scanner,Printer for option
PE Scrapper
PE scrapper for peeling the surface of the pipes before welding(for option)
